Side 1/3
1 947778
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous
shock is present with in this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
ISSUE 1
VIP-9831A IP Indoor Stealth Horn
INTRODUCTION
The VIP-9831A IP Stealth Horn is a
self-contained paging system which enables voice
paging up to 300 feet from an Ethernet connection.
The VIP-9831A consists of a horn and
Network/Audio Interface board allowing stand alone
capability when used with a SIP enabled telephone
system or can be accessed from a variety of Valcom
managed VoIP products.
SPECIFICATIONS
Access Methods
PBX, FXO Port w/VIP-811
POTS telephone set w/VIP-811
PBX, FXS Port w/VIP-821
Valcom M Cast Page Group
SIP telephone system
Features
RJ-45 network connection
Network activity LEDs
Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight
9.3 "H x 15.0 "W x 5.0 "D
(23.6 cm x 38.1 cm x 12.7 cm)
Weight: 5.5 lbs (2.05 kg)
Shipping Weight: 6.0 lbs (2.24kg)
Environment
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
INDOOR USE ONLY
Power
Via 802.3af PoE Ethernet Switch: Class 3
Precautionary Designations
Packing List
Qty Item
1 VIP-9831A IP Horn
1 VSP Document
4 Mounting Screws
INSTALLATION
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial
environment. This equipment generates uses
and can radiate radio frequency energy and if not
installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications. Operation
of this equipment in a residential area may cause
harmful interference in which case the user will
be required to correct the interference at his own
expense.
2 947778
Mounting (Enclosure / Horn)
The horn should be mounted 8 to 12 feet above the
oor to allow for best sound distribution. This unit
can be mounted to a single gang, double gang,
octagon electrical box or wall. See to Figure 2.
Using a Phillips screwdriver, remove 4
screws attaching grille to enclosure base.
Using a11/32 nut driver, carefully remove
horn bracket assembly from enclosure base.
Do not remove horn from bracket.
Carefully disconnect the black and white
speaker wires from Network/Audio PC board
Mount enclosure base to wall using
appropriate hardware.
Reconnect black and white speaker wires to
Network/Audio PC board.
Install horn bracket assembly.
Connect 802.3af compliant PoE port
(300 feet maximum distance) to network
connector on Network/Audio PC board.
Install grille onto enclosure base.
Status Indicator Lights
The VIP-9831A has 2 status indication lights located
on network jack:
Green LED: (Link) Indicates Ethernet connection
when illuminated.
Yellow LED: (Activity) Indicator flashes to indicate
network activity.
Operation
Provide paging from SIP connection or via a variety
of Valcom managed VoIP products. Integration to
customer telephone system can be via SIP
registration, FXO port (with VIP-811), or FXS port
(with VIP-821).

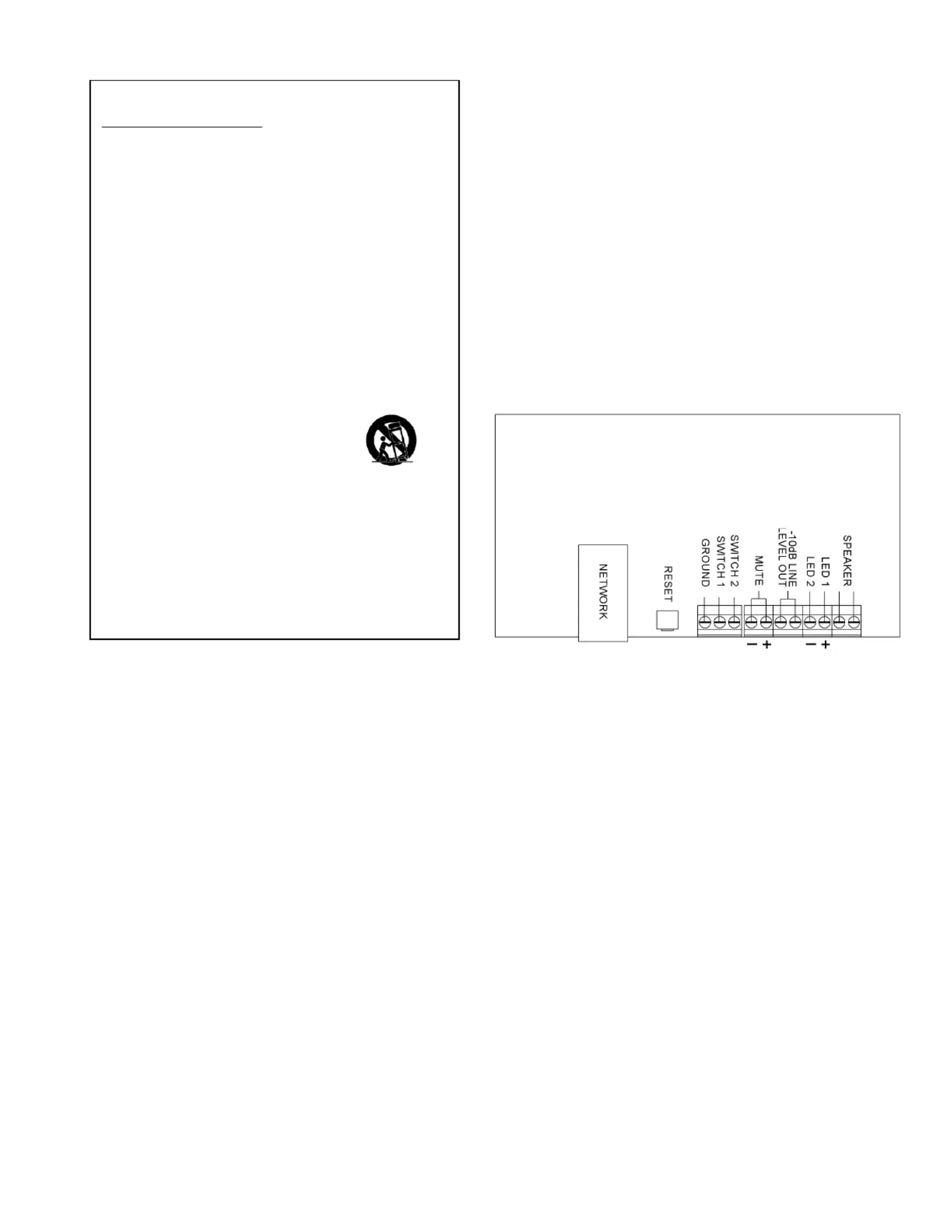

Figure 1. Connections
Setup
Information specific to your application will need to be
programmed into the VIP-9831A using a computer.
Setup will be done using the IP Solutions Setup Tool.
The IP Solutions Setup Tool may be downloaded
from the Valcom website at
www.valcom.com/vipsetuptool.
IMPORTANT SAFETY INFORMATION
CONSIGNES DE SÉCURITÉ IMPORTANTES
1. Read these instructions.
Lisez ces instructions.
2. Keep these instructions.
Conservez ces instructions.
3. Heed all warnings.
4. Follow all instructions.
Suivez toutes les instructions.
5. Do not use this apparatus near water.
Ne pas utiliser cet appareil près de l'eau.
6. Clean only with dry cloth.
Nettoyer avec un chiffon sec.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Ne pas bloquer les ouvertures de ventilation. Installer formément aux instructions du
fabricant.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce heat.
Ne pas installer à proximité de sources de chaleur telles que radiateurs, registres de
chaleur, poêles ou autres appareils (y compris les amplificateurs) produisant de la chaleur.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade and the third prong are provided for your safety. If
the provided plug does not fit into your outlet consult an electrician for replacement of the
obsolete outlet.
Ne pas contourner le dispositif de sécurité de la fiche polarisée ou de mise à la terre. Une
fiche polarisée possède deux lames dont une plus large que l'autre. Une fiche de terre a
deux lames et une troisième broche de mise à la terre. La lame large et la troisième
broche sont fournies pour votre sécurité. Si la fiche fournie ne rentre pas dans votre prise,
veuillez consulter un électricien pour le remplacement de la prise obsolète.
10.Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles and the point where they exit from the apparatus.
11.Only use attachments/accessories specified by the manufacturer.
N'utilisez que des fixations / accessoires spécifiés par le fabricant.
12. Use only with the cart, stand, tripod, bracket or table specified
by the manufacturer or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
Utilisez uniquement avec le chariot, stand, trépied, support ou table spécifié par le
fabricant ou vendu avec l'appareil. Quand un chariot est utilisé, Soyez prudent lorsque
vous déplacez l'ensemble chariot / appareil pour éviter des blessures dues au
renversement.
13. Unplug this apparatus during lightning storms or when unused for a long period of time.
Débranchez cet appareil pendant les orages ou lorsqu'il n'est pas utilisé pendant une
longue période de temps.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way. Such as when the power supply cord or plug is
damaged, liquid has been spilled, objects have fallen into the apparatus or the
apparatus has been exposed to rain or moisture and does not operate normally or has
been dropped.
Confiez toute réparation à un personnel qualifié. Une réparation est nécessaire lorsque
l'appareil a été endommagé de quelque façon. Par exemple lorsque le cordon
d'alimentation ou la fiche est endommagé, du liquide a été renversé, si des objets sont
tombés dans l'appareil ou le appareil a été exposé à la pluie ou à l'humidité et ne
fonctionne pas normalement ou s'il est tombé.
