ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
P0239

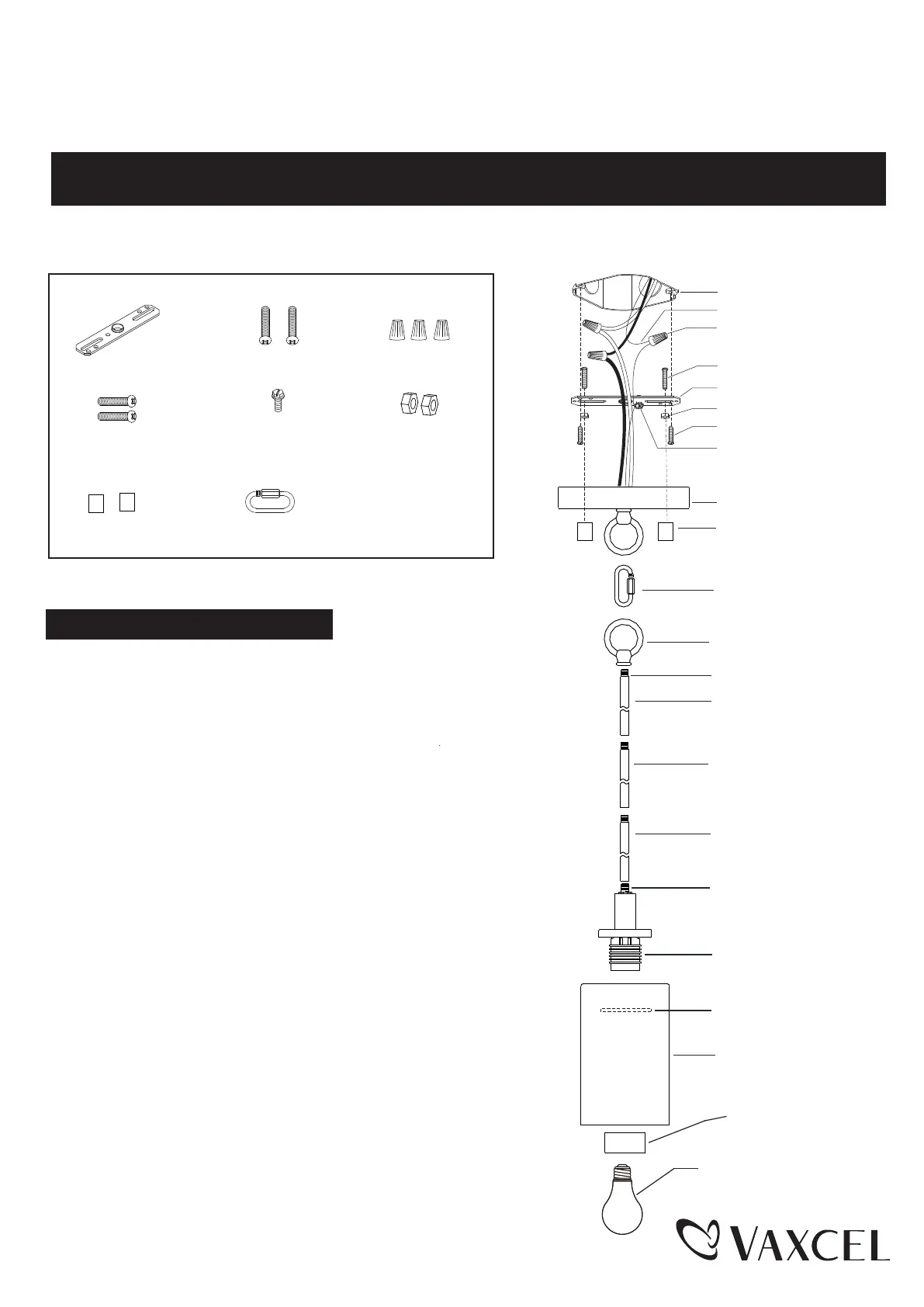

Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
Mounting Strap (A)
Fixture Mounting
Screw(D)
Wire
Connector
(C)
Installation Steps
Lock Nut (F)
Fixture Canopy
Ball Nut (G)
Ball Nut (G)
Upper Rod
Threaded Pipe
Threaded Pipe
Middle Rod
Lower Rod
Socket
Glass Shade
Socket ring
Outlet Box
House Grounding Wire
wire
connector
(C)
Fixture Mounting Screw (D)
Mounting Strap(A)
Green Grounding Screw(E)
Lock Nut(F)
Mounting Screw(B)
Type A Max.60 W
(not included)
1. Thread two fixture mounting screws through the mounting strap,
and then secure with two lock nuts. Adjust the length of the fixture
mounting screws if necessary.
2. Attach the mounting strap to the outlet box by using two mounting
screws.
3. Rod Connections:
a. Thread the fixture wire from the fixture through the lower rod, and
then secure the lower rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod, and then secure
the middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, and then secure
the upper rod onto the middle rod using the threaded pipe.
d. Thread the fixture wire through the loop and fixture canopy, and
then secure the loop onto the upper rod using the threaded pipe.
Note: Length adjustable from 14" to 71". Use fewer rods if shorter
length is desired.
4. Take a loop lock, open the locking tube, then hook it onto the loop
of fixture canopy and the loop of upper rod. Close back the locking
tube of the loop lock.
5. Pull out the source wires from the outlet box. Make wire connections
using wire connectors as follows:
---Connect the hot wire (usually black insulation) from the fixture to
the black wire from the power source.
---Connect the neutral wire (usually white insulation) from the fixture
to the white wire from the power source.
---Attach the fixture grounding wire (usually green insulation or bare
wire) to the mounting plate with the green grounding screw. Then
connect it to the house grounding wire with the wire connector.
Carefully put the wires back into the outlet box.
171104
Loop
Loop Lock (H)
Green Grounding
Screw (E)
Mounting Screw (B)
Loop Lock (H)
Metal Pad
