ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save this instructions.

C0186

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Turn off the power at fuse or circuit box.

Installation Steps

1. Attach crossbar unit (A) to the outlet box by using two

mounting screws (B).

2. Thread the wires through the stem and canopy, and

then connect the fixture and canopy through by the

stem.

3. Pull out the source wires from the outlet box.

Make wire connections using wire connectors (C)

as follows:

---Connect the hot wire (black insulation)

from the fixture to the black wire from the

power source.

---Connect the neutral wire (white insulation)

from the fixture to the white wire from the

power source.

---Attach the fixture ground wire (bare wire) to

the

crossbar

unit (A) with the green ground

screw, and then connect it to house ground

wire with the wire connector (C).

Carefully put the wires back into the outlet box.

4. Attach the canopy to the

crossbar unit

(A) by

inserting the fixture mounting screws, then

secure it with two bolt nuts (D).

Install 2 x 100W max.medium base bulbs (not included).

See relamping label at socket area or packaging for maximum

wattage allowed.

Mounting Screw (B) Wire Connector (C)

Bolt Nut (D)

Turn on the power at fuse or circuit box.

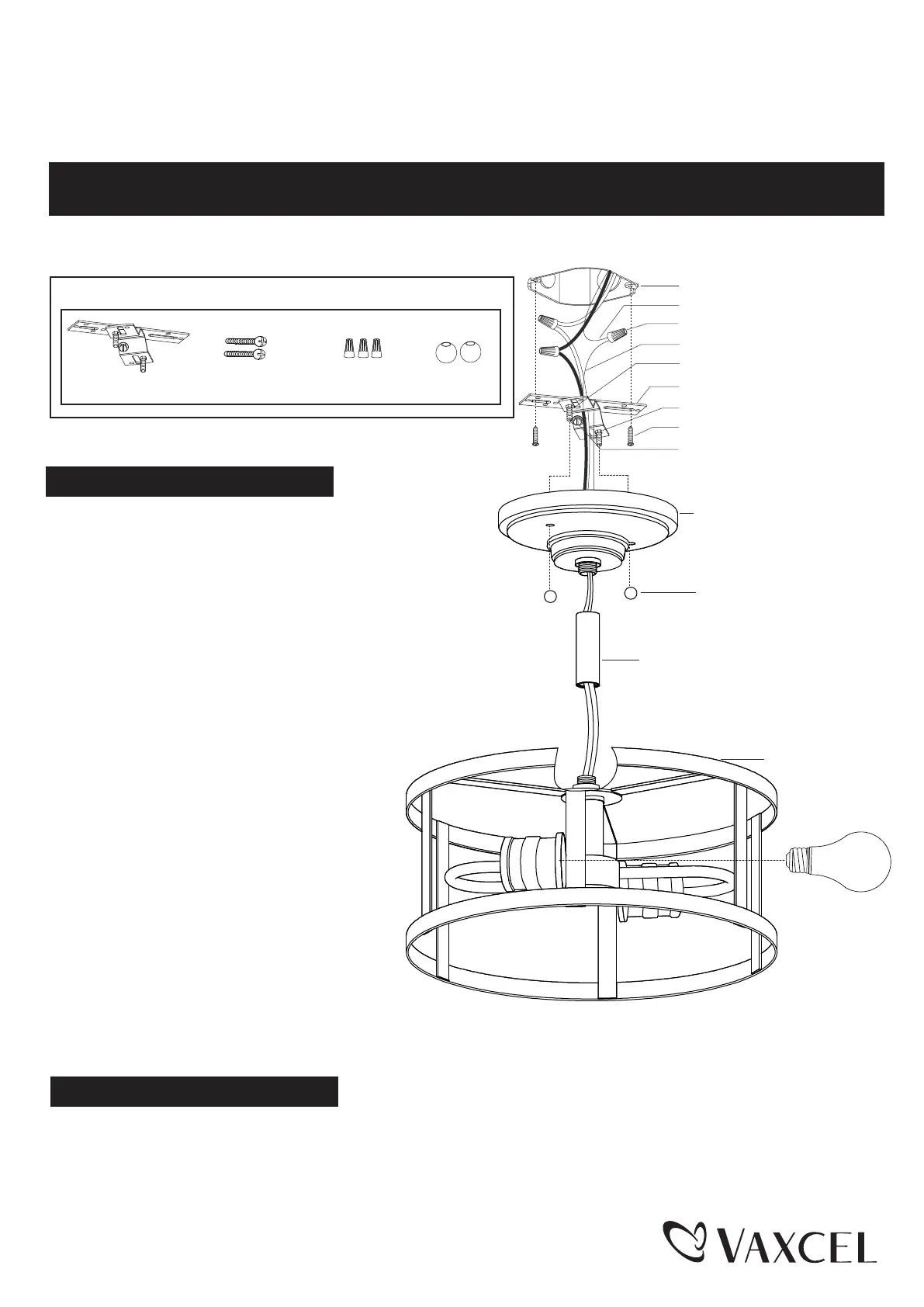

Crossbar Unit (A)

Canopy

Max. 100W Medium

Base Bulb

(not included)

Bolt Nut (D)

Fixture

Stem

OutletBox

House Ground Wire

Wire Connector (C)

Fixture Ground Wire

Fixture Mounting Screw

Crossbar Unit (A)

Green Ground Screw

Lock Nut

Mounting Screw (B)

231120
