1. Rod Connections:
a. Thread the fixture wire through the lower rod, then secure the lower rod
onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod and then secure the middle
rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, then secure the upper rod onto
the middle rod using the threaded pipe.
Note: Length adjustable from 9-3/4" to 54-1/2". Use fewer rods if shorter length
is desired.
2.
Thread the fixture wire through the canopy kit, then secure the rod
assembly to the set threaded pipe of the canopy kit.
3.
Attach the
mounting strap unit (A)
to outlet box by using two mounting
screws
(B)
.
4. Pull out the source wires from the outlet box. Make wire connections
using wire connectors (C) as follows:
---Connect the smooth-coated wire (marked) from the fixture to the
black wire from the power source.
---Connect the ribbed-coated wire (unmarked) from the fixture to the
white wire from the power source.
---Attach the fixture ground wire to the mounting strap unit (A) with
the green ground screw, then connect it to the house ground
wire with a wire connector (C).
Carefully put the wires back into the outlet box.
5. Attach the canopy kit to the mounting strap unit (A) by inserting the
fixture mounting screws, then secure it with two bolt nuts (D).
6. Attach the shade to socket, then secure it with the socket ring.
7. Install 1 X 60W Max. medium base bulb (not included).
See relamping label at socket area or packaging for maximum
wattage allowed.

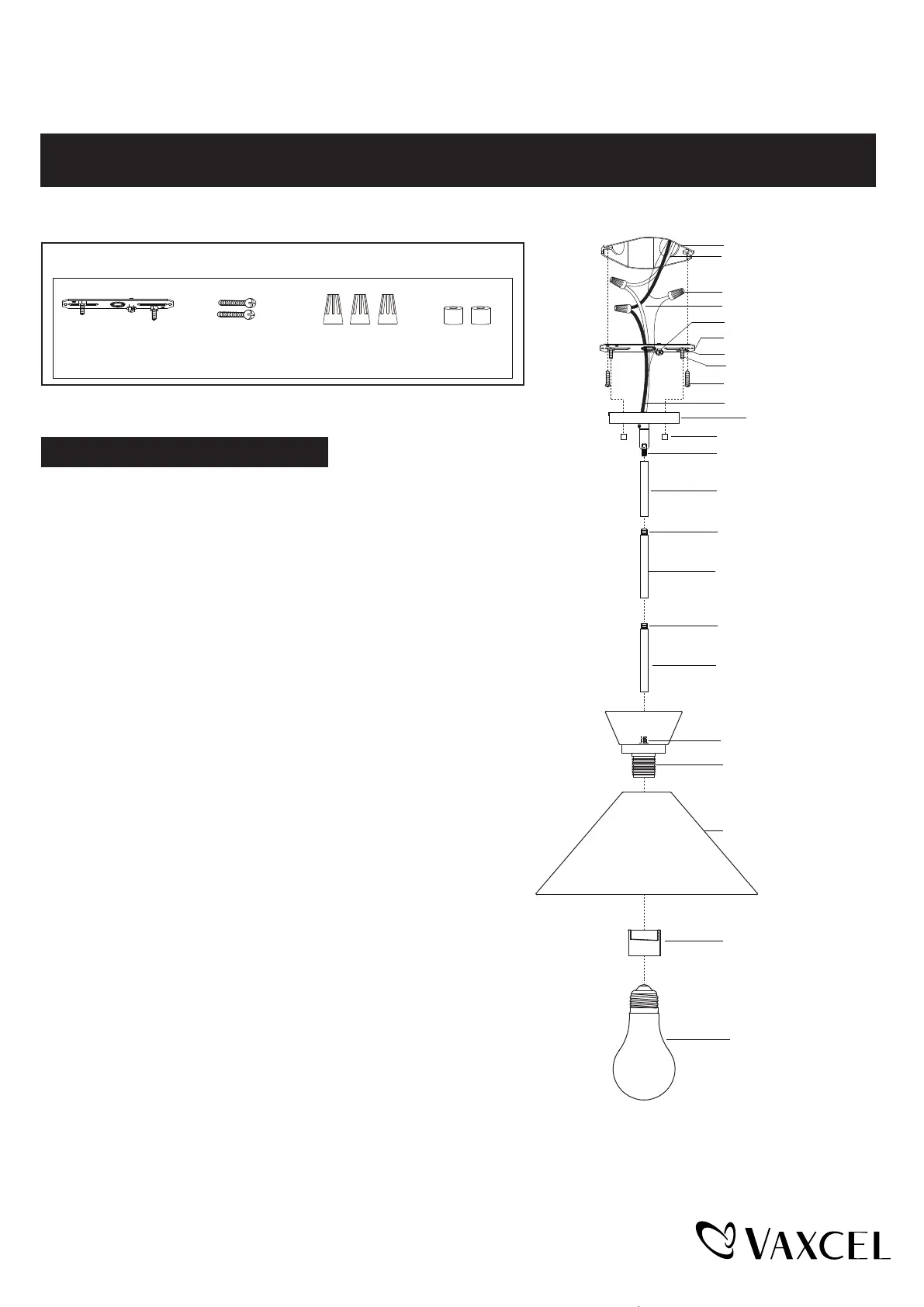

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instruction.
P0398 / P0399
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
Canopy Kit
Outlet Box
House Ground Wire
Wire Connector (C)
Lock Nut
Mounting Strap Unit (A)
Green Ground Screw
Mounting Screw (B)
Upper Rod
Middle Rod
Lower Rod
Threaded Pipe
Fixture Wire
Fixture Mounting Screw
Fixture Ground Wire
Threaded Pipe
Set Threaded Pipe
Bolt Nut (D)
Socket
Shade
Socket Ring
Max. 60W Medium Base Bulb
(not Included)
Threaded Pipe
Bolt Nut (D)
Mounting Screw (B)
Mounting Strap Unit (A)
Wire Connector (C)
Page 1 / 2
230628
