Vaxcel Huntley W0189 Manual

Vaxcel Lys Huntley W0189

Læs gratis den danske manual til Vaxcel Huntley W0189 (2 sider) i kategorien Lys. Denne vejledning er vurderet som hjælpsom af 2 personer og har en gennemsnitlig bedømmelse på 4.8 stjerner ud af 1.5 anmeldelser. Har du et spørgsmål om Vaxcel Huntley W0189, eller vil du spørge andre brugere om produktet?

Download PDF
Side 1/2
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
W0168 / W0169 / W0189 / W0306
1. Unscrew two ball nuts, and then remove the mounting plate from the back plate.
2. Attach the mounting plate to the outlet box by using two mounting screws.
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors as follow:
---Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.
---Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.
---Attach the fixture grounding wire (usually green insulation or bare wire) to the mounting plate with the green
grounding screw, and then connect it to the house grounding wire with the wire connector.
Carefully put the wires back into the outlet box.
4. Attach the back plate to the mounting plate by inserting two fixture mounting screws, and then secure it with two
ball nuts.
181013

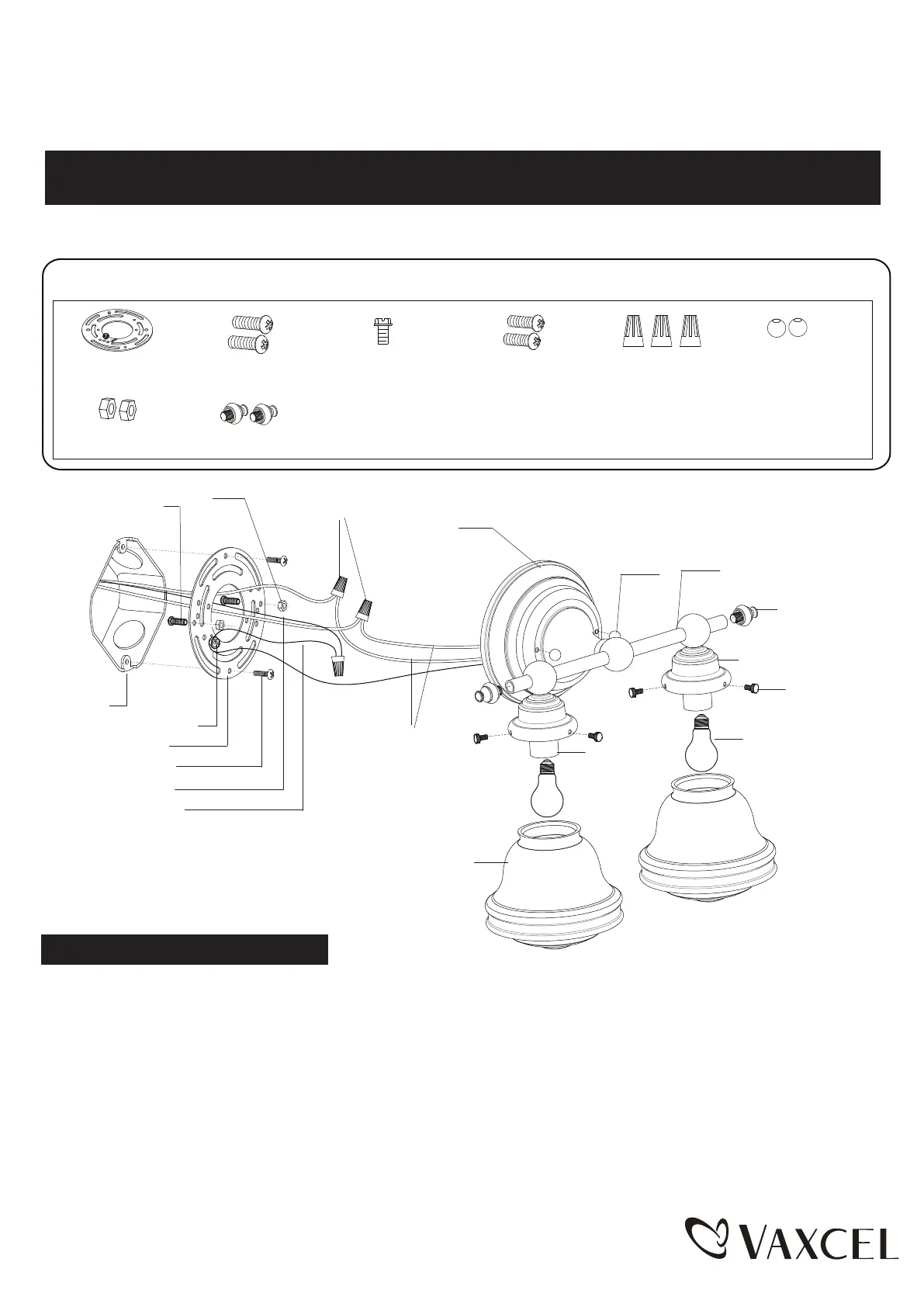

Mounting Screw (B)
Wire Connector (E)
Mounting Plate (A)
Ball Nut (F)
Lock Nut (G) Finial (I)
Fixture mounting
Screw(D)
Bulb Type A Max.60W
(not included)
Glass Shade
Ball Nut (F)
Socket
Set Screw(H)
Mounting Screw (B)
Mounting Plate (A)
Green Grounding Screw (C)
Wire
Connector
(E)
House Grounding Wire
Fixture Grounding Wire
Fixture mounting
Screw(D)
Lock Nut(G)
Outlet Box
Fixture Wire
Back Plate
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Green Grounding
Screw (C)
Turn off the power at fuse or circuit box.
Installation Steps
Glass Holder
Finial(I)
Tube

Produkt Specifikationer

Mærke: Vaxcel
Kategori: Lys
Model: Huntley W0189
