ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

P0221 / P0225

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

170105

Important: You may choose the glass panel (with or without metal-cut silhouette, see Fig.1 & Fig. 2 & Fig. 3) for

installation as you desire.

Preparation For Installation

Mounting Screw (D)

Hex Nut (B)

Wire Nut (E)

Mounting Strap (A)

Nipple (C)

Green Grounding

Screw (F)

Coupling Kit (G)

Collar (H)

Canopy (I)

Glass Panel

Glass Panel

Glass Panel

Metal Frame

Metal-Cut Silhouette

Metal-Cut Silhouette

Clip

Clip

Glass Panel (with or without

Metal-Cut Silhouette)

Glass Panel (with or without

Metal-Cut Silhouette)

Metal Frame

Fig.1

Fig.2

Fig.3

Fig.5

Fig.6

Fig.4

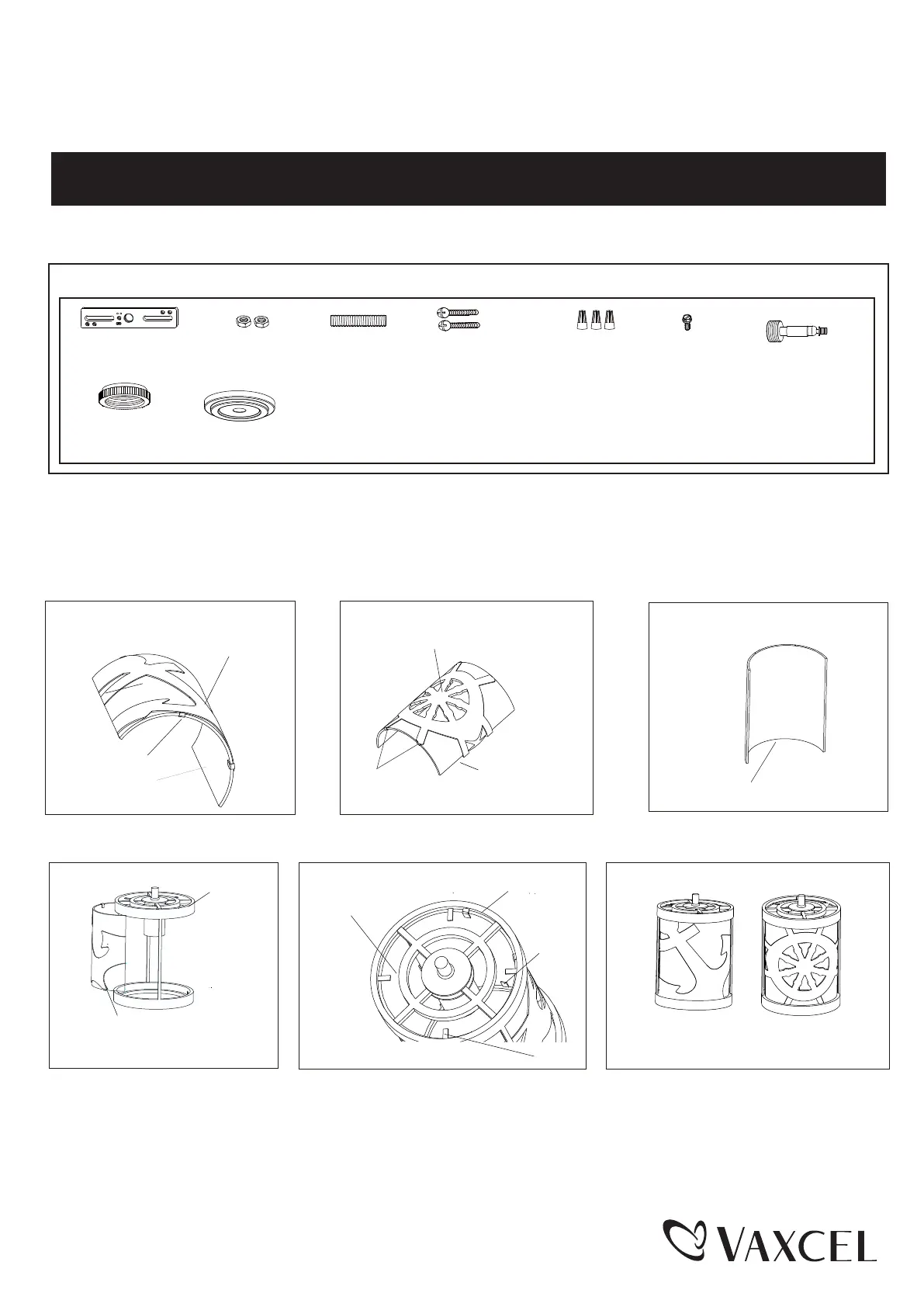

Metal-Cut Silhouette Assembly: Secure the clips of metal-cut silhouette onto the glass panel tightly. Adjust the surface

radian of metal-cut silhouette to match the surface of glass.(Fig.1 &Fig.2))

1. Gently slide the glass panel (with or without metal-cut silhouette) into the metal frame as shown on Fig. 3

2. Having one side of glass panel located into the slot of “L” clips first, and then secure another side by folding the clips on

it (see Fig. 4)

3. See the finished look of glass panels with complete metal-cut silhouettes as shown on Fig. 5.

Glass Panel Assembly (with or without Metal-Cut Silhouette):

Clip

“L” Clip

Front View

Back View
