Viale Vicenza 14

36063 Marostica VI - Italy

www.vimar.com

xx134 01 2502

LINEA

30134.x

ARKÉ

19134

EIKON

20134

PLANA

14134

Universal dimmer 220 - 240 V~ 50/60 Hz for ceiling fans 15-150 W, ON/OFF control

and regulation by built-in push buttons, ON/OFF control with NO peripheral push

buttons, minimum fan adjustment, settable visible in darkness. Not suitable for

installation in Isoset enclosures.

CHARACTERISTICS.

• ON, OFF and motor speed change with built-in push buttons.

• 4 motor speed adjustment levels:

- OFF

- V1 = 5 - 25%

- V2 = 50%

- V3 = 75%

- V4 = 100%

• Thermal protection with flashing-lamp blow-out detector.

• Overload protection with flashing-lamp blow-out detector.

• It should be used in dry, dust-free places at a temperature of between 0 °C and +35 °C.

• Up to 3 dimmers with a load of 150 W each can be installed in the same mounting box.

• If installing more than 3 dimmers in the same mounting box, the controllable loads by each

dimmer must be reduced so that their total does not exceed the maximum power of 450 W.

CONNECTIONS.

• Control and speed change via built-in push buttons.

• ON/OFF control from remote push button.

• Remote control:

- ON-OFF function only

- activates the dimmer at the previous speed if switched off from the remote control

- activates the dimmer at V1 if switched off from local control

• For correct operation, the length of each connection between the dimmer and the NO buttons

may not exceed 100 m.

DIMMER OPERATION.

Motor status Button Pressing type Function

OFF

Short

The motor starts at V1

Down

Short

No function

Long

(any speed)

Short The motor switches from Vn

to Vn+1

(if the motor is at V4 it stays

at V4)

Long

Down

Short The motor switches from Vn

to Vn-1

(if the motor is at V1 it switches

off)

Long

n=1, 2, 3, 4.

N.B. In the event of a power failure, when the power returns, the dimmer operation will be set

to OFF, irrespective of the status it was in before the power failure.

INSTALLATION RULES.

• Installation and configuration must be carried out by qualified persons in compliance with the

current regulations regarding the installation of electrical equipment in the country where the

products are installed.

• The device must be installed in flush mounting boxes or surface mounting boxes with Linea,

Eikon, Arkè and Plana mounting frames and cover plates.

• The electronic 1-way switch must be protected by a directly associated fuse with a rated

breaking capacity of 1500 A or by an automatic 1-way switch with a rated current not

exceeding 1 A

• Installation must be carried out with the system switched off.

• The dimmer does not have a mechanical 1-way switch in the main circuit and so is not

galvanically separated. The circuit load should be considered always powered.

REGULATORY COMPLIANCE.

LV Directive. EMC directive. RoHS directive.

Standards EN IEC 60669-2-1, EN IEC 63000.

REACH (EU) Regulation no. 1907/2006 – Art.33. The product may contain traces of lead.

WEEE - User information

The crossed out bin symbol indicates that the product must be sent to separate collection facilities for recovery

and recycling, in compliance with the national laws of EU Countries that implement the WEEE Directive. The

objective is to prevent any harmful effects on the environment and on human health by ensuring that products

are disposed of correctly, avoiding illegal disposal sanctioned by law.

To dispose of the product correctly, please check local dispositions in your country.

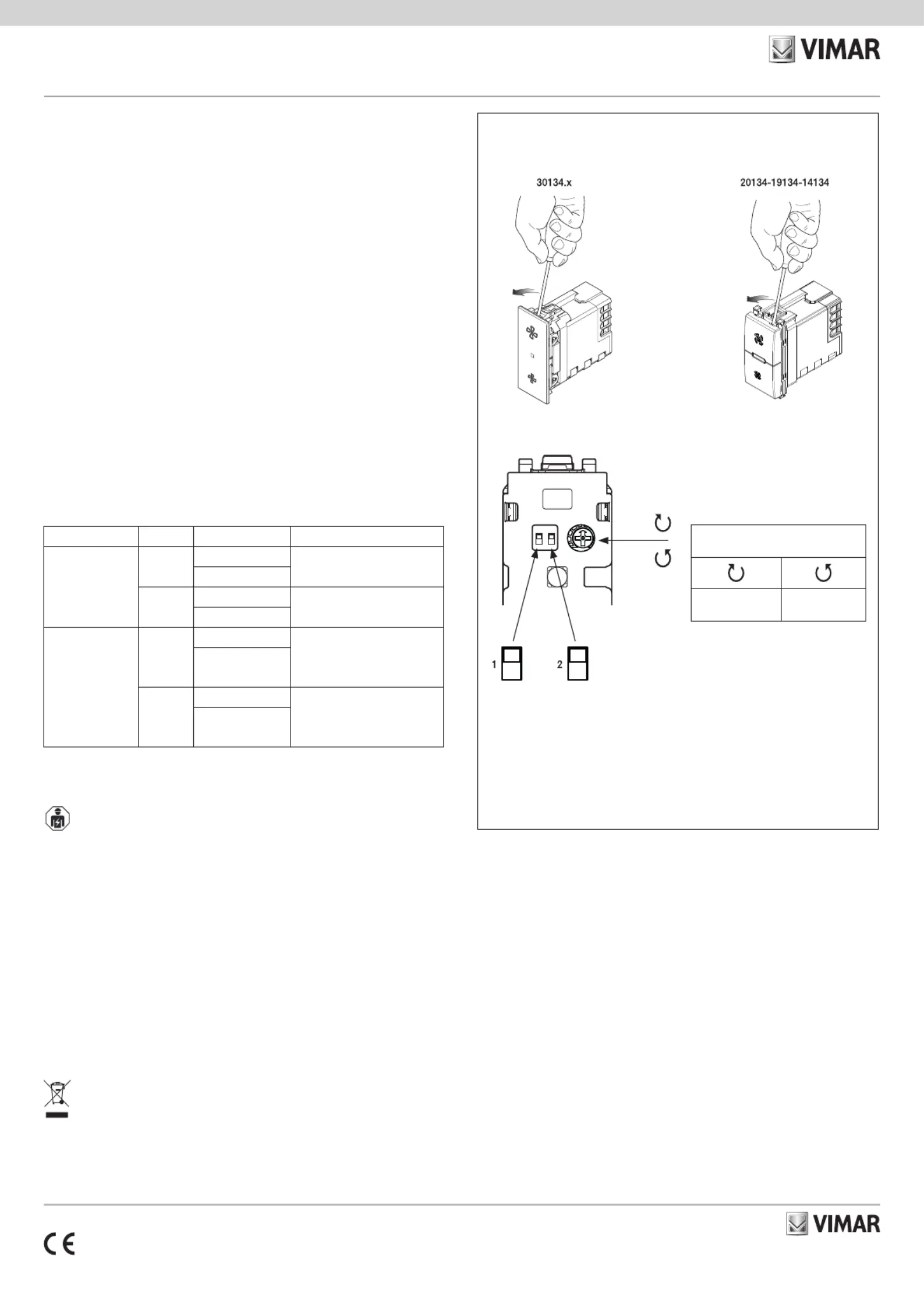

CONFIGURATION

Remove the upper button and set the dip switches

V1 adjustment trimmer from 5 to 25%

(default 25%)

Increases

minimum speed

Decreases

minimum speed

2. LED operation

Up Position = LED always OFF

Down Position = LED enabled

000

1. LED lighting mode

Up Position:

- Motor OFF and LED ON

- Motor ON and LED ON

Down Position:

- Motor OFF and LED OFF

- Motor ON and LED ON

Viale Vicenza 14

36063 Marostica VI - Italy

www.vimar.com

xx134 01 2502

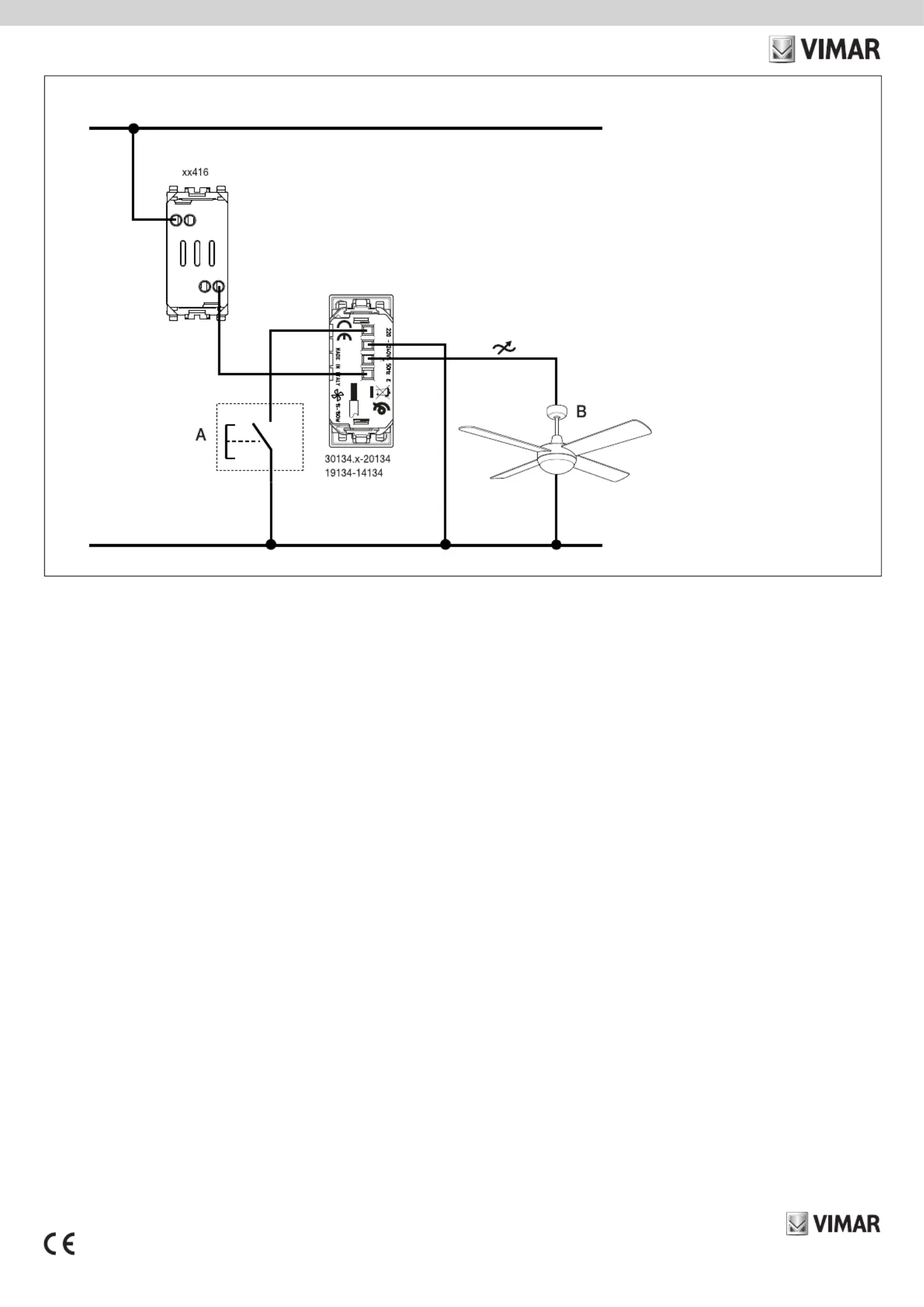

CONNECTION

A: ON/OFF and control button.

B: Ceiling fan.

6 mm

P N L

The protection fuse activates in case of a load

short-circuit.
