Power supply
Please connect the designated AC adapter to an AC outlet of the correct
voltage. Do not connect it to an AC outlet of voltage other than that for
which your unit is intended.
Interference with other electrical devices
Radios and televisions placed nearby may experience reception interfer-
ence. Operate this unit at a suitable distance from radios and televisions.
To avoid breakage, do not apply excessive force to the switches or
controls.
Care
If the exterior becomes dirty, wipe it with a clean, dry cloth. Do not use
liquid cleaners such as benzene or thinner, or cleaning compounds or
ammable polishes.
Keep this manual
After reading this manual, please keep it for later reference.
Keeping foreign matter out of your equipment
Never set any container with liquid in it near this equipment. If liquid gets
into the equipment, it could cause a breakdown, re, or electrical shock.
Be careful not to let metal objects get into the equipment. If something
does slip into the equipment, unplug the AC adapter from the wall outlet.
Then contact your nearest VOX dealer or the store where the equipment
was purchased.
* All product names and company names are the trademarks or registered
trademarks of their respective owners.
THE FCC REGULATION WARNING (for USA)
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
If items such as cables are included with this equipment, you must use
those included items.
Unauthorized changes or modication to this system can void the user’s
authority to operate this equipment.
SUPPLIER’S DECLAR ATION OF CONFORMITY (for USA)
Responsible Party : KORG USA INC.
Address : 316 SOUTH SERVICE ROAD, MELVILLE, NY
Telephone : 1-631-390-6500
Equipment Type : GUITAR AMPLIFIER
Model : VOX MV50-HG/MV50-BQ
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Notice regarding disposal (EU only)
If this symbol is shown on the product, manual, battery, or package,
you must dispose of it in the correct manner to avoid harm to human
health or damage to the environment. Contact your local administra-
tive body for details on the correct disposal method. If the battery
contains heavy metals in excess of the regulated amount, a chemi-
cal symbol is displayed below the symbol on the battery or battery
package.
IMPORTANT NOTICE TO CONSUMERS
This product has been manufactured according to strict specications
and voltage requirements that are applicable in the country in which it
is intended that this product should be used. If you have purchased this
product via the internet, through mail order, and/or via a telephone sale,
you must verify that this product is intended to be used in the country in
which you reside.
WARNING: Use of this product in any country other than that for which it
is intended could be dangerous and could invalidate the manufacturer’s
or distributor’s warranty.
Please also retain your receipt as proof of purchase otherwise your product
may be disqualied from the manufacturer’s or distributor’s warranty.
Owner Manual’s
Manuel d’utilisation
Bedienungsanleitung
Manual de usuario
取扱説明書
High Gain
アフターサービス
修理または商品のお取り扱いについてのご質問、ご相談は、お客様相談窓口へお問
い合わせください。
お客様相談窓口
0570
-
666
-
569
PHS等一部の電話ではご利用できません。固定電話または携帯電話からおかけください。
受付時間 月曜～金曜 10:00 ～ 17:00（祝祭日、窓口休業日を除く）
●
サービス・センター： 〒168-0073 東京都杉並区下高井戸1-18-16 2F
輸入販売元: KORG Import Division
〒206-0812 東京都稲城市矢野口4015-2
http://www.korg.com/jp/kid/
■お願い
1. 保証書に販売年月日等の記入がない場合は無効となります。記入できないと
きは、お買い上げ年月日を証明できる領収書等と一緒に保管してください。
2. 保証書は再発行致しませんので、紛失しないように大切に保管してください。
保証書
VOX MV50 High Gain/Boutique
本保証書は、保証規定により無償修理をお約束するものです。
お買い上げ日 年 月 日
販売店名
1 Harrison Close, Knowlhill, Milton Keynes, MK5 8PA. UK
www.voxamps.com
Vox Amplification Ltd.
©
2018 VOX AMPLIFICATION LTD.
Published 1/2018 Printed in Vietnam
Precautions
Location
Using the unit in the following locations can result in a malfunction.
• In direct sunlight
• Locations of extreme temperature or humidity.
• Excessively dusty or dirty locations.
• Locations of excessive vibration.
• Close to magnetic elds.
- 2 -
English
Introduction
Thank you for purchasing the VOX MV50 High Gain/MV50 Boutique
guitar amplifier. To help you get the most out of your new instrument,
please read this manual carefully.
About Nutube
Nutube is a new vacuum tube developed by KORG INC. and Noritake
Itron Corporation and that utilizes technology from vacuum fluorescent
displays.
As with conventional vacuum tubes, the Nutube is constructed with
an anode, grid and filament, and operates as a complete triode tube.
Furthermore, it generates the response and same rich harmonic
characteristics of conventional vacuum tubes.

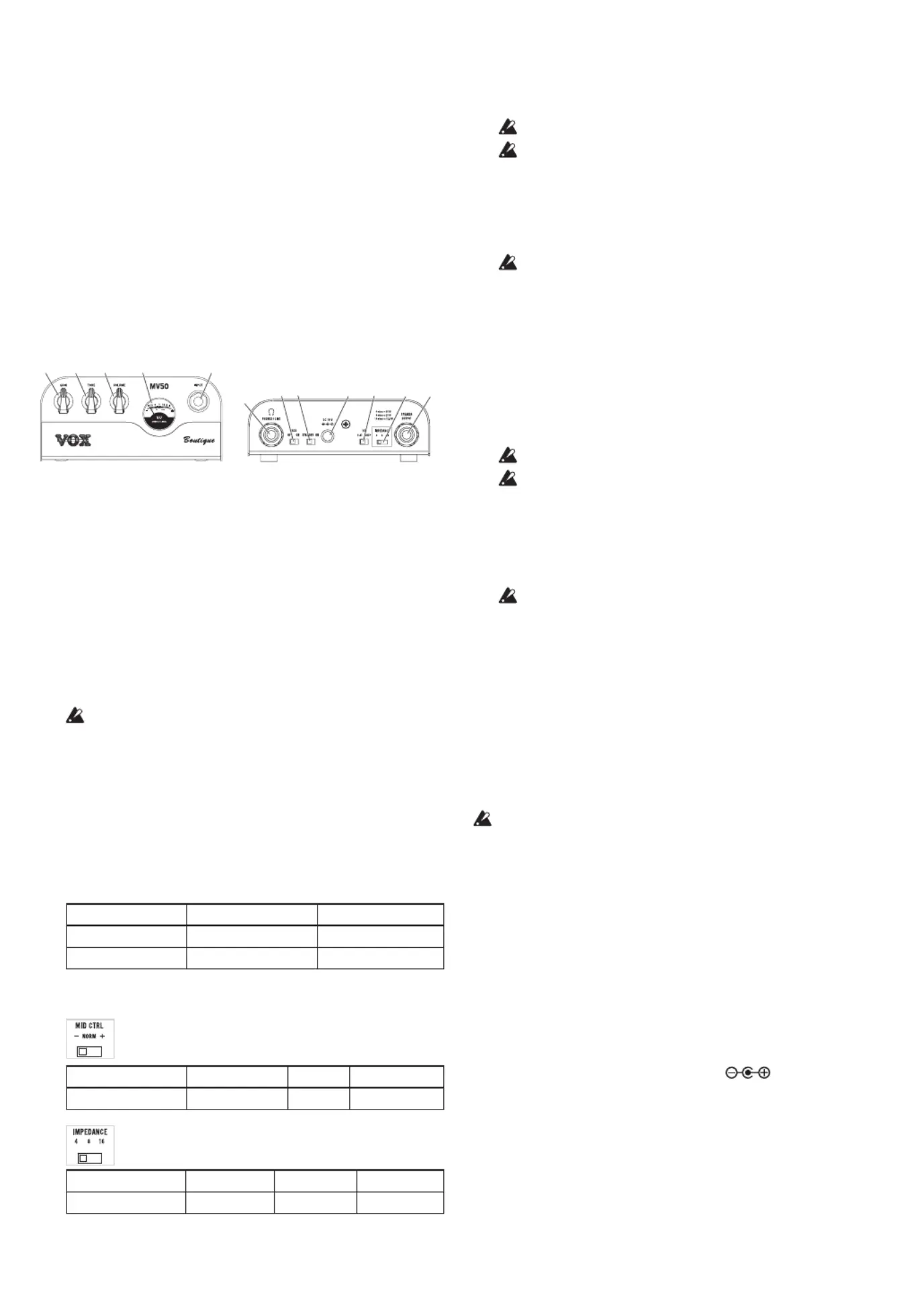

Part Names and Functions
1. GAIN knob: Controls the pre amp gain.
2. TONE knob: Controls the tonal color.
3. VOLUME knob: Controls the volume levels for the SPEAKER
OUTPUT jack and PHONES / LINE jack.
4. VU meter: Shows the output level of the amplifier.
5. INPUT jack: Plug your guitar in here, ensuring you use a shielded
guitar cable.
6. PHONES / LINE jack: Use this jack if you want to output directly to
a mixer or a recording device, or when you want to use headphones.
Output level is adjusted with the VOLUME knob.
Both the IMPEDANCE and EQ switches do not affect the output
from this jack.
7. ECO switch: The Auto Power-Off function can be disabled by
moving the switch to the OFF position.
8. Power switch: When the switch is moved to the ON position, the
amp turns on.
9. DC 19 V jack: Connect the included AC adapter here.
10. EQ switch: You can change the tonal character of the sound by this
switch.
Switch position FLAT DEEP
Cabinet to be used Large cabinet Small cabinet
Sound Thick and warmFlat
11. MID CTRL/IMPEDANCE switch: You can change these parameters
of the amplifier.
MV50 High Gain
A control switch to boost/cut the amp mid range.
Switch position - (MINUS) NORM + (PLUS)
Amp mid range Cut Normal Boost
MV50 Boutique
An impedance switch to optimize the sound character.
Switch position 4 8 16
Impedance 4 ohm 8 ohm 16 ohm
3
2
6
5
7
8
10
11
9 1
2
1
4
(The figure shows MV50 Boutique)
12. SPEAKER OUTPUT jack: Connect the speaker cable to this jack.
The minimum speaker’s impedance is 4ohms, and you will get
approx. 50W output with 4ohms, 25W with 8ohms, and 12.5W with
16ohms load.
Do not connect a load less than 4ohms.
The MV50 has a built-in protection system that prevents damage
should unusual circumstances occur. If the sound cuts out for
a few seconds, don’t worry, this is the MV50 protecting itself
and your speakers. If you find this happens, simply reduce the
volume on the MV50 slightly. (This protection only occurs with
16Ω speakers. 8Ω and 4Ω speakers are unaffected.)
This is BTL (Bridge-Tied-Load) output. This means both tip and
sleeve is the signal line, and sleeve is not grounded. Only use
this jack for connecting speakers to MV50. Connecting anything
else may result in damages to MV50.
Setup
1. Turn the VOLUME knob on the amp to the minimum position.
2. Connect the supplied AC adapter to the power cord. Insert the DC
plug end into the DC 19 V jack. Next, plug the power cord into an
AC outlet.
Be sure you’re using an AC outlet of the correct voltage for your unit.
Use only the supplied AC adapter. Using any other AC adapter
may cause malfunctions.
3. Plug the cable that’s connected to your guitar into the INPUT jack.
4. Plug the speaker cable that’s connected to the speaker cabinet into
SPEAKER OUTPUT jack.
SPEAKER OUTPUT jack may not be used if not needed. This
won’t harm the amp.
5. Turn the amp on, and slowly raise the VOLUME knob to adjust
the volume.
Auto power-off function
The amp has an auto power-off function. With this function, the amp
is automatically turned off if there is no output for approximately 15
minutes. Switching the ECO on enables the auto power-off function,
whereas switching the ECO off disables the function.
When the amp is turned off, it is not automatically turned back on. After
the amp is turned off, turn it on again or turn this switch off.
When the output level is extremely low or there is very little change
in the sound, the auto-power off function may be activated. In
addition, depending on the setting and environment, the amp may
interpret noise as input, even if the guitar is not being played.
Specifications
Input/Output Jacks: INPUT Jack × 1, SPEAKER OUTPUT Jack × 1
(6.3 mm monaural phone jack, unbalanced)
PHONES / LINE Jack × 1
(6.3 mm stereo phone jack)
Vacuum tube: Nutube 6P1
Output Power: Maximum approx 50 W RMS@4 ohms,
25 W RMS@8 ohms, 12.5 W RMS@16 ohms
Power supply: AC adapter (DC 19 V )
Current Consumption:
3.42 A
Dimensions (W× D×H):
135 × 75 × 100 mm/5.31 × 2.95 × 3.94 inches
Weight: 540 g/1.19 lbs.
Included items: AC adapter, Power cord, Owner's Manual
* Appearance and specifications of this product are subject to change without
notice.

Produkt Specifikationer

Mærke: VOX
Kategori: Guitarforstærker
Model: MV50 High Gain

Har du brug for hjælp?

Hvis du har brug for hjælp til VOX MV50 High Gain stil et spørgsmål nedenfor, og andre brugere vil svare dig


Guitarforstærker VOX Manualer

VOX

VOX VT100X Manual

10 August 2025
VOX

VOX VX15 GT Manual

9 August 2025
VOX

VOX MV50 High Gain Manual

8 August 2025
VOX

VOX MINI GO 50 Manual

8 August 2025
VOX

VOX MV50 Clean Manual

8 August 2025
VOX

VOX BC108 Manual

8 August 2025
VOX

VOX MVX150C1 Manual

8 August 2025
VOX

VOX MINI GO 3 Manual

8 August 2025
VOX

VOX VX50 AG Manual

8 August 2025
VOX

VOX AC4C1 Manual

8 August 2025

Guitarforstærker Manualer

Nyeste Guitarforstærker Manualer

Markbass

Markbass Marcus Miller CMD 101 Micro 60 Manual

5 August 2025
Markbass

Markbass MB58R CMD 121 Pure Manual

5 August 2025
Markbass

Markbass CMB 151 Black Line Manual

5 August 2025
Markbass

Markbass Little Mark Vintage Manual

5 August 2025
Markbass

Markbass Little Mark Tube 800 Manual

5 August 2025
Zoom

Zoom MS-200D+ Manual

4 August 2025
Line 6

Line 6 Powercab 212 Manual

4 August 2025
Hartke

Hartke HD210 Manual

3 August 2025
Hartke

Hartke HD-115 Manual

3 August 2025
Roland

Roland GA-212 Manual

3 August 2025
