INSTALLATION INSTRUCTION

Paloma - LED Monopoint

MO-LED522

SAFETY INSTRUCTION

IMPORTANT: NEVER attempt any work without shutting o the electricity.

- Read all instructions before installing.

- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.

- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch “OFF” the

circuit breaker switch(es) that control the power to the xture or room that you are working on.

- Place the wall switch in the “OFF” position.

CAUTION

- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out or

broken. Failure to follow this instruction could invalidate the UL/CUL listing of this xture.

AVERTISSEMENT

IMPORTANT : Coupez l’électricité avant TOUTE manipulation.

- Lisez toutes les instructions avant d’installer.

- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les règlements locaux.

- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt («OFF »).

- Placez l’interrupteur mural en position d’arrêt (« OFF »).

MISE EN GARDE

- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en laissez pas de côté et ne

les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler l’homologation UL/CUL du luminaire.

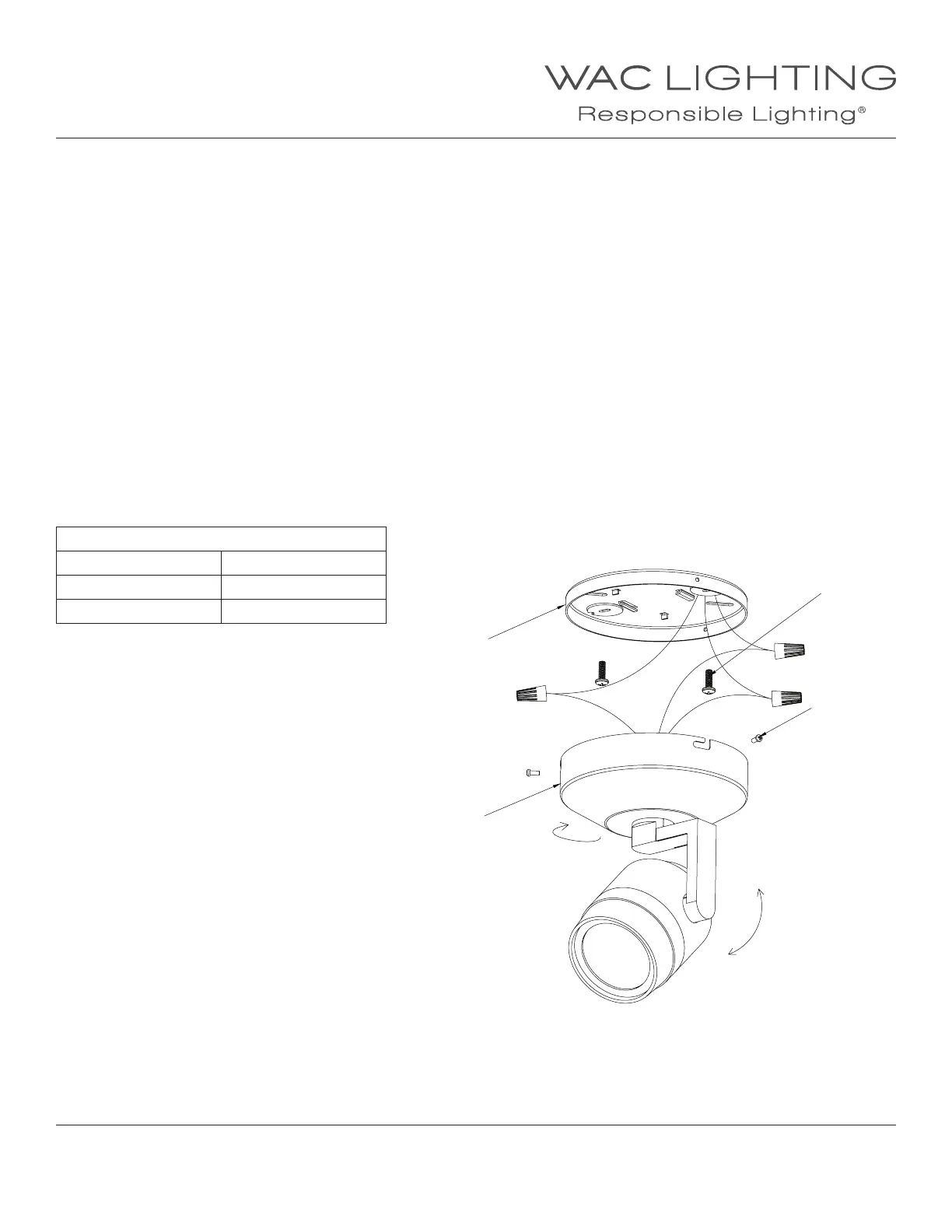

INSTALLING LAMP: (Fig.1)

1. Loosen the three canopy screws, twist and separate

the canopy cover from the base plate.

(keep screws on base plate)

2. Remove a knock out from the base plate.

3. Attach the base plate to the surface using slotted holes

for mounting screws (supplied).

4. Connect xture wires to AC power wire,

with wire nuts (supplied).

5. Connect ground wire to the green wire from xture.

6. Mount the canopy to the base plate by twisting

key holes over three screws in base plate.

7. Tighten screws to secure canopy.

8. After the light is on, rotate the luminaire body

horizontally or vertically to aim properly.

Note: All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out

or broken. Failure to follow this instruction could invalidate the UL/CUL listing of this xture.

FIG.1

±90°

from

Vertical

Position

355°

Canopy

Base

Plate

Canopy

Mounting

Screw

Base Plate

Mounting

Screw

Electrical Data

INPUT VOLTAGE 120-277V AC, 50/60Hz

INPUT CURRENT (MAX.) 0.2A

DIMMING ELV

Produkt Specifikationer

Mærke:	WAC Lighting
Kategori:	Lys
Model:	MO-LED522
