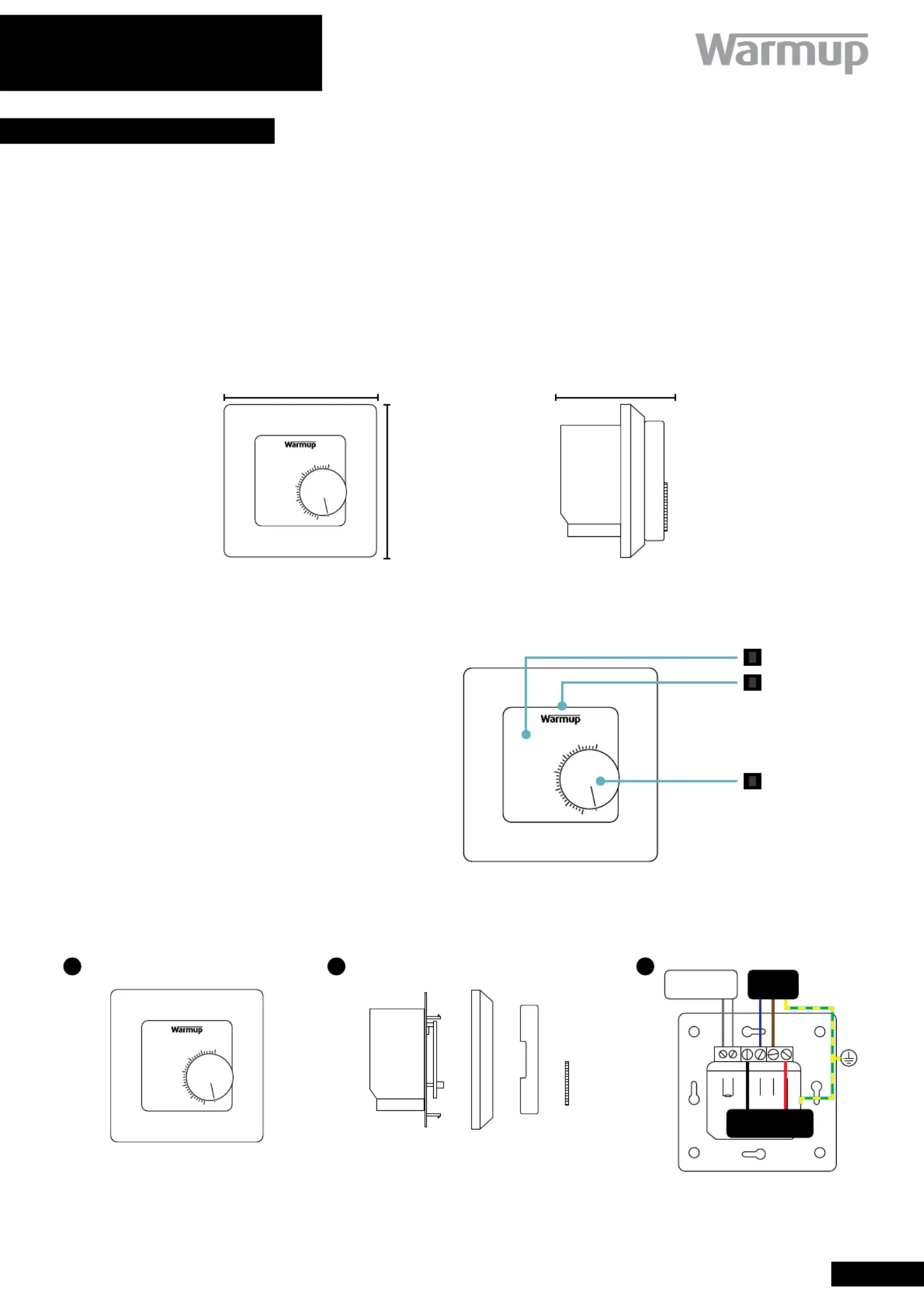

Step 1 - Identify Suitable Location

Step 2 - Dimensions

Step 3 - Components

Step 4 - Installation

 MSTAT



BATHROOM INSTALLATIONS: 



























1 2 3

OFF

N N L OUT

Sensor

AC220V

Floor Sensor

(No Polarity)

230V AC

Supply

Heaters

(Max. 16 Amps)





 



OFF

Release clip

Heating indicator









Installation

MSTAT

OPERATING INSTRUCTIONS

The MSTAT can be congured to use either the built in air sensor, the 5k external oor sensor or a combination of both. The thermostat

also has the function to reduce the factory set maximum oor limit. All of these settings are altered by moving jumper connectors on the PCB,

marked K1/K2/S3. See below for congurations;

Conguration

Warranty

Contact Details

Operation

Warmup plc warrants this product, to be free from defects in the workmanship or materials, under normal use and service, for a period of three

(3) years from the date of purchase by the consumer. Extended lifetime warranties are available for the MSTAT. For further information, enquire at

your local MSTAT retailer, check online at www.warmup.co.uk or contact Warmup directly on 0345-345-2288. For full warranty information please

see the extended manual online at warmup.co.uk. To register your warranty please visit warmup.co.uk

Warmup Plc 702 & 704 Tudor Estate Abbey Road NW10 7UW T:+ 44 345 345 2288 F:+ 44 345 345 2299 E-mail: uk@warmup.com• • • • London • • •

Warmup GmbH DE • Ottostraße 3 • 27793 Wildeshausen • • T:04431 948 70 0 E-mail: de@warmup.com•

On - Rotate the dial clockwise to required temperature

O - Rotate the dial anti-clockwise to the ‘o’ position

When the heating is active, the heating indicator will be lit.

Warmup - IM - MSTAT - V1.4 2021-06-21

Operating Voltage - 230V AC ±10% 50Hz

IP Rating - IP40

Max. Load - 16A (3680W)

Installation Depth - 35mm back box

Dimensions - (H/W/D): 86 x 86 x 50mm (from wall)

Heating Indication - LED

Sensors - Air & Floor

Compatibility - eUFH, hUFH & Central Heating

Sensor Type - NTC5K 3m long (can be extended to 50m)

Insulation Class - II

Er-P Class - I

Standards - EN60730-1 & EN60730-2-9

Technical Specications

Internal sensor only External sensor only Both internal and external sensors

(Default Conguration)

This conguration will use

the internal air sensor.

The thermostat has a feature which allows it to automatically detect if a sensor has a fault. Should either sensor develop a fault, the thermostat

will automatically default to a safe mode, which cycles the heating on for 2 minutes and o for 2, reducing the power from maximum to 50%.

This conguration will use

the external oor sensor.

Floor Surface Temperatures

Floor Finish S3 Closed S3 Open

10mm Tiles 34°C 26.5°C

4mm Vinyl n/a 26°C

7mm Laminate n/a 25°C

14mm Engineered 27.5°C 24°C

6mm Contract Carpet 29°C 24.5°C

15mm Carpet & Underlay 26°C 23.5°C

This conguration will use the internal sensor

as the temperature control sensor and external

oor sensor as a oor limit sensor.

S3 closed

This conguration will set

the interface temperature

limit to 35°C, with the

oor surface temperatures

as per the table opposite.

S3 open

This conguration will set

the interface temperature

limit to 27°C, with the oor

surface temperatures as

per the table opposite. This

setting should be used for

vinyl.

*This table should only be used as a guide. All gures shown in this table are based

on a design room temperature of 21°C and estimated oor nish resistances.
