How it Works
Wilson Electronics NMO Mount antenna will collect the cell tower signal and send it through
the cable to a signal booster or directly to the cell phone or cellular data card. When the
cellular device transmits, the signal is transferred to a signal booster or directly to the
antenna and broadcasted back to the cell tower. See the back cover for information on
Wilson Electronics Signal Boosters. An external adapter is required to connect the cell
phone or cellular data card to the antenna.
The external adapter is cell phone/data card-specific and may be purchased through a
local retailer. Refer to Wilson Electronics Adapter Guide to identify the right adapter for your
cell phone or cellular data card. The Adapter Guide is available through a local retailer. It
is also available on our web site, www.WilsonElectronics.com, or you may call Technical
Support at 866-294-1660.

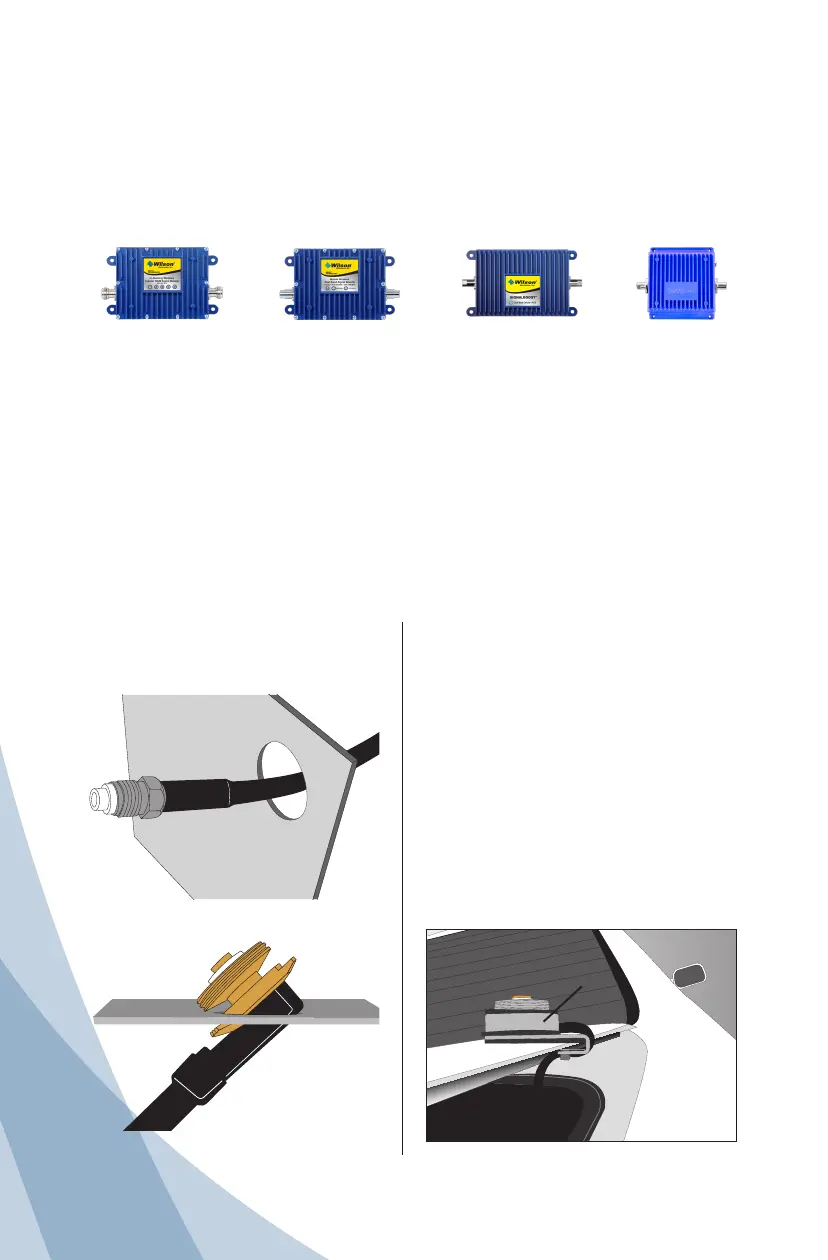

Feed the cable end
(FME) into hole
from outside.
Step 1:
Step 2:
Gently feed NMO
connector through
hole until flush.
For installing ¾ in NMO:
Installing optional NMO Mounts
For installing the NMO Trunk Mount
Antenna (sold separately):
(Part# 901102)
(Part# 901101)
Wilson Electronics Signal Boosters Amplify Coverage
When used in conjunction with your antenna, a Wilson Signal Booster can improve
your cell phone and laptop data card coverage area up to 20 times. Wilson Electronics
manufactures a wide range of wireless and direct connect Signal Boosters for mobile or in-
building use. See your dealer for details or visit www.WilsonElectronics.com.
Contact Wilson Electronics Technical Support with any questions at 866-294-1660
Or email: tech@wilsonelectronics.com Hours: 7am to 6pm MST.
Select a location on the trunk or the 1.
hood for mounting the antenna.
Slide the trunk mount bracket on 2.
the trunk or hood lip in the selected
location, and tighten the two set
screws on the bottom lip underneath
the trunk or hood lip with the Allen
wrench provided.
Route the cable between the mount 3.
and phone location.
Screw the antenna coil into place.4.
Inside of
Trunk
Trunk lid
NMO Trunk
Mount Antenna
Car Diagram
