Wimberley, Inc. - - - Phone: 1 434 529 8385

1750 Broadway St Toll Free: 1 2746 -888-665-(USA & Canada)

Charlottesville, VA

22902 USA www.tripodhead.com info@tripodhead.com

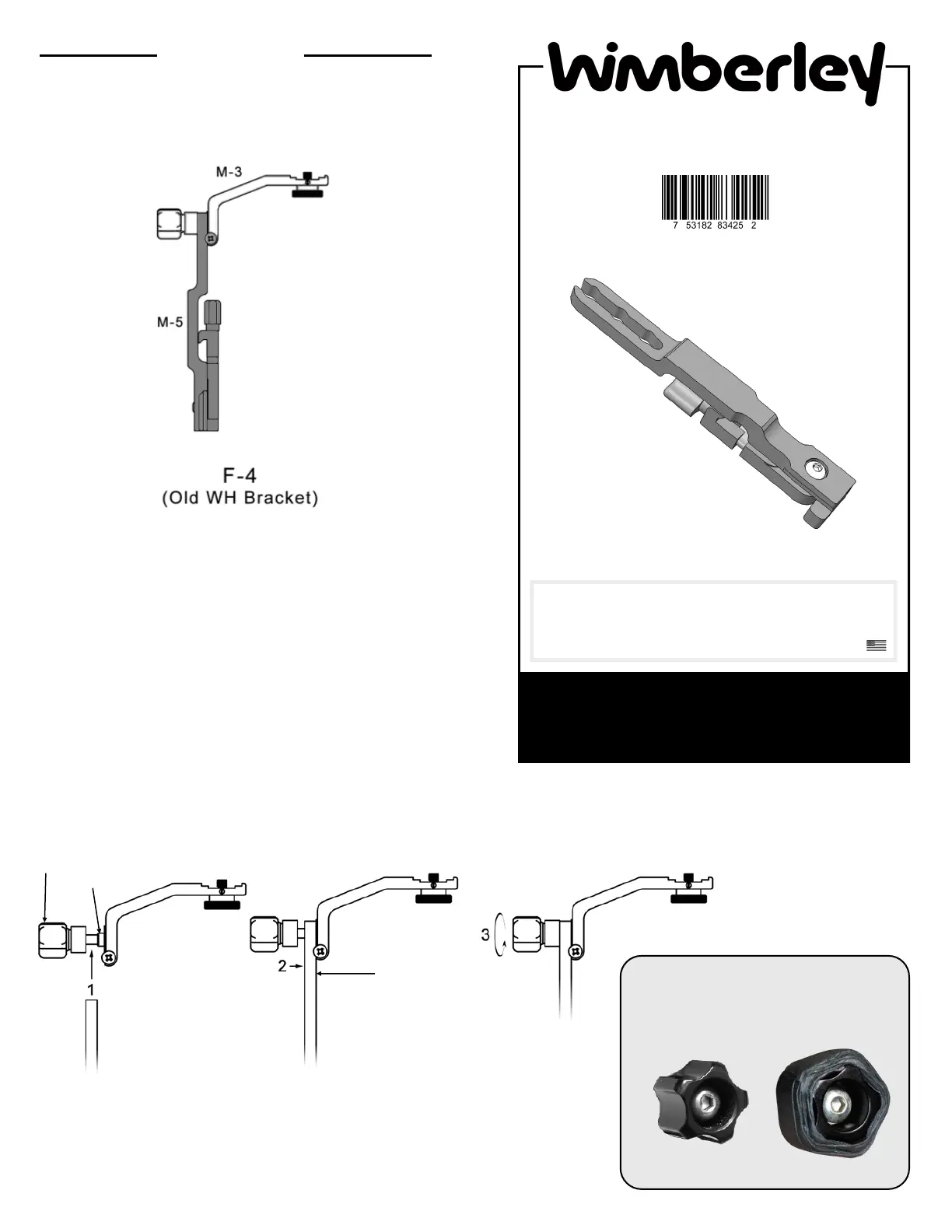

About the M 5-

The M 5 Old Style Wimberley Head Bracket- is one of the

components of the Wimberley Modular Flash Bracket System.

It is included in the following combo bracket.

Wimberley, Inc. - - - Phone: 1 434 529 8385

1750 Broadway St Toll Free: 1 2746 -888-665-(USA & Canada)

Charlottesville, VA

22902 USA www.tripodhead.com info@tripodhead.com

5 Year Warranty – See www.tripodhead.com/warranty.cfm for complete details

Made in USA

Package Contents:

• M 5: -Old-style Wimberley Head Module (Qty 1)

Instructions continued on back>>

Connecting Flash Bracket Modules:

(The figure below shows the connection between M 3 and upright module; the same principle applies for other module connections.)-

knob

cylindrical nub

Unscrew the knob so that

the upright module can fit

between the cylindrical

nub and the knob base

Forked end of

module

Slip the forked end of the

module over the exposed

threads. Locate one of the

enlarged areas in the forked

end over the cylindrical nub.

Tighten the knob

securely.

Tip: if you find the metal knobs difficult

to grip, try wrapping several layers of

self fusing rubber grip tape (-3M 2155)

around the knob to cushion it and make it

easier to grip in the field.

Feel free to contact us

if you have any questions.

Weight: 4.4 oz

Dimensions (Overall L x W x H): 6.8 x 0.8 x 0.3 in

Materials: Anodized 6061 Aluminum, stainless steel fasteners

M 5- Wimberley Head (version I)

Flash Bracket Module

Thank you for your interest in Wimberley products. If you have any questions or comments please feel free to contact us.

Attaching the Bracket to the Old style Wimberley Head:-

The M 5 bracket is designed to attach to the swing arm of the original Wimberley Head, version I models WH 100 and - -

WH-101. This bracket can stay on the Head when swapping lenses.

Pivoting arm swings to either side

1. Pivot the moving jaw with the knob to either side, perpendicular to the upright portion of the M-5 module.

Choose the option that feels best to you and allows you to comfortably access the focusing ring on your lens

Using the F 4 on the WH 200:- -

The WH 200 has a different dovetail on the arm -

and thus is not natively compatible with the F 4. -

To Remedy this, slide the FA 09 onto the arm of -

the WH 200. The built in spring design grips the - -

WH- -200 Arm so that the FA 09 remains attached

when not using a flash bracket.

FA-09

2. Loosen the bottom knob until it will fit on arm dovetail.

3. Slide the bracket down the swing arm from the top. Turn the M 5 screw knob to tighten the clamp -

jaws and secure the bracket on the swing arm.
