Side 1/4

IMPORTANT! Installation Requirements

• Visit the product page to download the latest rmware, document version,

additional documentation, and conguration tools.

• Read through the Wiring and Connections section for important guidelines

before creating or choosing premade cables.

In The Box

1x EXP-MX-0402-H2 Matrix

1x 5V DC 1A power supply

1x 3.5mm 3-pin Terminal Block

1x Remote Control Handset (CR2025 Battery not Included)

2x Mounting Brackets

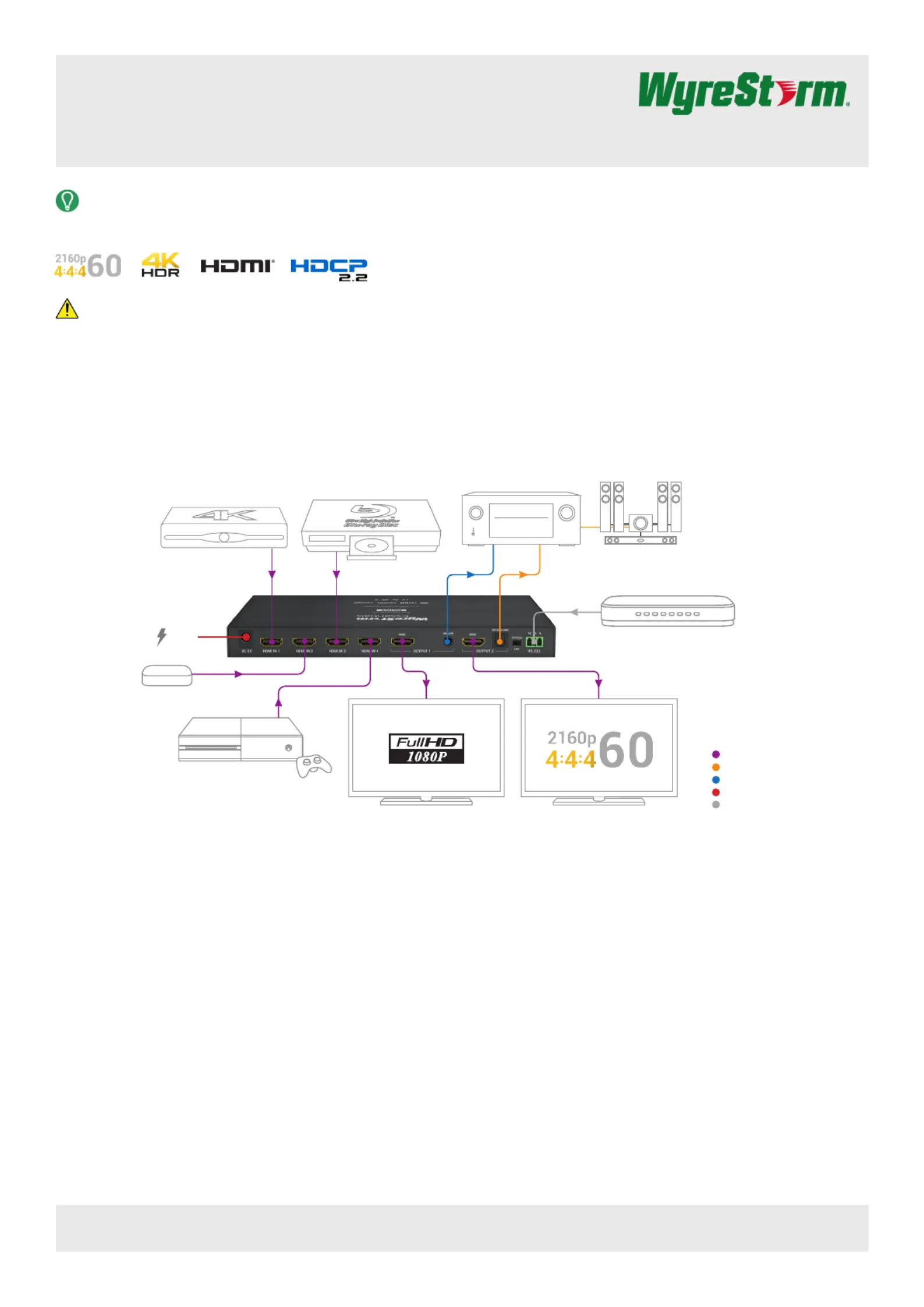

Basic Wiring Diagram

EXP-MX-0402-H2 Quickstart Guide | 191011

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

1 of 4

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation

process.

4K HDR 4 Input Matrix Switcher

with 2 Scaling Outputs

EXP-MX-0402-H2 Quickstart Guide

KEY

HDMI

Digital Audio

Analog Audio

Digital Audio

RS-232

Analog Audio

EXP-MX-0402-H2

DC 5V

Audio Video Receiver

5.1 Audio System

Control System

HDMI

1080p Display HDR Display

Power

Control

4K HDR Source

Installation and Operation

1. Connect HDMI sources to INPUT ports 1-4 using good quality HDMI cables.

2. Connect an HDMI display device to the HDMI OUT ports of the switcher.

3. Turn the power on using the included remote handset, ensuring LED power indicators are fully lit on the front of the switcher. If not, check to make sure the

HDMI cables are rmly connected.

4. To operate the switcher, press the SWITCH buttons on the front of the unit to scroll numerically through connected sources.

5. Alternatively, use the remote control handset to scroll forwards and backwards through the inputs or push buttons 1-4 corresponding to the connected

sources. Furthermore, a RS-232 connection from a control system can be used to control the device.

EXP-MX-0402-H2 Quickstart Guide | 191011

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

2 of 4

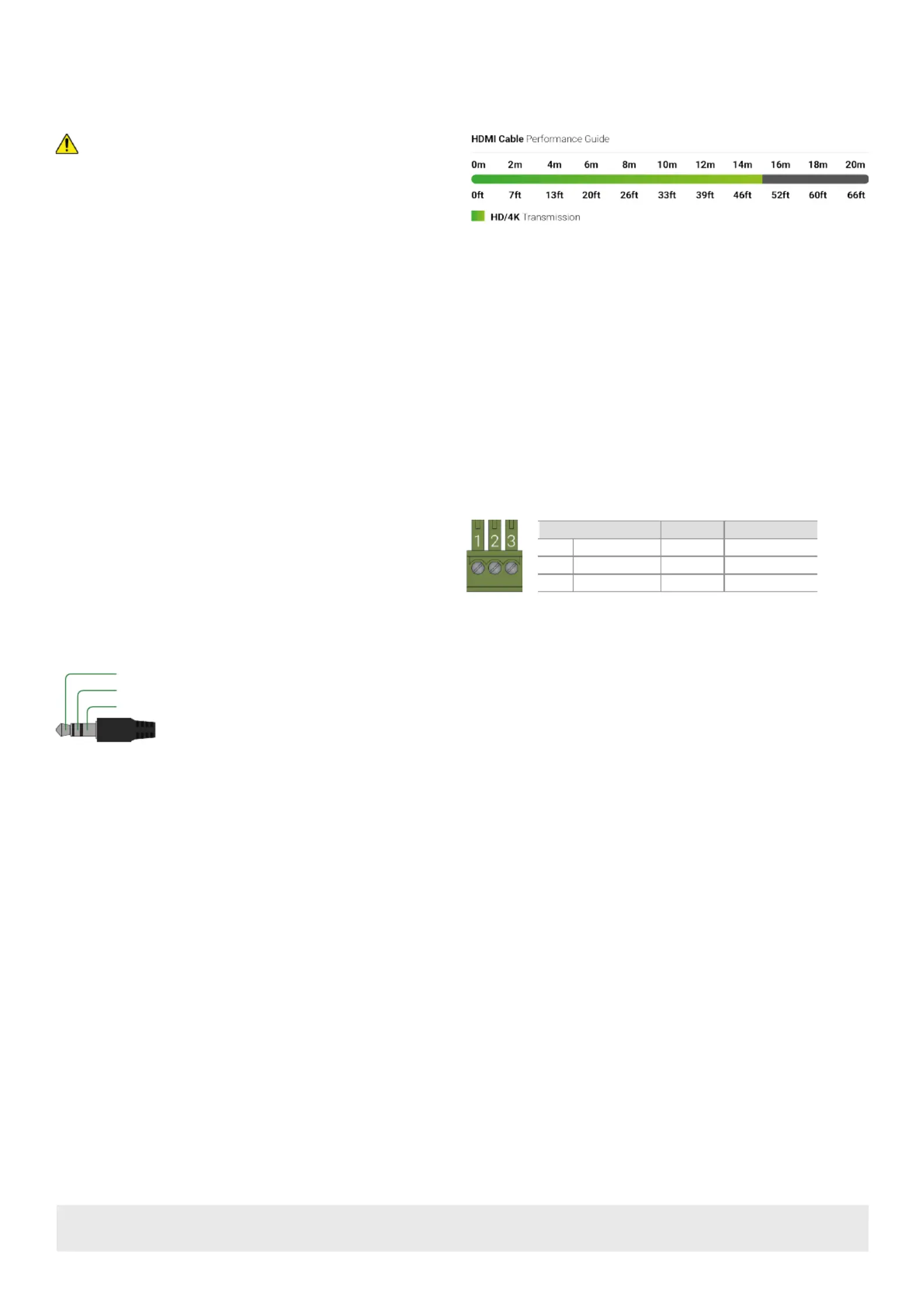

RS-232 Wiring

The EXP-MX-0402-H2 uses a 3-pin RS-232 with no hardware ow control.

Most control systems and computers are DTE where pin 2 is RX, this can vary

from device to device. Refer to the documentation for the connected device for

pin functionally to ensure that the correct connections can be made.

Refer to RS-232 Mode Settings for details on setting RS-232 modes.

3rd Party Device

Pin 1 TX (Transmit) > To > RX (Receive)--- ---

Pin 2 RX (Receive) > To > TX (Transmit)--- ---

Pin 3 G (Gro d) > To > G (Gro d)un --- --- un

WyreStorm Co ectornn

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it’s

entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.

IMPORTANT! Wiring Guidelines

• The use of patch panels, wall plates, cable extenders, kinks in cables, and

electrical or environmental interference will have an adverse effect on

signal transmission which may limit performance. Steps should be taken

to minimize or remove these factors completely during installation for best

results.

• WyreStorm recommends using pre-terminated HDMI cables due to the

complexity of these connector types. Using pre-terminated cables will

ensure that these connections are accurate and will not interfere with the

performance of the product.

Audio Connections

Tip:

Ring:

Left Channel

Right Channel

Sleeve: Ground (GND)

Produkt Specifikationer

Mærke:	WyreStorm
Kategori:	Router
Model:	EXP-MX-0402-H2
Bredde:	182 mm
Dybde:	77 mm
Højde:	22 mm
Vægt:	340 g
Indbygget skærm:	Ingen
Produkttype:	Skalering matrix omskifter
Opbevaringstemperatur (T-T):	-20 - 70 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Relativ luftfugtighed ved opbevaring (H-H):	10 - 90 %
HDCP:	Ja
Driftstemperatur (T-T):	0 - 45 °C
Maksimal opløsning:	4096 x 2160 pixel
High Dynamic Range (HDR) understøttet:	Ja
Certificering:	CE, FCC
Strømforbrug (maks.):	5 W
LED-indikatorer:	Ja
Harmoniseret systemkode (HS):	85299097
Bæredygtighedscertifikater:	RoHS
Husets farve:	Sort
Stativ-montering:	Ja
HDCP-version:	2.2
Antal HDMI-indgangsporte:	4
Båndbredde:	18 Gbit/sek.
Rackkapacitet:	1U
Antal HDMI-udgangsporte:	2
Varmeafledning (maks.):	17.06 BUT/t
Maksimal pixel ur:	600 MHz
EDID-ledelse:	Ja
