IMPORTANT! Installation Requirements

• Visit the product page to download the latest rmware, document version,

additional documentation, and conguration tools.

• Install the latest rmware to ensure that all features described in this

document are available during and after installation.

• Read through the Wiring and Connections section for important wiring

guidelines before creating or choosing premade cables.

Recommended Products

To take full advantage of the features of this matrix, WyreStorm recommends

the following products be used within this product.

RX-70-4K-SCL

Scaling receiver that allows for 4K and 2K screens to be used while

maintaining output of 4K.

RX-70-4K-ARC

HDCP 2.2 receiver with audio in to send audio from built in apps back to the

matrix.

RXF-300-4K

For use with TX-H2X-OM3 when duplex OM3 Multimode ber is required.

RXV-70-4K

For use when content too high in bandwidth for HDBaseT is required, such as

high-framerate HDR or 4:4:4/60.

In the Box

1x MX-1010-H2XC or MX-1616-H2XC

1x Handheld IR Remote

10/16x IR emitters

10/16x IR Broadband Receiver (30KHz to 50KHz)

1x IR Receiver (38Khz)

10/16x 3-pin phoenix to stereo RCA sockets

1x AC Power Cord with US Plug

1x AC Power Cord with UK Plug

1x AC Power Cord with EU Plug

1x USB to UART Serial Cable

2x 4U Rack Ears and Screws

1x Quickstart Guide (This Document)

Additional Information

Visit the product page on to download additional wyrestorm.com

documentation, control drivers, and conguration software.

MX-xxxx-H2XC Quickstart Guide | 180622

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

1 of 4

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features before beginning the

installation process.

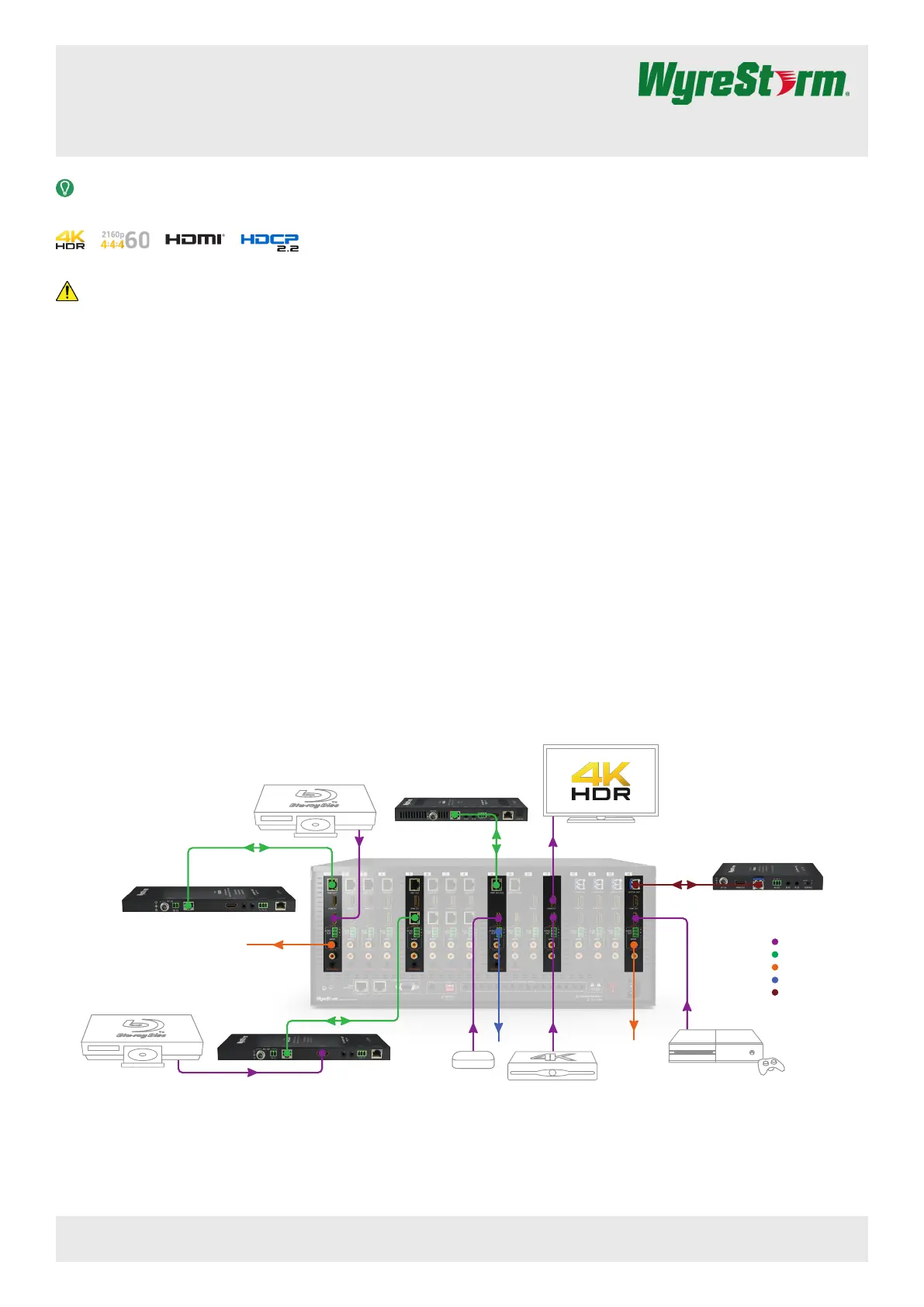

Basic Wiring Diagram

R -70-4K-ARCXV

R -300-4KXF

RX-70-4K

(Used for TX-H2X-HDMI

and TX-H2X-HDBT Cards)

KEY

HDMI

HDBaseT

Digital Audio

Analog Audio

Duplex OM3 Fiber

Blu-ray Player

Games Console

Satellite Box

Media Player

Custom 4K HDR Video Matrix with Audio Matrix & DSP

MX-1010-H2XC | MX-1616-H2XC Quickstart Guide

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its

entirety before running or terminating any wires to ensure proper operation and to avoid damaging the equipment.

HDMI/HDBaseT Wiring

IMPORTANT! Wiring Guidelines

• The use of patch panels, wall plates, cable extenders, kinks in cables, and

electrical or environmental interference will have an adverse effect on HDMI

and Ethernet transmission limiting performance. Steps should be taken to

minimize or remove these factors completely during installation for best

results.

• WyreStorm recommends using high quality HDMI cables such as

WyreStorm Express to ensure the highest content performance available.

• The type of category cable and length used can restrict the available video

resolution. While Cat5e can be used, WyreStorm recommends using Cat6

or higher to ensure the highest content performance available. See Video

Resolutions in the Specications table before determining cable type and

length.

IR TX/RX Wiring

IMPORTANT! IR TX/RX Guidelines

• WyreStorm IR ports function differently than standard IR ports. For this

reason only WyreStorm IR emitters and receivers can be used.

• WyreStorm IR emitter and receiver cables cannot be spliced as cutting

into the cables will short the shield. While an extension cable may be used,

WyreStorm assumes no responsibility for operation using an extension

cable.

• When connecting the IR TX to an IR connecting blocks or control system

with different plugs, a cable must be made following the IR TX Port Pinout

diagram.

• When connecting to an IR control system use the WyreStorm CAB-IR-LINK

cable. This cable compensates for differences between the WyreStorm RX

and the control systems TX connection. Visit the CAB-IR-LINK product page

for details.

IR TX Port Pinout

Tip: Anode

Sleeve: Cathode (IR Signal)

IR RX/Ext Port Pinout

Tip:

Ring: IR Signal

+5V DC

Sleeve: Ground (GND)

RS-232 Wiring

Most control systems and computers are DTE where pin 2 is RX, this can vary

from device to device. Refer to the documentation for the connected device for

pin functionally to ensure that the correct connections can be made.

9 8 7 6

4 13 2

Outside of DB9 chassis port shown.

Unidnetiﬁed pins have no function and should

not be connected.

Pin 3: RX (Receive)

Pin 2: TX (Transmit)

Pin 5: GND (Ground)

Audio Wiring

Tip: Signal (+)

Shield: Ground/Return (-)

MX-xxxx-H2XC Quickstart Guide | 180622

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

2 of 4
