Swash
Mood IN OUT
CV In/Out
CV In +/-
Pre
Post
Swash CV input (-15V to +15V):
Positive voltage (LED orange) controls a
vactrol that bridges two points
Negative voltage (LED green) controls a
second vactrol that modulates the
ten-turn Swash pot (if the Swash pot is
all the way counter-clockwise, no CV
modulation is possible)
Mood:
Bi-directional CV jack.
Inputting a 0-15V signal modulates
biasing near the swash and EQ stages.
During intense oscillation phenom-
enom, this jack outputs random CV
ucuations.
Out Jack/Volume:
Unpredictable continuously morphing
audio oscillation output
Swash:
10-turn pot for precisely nding
weird attractors in the chaos.
Noise’s Gait:
Works in tandem with Swash to nd
sweet spots... Typically more active
when mostly CCW
In Jack:
Audio input injects a signal into Noise
Swash’s signal loop.
Low:
Decreases voltage supply to parts
of the circuit, causing feedback to
happen more eagerly
Tone:
Blends between a HP and LP lter
after the swash stage
Post:
Enables asymmetrical diode clipping
in the output gain stage.
LED indicates activity
Pre:
Enables asymmetrical diode
clipping in the input gain stage.
LED indicates activity
Self-Osc:
Connects output jack to input jack
through the potentiometer.
Switch opens/closes feedback loop.

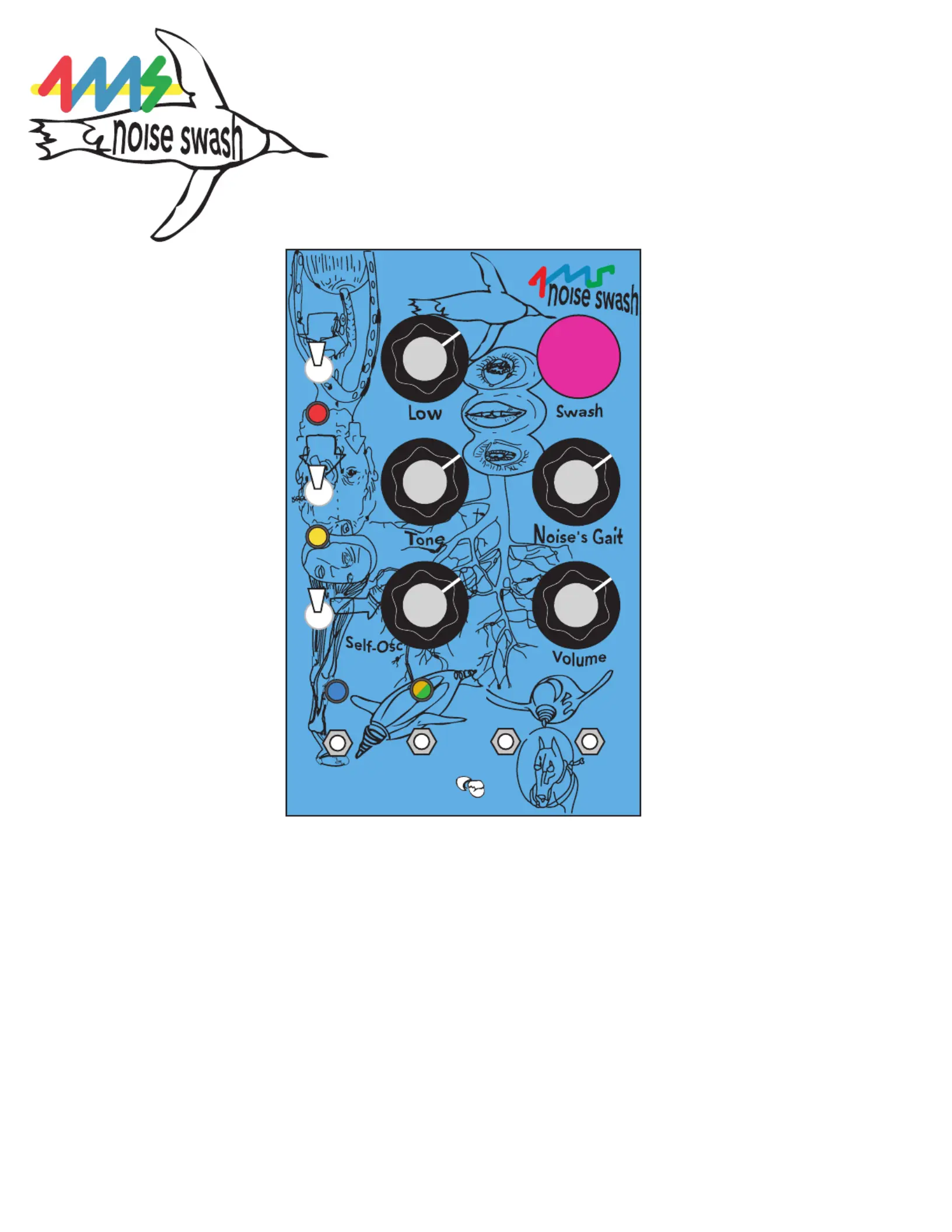

The Eurorack Noise Swash
A chaotic random noise-maker and cv source, generating its own sounds or working as an audio
processor... A source of insanity...
Some common uses:
• Triggered noisy oscillation blasts (run a trigger/gate into Mood or Swash CV)
• Creating harmonic-rich audio to be ltered and sequenced later
• As a source of random, but repeating CV patterns (use Mood as an output)
• Making rhythmic percussive loops more interesting. The Noise Swash tends to ll-in odd noises
between the beats.
• Distorting simple waveshapes into morphing complex shapes
Hint: you can hear the uneected input
signal by setting Self-Osc up and CW,
and Volume down...
