Passive Multiple
Kit Builder’s Guide for PCB v1.0
4mscompany.com!

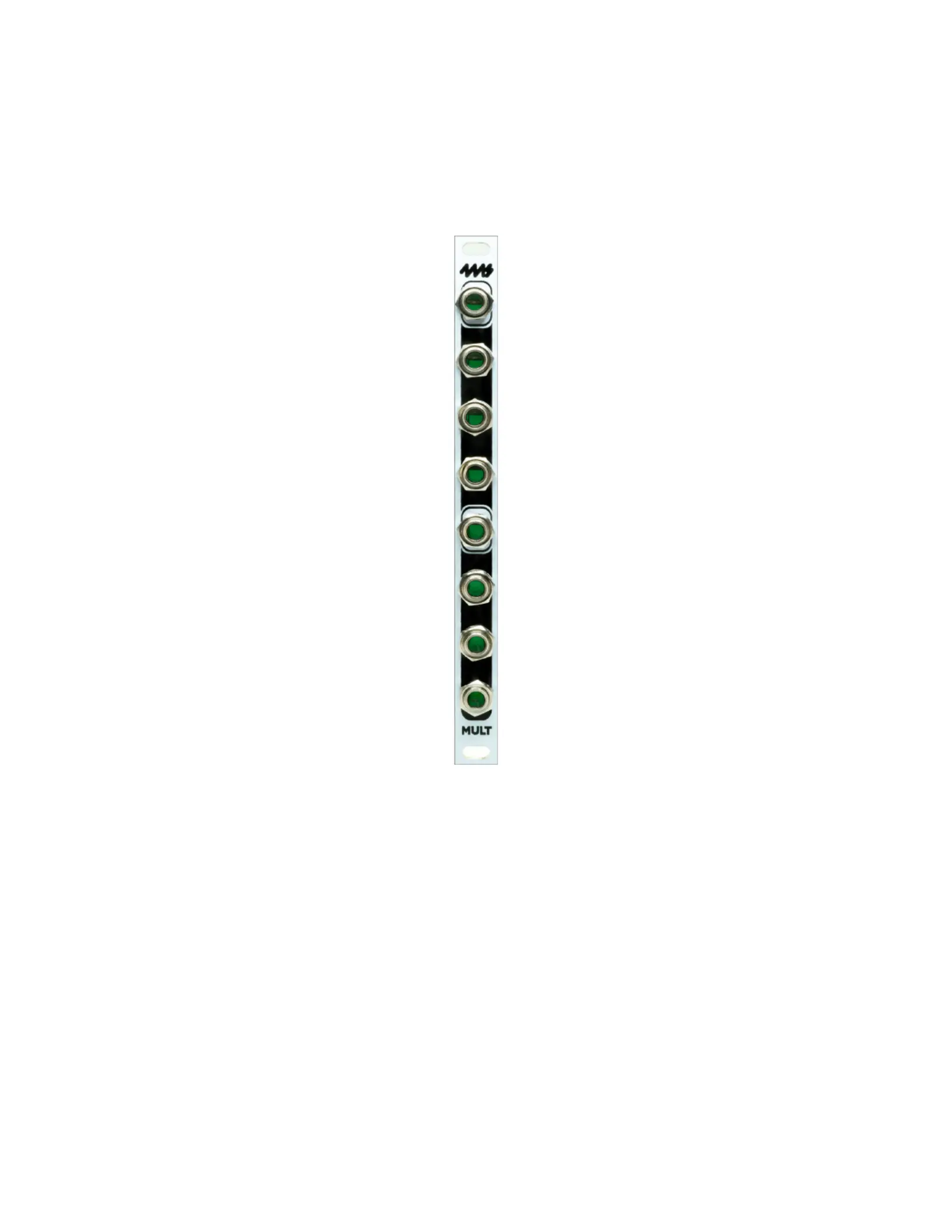

PASSIVE MULT
This guide is for building the Passive Mult (PM) a two channel multiple. The PM allows you to split a ,
single signal into multiple copies. The PM can work in a single one-to-six multiple or as a dual one-to-
three multiple. Since the device is passive, it can also be used to combine signals (three-to-one, or six-to-
one). This is a beginner level kit, with only basic tools and soldering experience necessary.
Soldering iron, solder
5/16” socket driver (optional: pliers will work if you're careful)
Step 1: Insert Jacks/Prep Mounting

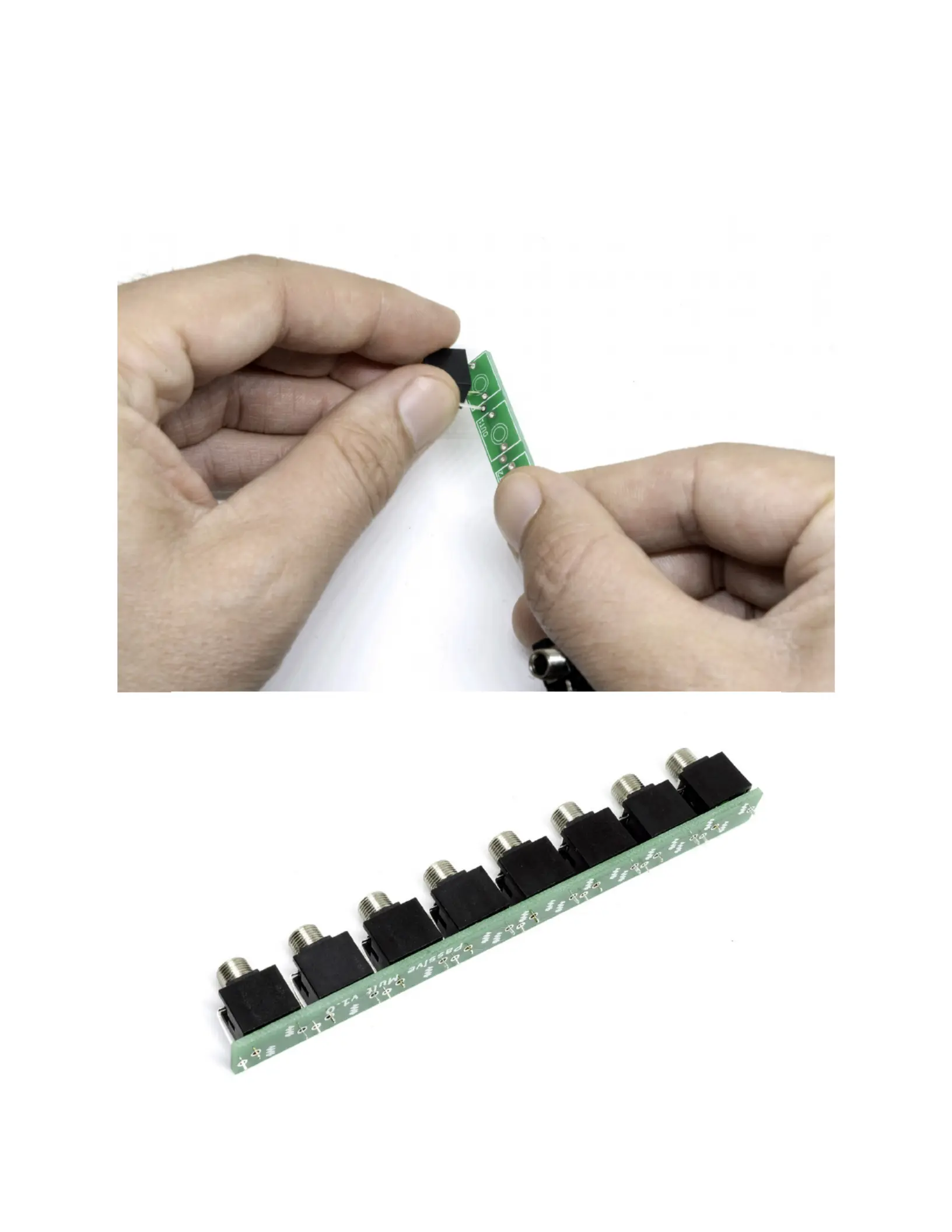

Install the eight jacks to the green PCB. The jacks should be inserted on the side with the white
rectangles and circles. Tip: Feed the longer bent pin in first, then push the other two pins in snugly. Push
each jack down so it’s flush against the PCB. See photos below.
