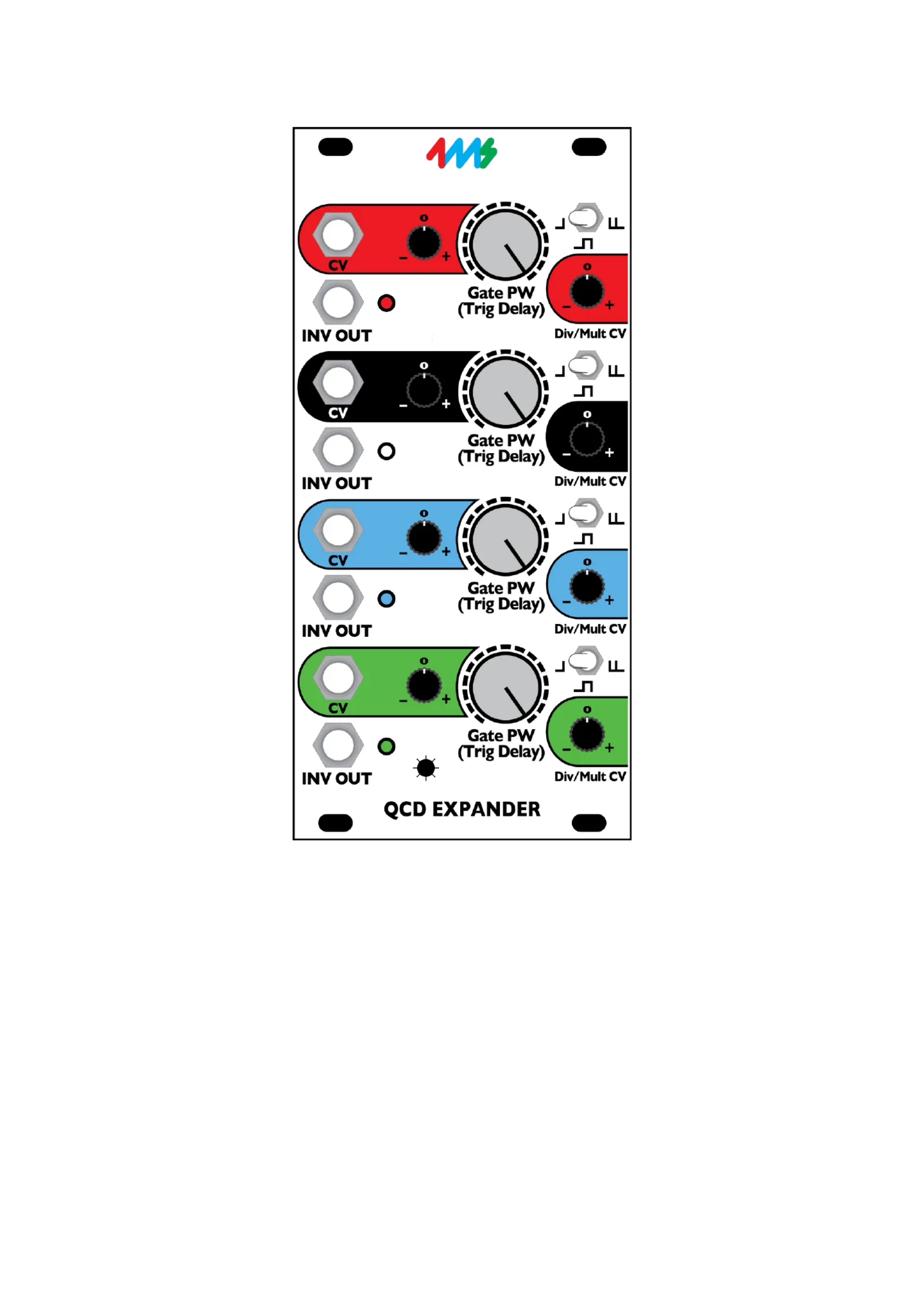

QCD Expander

from 4ms Company

Eurorack Module User Manual

The QCD Expander from 4ms Company is an expansion module for the Quad Clock Distributor (QCD). The QCD

Expander requires the QCD to function, and adds a host of features. The Expander turns the QCD into a

programmatic non-linear sequencer, easily obtaining self-patched evolving rhythms, and swing/shuffle patterns.

Each of the four channels has:

•Multi-mode output jack INV OUT mirrors the tempo of main QCD output

•Mode Switch for each INV OUT jack:

◦Delayed Trigger Mode

◦Inverted Gate Mode

◦Shuffle Mode (delayed + original trigger)

•PW/Delay knob controls trigger delay time on INV OUT jack (or pulse width in Inverted Gate Mode)

◦Also controls Pulse Width of main QCD OUT jack

◦CV input jack for external control

◦Attenuverter allows for one channel to precisely modulate another channel's delay or pulse width

•Div/Mult CV attenuator knob

◦Controls how much the signal on the main QCD's Div/Mult CV jack will modulate the tempo

◦Useful for precisely modulating the speed of one channel with another

A global LED brightness trimpot is accessible from the front panel.

DOWNLOAD MOST RECENT MANUAL AT:

http://4mspedals.com/qcd.php

Basic features:

•Connects to QCD module with a 16-conductor ribbon cable (included)

•When connected to a QCD, the following features are added to each QCD channel:

◦Multi-mode clock output (INV OUT) is the same tempo as the QCD's OUT jack

◦Switch for selecting mode of the INV OUT jack:

▪Delayed Trigger mode (left)

▪Inverted Gate mode (center)

▪Shuffle mode = delayed + original trigger (right)

◦Knob for controlling amount of trigger delay, as well as pulse width of the main QCD output

◦CV jack for controlling trigger delay and pulse width using another channel or external CV

◦Attenuverter knob for Gate PW/Trig Delay CV jack (controls the amount the signal on the jack effects the

PW/Delay)

◦Attenuverter knob for Div/Mult CV jack (on the main QCD module)

•LED brightness can be adjusted from the front panel

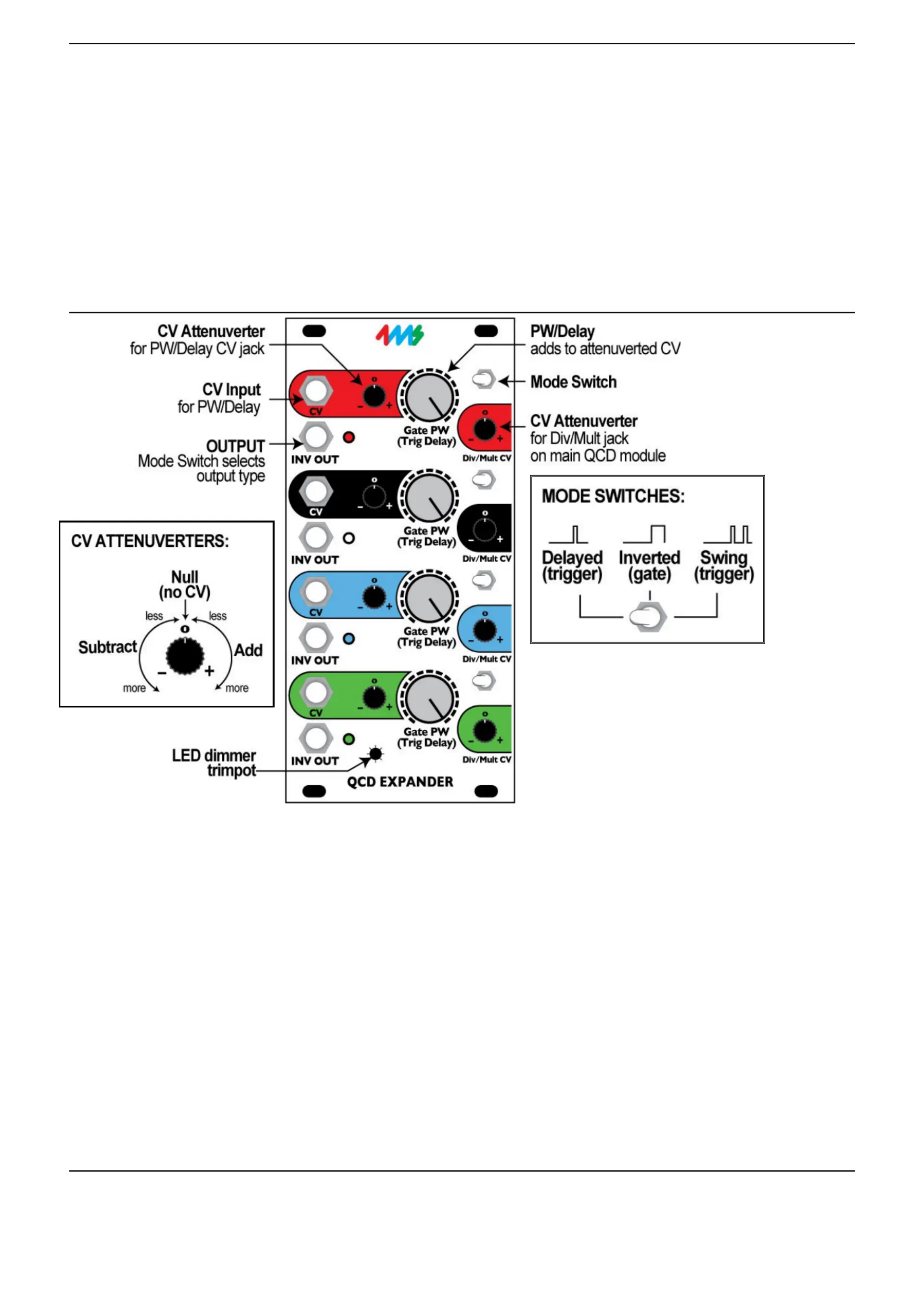

Controls and jacks:

•INV OUT jack (each channel)

•+5V trigger (5ms) or +5V gate output. See Mode Switch, below

•Runs at the same Div/Mult tempo as the main QCD output, but may be delayed, inverted and/or shuffled.

•Three-position Mode Switch (each channel)

•Only effects the INV OUT jack on the Expander (no effect on the main QCD output)

•Left = Delayed Trigger mode

•Center = Inverted Gate mode

•Right = Shuffle mode (delayed + undelayed), effectively doubles the tempo

•Trigger Delay (Pulse Width) big knob, attenuverter, and jack:

•Depending on the Mode Switch, either trigger delay time or pulse width is controlled

•Pulse width of the main QCD output is effected (no matter what mode the expander is in)always

•The big knob sets the amount of delay time or pulse width

•The signal on the CV jack is variably attenuated and/or inverted using the attenuverter

•The attenuverted CV and big knob's setting are added together

•Attenuverter for Div/Mult CV

•Variably attenuates and/or inverts the signal on the Div/Mult CV jack on the main QCD module

•LED dimmer

•The small hole at the bottom is for adjusting the LED brightness. A tiny phillips screwdriver can be inserted

through the panel to adjust the brightness. See section later in the manual for details

Specifications

•12 HP Eurorack format module

•0.98” (25 mm) maximum depth

•+12V rail: +5V rail -12V rail: 44mA max, not used, 30mA max
