Shifting Inverting Signal Mingler (SISM)

from 4ms Company

Eurorack Module User Manual

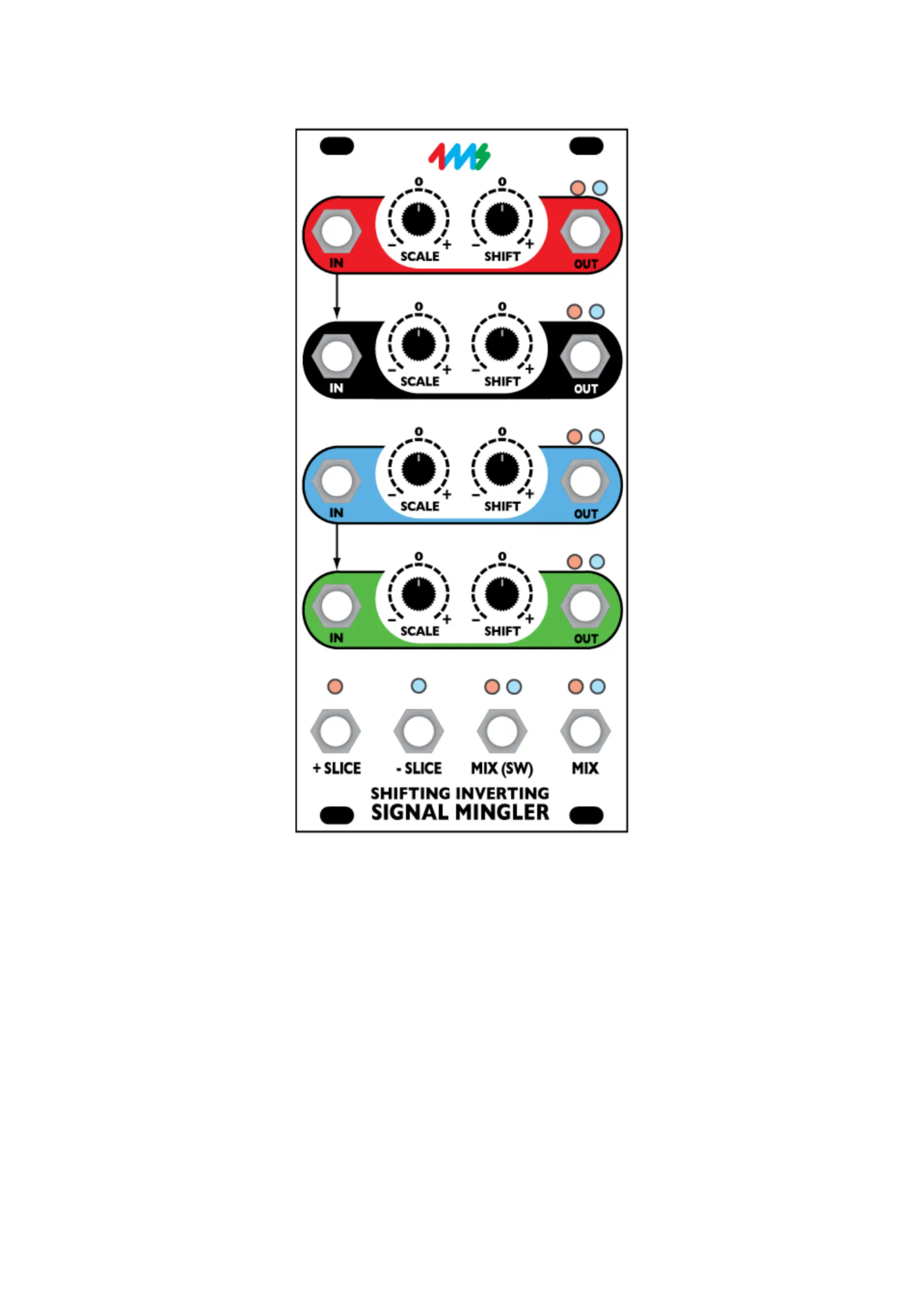

The Shifting Inverting Signal Mingler (SISM) is a 4-channel voltage manipulator that can scale, invert, attenuate,

shift (DC offset), mix, split, and slice your CV and audio signals.

Fourteen red and blue LEDs show exactly what each output jack is doing: red = negative voltage, blue = positive.

Each of the four channels are independent and have an input and output jack, a knob for attenuating/inverting

(Scale), a knob for applying positive or negative DC offset (Shift), and two LEDs.

Four jacks on the bottom combine the four channels in different ways. Mix is a straight mix of all four shifted inputs,

Switched Mix is a mix of all channels that have nothing plugged into the OUT jack, Positive Slice is the sum of all

output voltages greater than zero volts, and Negative Slice is the sum of all negative voltages. The SLICE jacks

can be used for sub-mixes, half-wave rectifying, “dirty panning”, and creating new CV signals from existing ones.

Each channel has a jumper to make the Scale knob uni-polar (no inverting, attenuate only). This is useful for mixing

audio instead of CV. Another jumper connection allows for a maximum of 2x gain. Headers allow for connections to

a QCD, QPLFO, VCA Matrix and other manufacturer's modules.

DOWNLOAD MOST RECENT MANUAL AT:

http://4mspedals.com/sism.php

Basic features:

•Four independent voltage processor channels and four mix/mingle outputs

•Each channel has:

◦INput jack

◦SCALE knob (from inverted unity, to zero, to unity). Center-detented.

◦SHIFT knob (adds/subtracts DC offset from -9.5V to +9.5V). Center-detented.

◦OUTput jack

◦Red and blue indicate positive and negative signal, respectively. Brighter means more voltage, LEDs

dimmer means less.

•MIX jack outputs sum of all channels

•MIX SWitch jack outputs sum of all channels with nothing plugged into their output jack

•+ SLICE jack outputs positive portion of mix (voltages greater than 0V)

•- SLICE jack outputs negative portion of mix (voltages less than 0V)

•Red and blue on all four mix/mingle jacks indicate positive and negative signal, respectively. Brighter LEDs

means more voltage, dimmer means less.

Advanced features:

•Inputs for channels 1+2 and 3+4 are normalized together:

•Plugging into Channel 1 (or 3) will split the signal to channels 1 and 2 (or to 3 and 4)

•A jumper on the back enables/disables this normalization

•Scale knob has three ranges that are selectable with jumpers:

•Bi-polar: -1x to +1x (inverting unity to unity) — default

•Uni-polar: 0 to +1x (level fader)

•Boost: 0 to +2x (twice the voltage gain)

•Input Header (2x4):

•Connects the output of a QCD or QPLFO to the SISM's inputs

•Plugging into the SISM input jacks overrides the signal on the header

•Output Header (2x4)

•Connects the SISM's channel outputs to the input of a VCA Matrix or other compatible module

(Mixiplexer or Intermix)

•PAD breakout header (2x4)

•Can connect to an external DIY module that enables a pre-set pad (attenuation) on each channel.

Usage:

•Attenuator (quad)

•Inverter (quad)

•Level shifter/DC offset (quad)

•Mixer (4 inputs)

•Splitter (dual 1->2, or single 1->4 using a stackcable or passive mult)

•Bipolar audio mixing: Useful for mixing various filter outputs with the original signal to create new filter

curves

•Voltage slicer: + and - portions are separated and outputted to the + and - SLICE jacks

•"Dirty" panning: apply a large slow wave to one channel, and the other channels will "pan" between the

SLICE jacks. The signals are half-wave rectified as they span both outputs

•LFO mingler: connect QPLFO outputs to SISM inputs

•Sequencer: connect QCD outputs to SISM inputs (or any clock divider/multiplier) and take the sequencer

output from the MIX jack.

•Add attenuation and inversion to any CV jack on other modules

•Keep all your fine-tuning controls for several modules in one place

•Manual voltage generator. With no input connected, each channel outputs a steady DC voltage controlled by

the SHIFT knob.

Specifications

•12 HP Eurorack format module

•0.86” (22 mm) maximum depth

•10-pin to 16-pin power cable (included)

•+12V rail: 51mA max

•-12V rail: 51mA max

•The 5V rail is not used
