PS-POE

PoE Splitter

The PS-POE is a PoE splitter that provides a 24V DC output to power the strobe light in Aiphone’s wall boxes

and towers. The IX Series emergency stations have a secondary PoE output (pass-through) that can be used

to connect to this splitter. The PoE pass-through will only be usable if the IX station is connected and powered

via a PoE+ switch.

-INSTRUCTIONS-

IX-RA (Back View)

Wall Box

PS-POE

1

PS-POE

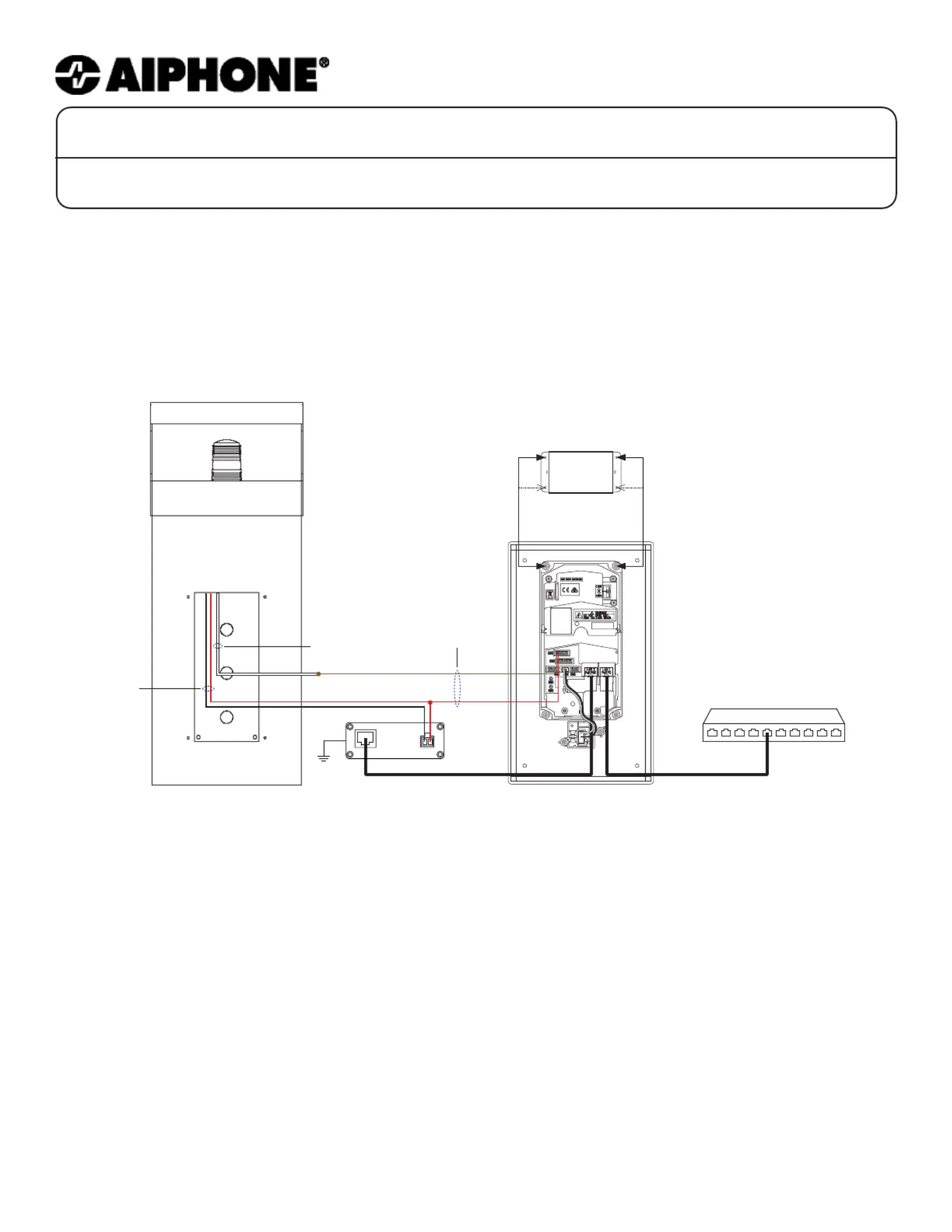

WIRING

PoE+ Switch

Cat-5e / Cat-6

PS-POE Instr

0619JD

Aiphone Corporation

www.aiphone.com

tech@aiphone.com

800-692-0200

PoE IN

- +

Strobe

Power Wires

Strobe Trigger Wire

Brown & Red from

CN1 (Relay 1)

2

Cat-5e / Cat-6

SPECIFICATIONS

Power: PoE (803.2af)

Power consumption: 8.4W

Output power: 24V DC, 350mA

Operating Temperature: -40° ~ 140° F (-40° ~ 60°C)

Mounting: Secure to mounting studs on back of IX station or secure to a

1-gang box.

Dimensions: 4-

1

⁄

16

" H x 2-

9

⁄

16

" W x 1-⅛" D

1

Connect the ground terminal to an Earth ground.

2

Relay 1 must be enabled during the station programming process.

Mount the PS-POE to the studs on the back

of the IX station using the top or bottom

holes. Ensure that the RJ45 jack is facing

down when mounted.

The middle holes on the PS-POE can be

used to mount to a standard 1-gang provision.

Mounting hardware not included.

Drawing not to scale
