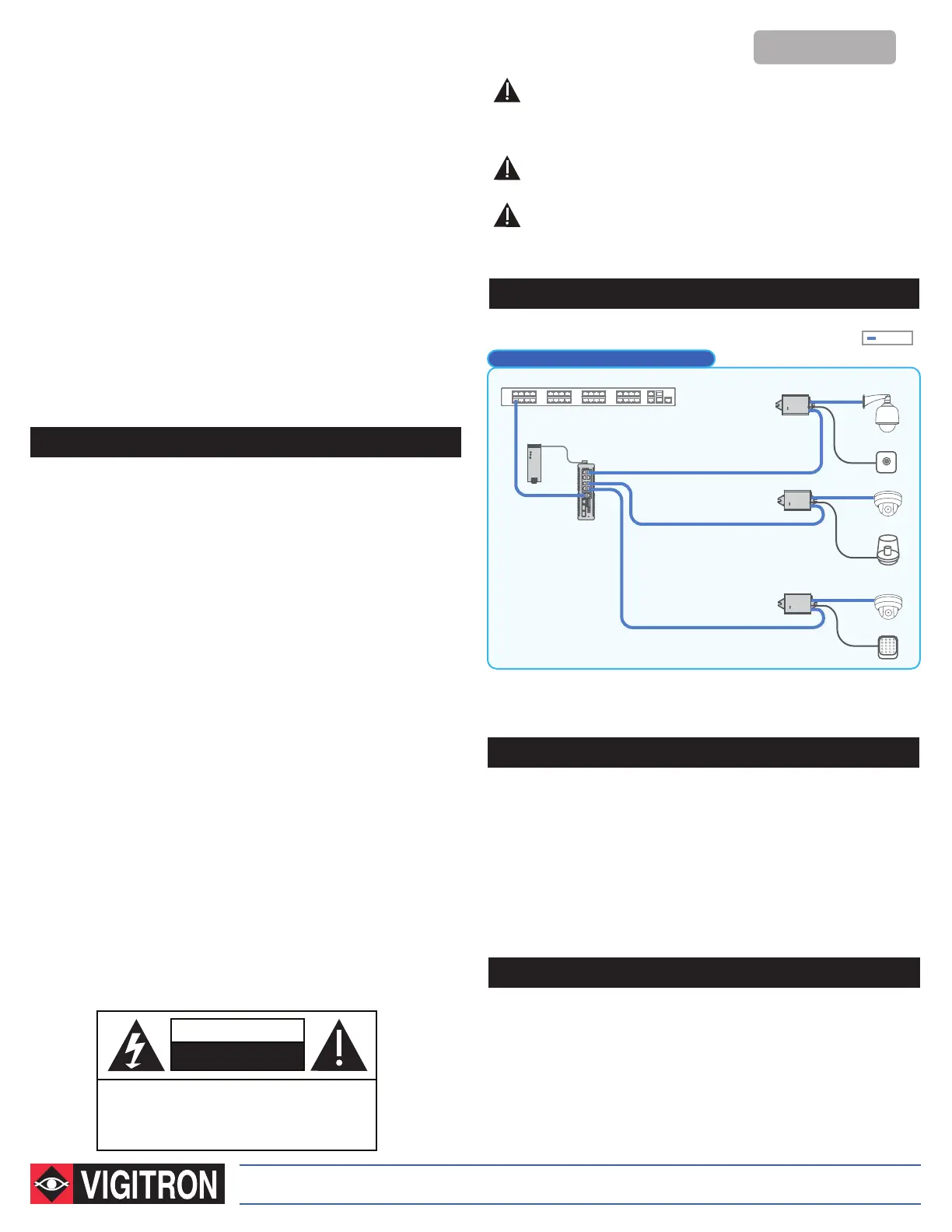

Side 1/2
Application Drawing
Vi22301 60W 12/24VDC PoE Splitter Installation Manual
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
IP Camera-end Installation
The Smart Choice for Transmission Solutions www.vigitron.com
Important Safety Warning
- Select the output voltage using with the slide switch on the opposite side
of RJ45 connectors.
- Use the 12/24VDC output to power a non-PoE device. Be sure to observe
polarity where Red is Positive & Black is Negative.
- Connect a standard Cat5/6 cable of maximum 100m in length from a PoE
switch or Midspan to the Vi22301 DATA+PoE input port.
- Connect another Cat5/6 cable to the DATA+PoE output port of the
Vi22301 to a camera (PoE IP device) or non-PoE IP device.
Ethernet Switch/NVR-end Installation
- The other end of the RJ45 cable needs to be connected to a PoE capable
port of a PoE switch or a Midspan. The PoE port need to be able to provide
enought power to the Vi22301 and its connected PoE device.
- Read these instructions.
- Keep these instructions.
- Follow all instructions.
- Heed all warnings.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Install in accordance with the manufacturer’s instructions.
- This installation should be made by a qualified service person and should
conform to all local codes.
- DO NOT bundle UTP or Coax signals in the same conduit as high-voltage
wiring.
- To reduce the risk of fire or electrical shock, do not expose these products
to rain, moisture, dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron
equipment.
- DO NOT install the unit in a place where the operating ambient tempera
ture exceeds 75° C.
- Make sure that the external power supply output voltage is in the recom
mended range.
- Do not install near any heat sources such as radiators, heat registers,
stoves or other apparatus (including DVRs) that produce heat.
- Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long
periods of time.
- Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as a power
supply cord or plug is damaged, liquid has been spilled, or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
- The mains plug is used as the disconnect device and shall remain readily
operable.
WARNING! - To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. This apparatus should not be exposed to
dripping or splashing and no objects filled with liquids, such as vases should
be placed on the apparatus.
WARNING! - This apparatus is a Class I product. This product must
be connected to a mains socket outlet thru a PoE source device.
WARNING! - The main plug is used as the disconnect device and
should remain readily operable.
The Vi22301 is a PoE splitter that is fully compliant with IEEE 802.3af
(15.4W), IEEE 802.3at (30W) and 60W standards. When used with a PoE
switch or PoE Midspan, it accept 30W or 60W PoE input and data, then
generate 30W PoE and data output and regulates the PoE high voltage to
12VDC or 24VDC.
It is designed to power PoE IP devices and Non-PoE IP devices and can
provide 12VDC or 24VDC up to 30W. The output voltage is selected by a
slide switch. The Vi22301 is equipped with over current protection to
safeguard connected devices and can operate at extended temperature of
-40°C to +75°C. It is compact in size and can fit easily in most camera
housings. The Vi22301 can be combined with extenders to provide remote
DC power over UTP, Coax or single pair wire at distances up to 3,000
without the need for local power supplies.
The Vi22301 is capable of meeting the demanding power requirements for
access control, lighting, emergency phone systems and cameras with
heaters/blowers. It is an ideal solution for providing remote power to PoE IP
devices and non-PoE IP devices and save installation time and cost.
Maxii
Power
TM
Cat 5/6
Powering PoE and non-PoE devicesdistances
The Vi22301 can power a wide range of PoE devices while providing 12VDC or 24VDC to
non-PoE devices.
Emergency
Call Box
Emergency
Light
Data + PoE
Vi22301
LED Light
12/24VDC
IP Camera
Data + PoE
Vi22301
12/24VDC
IP Camera
Data + PoE
Vi22301
12/24VDC
Non-PoE Switch
Data
328 ft. (100m)
Vi30210
Data + 60W PoE
328 ft. (100m)
Data + 60W PoE
328 ft. (100m)
Data + 60W PoE
328 ft. (100m)
56VDC
Vi10240
Limited Lifetime Warranty
Vigitron, Inc. warrants that all Vigitron products (“Product”), if used in accordance
with these instructions, will be free of defects in material and workmanship for
lifetime defined as the duration period of time until product end of life is announce-
ment. After which Vigitron will continue to provide warranty services for a period of 3
years. Period covering valid warranty will be determined by proof of purchase in the
form of an invoice from an authorized Vigitron dealer.
Warranty will only be provided for as long as the original end user purchaser owns
the product. Warranty is not transferrable. At Vigitron's option, defective product will
be repaired, replaced or substituted with a product of equal value. This warranty
does not apply if, in the judgment of Vigitron, Inc., the Product fails due to damage
from shipment, handling, storage, accident, abuse or misuse, or if it has been used
or maintained not conforming to Product manual instructions, has been modified, or
serial number removed or defaced. Repair by anyone other than Vigitron, Inc. or an
approved agent will void this warranty. Vigitron, Inc. shall not under any circum-
stances be liable to any person for any incidental, indirect or consequential
damages, including damages resulting from use or malfunction of the product, loss
of profits or revenues or costs of replacement goods. The maximum liability of
Vigitron, Inc. under this warranty is limited to the original purchase price of the
Product only.

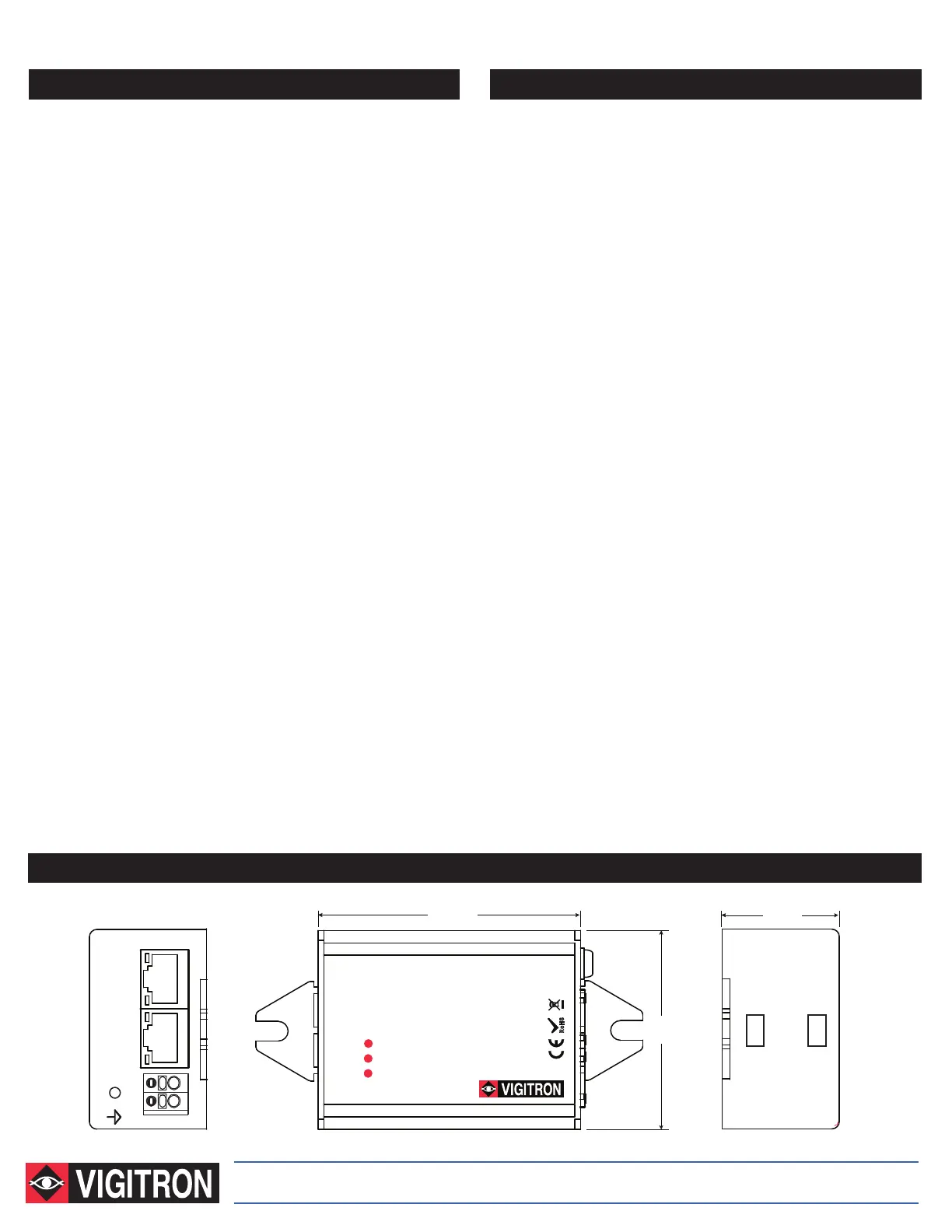

Technical Specifications*
Drawings
© Copyright 2022 Vigitron, Inc.
TEL (+1) 858 - 484 - 5209 • FAX (+1) 858 - 484 - 1205
7810 Trade Street, Suite 100, San Diego, CA 92121, USA • support@vigitron.com • www.vigitron.com
Vi22301_UM
Electrical
Ethernet Interface Standard 10/100/1000Base T
Power Consumption Based on input power
Power Input PoE IEEE 802.3af, Class 3 15.4W
PoE IEEE 802.3at, Class 4
PoE 60W
Power Output 12VDC or 24VDC - (up to 30W)
30W PoE Port - Total power will depend
on a combination of PoE and DC power required
Connections Input Data + PoE: RJ45
Output Data + PoE: RJ45
Power Out: Push Connector
Status LEDs PoE Input: Orange
PoE Output: Orange
12/24VDC Output Available: Green
Data Interfaces and RFC 768 UDP, RFC 2068 HTTP
Compliances RFC 793 TCP, RFC 791 IP
RFC 1783 TFTP, RFC 894 IP over Ethernet
RFC 2544 TCP/IP Packet Transmission
PoE Compatibility IEEE 802.3af / Class 0,1,2,3
IEEE 802.3at / Class 4
60W PoE sources compatible sources
Side Switch 30W/60W Select
Mechanical
Dimensions 1.36x2.13x2.91 in., 34.5x54.1x73.9 cm (HxWxL)
Weight 0.328 lb, 149 g
Environmental
Humidity 0% to 90%, Non-condensing
Temperature Operating: -40°C to +75°C
Storage: -65°C to +150°C
Regulatory
Safety CE
Environmental RoHS, WEEE
12/24VDC
Made in USA
2.13"
5.4 cm
2.91"
7.4 cm
1.36"
3.5 cm
Vi22301
60W PoE Splitter
Power Out
PoE Out
PoE In
RoHS
12V 24V
30W 60W
DATA+PoE
Output
DATA+PoE
Input
