Side 1/2
Application Drawing

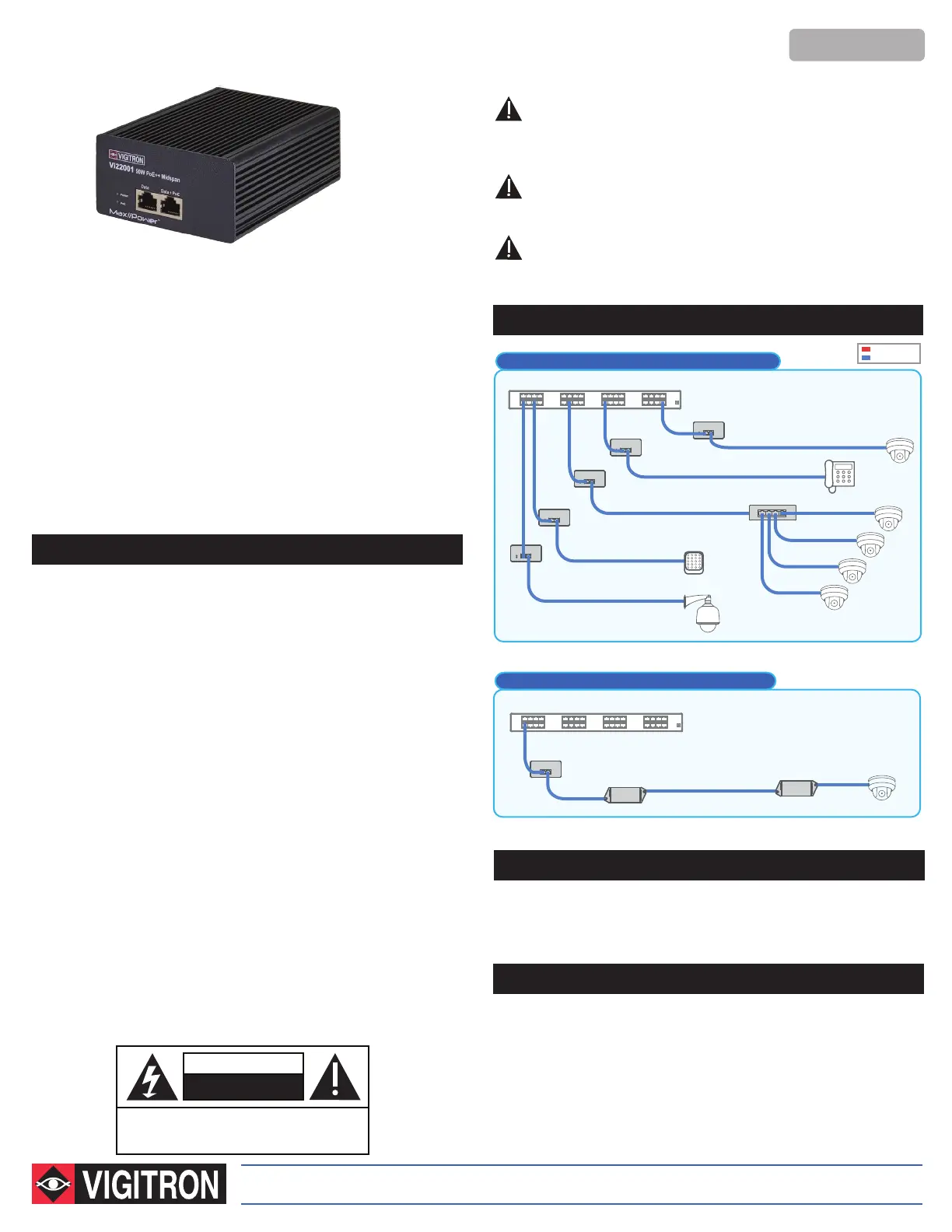

Vi22001 Single Port 90W PoE++ Midspan Installation Manual
IP Camera-end Installation
The Smart Choice for Transmission Solutions www.vigitron.com
Important Safety Warning
- Connect the UTP Cables (Cat5/6) from the IP camera or other PoE
powered device to the “Data + PoE” RJ45 connector of Vi22001. The cable
must be a Cat5/6 with a maximum length of 100m (328 feet).
Ethernet Switch/NVR-end Installation
- Connect the UTP Cable (cat5/6) from the Ethernet switch to the “Data”
RJ45 connector of Vi22001. The total length of UTP cable from network
switch to the powered PoE device should not exceed 100m (328 feet).
- Plug the AC power cord provided with the unit to the mains.
- Read these instructions. Keep these instructions. Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Install in accordance with the manufacturer’s instructions.
- This installation should be made by a qualified service person and should
conform to all local codes.
- DO NOT bundle UTP signal wires in the same conduit as high-voltage wiring.
- To reduce the risk of fire or electrical shock, do not expose these products
to rain, moisture, dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron
equipment.
- DO NOT install the unit in a place where the operating ambient
temperature exceeds 60°C.
- Make sure that the power source voltage is in the recommended range.
- Do not install near any heat sources such as radiators, heat registers,
stoves or other apparatus that produce heat.
- Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long
periods of time.
- Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as a power
supply cord or plug is damaged, liquid has been spilled, or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
- The mains plug is used as the disconnect device and shall remain readily
operable.
WARNING! - To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. This apparatus shall not be exposed to
dripping or splashing and no objects filled with liquids, such as vases shall
be placed on the apparatus.
WARNING! - This apparatus is a Class I product. This product must
be connected to a mains socket outlet through an AC to DC Power supply
when using DC input.
WARNING! - The mains plug is used as the disconnect device and
shall remain readily operable.
The MaxiiPower Model Vi22001 is a unique Single port PoE Midspan
designed for the most demanding power applications of 10/100/1000
Base-T networks. With the ability to provide up to 90W PoE power, it is the
most cost effective method for powering PTZ domes cameras with heaters
and blowers. The Midspan is compliant IEEE 802.3af, IEEE 802.3at up to
90W PoE application.
The Vi22001 can virtually meet requirements of any high power PoE
application. Its unique internal control system enables it to handle both
single PD and dual PD PoE devices.
The Midspan is equipped with LEDs to provide power status. No IP setting
or configurations are required and it can completely transparent to the
Ethernet network and higher layer protocols.
The Vi22001 is smaller, lighter and easier to fit in environmental enclosures
than most single channel power supplies.
Vi22001_UM
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Powering High power PoE devices at Extended Distances
Powering PoE devices at standard and extended distances
Vi22001
Coax
Cat 5/6
Network Switch
Vi22001
Vi22001
Vi22001
IP Camera
IP Phone
Data + PoE
IP Cameras
Vi3005
90W PTZ Dome
60W IR/
LED Light
Data + 90W PoE
328 ft. (100m)
Vi22001
Data + 90W PoE
328 ft. (100m)
Data + 90W PoE
Data Data Data Data
328 ft. (100m)
Data + 90W PoE
328 ft. (100m)
328 ft. (100m)
Data + PoE
328 ft. (100m)
Data + 90W PoE
328 ft. (100m)
The Vi22001 can be used to provide power to a wide variety high PoE power PoE powered devices with Single or Dual PDs.
Network Switch
Vi22001
Vi2301A
Vi2301A
IP Camera
Data + 90W PoE
328 ft. (100m)
The Vi22001 can be used along with extenders to provide power to PoE powered devices at long distances.
Maxii
Power
TM
Limited Lifetime Warranty
Vigitron, Inc. warrants that all Vigitron products (“Product”), if used in accordance
with these instructions, will be free of defects in material and workmanship for
lifetime defined as the duration period of time until product end of life is announce-
ment. After which Vigitron will continue to provide warranty services for a period of 3
years. Period covering valid warranty will be determined by proof of purchase in the
form of an invoice from an authorized Vigitron dealer.
Warranty will only be provided for as long as the original end user purchaser owns
the product. Warranty is not transferable. At Vigitron's option, defective product will
be repaired, replaced or substituted with a product of equal value. This warranty
does not apply if, in the judgment of Vigitron, Inc., the Product fails due to damage
from shipment, handling, storage, accident, abuse or misuse, or if it has been used
or maintained not conforming to Product manual instructions, has been modified, or
serial number removed or defaced. Repair by anyone other than Vigitron, Inc. or an
approved agent will void this warranty. Vigitron, Inc. shall not under any circum-
stances be liable to any person for any incidental, indirect or consequential
damages, including damages resulting from use or malfunction of the product, loss
of profits or revenues or costs of replacement goods. The maximum liability of
Vigitron, Inc. under this warranty is limited to the original purchase price of the
Product only.

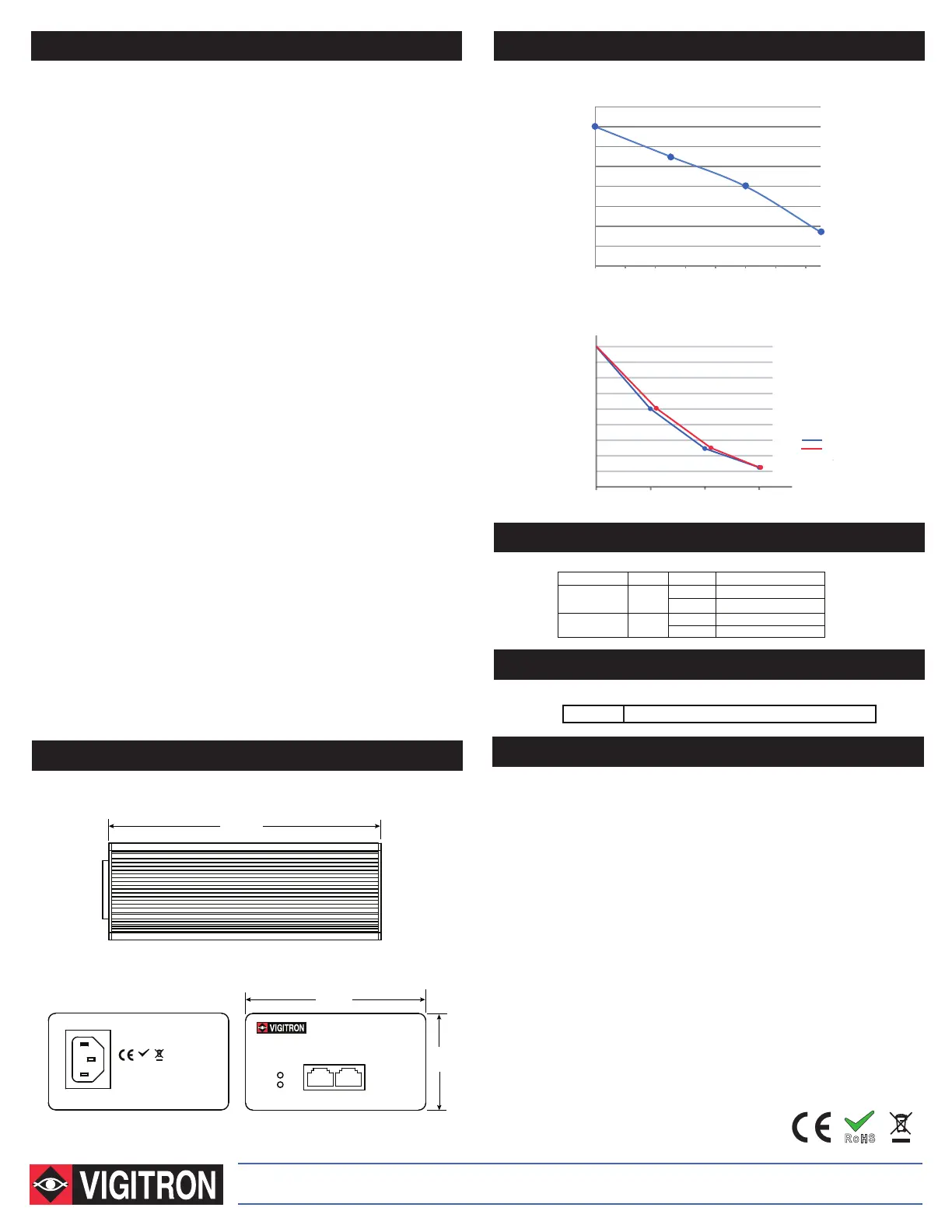

Technical Specifications*
RoHS
Drawings
Ordering Information
Right View
Left View
Performance Charts
Status LEDs
© Copyright 2019 Vigitron, Inc.
TEL (+1) 858 - 484 - 5209 • FAX (+1) 858 - 484 - 1205
7810 Trade Street, Suite100, San Diego, CA 92121, USA • support@vigitron.com • www.vigitron.com
3.75"
9.5 cm
Part No.
Vi22001
Single port 90W PoE ++ Midspan
Side View
2.0"
5.1 cm
LED Name Color Status Function
OFF Power is OFF
ON Power is ON
OFF PoE output is OFF
PoE
GREEN
GREEN
ON PoE output is ON
Electrical
Ethernet Interface Standard 10/100/1000 BaseTX
UTP Category-5 (or higher)
Output Power 90W @ 56 VDC
AC Input Power 90-264VAC @ 1.1A Max, 50-60 Hz
PoE Standards 802.3af
802.3at, up to 90W
Status LEDs Power: Green
PoE On: Green
Connectors Input Interface: Shielded RJ-45
Output Interface: Shielded RJ-45
Main Power: IEC 320-C14 inlet
Regulatory
Safety CE
Environmental RoHS, WEEE
Environmental
Humidity 0 to 90%, non-condensing
Temperature Operating: -20°C to +60°C
Storage: -30°C to +80°C
Mechanical
Dimensions 2x3.75x5.71 in., 5.1x9.5x15.5 cm (HxWxL)
Weight 1.58 lb (720 g)
Material Extruded Aluminum
Included Accessories
Molded IEC 7 ft. (200 cm) power cord
Mounting clips
*Specifications subject to change without notice.
RoHS
Made in U.S.A.
100-240VAC 50/60 Hz
INPUT: 100-240V ~ 1.1A MAX 50/60Hz
DATA: 10/100/1000BaseT
PoE : IEEE 802.3af/at/90W Compliant
Power
PoE
Data Data + PoE
Vi22001
90W PoE++ Midspan
5.71"
15.5 cm
20
30
40
50
60
70
80
90
100
45 47 49 51 53 55 57 59
Load (W)
Ambient Temperature (°C)
PoE Power Output vs. Temperature
PoE Power at the load vs. Distance
0
750
Distance (Feet)
PoE at Load (W)
1500
3000
20
40
60
80
90
Cat5
Cat6
