Side 1/2

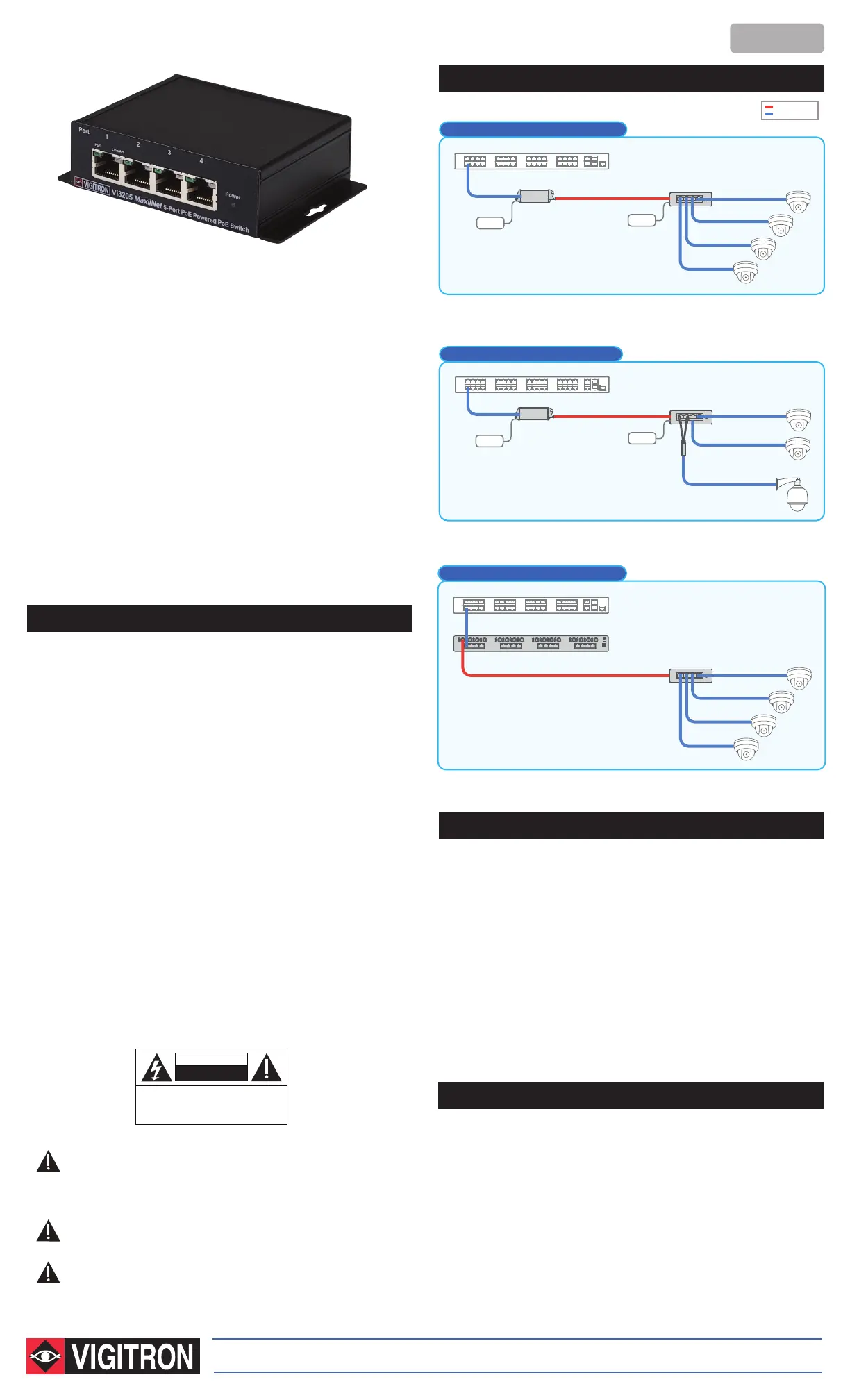

Application Drawings
Vi3205 5-port PoE Powered PoE Switch w/ Coax Uplink Installation Manual
IP Camera-end Installation
The Smart Choice for Transmission Solutions www.vigitron.com
Vigitron’s MaxiiNet™ Vi3205 fixed managed 5-port PoE switch brings new
performance standards to the growing need for high speed transmission of
high speed Ethernet and PoE. The Vi3205 is powered by Vi1120 120W
power supply and can provide up to 37W to each of its 4 standard Ethernet
ports.
The Vi3205’s uplink can operate on coax at extended distances up to 3,000
feet. When using Coax uplink it can receive PoE power from the headend to
power itself eliminating the need for a local power source.
With an operating temperature range of -30°C to 75°C, the Vi3205 is the
perfect solution for data and power transmission for aplications such as
warehouses, parking lots, campuses, casinos. The Vi3205 is MegaPixel
Certified (MPC™), type tested to network packet performance standards to
assure you an error free and quality operation. Fixed managed L2 functions
includes 802.1p QoS, support of 2k MAC addressing, learning, aging, and a
non-blocking switch fabric.
The built-in PSE provides 802.3af/at up to 37W per port while providing all
safety features of standard PoE. Installation cost savings, proven perfor-
mance, and major camera manufacturer compatibility all go into making
Vigitron’s MaxiiNet™ Vi3205 an ideal solution for IP video and PoE
transmission.
Important Safety Warning
Ethernet Switch/NVR-end Installation
Coax Uplink Connection:
- Connect one end of the extended Coax cable to the Coax connector of
Vi3205.
Standard Ethernet Ports:
- Connect a standard Cat5, or better, UTP cable of maximum 328 feet
(100m) to one of the Ethernet ports. The ports will automatically configure
as 10 or 100BaseT depending on the connected camera.
Power Supply:
-Connect a power supply to the power input of Vi3205. If there is no need
for providing PoE on 4 ports a 12VDC power supply such as Vi0012 will be
sufficient. If PoE is required at the ports you need to use a 48-57VDC
power supply such as Vi1120 that can provide maximum PoE capacity on
all 4 ports.
Use a Vi24xxA series extender to connect extended Coax to the network
switch. The Remote/Local switch should be set to Local.
Extended Coax connection:
- Connect one end of the extended Coax cable to the BNC connector of a
Vi24xxA series extender.
Standard Ethernet connection:
- Connect the RJ45 connector of the Ethernet switch to the 10/100BaseT
Ethernet port of Vi24xxA using a standard Cat5/6 cable of maximum 328 feet
(100 m).
Power Supply:
- Connect the 12V power supply to the power connector of the Vi24xxA.
When using Vi2401A and have PoE available it will use PoE if external
power supply is not connected.
Maxii
Net
TM
Coax
Cat 5/6
Connecting Cameras over Extended UTP
Connecting Cameras over Extended UTP
Vi3205
Network Switch
Vi2401A
Power
Supply
PoE Cameras
60W PTZ Dome
Data + PoE
328 ft. (100m)
Data
328 ft. (100m)
Data
Coax
Data + PoE
328 ft. (100m)
Data + PoE
328 ft. (100m)
Data + PoE
328 ft. (100m)
Power
Supply
Vi3205
Network Switch
Power
Supply
PoE Cameras
Data + PoE
328 ft. (100m)
Data
Coax
Data + PoE
328 ft. (100m)
Data + 60W PoE
328 ft. (100m)
Vi00016
Vi2401A
Data
328 ft. (100m)
Power
Supply
The Vi3205 can receive data over Coax up to 3,000 ft. at 100Mbps. and power up
to 4 cameras using a
local power supply.
The Vi3205 can receive data over extended distance Coax up to 3,000 ft. at 100Mbps and
power 60W PoE cameras using the Vi00016 combiner cable and a local power supply.
Connecting Cameras over Extended UTP
Vi3205
Network Switch
Data + PoE
328 ft. (100m)
Data
Data + PoE
Extended UTP
Data + PoE
328 ft. (100m)
Data + PoE
328 ft. (100m)
Data + PoE
328 ft. (100m)
Vi2516
The Vi3205 can receive data and PoE power for powering itself over extended distance Coax up
to 3,000 ft. at 100Mbps. The cameras use local power supplies.
PoE Cameras with
local power
supplies
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
- Read and keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Install in accordance with the manufacturer’s instructions.
- This installation should be made by a qualified service person and should conform
to all local codes.
- DO NOT bundle UTP or Coax signals in the same conduit as high-voltage wiring.
- To reduce the risk of fire or electrical shock, do not expose these products to rain,
moisture, dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron equipment.
- DO NOT install the unit in a place where the operating ambient temperature
exceeds 75°C or is below - 40°C.
- Make sure that the external power supply output voltage is in the recommended
range.
- Do not install near any heat sources such as radiators, heat registers, stoves or
other apparatus (including DVRs) that produce heat.
- Protect the power cord from being walked on or pinched particularly at power
source, convenience receptacles, and the point where they exit from the apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long periods of
time.
- Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as when a power supply cord or
plug is damaged, liquid has been spilled, objects have fallen inside the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
- The main plug is used as the disconnect device and shall remain readily operable.
WARNING! - To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. This apparatus shall not be exposed to
dripping or splashing and no objects filled with liquids, such as vases shall
be placed on the apparatus.
WARNING! - This apparatus is a Class I product. This product must
be connected to a mains socket outlet thru an AC to DC Power supply.
WARNING! - The mains plug is used as the disconnect device and
shall remain readily operable.
Limited Lifetime Warranty
Vigitron, Inc. warrants that all Vigitron products (“Product”), if used in accordance
with these instructions, will be free of defects in material and workmanship for
lifetime defined as the duration period of time until product end of life is announce-
ment. After which Vigitron will continue to provide warranty services for a period of 3
years. Period covering valid warranty will be determined by proof of purchase in the
form of an invoice from an authorized Vigitron dealer.
Warranty will only be provided for as long as the original end user purchaser owns
the product. Warranty is not transferrable. At Vigitron's option, defective product will
be repaired, replaced or substituted with a product of equal value. This warranty
does not apply if, in the judgment of Vigitron, Inc., the Product fails due to damage
from shipment, handling, storage, accident, abuse or misuse, or if it has been used
or maintained not conforming to Product manual instructions, has been modified, or
serial number removed or defaced. Repair by anyone other than Vigitron, Inc. or an
approved agent will void this warranty. Vigitron, Inc. shall not under any circumstanc-
es be liable to any person for any incidental, indirect or consequential damages,
including damages resulting from use or malfunction of the product, loss of profits or
revenues or costs of replacement goods. The maximum liability of Vigitron, Inc.
under this warranty is limited to the original purchase price of the Product only.
Prior to returning any defective Product, the end customer or the reseller from whom
the end customer originally purchased the Product must obtain a Return Materials
Authorization (RMA) number from Vigitron, Inc. All defective Products should be
returned to Vigitron, Inc. with shipping charges prepaid. No collect shipments will be
accepted.

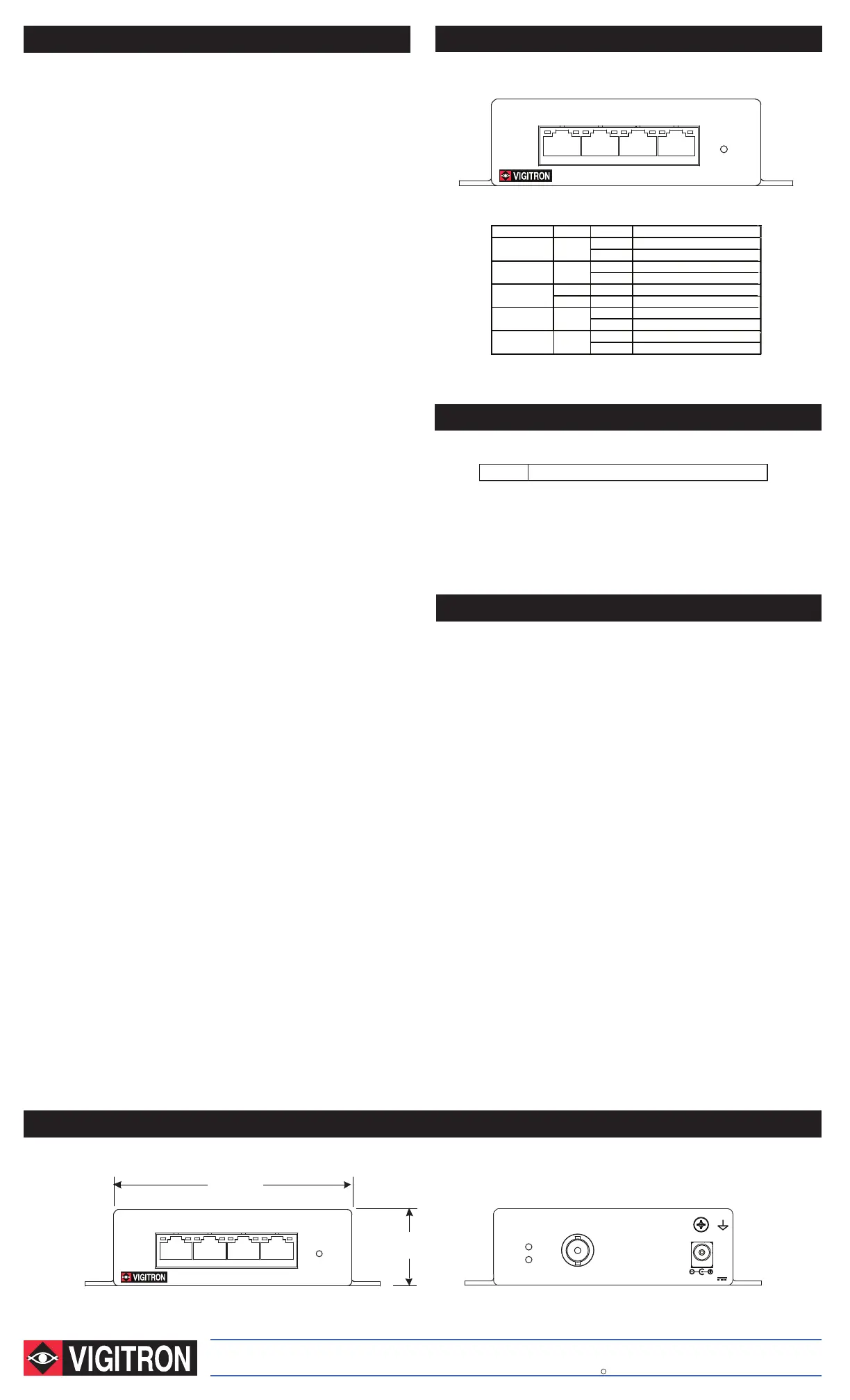

Technical Specifications*
Drawings
Status LEDs
© Copyright 2015 Vigitron, Inc.
TEL (+1) 858 - 484 - 5209 • FAX (+1) 858 - 484 - 1205
7810 Trade Street, Suite 100, San Diego, CA 92121, USA • support@vigitron.com • www.vigitron.com
Vi3205_UM
LED Name Color Status Function
OFF Power is OFF
ON Power is ON
OFF No Traffic
FLASHING Traffic
GREEN ON Connection is OK, 10BaseT Mode
ORANGE ON Connection is OK, 100BaseT Mode
OFF No connection
FLASHING Connection is OK with Traffic
Link/Act
(Standard Side)
Power GREEN
Ac�vity
(Extended Side)
YELLOW
10/100 BaseT
(Extended Side)
Ordering Information
YELLOW
Electrical
Ethernet Interface Standard 10/100BaseT
UTP 100 Ohm +/- 20%, 328 ft. (100m) for 10/100Mbps
Coax Uplink 75 Ohm RG59 or better
Power Source PoE: 802.3af (15.4W), 802.3at (30W)
Optional: Vi1120, 120W 57V External Power Supply
Status LEDs Power: Power On
Standard Ethernet: Traffic, Link
PoE: PoE Present
Connectors Ethernet Interface: 4 x RG59u Coax Connector
Power: Pluggable Terminal Block
Extended Ethernet Interface: RJ45 Connector
RFC 2544 TCP/IP Packet Transmission
768 UDP, 2068 HTTP, 793 TCP
791 IP, 1783 TFTP, 894 IP over Ethernet
PoE Compatibility IEEE 802.3af, IEEE 802.3at,60W High Power PoE
Regulatory
Safety CE
Environmental RoHS, WEEE
Emissions EN5502:2006+A1:2007
EN 61000-3-2:2006+A1:2009+A2:2009
EN 55024: 1998+A1:2001+A2:2003
Environmental
Humidity 0 to 95%, non-condensing
Temperature Operating: -30°C to +75°C
Storage: -40°C to +85°C
Mechanical
Dimensions 1.2x3.75x4.97 in., 3.0x9.5x12.6 cm (HxWxL)
Weight 0.64 lb (290 g)
Housing Aluminum
Optional Accessories
Vi1120: 57VDC, 120W Power Supply
Vi0017: 48VDC, 40W Power Supply
Vi0012: 12VDC, 12W Power Supply for non-PoE Applications
Vi00016: Combiner Cable for High Power PoE up to 74W
*Specifications subject to change without notice.
Part No. Description
12/52-57VDC
3.75"
9.53cm
1.2"
3.0cm
Rear View
Front View
Activity
UPLINK
10/100
Extended Ethernet
Power
Vi3205 Maxii Net
5-Port PoE Switch
1
2 3 4
Port
Link/Act
PoE
Power
Vi3205 MaxiiNet 5-Port PoE Switch
1
2 3 4
Port
Link/Act
PoE
PoE powerower is OFF
ON
OFF
PoE
GREEN
PoE powerower is ON
Vi3405
5-Port PoE Powered PoE Switch w/ Coax Uplink

Produkt Specifikationer

Mærke: Vigitron
Kategori: Netværkskort/adapter
Model: MaxiiNet Vi3205

Har du brug for hjælp?

Hvis du har brug for hjælp til Vigitron MaxiiNet Vi3205 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Netværkskort/adapter Vigitron Manualer

Vigitron

Vigitron MaxiiCopper Vi2301AU Manual

8 Oktober 2025
Vigitron

Vigitron MaxiiNet Vi3205 Manual

8 Oktober 2025
Vigitron

Vigitron MaxiiPower Vi22301 Manual

8 Oktober 2025
Vigitron

Vigitron MaxiiPower Vi22001 Manual

8 Oktober 2025
Vigitron

Vigitron Vi30001 Manual

17 Juli 2025
Vigitron

Vigitron MaxiiNet Vi3003WP Manual

17 Juli 2025
Vigitron

Vigitron Vi3105 Manual

17 Juli 2025
Vigitron

Vigitron Vi30005 Manual

17 Juli 2025
Vigitron

Vigitron Vi22401 Manual

17 Juli 2025
Vigitron

Vigitron MaxiiNet Vi32026 Manual

6 Juli 2025

Netværkskort/adapter Manualer

Nyeste Netværkskort/adapter Manualer

EtherWAN

EtherWAN EX78802-0VBT Manual

8 Oktober 2025
EtherWAN

EtherWAN EX78934H-0VB Manual

8 Oktober 2025
EtherWAN

EtherWAN EX78924H-0VB Manual

8 Oktober 2025
Luminys

Luminys SML-20GPA Manual

8 Oktober 2025
EtherWAN

EtherWAN EX78922H-0VB Manual

8 Oktober 2025
EtherWAN

EtherWAN EG97244-4VCR Manual

7 Oktober 2025
Luminys

Luminys SML-28GPA Manual

7 Oktober 2025
Conceptronic

Conceptronic CSP100TCL Manual

6 Oktober 2025
Draytek

Draytek Vigor N61 Manual

6 Oktober 2025
Juniper

Juniper XFP-10GE Manual

4 Oktober 2025
