Installation Guide

TTS Secure Surface Mounting / Alternate Cable Routing

Overview

Each of the TTS Table-Top Stands features a Cable Knockout and three mounting

holes on the bottom panel that allow you to provide a secure surface-mount

installation.

When surface mounting the TTS, all cabling will enter the TTS enclosure through the

knockout on the bottom panel, using strain relief inside the enclosure (FIG. 1).

Note that in this type of installation, the rear panel connectors on the TTS are not

used, since the cables entering the enclosure through the bottom panel connect

directly to the Touch Panel, Keypad(s) or ControlPad installed in the Table-Top Stand.

Strain Relief Accessories

Included with each TTS Table-Top Stand is a cable Strain Relief and Strain Relief

Bracket that mount inside the TTS enclosure:

Cable Strain Relief (45-0004-04)

The Cable Strain Relief (FIG. 2) mounts onto the cable.

Strain Relief Bracket (62-1800-06)

The Strain Relief Bracket (FIG. 3) mounts to the bottom panel of the TTS enclosure,

using the center mounting hole.

Note that the screw that secures the Strain Relief Bracket also serves as one of three

mounting screws that secure the TTS enclosure to the mounting surface.

Preparing the Mounting Surface

1. Establish the desired location and position for the installation.

Refer to FIG. 4 and FIG. 5 for the dimensions of the bottom panel and the

location of the three mounting holes.

The mounting holes are 0.166” (4.22 mm). See “Mounting Specifications” for

details.

2. Drill three mounting holes into the surface.

Mounting Specifications

The following illustrations provide detailed dimensions of the bottom panel of the TTS

Enclosures.

NXA-TTS43X-BL and NXA-TTS500-BL

The NXA-TTS43X-BL and NXA-TTS500-BL share the same TTS enclosure (FIG. 4):

MET-TTS1/2/3-BL and AP-TTS16-BL

The MET-TTS1/2/3-BL and AP-TTS16-BL share the same TTS enclosure (FIG. 5):

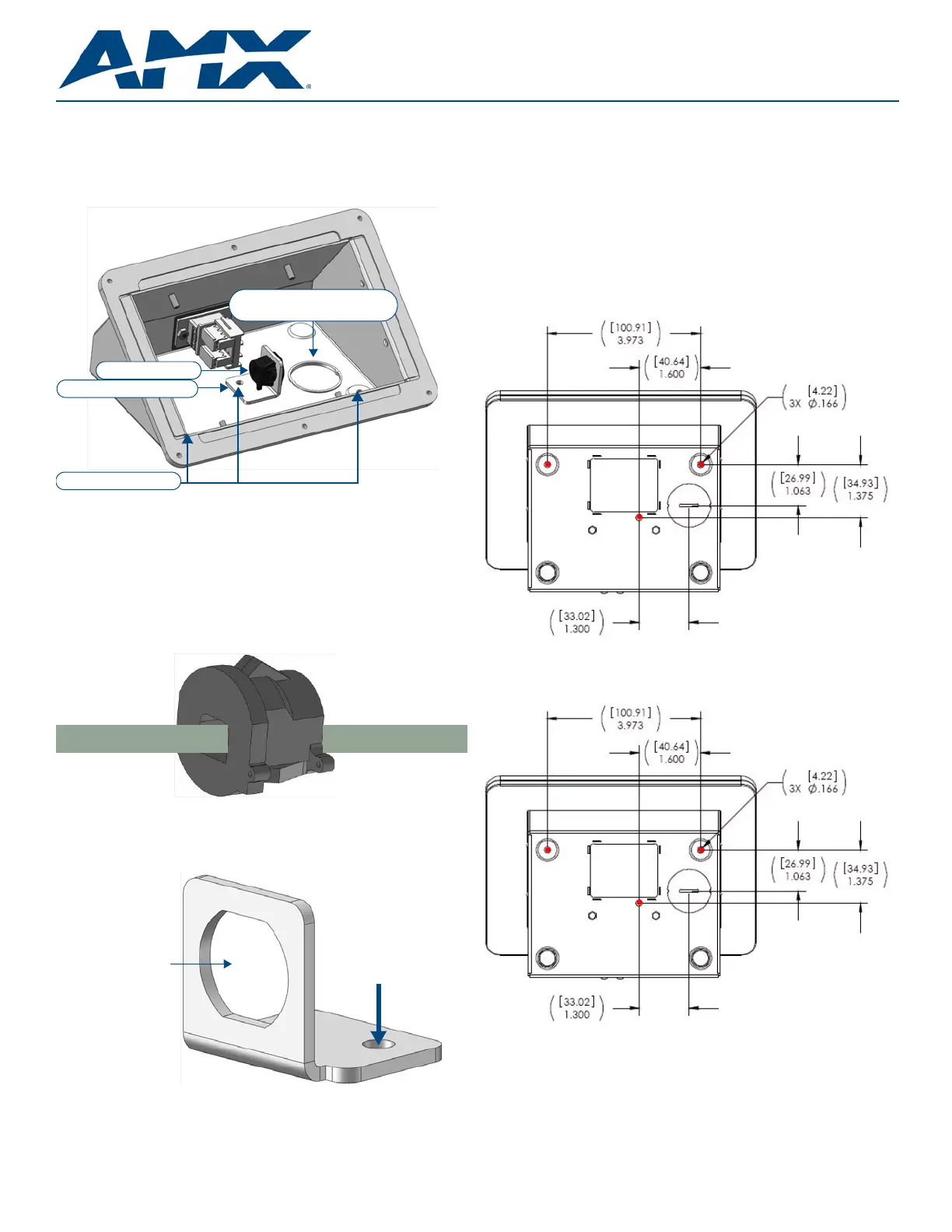

FIG. 1 Cable Knockout, Strain Relief and Surface Mounting Holes on TTS Enclosures

FIG. 2 Cable Strain Relief (45-0004-04)

FIG. 3 Strain Relief Bracket (62-1800-06)

Cable Strain Relief

Cable Strain Relief Bracket

Cable Knockout

(shown with knockout removed)

Surface Mounting Holes

Mounting screw passes

through the Bracket to

secure the TTS enclosure

to the mounting surface

(see Fig. 1)

Cable with Cable Strain

Relief mounts here

FIG. 4 Bottom panel specifications - NXA-TTS43X-BL and NXA-TTS500-BL

FIG. 5 Bottom panel specifications - MET-TTS123-BL and AP-TTS16-BL

For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).

1/10

AMX reserves the right to alter specifications without notice at any time.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com

93-2261-10 REV: A

Secure Surface-Mounting

1. Use a flat-head screwdriver to remove the rubber feet.

Note that two of the surface mounting holes are located beneath the two rear

rubber feet (FIG. 6).

2. Use a flat-head screwdriver to remove the Cable Knockout from the bottom

panel.

3. Position the TTS enclosure in the desired installation location.

4. Use the two rear mounting holes to secure the TTS enclosure to the mounting

surface.

5. Run all device cable(s) through the Cable Knockout.

6. Install the Cable Strain Relief (FIG. 2) on the cable(s).

7. Install the cable with Cable Strain Relief into the Strain Relief Bracket.

8. Install the Strain Relief Bracket inside the enclosure.

The mounting screw that secures the Strain Relief Bracket to the TTS Enclosure

passes through the Strain Relief Bracket and serves as the third mounting

screw, completely securing the TTS enclosure to the surface.

9. Connect device cabling to the Touch Panel, Keypad(s) or ControlPad,

depending on the type of TTS installed.

Note: Refer to the Operation/Reference Guide for the device being installed for

cabling and connection details.

10. Install the Panel, Keypad(s) or ControlPad as described in the TTS Installation

Guides.

Detailed Dimensions of TTS Enclosures

The following illustrations provide detailed dimensions for the TTS enclosures:

NXA-TTS43X-BL and NXA-TTS500-BL

The NXA-TTS43X-BL and NXA-TTS500-BL share the same TTS enclosure (FIG. 7):

MET-TTS1/2/3-BL and AP-TTS16-BL

The MET-TTS1/2/3-BL and AP-TTS16-BL share the same TTS enclosure (FIG. 5):

Additional Documentation

Refer to the Installation Guide specific to the TTS Table-Top Stand that you are

installing for detailed instructions on installing the Touch Panel, Keypad(s) or

ControlPad into the TTS Enclosure:

• AP-TTS16-BL Installation Guide

• MET-TTS123-BL Installation Guide

• NXA-TTS43X-BL Installation Guide

• NXA-TTS500-BL Installation Guide

FIG. 6 Bottom Panel (bottom view)

FIG. 7 Enclosure Dimensions - NXA-TTS43X-BL and NXA-TTS500-BL

(rear)

Surface Mounting holes are

hidden beneath the rear pair

Surface Mounting holes

Cable knockout

The Strain Relief Bracket

(mounted inside the enclosure)

also uses this mounting hole

(front)

of rubber feet

FIG. 8 Enclosure Dimensions - MET-TTS123-BL and AP-TTS16-BL
