Side 1/2

AD-WF-10090 Page 1 of 2

Wall Plate

Display Bracket (x2)

M-G

Short

Spacer

(x8)

M-H

Long

Spacer

(x8)

M-F

Multi

Washer

(x4)

M-D

M8x30

Screw

(x4)

M-B

M6x14

Screw

(x4)

M-A

M5x14

Screw

(x4)

M-C

M6x30

Screw

(x4)

M-E

M8x50

Screw

(x4)

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! The manufacturer accepts no responsibility for incorrect installation.

! Failure to mount this product correctly may cause serious injury/death during or following installation.

! This product is not suitable for outdoor use.

! Do not use this product for mobile applications.

! Wall Plate only achieves maximum weight rating when appropriately fastened to a wall of adequate structural capacity.

! Professional installer to ensure adequate structural capacity of wall (including appropriate safety factor) to support total

weight of all equipment being mounted.

! Drilling into electrical wires can cause death - use appropriate equipment and caution when drilling holes in walls to avoid

electrical cables, water pipes and gas pipes. Do not drill into structures unless you have established it’s safe to do so.

COMPONENT CHECKLIST

NOTE:

! Wall Plate Mounting Fasteners are supplied with Wall Mounts. NOT

Professional installer to ensure correct Mounting Fastener type, location &

quantity to suit structure where Wall Mount is installed.

! ALWAYS use a washer between the chosen fastener and the wall plate.

! Mounting fasteners to be used as per manufacturers instructions, including

minimum engagement to achieve necessary performance.

0 - 100kg

(0 - 220lb)

WEIGHT RANGE

Installation Guide

AD-WF-10090

Fixed Wall Mount 10090

REQUIRED TOOLS

• Phillips head screwdriver

• Power drill

• Suitable drill bit

• Driver bit for selected

wall fasteners

• Stud nder

• Spirit level

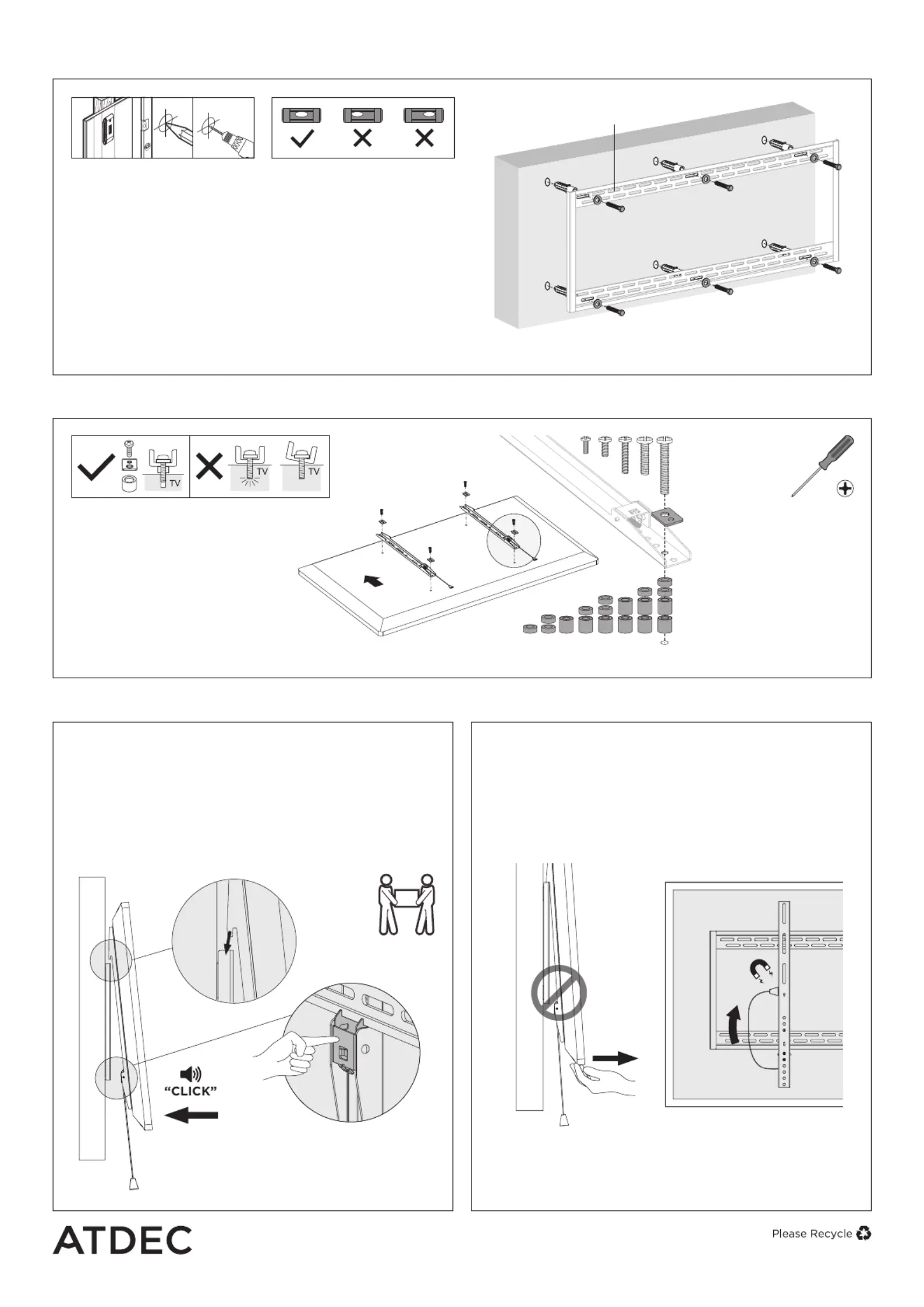

AD-WF-10090 Page 2 of 2

Slot Dimension

Ø8 x 46mm

2 3

1. Mount the Wall Plate to the Wall

*Fasteners shown are for example only

M-H (OPTIONAL)

SPACER HEIGHT (mm)

M-G (OPTIONAL)

M-A

M-B

M-C

M-D

M-E

(M5x14)

(M6x14)

(M6x30)

(M8x30)

(M8x50)

M-F

403530

2520

3. Hook the Display onto the Wall Plate 4. Check Security and Conceal Straps

3.1. Angle the display and hook the Display Brackets over

the top of the Wall Plate. This should be completed by

two people.

3.2. The silver locking tabs on the Display Brackets will

make a “click” sound to conrm a secure installation.

You may need to gently apply pressure to the

lower half of the display if this does not happen

automatically.

4.1. Gently pull the display forwards from bottom of the

display to ensure the the locking tabs have engaged

with the wall plate and the display cannot be tilted

upwards.

4.2. Conceal straps behind the display using the magnets

at the end of each strap to prevent accidental unlock

and dismount of the display.

NOTE:

Ensure the silver locking

tabs are pushed in prior

to mounting the display.

NOTE:

To unlock display from the Wall Plate for display removal

- retrieve the straps from their concealed position and pull

each strap down once briey until a “click” is heard.

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

NOTE:

• Choice and supply of appropriate wall plate fasteners is the

responsibility of the installer.

• Consult a preferred fastener supplier or a structural engineer

to select fasteners which are most appropriate for the weight

of the display and wall construction method.

• Wall plate be level. Verify using a quality spirit level tool.must

• On a Stud Wall or Drywall use a good quality Stud Finder to

position mounting fasteners in the centre of studs.

• On a Masonry Wall avoid positioning Wall Plate mounting

fasteners in a mortar join.

NOTE:

• Always use multi-washers M-F.

• Ensure the display brackets are

not loose and screws are not

forced too deep into the display.

• If spacers are needed, use the

shortest possible combination

between the display bracket and

the display.

2. Attach the Display Brackets to the Display

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Flad panel støtte
Model:	AD-WF-10090
Bredde:	1003 mm
Højde:	630 mm
Produktfarve:	Sort
Pakkevægt:	5307 g
Pakkedybde:	1115.06 mm
Pakkebredde:	416.56 mm
Pakkehøjde:	40.64 mm
Panel montering grænseflade:	100 x 200,200 x 200,200 x 300,200 x 400,200 x 600,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,400 x 600,600 x 200,600 x 400,800 x 200,800 x 400,800 x 600,900 x 600 mm
Husmateriale:	Stål
Monteringstype:	Væg
Hovedkassen højde (udvendigt):	180.34 mm
Hovedkassens længde (udvendigt):	1130.3 mm
Hovedkassens bruttovægt (udvendigt):	24947 g
Hovedkassens bredde (udvendigt):	431.8 mm
Produkter pr. hovedkasse (udvendigt):	4 stk
Monteringsbeslag inkluderet:	Ja
Maksimal vægtkapacitet:	100 kg
Maksimal skærmstørrelse kompatibilitet:	- "
Antal bolte:	20
Montering interface kompatibilitet (min.):	100 x 200 mm
Montering interface kompatibilitet (maks.):	900 x 600 mm
Afstand til væggen (min.):	32 mm
Afstand til væggen (maks.):	32 mm
Bolte inkluderet:	Ja
Antal monteringsbeslag:	2
Nem at justere:	Ja
