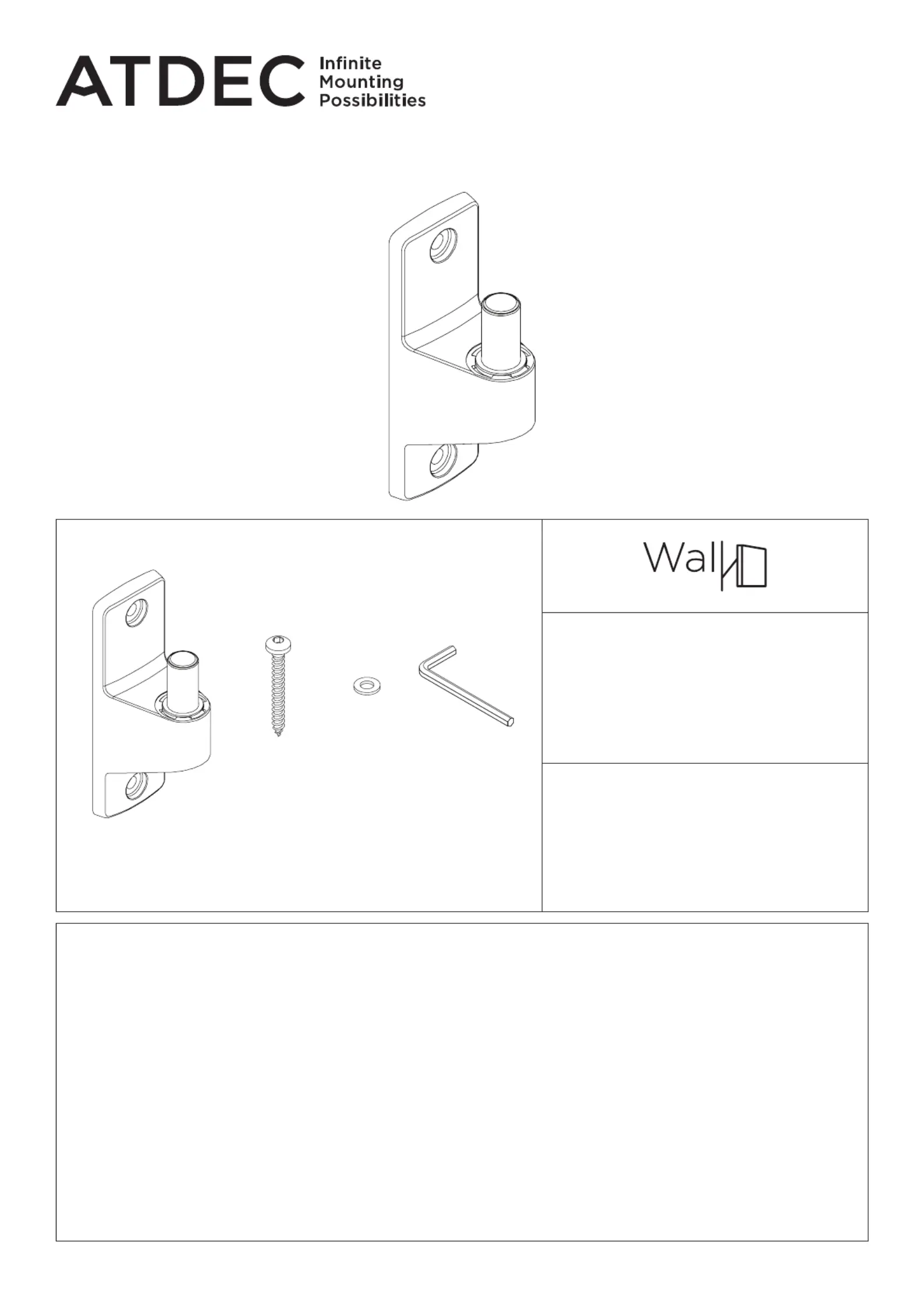

AWM-W Page 1 of 2

Installation Guide

AWM-W

AWM Single Wall Bracket

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! Do not remove or throw away the plastic sleeve on wall bracket.

! The manufacturer accepts no responsibility for incorrect installation.

! Failure to install this product correctly may cause serious injury/death during or following installation.

! This product is not suitable for outdoor use.

! Do not use this product for mobile applications.

! This product should only be installed by professional installers of good mechanical aptitude, who have experience with

building construction, and fully understand these instructions and the consequences of incorrect installation.

! Supplied wall fasteners are for timber stud wall constructions . For other wall constructions, such as masonry, alternative only

suitable wall fasteners should be sourced by the installer.

! To safely achieve the full capacity of this product, wall fasteners must have a pull-out (tension) force rating of at least 100kg

(1000N) per fastener. This rating must include a safety factor.

! Professional installer to ensure adequate structural capacity of wall (including appropriate safety factor) to support total

weight of all equipment being mounted.

! Drilling into electrical wires can cause death - use appropriate equipment and caution when drilling holes in walls to avoid

electrical cables, water pipes and gas pipes. Do not drill into structures unless you have established it’s safe to do so.

! Curved monitors, deep devices (such as all-in-one PCs), VESA mounted accessories (such as mini PC brackets and mounts),

and offset VESA locations exert additional leverage that can exceed the capacity of the mount even though the monitor

weight may be within the stated range. Please contact Atdec if you would like further information.

COMPONENT CHECKLIST

REQUIRED TOOLS

• Power drill

• Suitable drill bit

• Driver bit for selected wall fasteners

• Stud nder

• Spirit level

WEIGHT RANGE

0 - 18kg

(0 - 40lb)

Monitor weight should be within the weight range

of all modular elements that make up the complete

monitor mounting solution.

Washers

(x2)

M8x70mm

Screw

(x2)

6mm

Hex Key

(x1)

Single Wall Bracket

(x1)

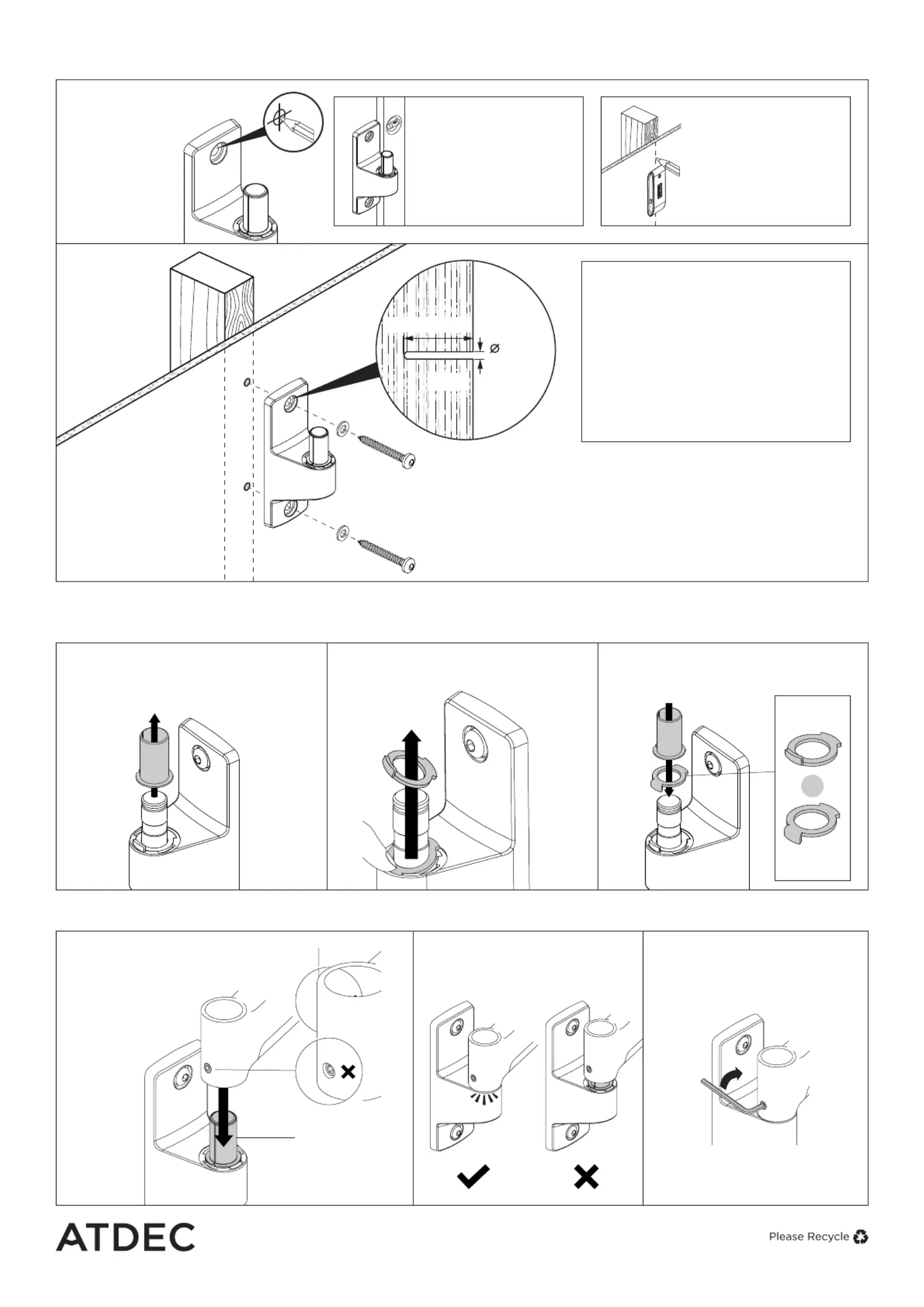

AWM-W Page 2 of 2

1. Mount the Wall Bracket to the Wall

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

Using the

Single Wall

Bracket as

a template,

mark the

two xing

hole positions

for drilling.

NOTE: On a timber

stud wall, use a good

quality stud nder to

position mounting

fasteners in the

centre of studs.

NOTE: Wall bracket

must be level. Verify

using a quality spirit

level tool positioned

along the side edge

of the wall bracket.

2. (Optional) Set arm rotation to 360°

Note rotation is set to 180 by default. This will protect the wall by preventing the arm swinging into it.°

2.1. Remove plastic sleeve from

wall bracket

2.2. Remove rotation ring. 2.3. Place rotation ring in desired

position and replace plastic sleeve.

180°

360°

Default

Position

Flipped

Position

3. Fit arm to Single Wall Bracket

3.2. Ensure arm is fully

pushed onto bracket.

3.1. Push arm onto

the wall bracket

shaft. Ensure grub

screw is retracted

before doing so.

3.3. Tighten the set screw

with 4mm Hex Key (supplied

with arm) to secure the arm

in place.

NOTE: Check the joint rotation

is smooth after tightening.

IMPORTANT:

Ensure plastic

sleeve is tted

on wall bracket.

NOTE:

• Alternative wall constructions,

such as masonry, will require

different fasteners than what is

supplied with the product.

• Selection and sourcing of

alternative wall mounting fasteners

is the responsibility of the installer.

See ‘Important Information’ above

for more details.

Timber Stud

NOTE: Thickness of sheeting and cladding

over the timber stud, including plaster

board, should not exceed 15mm ( ”).⅝

70mm (2 3

/4”)

Stud

32”)

4mm
