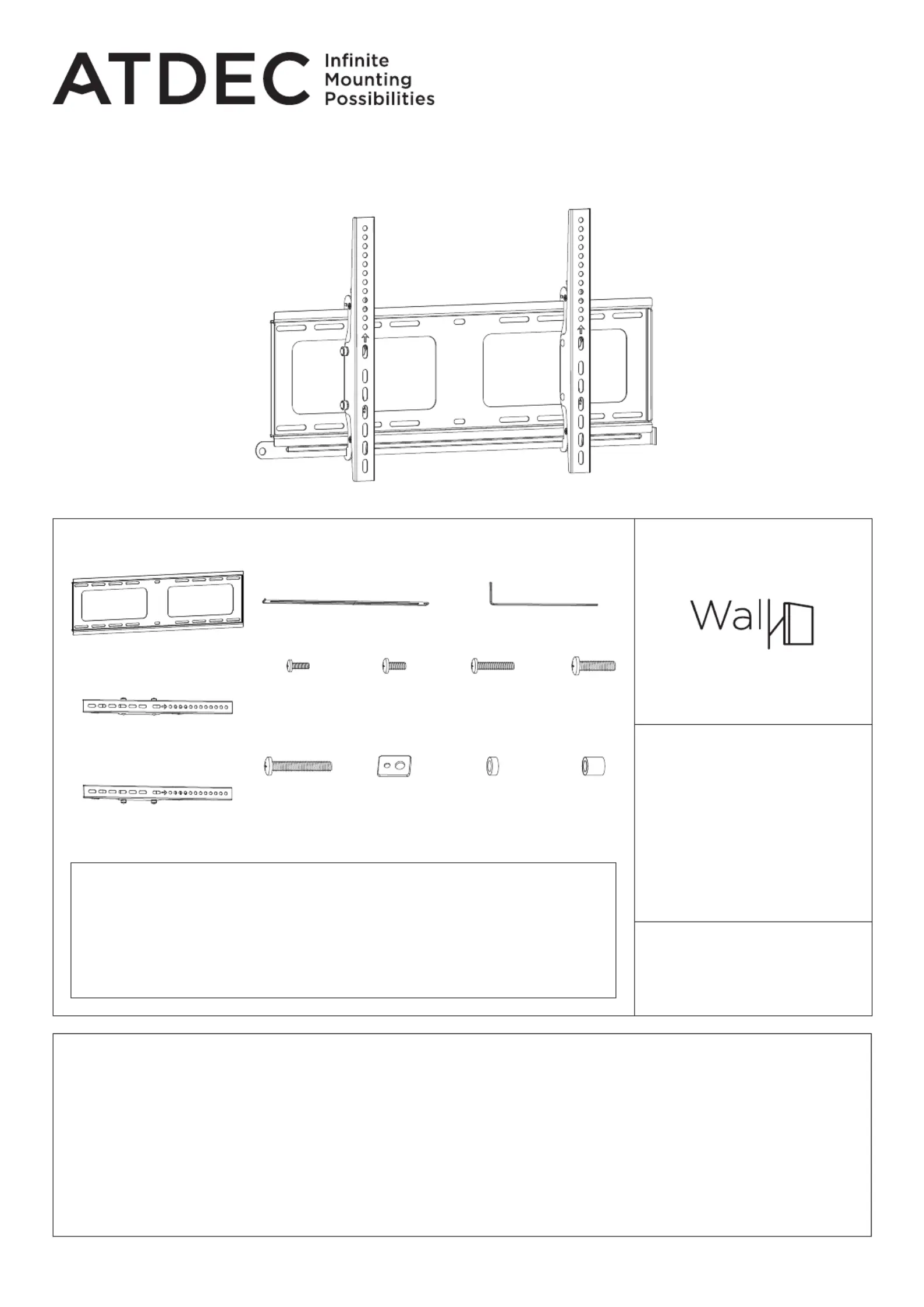

AD-WT-8060 Page 1 of 4

Installation Guide

AD-WT-8060

Tilt Wall Mount 8060

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! The manufacturer accepts no responsibility for incorrect installation.

! Failure to mount this product correctly may cause serious injury/death during or following installation.

! This product is not suitable for outdoor use.

! Do not use this product for mobile applications.

! Wall Plate only achieves maximum weight rating when appropriately fastened to a wall of adequate structural capacity.

! Professional installer to ensure adequate structural capacity of wall (including appropriate safety factor) to support total

weight of all equipment being mounted.

! Drilling into electrical wires can cause death - use appropriate equipment and caution when drilling holes in walls to avoid

electrical cables, water pipes and gas pipes. Do not drill into structures unless you have established it’s safe to do so.

M-C

M6x30

Screw

(x4)

M-B

M6x14

Screw

(x4)

M-D

M8x30

Screw

(x4)

M-A

M5x14

Screw

(x4)

M-F

Multi

Washer

(x4)

M-G

Short

Spacer

(x8)

M-E

M8x50

Screw

(x4)

Display Bracket (left)

Display Bracket (right)

Wall Plate

Security Bar

M-H

Long

Spacer

(x8)

Hex Key

REQUIRED TOOLS

• Phillips head screwdriver

• Power drill

• Suitable drill bit

• Driver bit for selected

wall fasteners

• Stud nder

• Spirit level

• Socket wrench set

COMPONENT CHECKLIST

0 - 80kg

(0 - 176lb)

WEIGHT RANGE

NOTE:

! Wall Plate Mounting Fasteners are NOT supplied with Wall Mounts.

Professional installer to ensure correct Mounting Fastener type, location &

quantity to suit structure where Wall Mount is installed.

! ALWAYS use a washer between the chosen fastener and the wall plate.

! Mounting fasteners to be used as per manufacturers instructions, including

minimum engagement to achieve necessary performance.

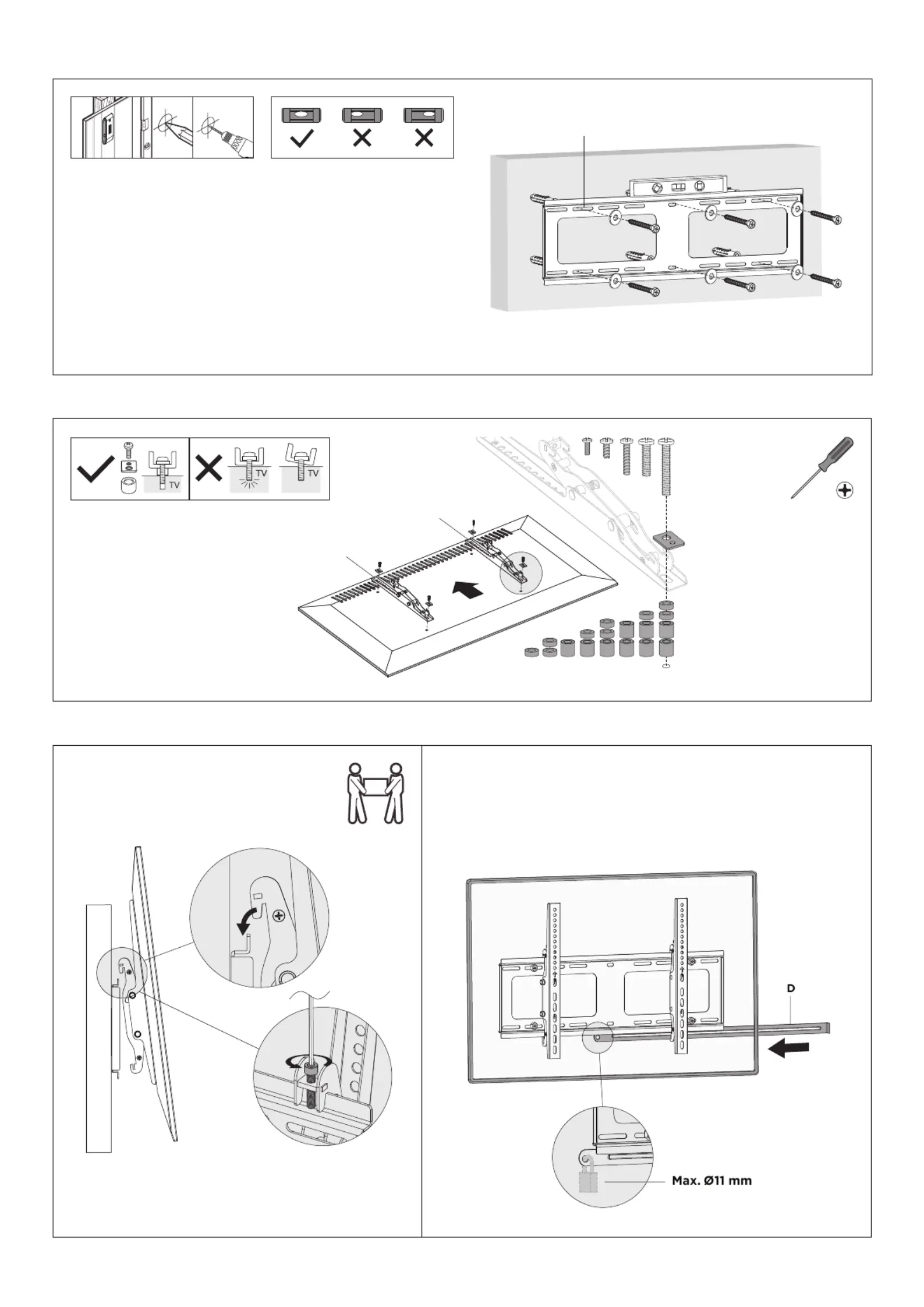

AD-WT-8060 Page 2 of 4

12 3

3. Hook and Secure the Display onto the Wall Plate

NOTE:

Ensure level adjustment

screws are retracted prior

to mounting the display.

3.1. Angle the display and hook the Display

Brackets over the top of the Wall Plate.

This should be completed by two people.

NOTE:

• Choice and supply of appropriate wall plate fasteners is the

responsibility of the installer.

• Consult a preferred fastener supplier or a structural engineer

to select fasteners which are most appropriate for the weight

of the display and wall construction method.

• Wall plate be level. Verify using a quality spirit level tool.must

• On a Stud Wall or Drywall use a good quality Stud Finder to

position mounting fasteners in the centre of studs.

• On a Masonry Wall avoid positioning Wall Plate mounting

fasteners in a mortar join.

M-H (OPTIONAL)

SPACER HEIGHT (mm)

M-G (OPTIONAL)

M-A

M-B

M-C

M-D

M-E

(M5x14)

(M6x14)

(M6x30)

(M8x30)

(M8x50)

M-F

403530252015105

2. Attach the Display Brackets to the Display

3.2. DSlide Security Bar through the slots at the bottom of each

Display Bracket, ensuring the Security Bar sits to the rear of

the Wall Plate and the display cannot be lifted up and off the

Wall Plate.

3.3. (OPTIONAL) To prevent theft of the display, add a padlock to

the end of . Security Bar D

1. Mount the Wall Plate to the Wall

Slot Dimension

Ø9 x 55mm

*Fasteners shown are for example only

NOTE:

• Always use multi-washers M-F.

• Ensure the display brackets are

not loose and screws are not

forced too deep into the display.

• If spacers are needed, use the

shortest possible combination

between the display bracket and

the display.
