Side 1/2

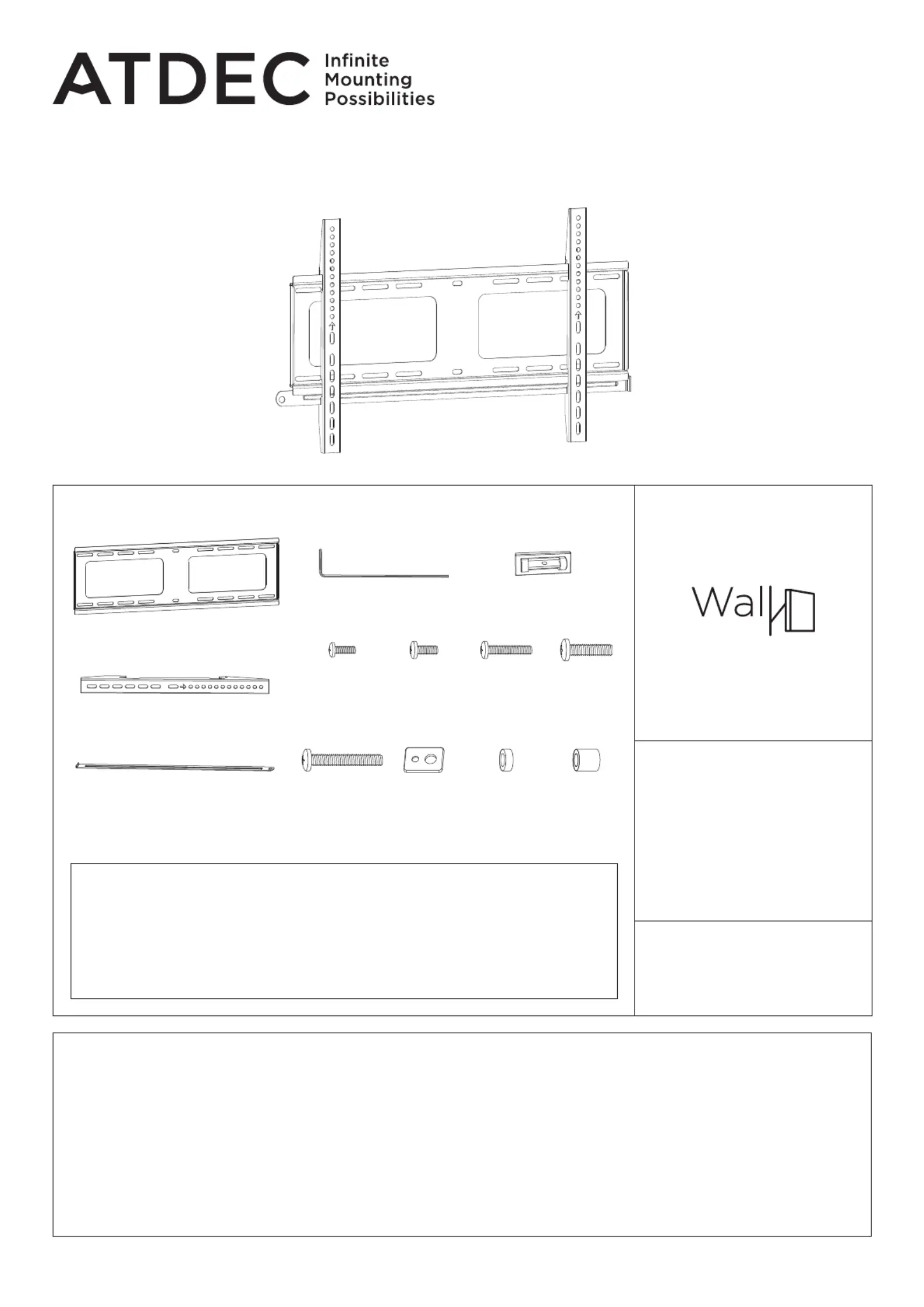

AD-WF-8060 Page 1 of 2

0 - 80kg

(0 - 176lb)

WEIGHT RANGE

Installation Guide

AD-WF-8060

Fixed Wall Mount 8060

Wall Plate

Hex Key

Display Brackets (x2)

Security Bar

M-G

Short

Spacer

(x8)

M-H

Long

Spacer

(x8)

M-F

Multi

Washer

(x4)

M-E

M8x50

Screw

(x4)

M-A

M5x14

Screw

(x4)

M-B

M6x14

Screw

(x4)

M-D

M8x30

Screw

(x4)

M-C

M6x30

Screw

(x4)

Spirit Level

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! The manufacturer accepts no responsibility for incorrect installation.

! Failure to mount this product correctly may cause serious injury/death during or following installation.

! This product is not suitable for outdoor use.

! Do not use this product for mobile applications.

! Wall Plate only achieves maximum weight rating when appropriately fastened to a wall of adequate structural capacity.

! Professional installer to ensure adequate structural capacity of wall (including appropriate safety factor) to support total

weight of all equipment being mounted.

! Drilling into electrical wires can cause death - use appropriate equipment and caution when drilling holes in walls to avoid

electrical cables, water pipes and gas pipes. Do not drill into structures unless you have established it’s safe to do so.

COMPONENT CHECKLIST

NOTE:

! Wall Plate Mounting Fasteners are supplied with Wall Mounts. NOT

Professional installer to ensure correct Mounting Fastener type, location &

quantity to suit structure where Wall Mount is installed.

! ALWAYS use a washer between the chosen fastener and the wall plate.

! Mounting fasteners to be used as per manufacturers instructions, including

minimum engagement to achieve necessary performance.

REQUIRED TOOLS

• Phillips head screwdriver

• Power drill

• Suitable drill bit

• Driver bit for selected

wall fasteners

• Stud nder

• Spirit level

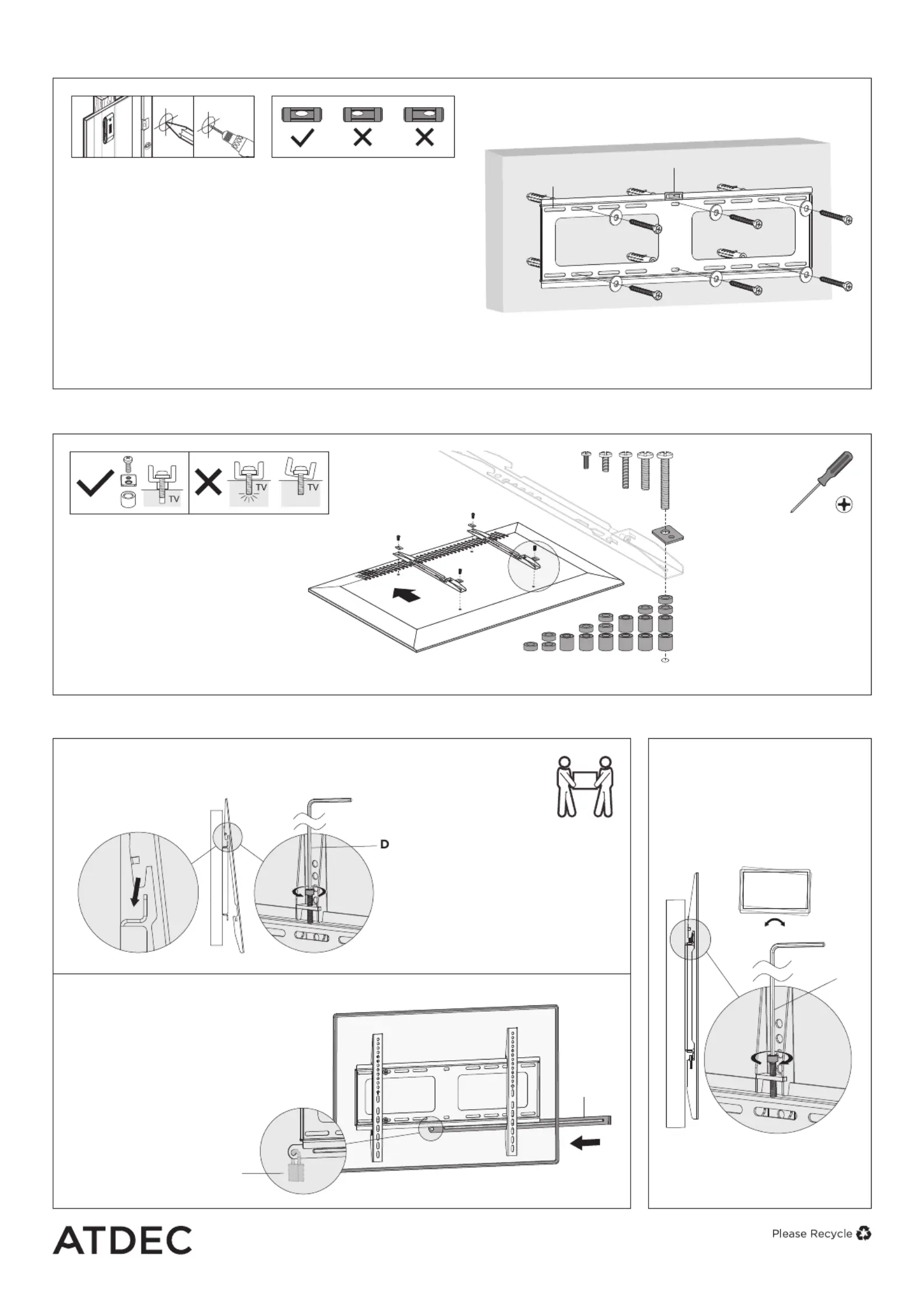

AD-WF-8060 Page 2 of 2

Slot Dimension

Ø8 x 54mm

2 3

1. Mount the Wall Plate to the Wall

*Fasteners shown are not included

M-H (OPTIONAL)

SPACER HEIGHT (mm)

M-G (OPTIONAL)

M-A

M-B

M-C

M-D

M-E

(M5x14)

(M6x14)

(M6x30)

(M8x30)

(M8x50)

M-F

403530

2520

3. Hook and Secure the Display onto the Wall Plate ADJUSTMENTS

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

NOTE:

• Choice and supply of appropriate wall plate fasteners is the

responsibility of the installer.

• Consult a preferred fastener supplier or a structural

engineer to select fasteners which are most appropriate for

the weight of the display and wall construction method.

• Wall plate be level. Verify using a quality spirit level must

tool or the included spirit level E.

• On a Stud Wall or Drywall use a good quality Stud Finder

to position mounting fasteners in the centre of studs.

• On a Masonry Wall avoid positioning Wall Plate mounting

fasteners in a mortar join.

2. Attach the Display Brackets to the Display

NOTE:

Ensure level adjustment screws are

retracted with Hex Key before D

attempting to mount display.

3.1. Angle the display and hook the Display Brackets over the top of the

Wall Plate. This should be completed by two people.

If needed, carefully turn the

screws at the top of each

display bracket clockwise

using Hex Key to level the D

display.

NOTE:

Support display whilst turning

the level adjustment screws.

Level Adjustment

3.2. CSlide Security Bar through

the slots at the bottom of each

Display Bracket, ensuring the

Security Bar sits to the rear of the

Wall Plate and the display cannot

be lifted up and off the Wall Plate.

3.3. (OPTIONAL) To prevent theft of

the display, add a padlock to

the end of Security Bar .C

Max. Ø11mm

NOTE:

• Always use multi-washers M-F.

• Ensure the display brackets are

not loose and screws are not

forced too deep into the display.

• If spacers are needed, use the

shortest possible combination

between the display bracket and

the display.

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Flad panel støtte
Model:	AD-WF-8060
Bredde:	701 mm
Højde:	440 mm
Antal pr. pakke:	1 Par
Produktfarve:	Sort
Pakkevægt:	3175 g
Pakkedybde:	762 mm
Pakkebredde:	236 mm
Pakkehøjde:	30 mm
Panel montering grænseflade:	300 x 300,300 x 200,100 x 100,100 x 200,100 x 150,120 x 120,120 x 180,400 x 200,400 x 400,400 x 300,600 x 200,200 x 100,600 x 400,200 x 200,200 x 300,200 x 400,280 x 150 mm
Husmateriale:	Stål
Monteringstype:	Væg
Højdejustering:	Ingen
Rotation:	Ingen
Maksimal vægtkapacitet:	80 kg
Hældningsindstilling:	Ingen
Maksimal skærmstørrelse kompatibilitet:	- "
Antal understøttede skærme:	1
Montering interface kompatibilitet (min.):	100 x 100 mm
Montering interface kompatibilitet (maks.):	600 x 400 mm
Afstand til væggen (min.):	21 mm
Afstand til væggen (maks.):	21 mm
Dybde (maks.):	21 mm
