Side 1/2

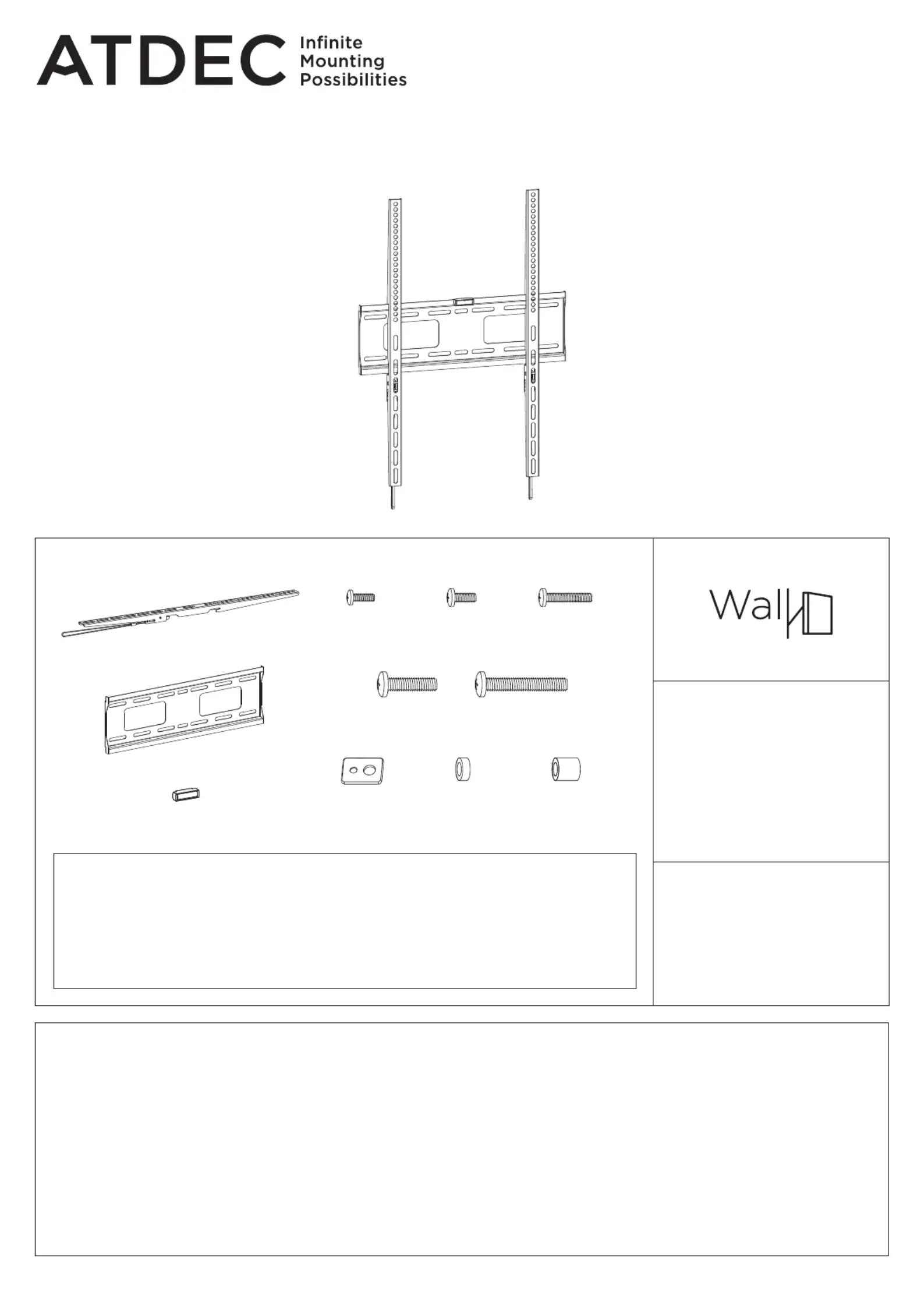

AD-WFP-5060 Page 1 of 2

REQUIRED TOOLS

• Phillips head screwdriver

• Power drill

• Suitable drill bit

• Driver bit for selected

wall fasteners

• Stud nder

• Spirit level

Wall Plate

Spirit Level

M-A

M5x14 (x4)

Screw

M-B

M6x14 (x4)

Screw

M-C

M6x30 (x4)

Screw

M-G

Short Spacer

(x8)

M-H

Long Spacer

(x8)

M-F

Multi Washer

(x4)

M-D

M8x30 (x4)

Screw

M-E

M8x50 (x4)

Screw

Display Bracket (x2)

Installation Guide

AD-WFP-5040

Portrait Fixed Wall Mount 5040

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! The manufacturer accepts no responsibility for incorrect installation.

! Failure to mount this product correctly may cause serious injury/death during or following installation.

! This product is not suitable for outdoor use.

! Do not use this product for mobile applications.

! This product supports a maximum load of 50kg (110lb).

! Wall Plate only achieves maximum weight rating when appropriately fastened to a wall of adequate structural capacity.

! Professional installer to ensure adequate structural capacity of wall (including appropriate safety factor) to support total

weight of all equipment being mounted.

! Drilling into electrical wires can cause death - use appropriate equipment and caution when drilling holes in walls to avoid

electrical cables, water pipes and gas pipes. Do not drill into structures unless you have established it’s safe to do so.

! Suits displays with mounting hole patterns from 75mm to 410mm wide by 70mm to 605mm high.

COMPONENT CHECKLIST

0 - 50kg

(0 - 110lb)

WEIGHT RANGE

NOTE:

! Wall Plate Mounting Fasteners are supplied with Wall Mounts. NOT Professional

installer to ensure correct Mounting Fastener type, location & quantity to suit

structure where Wall Mount is installed.

! ALWAYS use a washer between the chosen fastener and the wall plate.

! Mounting fasteners to be used as per manufacturers instructions, including

minimum engagement to achieve necessary performance.

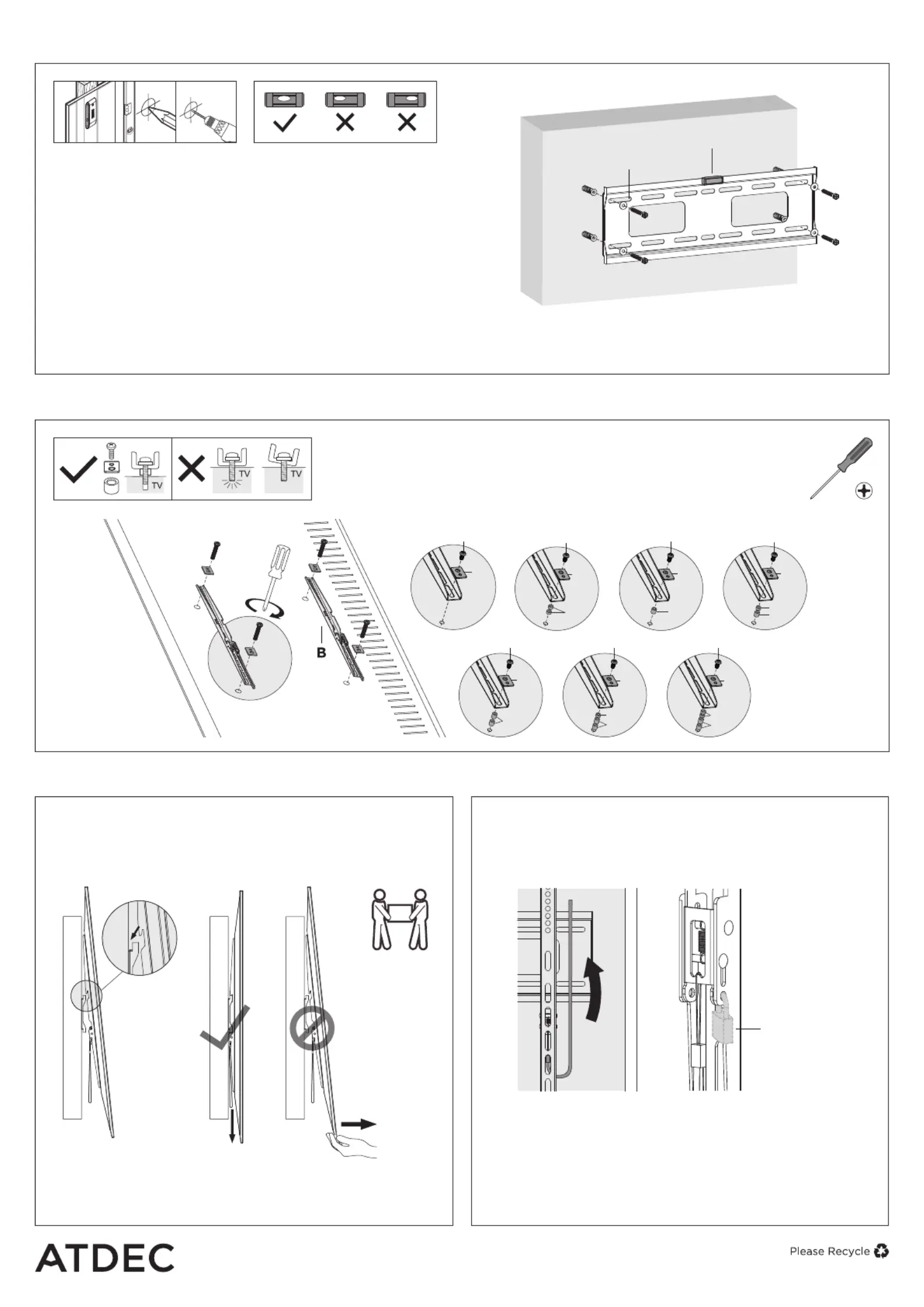

AD-WFP-5060 Page 2 of 2

Slot Dimension

Ø8 x 40mm

*Fasteners shown are not included

NOTE:

• Always use multi-washers M-F.

• Use the shortest combination of spacers (if necessary) ensuring the

display is not loose and screws are not forced too deep into the display.

M-C (M6x30) /

M-D (M8x30)

M-C (M6x30) /

M-D (M8x30)

M-F

M-G

M-F

M-G

M-H

M-F M-F

M-G

M-H

M-G

M-F

M-H

M-F

M-C (M6x30) /

M-D (M8x30)

M-E (M8x50) M-E (M8x50) M-E (M8x50)

M-A (M5x14) /

M-B (M6x14)

M-F

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

2 3

1. Mount the Wall Plate to the Wall

NOTE:

• Choice and supply of appropriate wall plate fasteners is the

responsibility of the installer.

• Consult a preferred fastener supplier or a structural engineer to

select fasteners which are most appropriate for the weight of

the display and wall construction method.

• Wall plate be level. Verify using a quality spirit level tool must

or the included spirit level C

• On a Stud Wall or Drywall use a good quality Stud Finder to

position mounting fasteners in the centre of studs.

• On a Masonry Wall avoid positioning Wall Plate mounting

fasteners in a mortar join.

2. Attach the Display Brackets to the Display

3. Hook the Display onto the Wall Plate

4. Conceal Straps and Lock Display

3.1. Angle the display and hook the Display Brackets over the top

of the Wall Plate. This should be completed by two people.

3.2. While supporting the display, simultaneously pull each strap

down and lower the display until it is parallel with the wall.

NOTE:

To ensure the display brackets have engaged with the wall

plate and the display cannot be tilted upwards, gently pull

the display forwards from the bottom of the display.

4.1. Conceal straps behind the display ensuring they are not

visible from the desired viewing angle

4.2. (OPTIONAL) To prevent theft of the display, add a

padlock to each display bracket.

NOTE:

Releasing the display from the Wall Plate requires two

people. To do so, retrieve each strap from its concealed

position, then pull both straps downward and whilst holding

them down, tilt the display upwards to clear the lower edge

of the Wall Plate. The straps can then be released and the

display lifted off. This should be completed by two people.

Max. Ø4.5mm

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Flad panel støtte
Model:	AD-WFP-5040
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Pakkevægt:	2080 g
Pakkedybde:	660 mm
Pakkebredde:	156 mm
Pakkehøjde:	41 mm
Panel montering grænseflade:	100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,200 x 600,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,400 x 600,600 x 200,600 x 400 mm
Husmateriale:	Stål
Monteringstype:	Væg
Hovedkassen højde (udvendigt):	185 mm
Hovedkassens længde (udvendigt):	677 mm
Hovedkassens bruttovægt (udvendigt):	17400 g
Hovedkassens bredde (udvendigt):	335 mm
Produkter pr. hovedkasse (udvendigt):	8 stk
Maksimal vægtkapacitet:	50 kg
Maksimal skærmstørrelse kompatibilitet:	- "
Antal understøttede skærme:	1
Montering interface kompatibilitet (min.):	100 x 100 mm
Montering interface kompatibilitet (maks.):	600 x 400 mm
Afstand til væggen (maks.):	27 mm
Bolddiameter:	- mm
