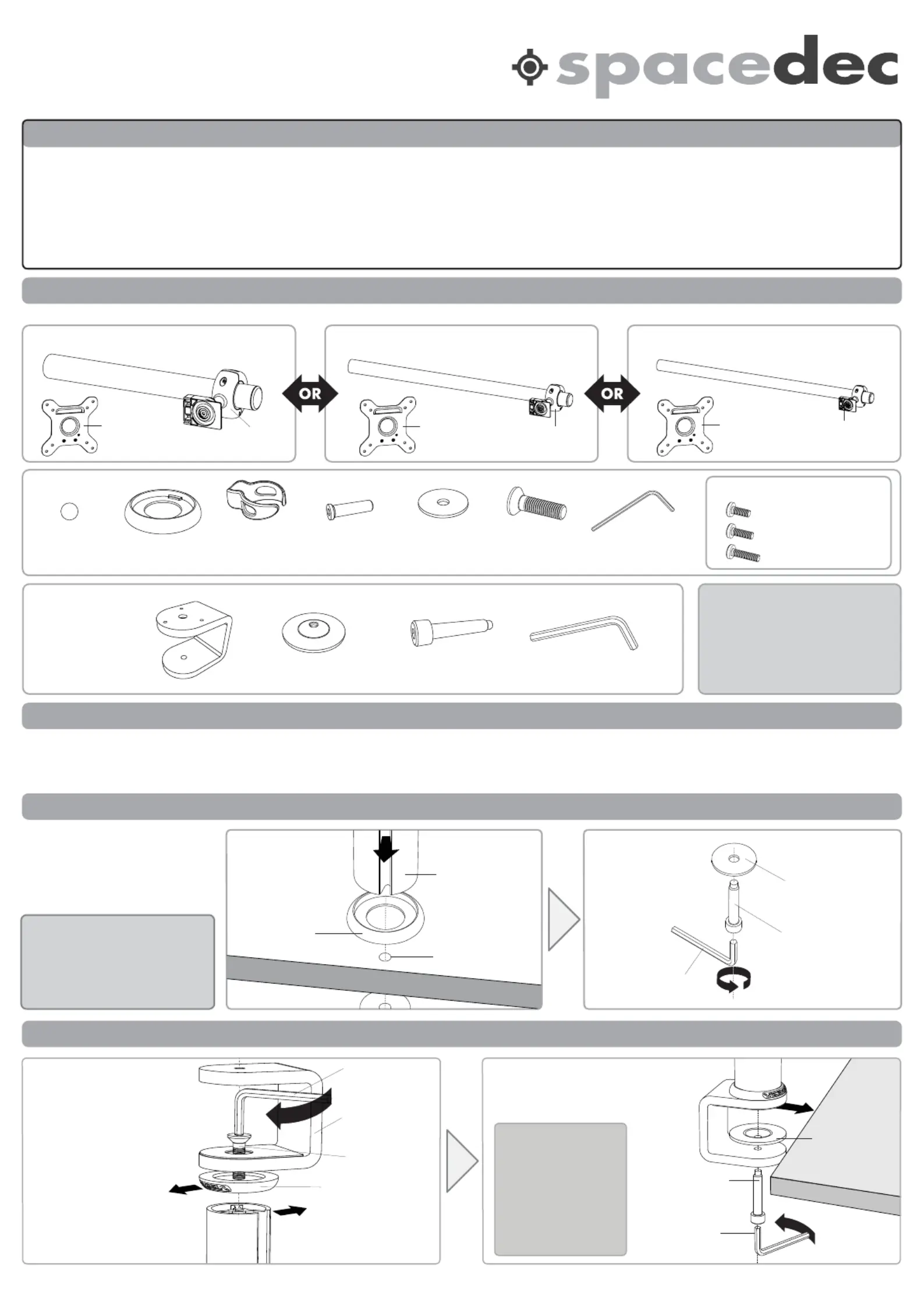

Component Checklist
Donut Pole 420mm (16½”)
Hardware
Desk Clamp
Bra cket (x1)
IMPORTANT INFORMATION
UÊEach Quickshift Donut supports a maximum weight of 12kg (26½lbs)
o Donut Pole 420mm supports a total of: 12kg (26½lbs)
o Donut Pole 750mm supports a total of: 24kg (53lbs)
o Donut Pole 1150mm supports a total of: 36kg (79½lbs)
UÊ
This product suits VESA compliant displays with 75mm x 75mm (3” x 3”) and 100mm x 100mm (4” x 4”) mounting hole patterns.
UÊThe manufacturer does not accept responsibility for incorrect installation
Check you have received all parts against this component checklist according to the product you have purchased.
Quickshift
Donut (x1)
Cable
Ball (x2)
Cable
Clip (x2)Base Casting (x1)
M8 x 30mm
Screw (x1)
Bolt Through
Washer (x1)
2mm Allen
Key (x1)
Mounting Screws
M4 x 10mm (x4)
M4 x 12mm (x4)
M4 x 16mm (x4)
TOOLS REQUIRED:
UÊ*ower Drill
UÊ£0mm (3/8”) or 6mm (1/4”)
Drill Bit
UÊ*hillips Head Screw Driver
Pressure
Plate (x1)
M8 Desk Clamp
Screw (x1)
5mm Allen
Key (x1)
Step 1. Mounting Options
There are two Mounting Options: Bolt Through and Desk Clamp
To use the Bolt Through system, (Suits desktop thicknesses of 12mm-40mm [
1/2”-1
1/2”]) follow the Bolt Through instructions at Option A.
To use the Desk Clamp, (Suits destop thicknesses of 12mm-38mm [
1/
2”-1
1/2”]) follow the Desk Clamp instructions at Option B.
Option A. Bolt Through

NOTE: It is recommended
that the pole assembly be
mounted towards the rear
edge of the work surface.
Bolt Through
Washer
M8 Desk
Clamp Screw
5mm Allen Key
Tighten Firmly
Note: Only one Desk Clamp Box is included in every Donut Pole purchased.
Donut Pole 750mm (29½”) Donut Pole 1150mm (45¼”)
Desk Clamp
Installation Instructions
Donut Pole | 420mm / 750mm / 1150mm
Option B. Desk Clamp
Attach the Desk Clamp
Bracket to the bottom of
the Pole Assembly using
the M8 x 30mm Screw.
Tighten Firmly using
the 5mm Allen Key.
Ensure the Spacedec
Logo on the Base
Casting is facing the
front as shown.
Desk Clamp
Bracket
M8 x 30mm
Screw
Base Casting
5mm Allen
Key
Work surface
Pressure
Plate
M8 x 30mm
Screw
5mm
Allen Key Tighten
Firmly
Attach the Donut Pole
Assembly using the
Desk Clamp as shown.

Note: Desk Clamp
suits 12mm (
1/2
”)
- 38mm (11/2”) thick
work surfaces.
Adjust the height of
the Pressure Plate
to suit your work
surface.
Ensure cable slot
is facing the back
Quickshift
Donut (x1)
Quickshift
Donut (x1)
Drill a 9mm (3/8”) hole in the
work surface at the desired
position and assemble as
shown.
Security
Screw (x1)
SD-DP-420
SD-DP-750
SD-DP-1150
Pole Assembly
Base
Casting 9mm (3/8”)
hole
Work surface
Ensure cable slot is
facing the back
VESA
plate (x1)
VESA
plate (x1)
VESA
plate (x1)

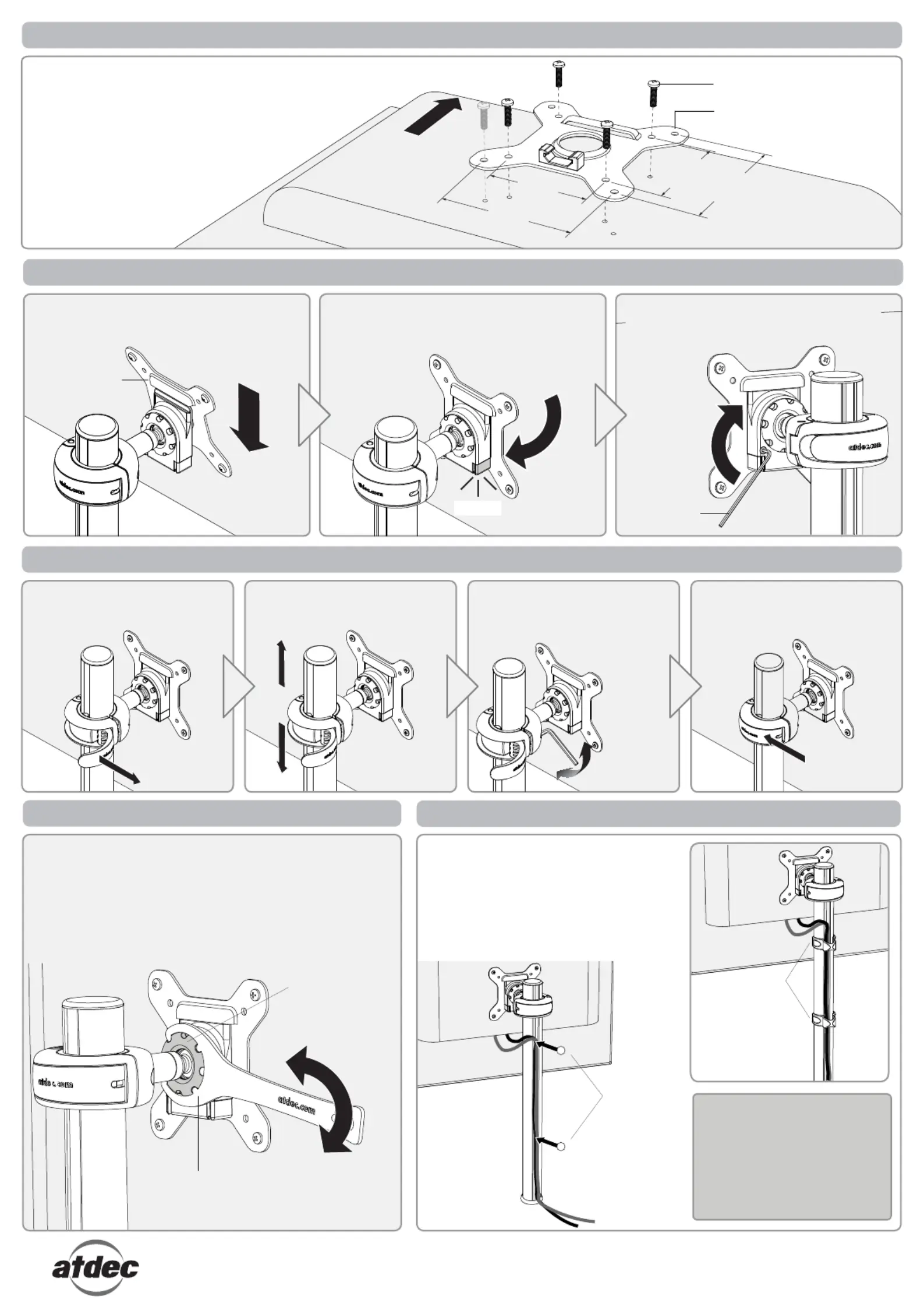

Step 3. Attach your Display to the Quickshift Donut
TIGHTEN
2mm
Allen Key
Hook the top of the VESA plate onto the
Quickshift Mount.
Insert the Security Screw, and tighten
using the 2mm Allen Key.
CLICK
Gently push the bottom of the Display
into the Mount until you hear a ‘CLICK’.
Back of
Display
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 22.05.09©
Connect cables to your Displays,
routing them down the rear of the poles.
Push the cables into the slots, using
either the Cable Balls or Cable Clips
to secure them to the pole as shown.
Note: Ensure enough slack
is left in cables to allow for
movement. When the slot in
each pole cannot be used,
use the supplied Cable Clips
to secure the display cables.
Step 5. Adjust the VESA Ball Mount Step 6. Cable Management
Step 4. Adjust the height of the Quickshift Donut
Step 2. Attach the VESA plate to your Display
Top of
Display
There are two mounting hole configurations:
UÊÇxÊÝÊÇx
UÊ£ääÊÝÊ£ää
Choose appropriate Mounting Screws
from the Hardware supplied to suit
your Display.
Mounting Screws (x4)
VESA Plate
Back of Display
Çx
(3”) £ää
(4”)
Çx
(3”)
£ää
(4”)
Tighten (+Kg)
Loosen (-Kg)
Tightening
Tool
Tension
Plate
VESA plate
TIGHTEN
LOOSEN CLOSE
OPEN
Position your Display to the desired viewing angle, using
the 40° angular movement allowed by the VESA Ball Mount.
If the display does not hold its position, or is too resistant,
adjust the Tension Plate (see diagram below).
To make any adjustments, use the Tightening Tool supplied.
Cable
Balls (x2)
Cable
Clips
Open the lever to loosen the
Quickshift Donut.
Slide the Quickshift Donut to
desired position.
Close the lever to lock the
Quickshift Donut in place.
If necessary, adjust the tension
between the Donut and the Pole
using the 5mm Allen key supplied.
