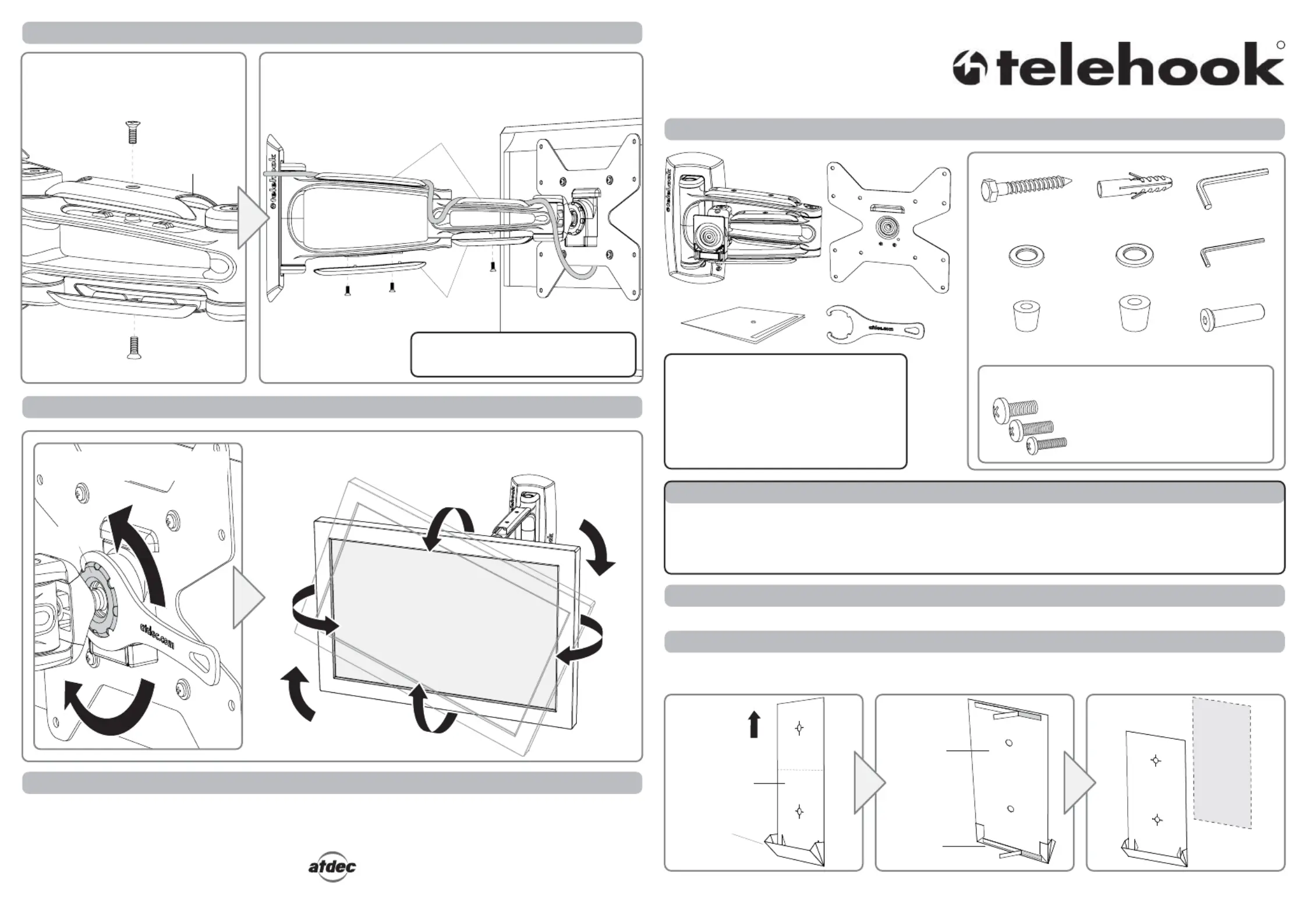

Flat Screen Wall Mount | Full Motion

Installation Instructions

Component Checklist

Hardware

IMPORTANT INFORMATION

! IMPORTANT - Install Telehook Wall Mount as per Installation Instructions.

! Telehook Wall Mount supports Displays weighing up to 20kg (44lbs), with VESA hole configurations:

100x100mm (4”x4”), 200x100mm (8”x4”), 200x200mm (8”x8”)

! The Manufacturer accepts no responsibility for incorrect installation.

Step 1. Check Components

Check you have received all parts against the Component Checklist and Hardware above.

TH-1040-VFM

Step 2. Locate Drilling Postion

WALL

Double-sided

tape (x2)

Drilling Guide

BACK

Un-fold the Drilling Guide and

open the Dust Collector.

Peel away the backing from the

double-sided adhesive tape.

Position the Drilling Guide vertically

onto the wall using a Spirit Level.

Choose the location of your Telehook Wall Mount, ensuring that the wall is structurally sound (for a timber stud

wall, locate the stud using a stud detection device). Use the Drilling Guide to mark out the hole centres.

Dust Collector

Drilling Guide

FRONT

Articulated Arm

VESA plate

Concrete

Anchor (x2)

4mm

Allen Key

M4 Washer (x4) M5 Washer (x4)

M4x16mm / M4x25mm (x4 each)

M5x16mm / M5x25mm (x4 each)

M6x16mm / M6x30mm (x4 each)

Coach

Bolt M8 (x2)

Mounting Screws

M4/5

Spacer Bush (x4)

M6/8

Spacer Bush (x4)

Drilling

Guide

TOOLS REQUIRED:

ÊUÊ*ÜiÀÊÀ

ÊUÊ*«ÃÊi>`Ê-VÀiÜ`ÀÛiÀ

ÊUÊ-«ÀÌÊiÛi

ÊUÊÇÊ

”) Drill Bit

ÊUÊ££Ê

”) Masonry Drill Bit

ÊUÊ£ÎÊ

”) Socket Wrench or Shifter

Step 6. Cable Management

Remove the Cable Covers as required

using a Phillips Head Screw Driver.

Step 6. Final Adjustment

As TFT Manufacturers are constantly releasing new monitor models, Atdec does not accept responsibility if the VESA mounting does not comply with the international standards.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 03.04.09 ©

Installation Complete

Connect cables to your Display, and route along the arms.

Re-attach the Cable Covers to hold the Cables in place.

TIP: Leave enough slack in the cables

to allow full movement at the joints.

Your Telehook Wall Mount Articulated Arm installation is complete and ready for use.

Cable Covers

Use the Tool supplied to loosen the

Tension Plate (do not remove).

Rotate the Display as desired, locking the Display into position by

tightening the Tension Plate.

Top

2mm

Allen Key

Cable

Cover

Tightening

Tool

Loosen

Tighten

Tension

Plate

+/- 20°

angular tilt

360° infinite

horizontal rotation

Security Screw

Step 3. Attaching the Articulated Arm to the Wall

Timber Stud Wall

- Using the Drilling Guide, drill two 7mm (

”)

diameter holes, 50mm (2”) deep.

- Secure the Mouting Plate to the wall using the Coach

Bolts supplied.

Masonry Wall

- Using the Drilling Guide, drill two 11mm (

”)

diameter holes, 50mm (2”) deep.

- Secure the Mouting Plate to the wall using the Coach

Bolts and Concrete Anchors supplied.

Remove the Telehook Arm

from the packaging and open fully.

Un-clip the Wall Plate Cover

and slide down the arm.

Wall Plate Cover

Coach Bolt (x2)

Coach Bolt M8 (x2)

Masonry WallTimber Stud

Concrete Anchor (x2)

Slide the Wall Plate Cover back along

the arm, and push flat against the wall.

Step 4. Attaching the VESA Plate to your Display

Wall Plate Cover

Top of

Display

Back of Display

Choose appropriate Mouting Screws and Washers

from the Hardware supplied to suit your Display.

Mounting Screws (x4)

Washers (x4)

Spacer

Bush

Mounting

Hole

Washer

Step 5. Attaching your Display to the Articulated Arm (Two people required for this operation)

Hook the top of the VESA Plate

onto the VESA Ball Mount.

VESA plate

Mounting

Screw

Recessed Mounting Holes or

Display with a Curved Rear Panel

If the Mounting Holes are recessed

into the back of the Display, or the

Display has a curved rear panel, use

the appropriate Spacer Bushes

supplied to pack the Mounting Holes.

NOTE: Ensure the VESA plate is

securely fixed to the display.

VESA Plate

Push the bottom of the Display

gently into the VESA Ball Mount

until you hear a ‘CLICK’.

CLICK

VESA

Ball Mount

Insert the Security Screw supplied,

and tighten using the 2.5mm

Allen Key.

Tighten

Back of Display

VESA Plate

Security

Screw

2mm

Allen Key

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Flad panel støtte
Model:	TH-1040-VFM
Produktfarve:	Sølv
Monteringstype:	Væg
Akse:	180°/360°/180°
Drejevinkel område:	360 °
Hældningsvinkelområde:	-20 - 20 °
Skærmstørrelse kompatibilitet:	10 - 40 "
Vægt (efter britisk standard):	55 Pund
Monteringsgrænseflade:	VESA 100mm x 100mm / 200mm x 100mm / 200mm x 200mm
Vægt (maks.):	25 kg
