Atdec TH-30-50-RW Manual

Atdec Flad panel støtte TH-30-50-RW

Læs gratis den danske manual til Atdec TH-30-50-RW (2 sider) i kategorien Flad panel støtte. Denne vejledning er vurderet som hjælpsom af 93 personer og har en gennemsnitlig bedømmelse på 4.4 stjerner ud af 47 anmeldelser. Har du et spørgsmål om Atdec TH-30-50-RW, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/2

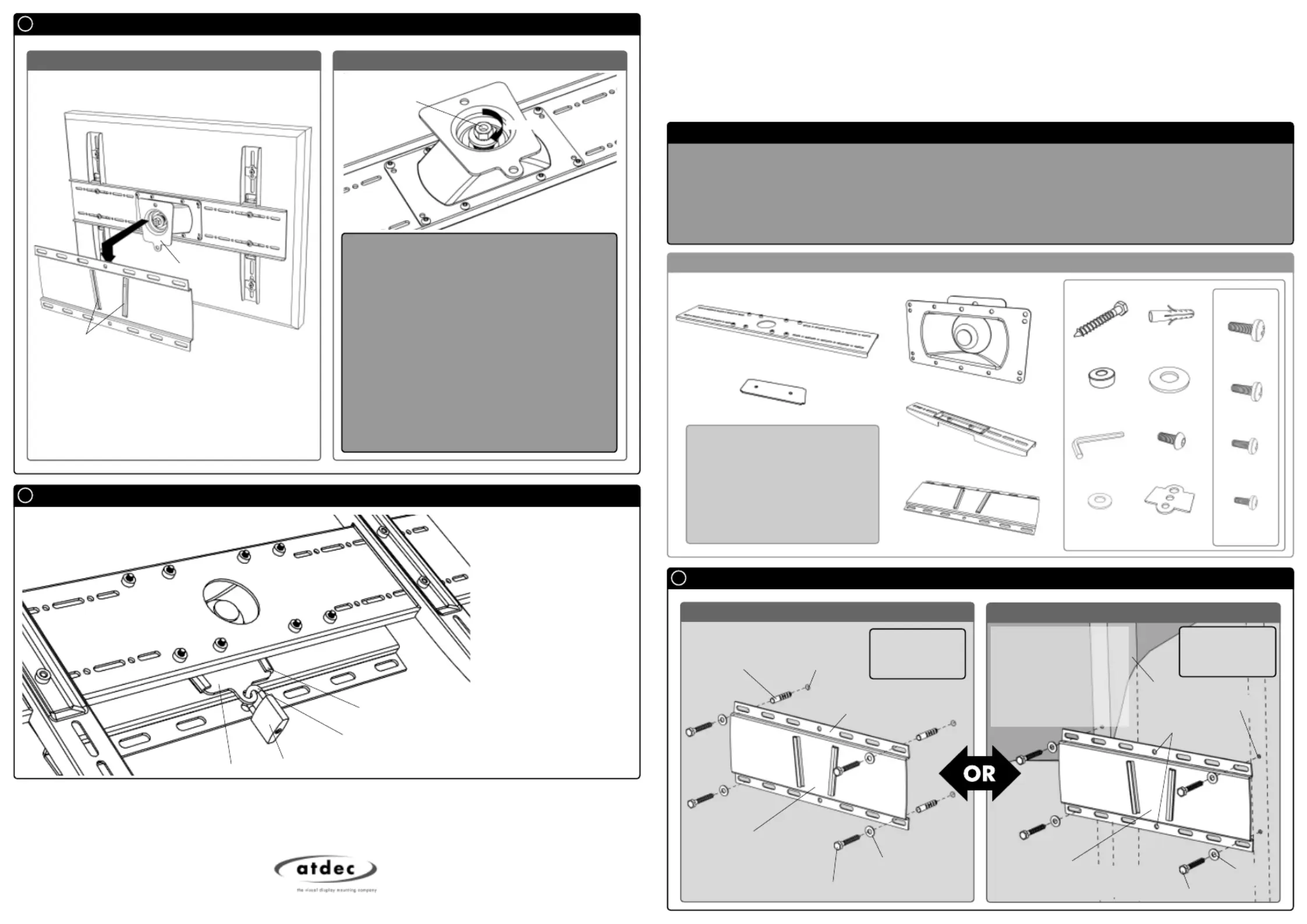

Component Checklist

Bits Box

Mounting

Screws

Installation Instructions

TELEHOOK

30”-50” UNIVERSAL ROTATING WALL MOUNT

Attaching the Display to the Wall Plate

Mounting the Wall Plate

Masonry Wall

Timber Stud Wall

Adjusting the Pivot Head to suit the weight of the

Display

The Pivot head is factory set to hold

approximately 35kgs (77lbs). If the display is not

holding its position when placed on the wall it

may be necessary to remove the display from

the wall and tighten the M12 Hex Nut on the

back of the Pivot Head using a 17mm (

”)

socket wrench or shifter. To achieve a one-touch

effortless adjustment setting it is advised that the

nut be tightened at half turns and re-tested, until

the desired friction is achieved. Alternatively the

M12 Hex Nut can be over tightened in order to

lock the display in position.

Bracket (x2)

Pivot Head

Extension Plate

Wall Plate

Bracket Plate (x2)

Coach

Screw (x4)

Masonry Wall

Plug (x4)

Large

Washer (x4)

Multi

Washer (x4)

Spacer

Bush (x4)

M6x16mm Socket

Drive Screw (x12)

M8x20mm

Phillips Head

Screw (x4)

M6x16mm

Phillips Head

Screw (x6)

M5x16mm

Phillips Head

Screw (x6)

Allen Key

Small

Washer (x4)

Large Washer

Masonry

Wall Plug

Wall Plate

12mm (

”)

Hole

TIP: Use a spirit

level to ensure the

wall plate is

horizontal

Note: Ensure the Wall Plate

is mounted with the narrow

end of the Mounting Slot

at the bottom.

Coach Screw

Note: Ensure the Wall Plate is

mounted with the narrow end of the

Mounting Slot at the bottom.

Large

Washer

Coach Screw

8mm (

”)

Hole

Timber

Stud

With the mount attached to the display, lift the

display and slide the Back Plate into the Mounting

slots to ensure a secure connection.

Tighten

M12 Hex Nut

Security Option

For additional security,

it is suggested that a

Padlock be attached to

the Back plate as shown.

The Padlock (not supplied)

should have a shackle

diameter no larger than

4mm (

”).

Padlock

Note: This procedure will require two persons

Back Plate

Mounting

Slots

Mounting Slot

Note: For demonstration purposes, the display

has been omitted from the image below.

Back plate

Shackle 4mm (

”)

diameter or less

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 18.04.07 ©

Important Notes

TOOLS REQUIRED:



Power Drill



12mm or 8mm Drill Bit



Phillips Head Screw Driver



Spirit Level



17mm (

”) Socket Wrench

or Shifter



The Telehook 30-50 Universal Rotating Wall Mount supports flat panel displays from 30” (76cm) to 50” (127cm)

and supports a maximum load of 85kgs (187lbs).



This product is factory set to support 35kgs (77lbs), and will need to be adjusted if the display is heavier or lighter.



The manufacturer does not accept responsibility for incorrect installation.

TIP: Use a spirit

level to ensure the

wall plate is

horizontal

C.1. Attaching the Display to the Wall Plate

C.2. Pivot Head Load Capacity Adjustment

M4x16mm

Phillips Head

Screw (x6)

Centre Holes

Note: It is recommended to

mount the Wall Plate by firmly

fixing the four Coach Screws

into two studs. However, if the

weight of the display is less than

50kgs (110lbs), it is possible to

mount the Wall Plate to one stud

by fixing the two Coach Screws

through the two Centre holes.

Note: For demonstration purposes, the wall

has been omitted from the above image.

Configuration 3: 260mm to 660mm (10

”

-26”) x 200mm to 400mm (8”-15

”)

Mounting Hole Patterns

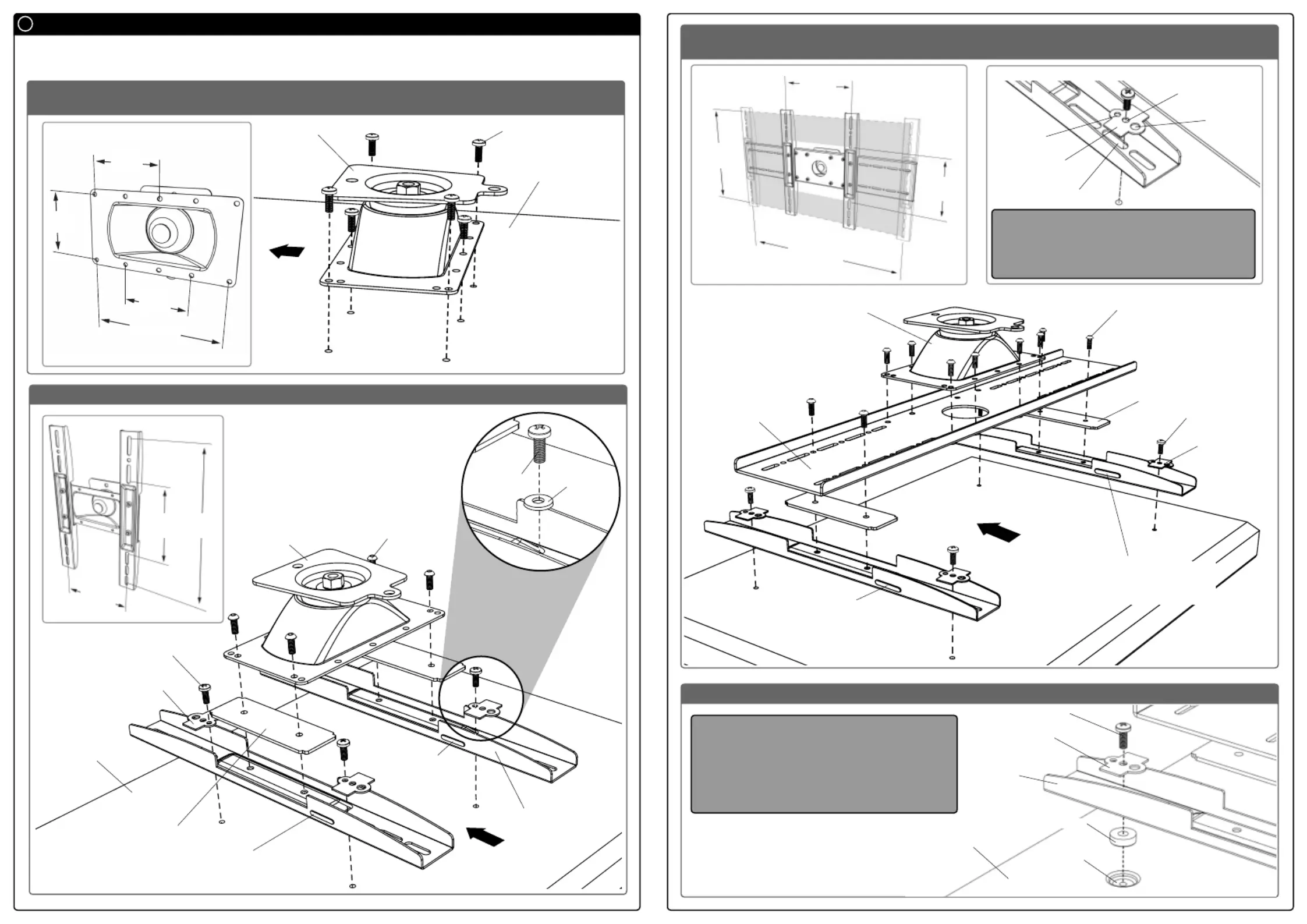

Choosing and Assembling the Correct Mounting Configuration

Measure the mounting hole pattern on the back of the display. Select the appropriate configuration (either 1, 2

or 3) that best suits the mounting hole pattern of the display then attach the product to the display as shown.

Mounting Screw

Pivot Head

Back

of Display

Note: The

100mmx200mm

mounting

configuration is

shown. For mounting

displays with

100mmx100mm

mounting hole

patterns, use the

100mmx100mm holes

in the Pivot Head.

Bracket

Plate

Pivot Head

Back

of Display

Bracket

M6 Socket

Drive Screw

Mounting

Screw

Multi Washer

100mm

(4”)

100mm

(4”)

200mm (8”)

260mm

(10

”)

660mm (26”)

400mm

(15

”)

200mm

(8”)

Spacer Bush Assembly

If the mounting holes are recessed into the

back of the display, use the supplied Spacer

Bushes to pack the recessed hole and ensure

that the bracket is securely fixed to the display.

Note: If the display has a vertical

mounting distance of 200mm and

requires the use of the M6 Mounting

Screws, it will be necessary to

substitute the MuIti Washers for the

small washers provided.

Pivot Head

M6 Socket

Drive Screw

Bracket

Plate

Mounting

Screw

Multi Washer

Extension

Plate

Multi Washer

Mounting Screw

Bracket

Recessed Hole

Spacer Bush

Small

Washer

M6 Mounting

Screw

Back

of Display

Configuration 1: VESA Compliant 100mmx100mm (4”x4”) & 100mmx200mm (4”x8”)

Mounting Hole Patterns

Configuration 2: 200mmx200mm to 400mm (8”x8”-15

”) Mounting Hole Patterns

200mm

(8”)

200mm

(8”)

400mm

(15

”)

Attaching the Bracket to the Display

Note: When assembling the product,

ensure the red Telehook Badges are

positioned towards the bottom of the display

In order to ensure the display is securely attached to the

bracket it is recommended that the bracket be fastened with the

mounting screws aligned along the bottom edge of the slots.

It is also important that you use the supplied Multi Washer and

ensure that the tightest fitting hole in the washer is used for the

specific size screw

M6 Screw

Hole

M8 Screw

Hole

M4 & M5

Screw Hole

Multi Washer

Slot

Telehook

Badge

Note: When assembling the

product, ensure the Telehook

Badges are positioned towards the

bottom of the display

Telehook

Badge

100mm

(4”)

Spacer Bush

Top of

Display

Top of

Display

Top of

Display

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Flad panel støtte
Model:	TH-30-50-RW
Produktfarve:	Sølv
Pakkevægt:	8500 g
Monteringstype:	Væg
Pakkens dimensioner (BxDxH):	256 x 768 x 95 mm
Drejevinkel område:	360 °
Hældningsvinkelområde:	-20 - 20 °
Skærmstørrelse kompatibilitet:	30 - 50 "
Vægt (efter britisk standard):	187 Pund
Monteringsgrænseflade:	VESA 100mm x 100mm / 100mm x 200mm / 200mm x 200mm
Vægt (maks.):	85 kg
