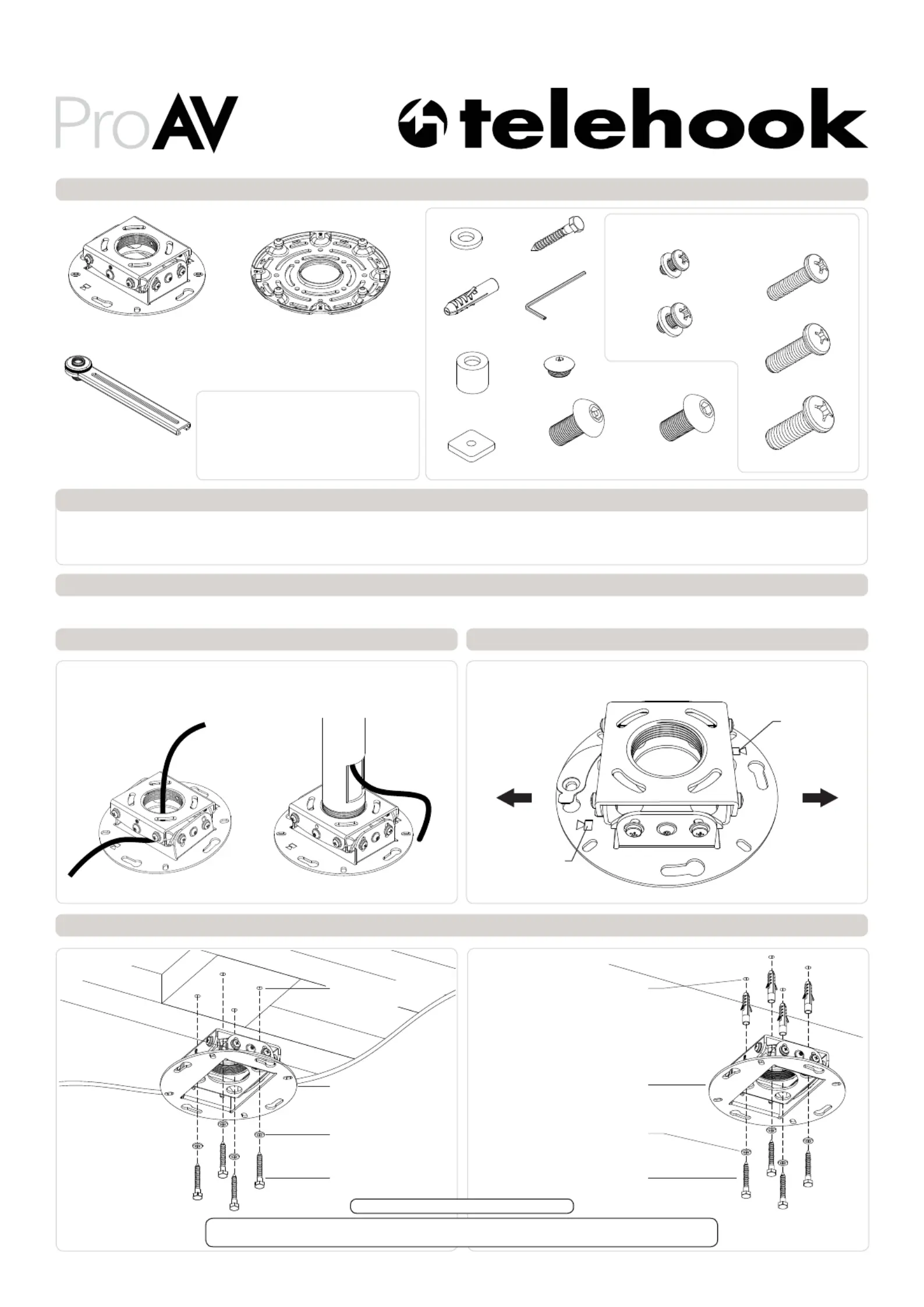

Side 1/5

M2.5x15mm w/ Washer

M3x15/20mm w/ Washer

TH-PF

Component Checklist

Pro AV Projector Ceiling Mount

Square Nut (x4)

Leg (x4)

Coach Bolt (x4)

Nylon

Anchor (x4)

HARDWARE Projector Mounting Screws (x4 each)

M4x15/20/25mm

M5x15/20/25mm

M6x15/20/25mm

Tools Required:

• Power Drill

• 4mm(0.15”) Drill Bit

• 9mm(0.35”) Masonry Drill Bit

• Phillips Head Screwdriver

• 13mm (0.5”) Socket Wrench/ Shifter

! IMPORTANT - Install Telehook Projector Ceiling Mount as per installation instruction.

! This product supports a maximum load of 25kg (55lbs.).

! The manufacturer accepts no responsibility for incorrect installation.

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received against the component checklist and hardware above.

M6 Washer (x4)

Mount

Step 2. Cable Management

Step 4. Ceiling Mount

Base Plate

10mm Spacer

(x4 each)

M5x10mm Socket

Head Screw (x4)

M5x10mm

Security Screw

3mm Security

Allen Key

Security Cap (x4)

The TH-PF can be mounted flush to a ceiling (Step 4) or to a pole (Step 5).

Before mounting your TH-PF, give consideration to your cable route. The

TH-PF has provision for cable management as shown below.

Step 3. Choosing Orientation

Ensure the Mount is attached with the Projector Marks pointing in the same

direction that the projector will be facing.

Projector Mark

IMPORTANT! Any structural elements must be capable of supporting the combined weight of

all the equipment and devices being mounted. If in doubt, consult a structural engineer.

Timber Stud Masonry

Coach Bolt

M6 Washer

Mount

TIP: Use Mount as a drilling template.

Coach Bolt

M6 Washer

Mount

Ø9mm x 40mm deep

Drilled Hole

Ø4mm x 35mm deep

Drilled Hole

Installation Instructions

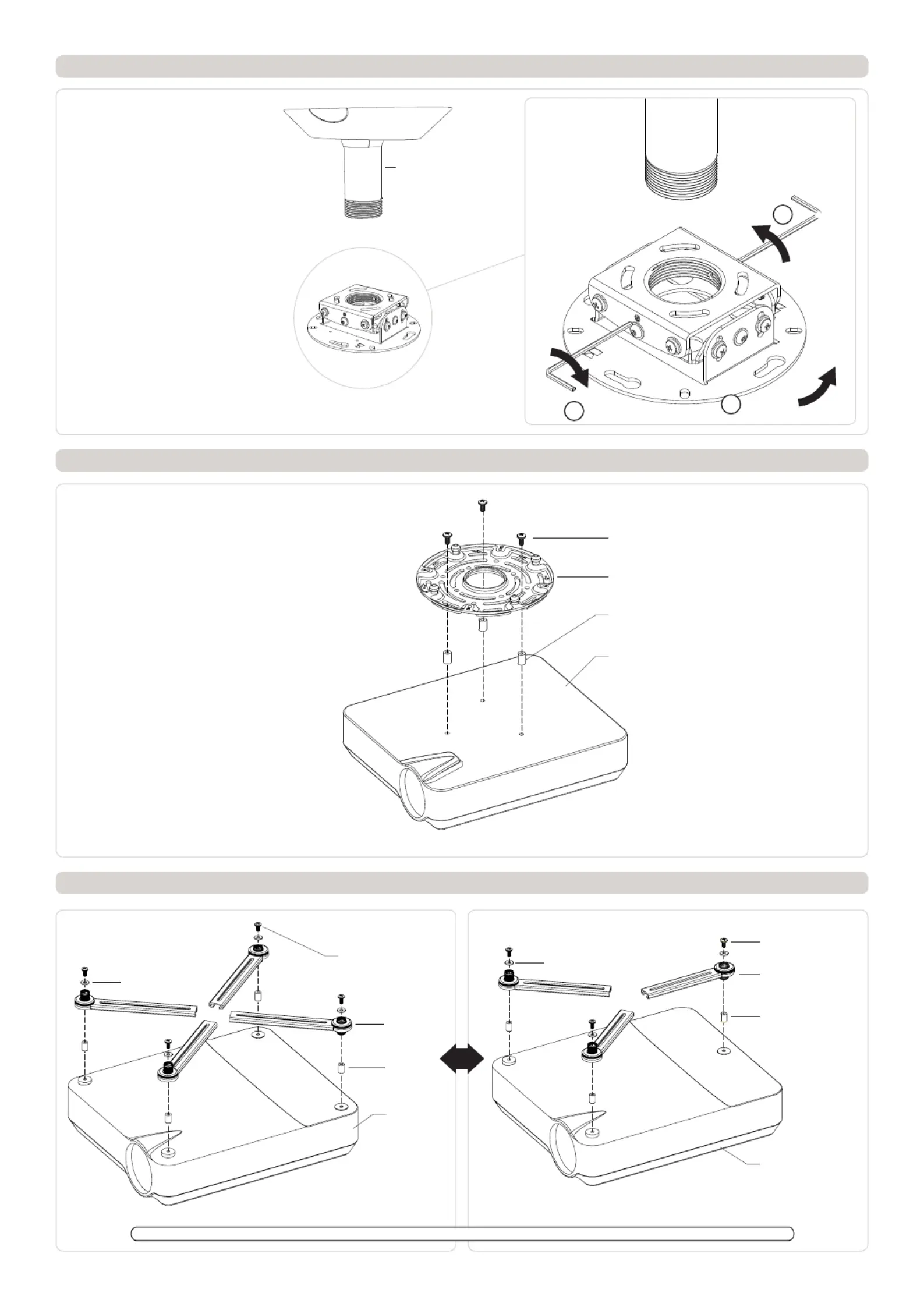

Step 5. Pole Mount

Note: The TH-PF is compatible with 1.5NPT thread.

A range of Pole Accessories are available from Atdec.

1. Install Pole Accessory.

2. Thread mount fully into the end of the Pole.

3. Set the orientation by unwinding the mount. Do

not unwind the mount more than one full turn.

4. Lock the mount in place by tightening the two

security set screws in place using the supplied

security allen key.

Pole Accessory

(Purchased separately

or as part of a kit

from Atdec)

2 MOUNT

4 TIGHTEN

Step 7. Attach the Legs to the Projector

Leg

Spacer

(optional)

Projector

Projector Mounting

Screw

Note: Washers must be used in conjunction with M2.5 and M3 projector mounting screws.

FOUR FIXING POINTS THREE FIXING POINTS

Step 6. Mounting Projector

Depending on the size of your projector, the

TH-PF has several mounting options available.

Smaller Projectors can be mounted directly to

the Base Plate.

For all other projectors, use the supplied legs.

Projector Mounting

Screw

Base Plate

Projector

Spacer (optional)

Projector Mounting

Screw

Leg

Spacer (optional)

Projector

Washer (optional)
