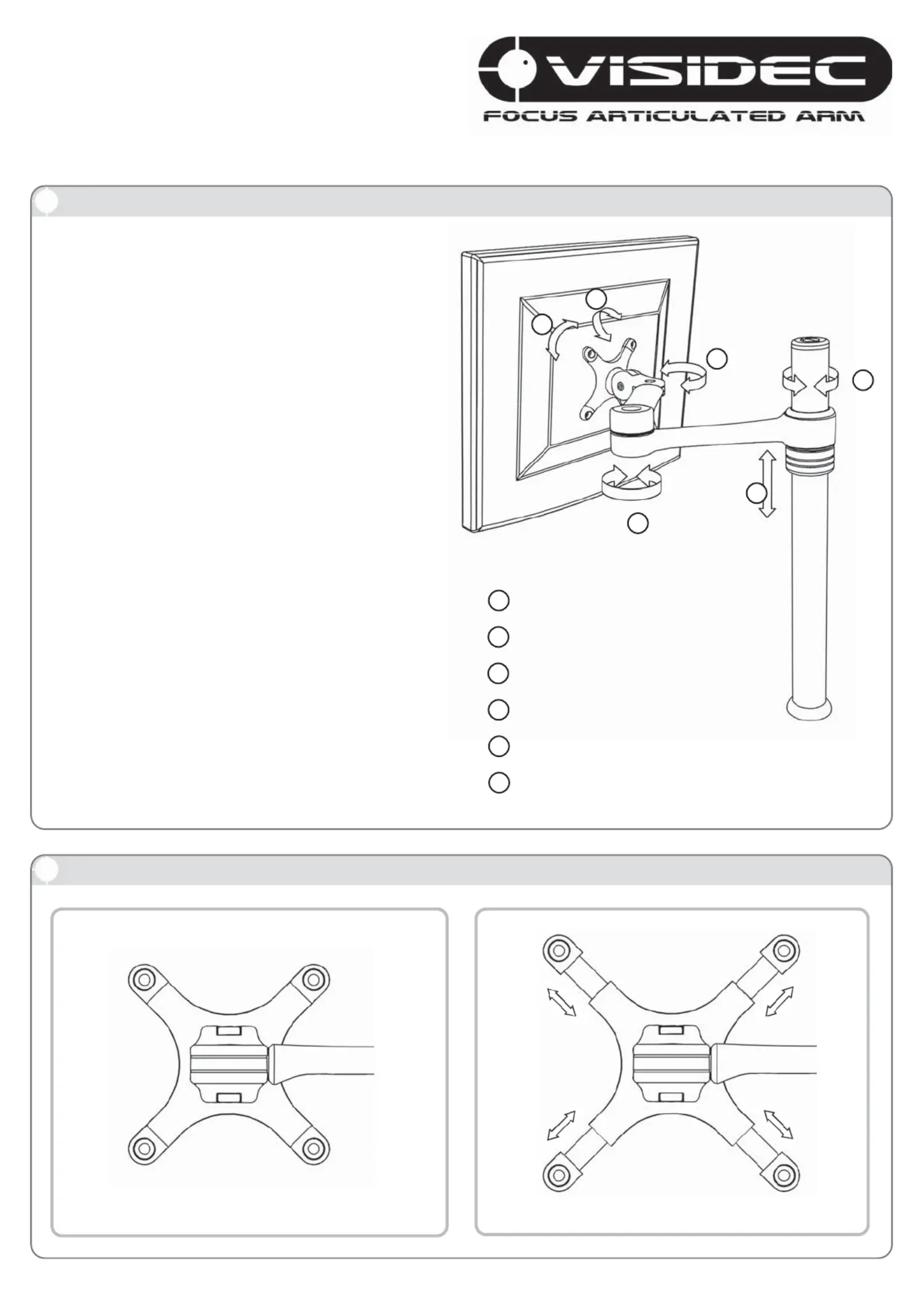

A General Features

B The FlexiStar™ mechanism

Technical Specifications

Maximum Load:

8kg (17.5lbs).

Display Compatibility:

Visidec Focus Articulated Arm is compatible with most Flat

Panel Displays between 12” and 24” (30cm and 61cm) that

feature either 75mm x 75mm or 100mm x 100mm VESA

mounting hole patterns.

Mounting Option:

Visidec Focus Articulated Arm includes Bolt Through and

Desk Clamp mounting options.

• Bolt Through

Suits desktop thicknesses of 12mm - 40mm (0.5”-1.5”)

• Desk Clamp

Suits desktop thicknesses of 12mm - 38mm (0.5”-1.5”)

Included Hardware:

All fasteners and mounting hardware are included.

Tools Required:

Power drill, 9mm (

/8”) drill bit, Phillips Head screwdriver.

Cable Management:

Cable management system includes cable slot and cable

management clips.

Colour:

Warranty: 10 years limited

Polished Silver.

360° rotation around mounting pole

345mm (13.5”) height adjustment range

360° articulation of arms

180° pan adjustment

±70° tilt adjustment

±95° portrait/landscape adjustment

100mm x 100mm

VESA hole pattern

75mm x 75mm

VESA hole pattern

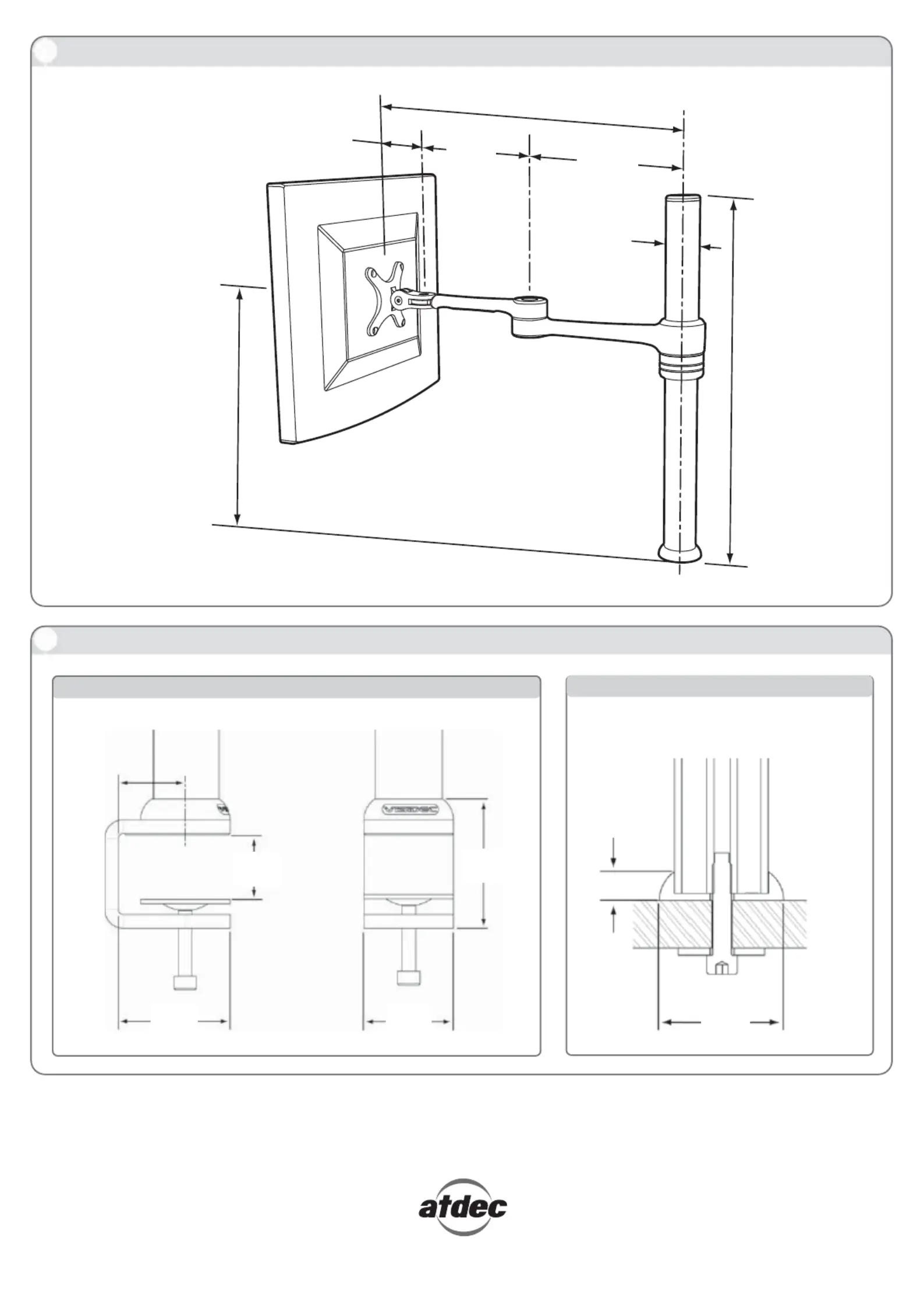

C Overall Dimensions

D Desk Mounting Options

Desk Clamp

Desk Clamp suits desktop thicknesses of 12mm - 38mm (0.5” - 1.5”)

39mm

(1.5”)

38mm

(1.5”)

65mm

(2.56”)

75mm

(3”)

52mm

(2.05”)

Bolt Through

Bolt Through suits desktop thicknesses of

12mm - 40mm (0.5” - 1.5”)

52mm

(2.05”)

12mm (0.5”)

DESK

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 11.04.11 ©

440mm (17.32”)

(450mm (17.75”) when

using Desk Clamp)

39mm

(1.5”)

68mm

(2.68”)

413mm (16.25”)

150mm

(5.91”)

195mm

(7.68”)

Maximum distance

to centre of display

450mm

(17.75”)

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Flad panel støtte
Model:	VF-AT/TAA
Tænd-/slukkontakt:	Ingen
Produktfarve:	Sølv
Pakkevægt:	2600 g
Husmateriale:	Metal
Certificering:	TAA
Monteringstype:	Skrivebord
Pakkens dimensioner (BxDxH):	500 x 200 x 100 mm
Fjernbetjent:	Ingen
Hældningsvinkelområde:	-70 - 70 °
Panoreringsområde:	-90 - 90 °
Rotationsvinkel:	360 °
Skærmstørrelse kompatibilitet:	24 "
Maksimal vægtkapacitet:	8 kg
Pivot vinkel:	Ja °
Antal drejepunkter:	3
Spikes inkluderet:	Ja
