Side 1/4
AtlasSound.com 1/4
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
©2013 Atlas Sound L.P. All rights reserved. Atlas Sound and Strategy Series are trademarks of Atlas Sound L.P. All other trademarks are the property of their respective owners. ATS004765 RevA 11/13

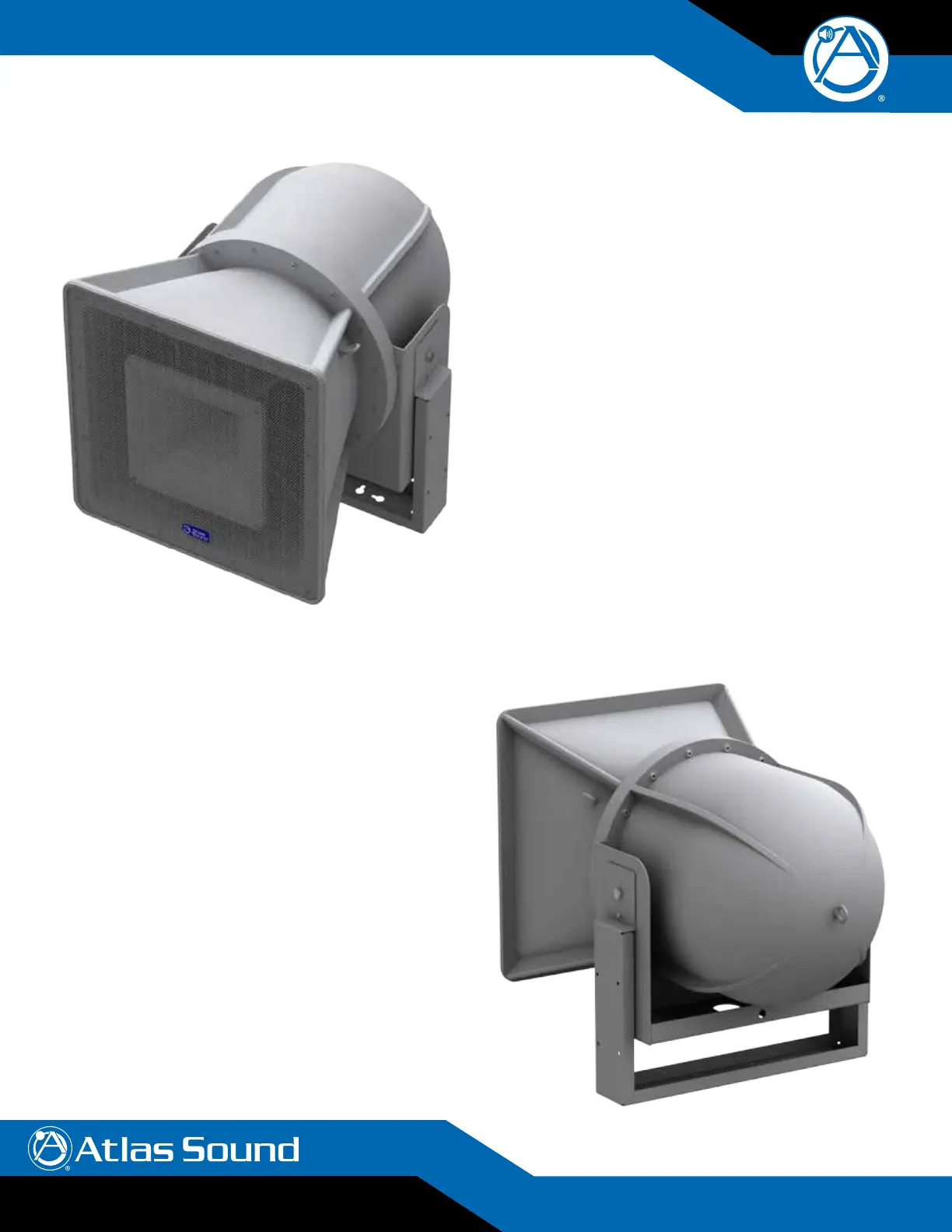

AH66-15-BSG
AH66-15-BSG
15" 2-way Stadium Horn System 65° x 65°
AH66-15-BSG
Features
• Efficiency Rating of 102dB (1 W / 1 M)
• 250 Watts Power Handling
• Maximum Output of 126dB (Rated Power @ 1 M)
• Constant Directivity Design Offers Controlled Coverage of
65˚ H by 65˚V (2kHz Octave Band)
• Excellent Low Frequency Response Provides Bass You Can Feel
• Driver Complement Includes a 15" Cast Frame Woofer with a
Concentrically Mounted 1" Exit Compression Driver Coupled to a
65˚ H x 65˚V HF Horn
• Full Range Frequency Response of 75Hz – 14.5kHz (±5dB)
• Easy, Weather Resistant Connection Via 4-Pole Terminal Block Connector
• 8Ω Nominal System Impedance (70.7V / 100V Operation Via Optional
Atlas Sound Model AF140 Transformer)
• Heavy Duty Stainless Steel Mounting Bracket (Included) Allows for
Easy Installation to Most Any Flat Surface
• Three Forged Eyebolts Also Included for Suspended Installation
Applications
Atlas Sound model AH66-15-BSG stadium horn, with its square
coverage pattern, is ideal for down firing applications like convention
centers where full range reproduction, maximum intelligibility, and
high sound pressure levels are required. Other applications include
football stadiums, sports arenas, baseball fields, convention centers,
and auditoriums.
Weather resistant construction features of the AH66-15-BSG include
a multiple screen configuration to prevent moisture from damaging
internal components: A perforated aluminum screen covers the
large horn mouth, a secondary screen is in place forward of the high
frequency driver, and a third tightly perforated screen protects the 15”
cast frame woofer.
Installation
A heavy-duty stainless steel “C” style mounting bracket is included with
the AH66-15-BSG to allow easy mounting to almost any flat surface.
Three drop forge eyebolts are also pre-installed (2-front of horn plus 1-rear
for “pull-up”) for suspension mounting via load rated aircraft cable. (Use
caution when suspending any object overhead. Refer to the installation
manual for more details.)
The AH66-15-BSG includes a 4 pole terminal block connector on the
underside of the device for easy hook-up and daisy chain wiring to other
AH66-15-BSG. If 70.7V/100V operation is required the optional Atlas
Sound AF140 autoformer may be used.
NOTE: Due to the full range operation capabilities of the AH66-15-BSG,
70.7/100V operation is possible, but discouraged. Better frequency response
and amplifier dampening factor can be realized by using large gauge (#10 to
#12) home runs and series/parallel hook-up wiring at the head end location
with direct coupled, low impedance amplifiers. Generally speaking, this
improvement of frequency response and amplifier dampening factor is worth
the sacrifice of line loss over distance - especially if transformer insertion loss
at the loudspeaker location is considered.
AtlasSound.com 2/4
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
©2013 Atlas Sound L.P. All rights reserved. Atlas Sound and Strategy Series are trademarks of Atlas Sound L.P. All other trademarks are the property of their respective owners. ATS004765 RevA 11/13
23.75
20.25
14.63
30.08
21.41
Specifications
Power Rating 250 watts (45V) RMS
Sensitivity 1W1M 104dB SPL (70Hz – 17kHz
1⁄ octavebands) 3
Frequency Response 75Hz - 14.5kHz (±5dB)
Dispersion 65˚ x 65˚
Impedance 8Ω (Nominal)
Minimum Impedance 5.6Ω @ 9000Hz Nominal -6dB (Minimum)
Height 23.75" (603.25mm)
Width 21.41" (543.81mm)
Depth 30.08" (764.03mm)
Shipping Weight 87 lbs (39.5kg)
Driver Type 1" HF and 15" LF
Architect & Engineer Specifications
Loudspeaker shall be Atlas Sound Model AH66-15-BSG or approved equal.
Loudspeaker shall be a 2-way design incorporating an environment-
resistant housing.
Loudspeaker shall include a 15", horn loaded, cast frame woofer housed
in a 2296 in3 (1.3 cubic feet) enclosure and an integral, concentrically
mounted 1" exit compression driver coupled to a constant directivity high
frequency horn. The three pole (18dB/octave) dividing network crossover
frequency shall be 1.4kHz. The dividing network shall include a poly
switch protection circuit for the high-frequency component.
The loudspeaker system shall be capable of providing a sound dispersion
angle of 65˚ horizontal by 65˚ vertical in the 2kHz octave band.
Rated power shall be 250 watts based on EIA Standard RS-426B*
Enclosure shall be UV-resistant, steel reinforced, low pressure injection
molded fiberglass and shall include a 3 stage multiple mesh filter system
for weather and rodent resistance:
A. Large 20-gauge perforated aluminum screen on front mouth
assembly.
B. 100 x 100 weave stainless steel mesh between HF horn and HF
driver.
C. 100 x 100 weave stainless steel mesh over 15" woofer.
Sensitivity shall be 102dB SPL (70Hz – 14.5kHz 1⁄3 octave bands)
measured at a distance of one meter on axis with a one watt input.
Overall frequency response shall be 75Hz – 14.5kHz ( ±5dB).
The loudspeaker shall include a stamped and formed, 12-gauge stainless
steel mounting bracket assembly for surface mounting and three M8
drop forged eyebolts for suspension mounting.
The input section located on the bottom rear of the loudspeaker shall
include a 4 pole terminal block connector.
Nominal impedance shall be 8Ω.
Dimensions shall be: Height 23.75" (603.25mm)
Width 21.41" (543.81mm)
Depth 30.08" (764.03mm)
Weight 87 lbs (39.5kg)
* EIA test spectrum is applied for eight hours. (This procedure
provides a rigorous test of both thermal and mechanical failure
modes.)

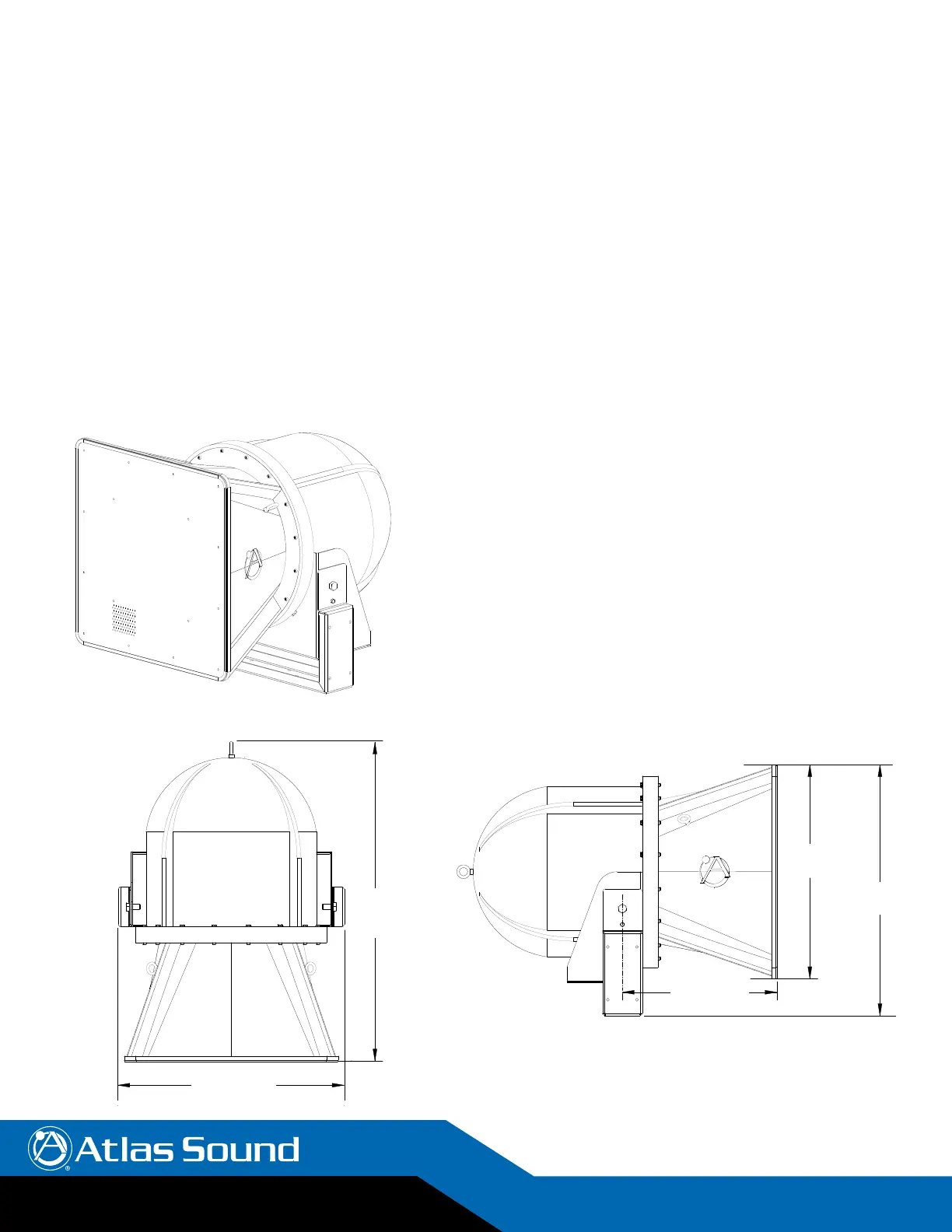

30.08"
(764.03) mm
20.25"
(514.35mm)
23.75"
(603.25mm)
14.21"
(360.93mm)
21.41"
(543.81mm)
