All other Trademarks are property of their respective owners. No endorsement is implied. Due to continual product development, specifications are subject to change without notice. ATS005822 RevC 5/19 P/N 492198

AtlasIED.com

TELEPHONE: (800) 876-3333

SUPPORT@ATLASIED.COM

1601 JACK MCKAY BLVD.

ENNIS, TEXAS 75119 U.S.A.

IP Endpoint Speakers

Install Sheet

Introduction

AtlasIED IP endpoint speakers consist of a factory assembled speaker and baffle with PCB amplifier / control board securely mounted to the rear

of the baffle. The amplifier / control board is capable of producing 15-watts RMS into the 8Ω speaker with IEEE 802.3at compliant PoE switches. A

local 24VDC PSU (TSD-PS24V2500MA) may also be used instead of PoE switches. Interconnection is via a board mounted female RJ-45 connector.

All models are compatible with AtlasIED’s GLOBALCOM, GLOBALCOM.IP, GCK, Syn-Apps Revolution, Singlewire’s InformaCast software, and SIP

standalone operation. They also include 2 general purpose inputs, 1 relay output, 1 line out, and 1 line input, and two-way microphone. Note: Speaker

may take up to 1 min to boot up on initial start up.

Models may include the following:

• 8" Speaker

• 6" Horn Speaker

• Liquid Crystal Display (LCD)

• Flasher

• Microphone

Functionality

Before installing, note the unit’s MAC address found on the units main circuit board (example 00:02:C1:81:00:00). Once connected to a network and

powered, the IP endpoing speaker will boot up and automatically obtain an IP address from a DHCP server on the network. Next, the unit will start

the registration process to find the controller software. Once the IP speaker identifies the software’s location, it will send a registration request to the

software and register. The MAC address of the unit will then show in the software. Please refer to the installation manual of the software for additional

configuration settings.

After the module has registered with the software, its HTTP page can be accessed by navigating to its IP address with any Internet browser. This page

will show its current firmware version and registration information. If unsure about the IP address, press the unit’s service button for 1 second. The

unit’s IP address will be announced over the speaker.

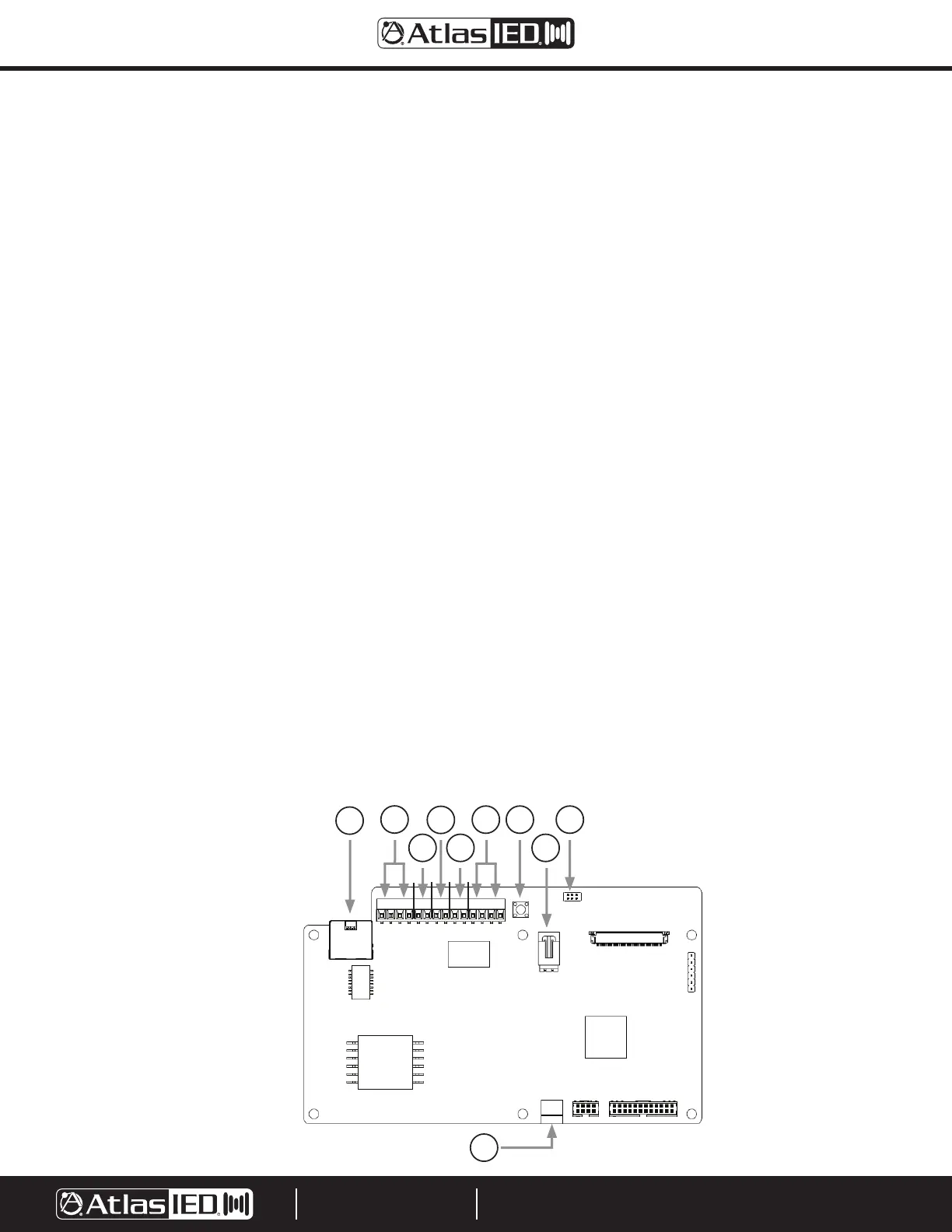

A. Power Input (WARNING: Do not use in conjunction with PoE)

B. General Purpose Inputs 1 and 2

C. Relay Output

D. Line Level In

E. Line Level Out

F. Loudpeaker Outputs - The primary output is connected to the baffle speaker (or horn). The secondary output may be used to drive another 8Ω

speaker or horn.

G. Network Input

H. Service Switch

I. Force Discovery Jumpers (A,B,C)

J. 2-Way Mic Input
