Side 1/2
1/2
AtlasSound.com
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
©2013 Atlas Sound L.P. All rights reserved. Atlas Sound is a trademark of Atlas Sound L.P. All other trademarks are the property of their respective owners. All specs are subject to change without notice. ATS001449 RevD 1/13

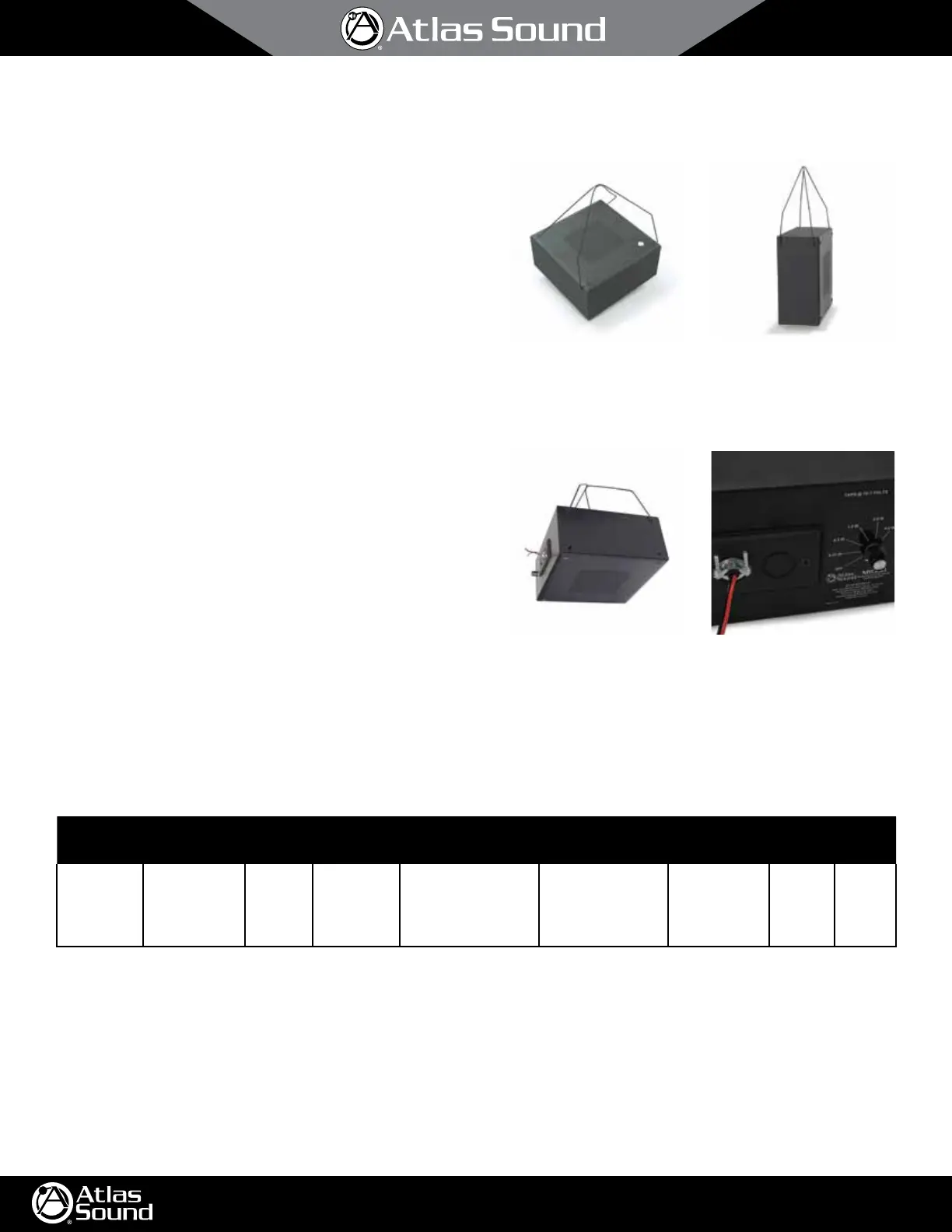

M1000 / M1000-W / M1000R-W
Install Sheet
Step 1
Remove the M1000 from the package via hangers provided.
Hangers are factory installed to facilitate mounting of the
M1000 for upward sound dispersion, Figure 1. This dispersion
configuration is the most popular and most effective.
Note: The M1000R-W can only be mounted in the upward
firing configuration.
If horizontal (side firing) dispersion is required, the hangers
may be relocated as shown in Figure 2.
If down firing dispersion is required, the hangers may be
relocated as shown in Figure 3.
Step 2
Install the M1000 per Figure 1, 2 or 3, using hanger wire or
MCHAIN72 (not included).
Note: Code requirements in many areas require the use of #12
suspension cable for commercial applications. Check
your local codes before installing the M1000.
Step 3
Terminate service loop to the amplifier output line (black is
negative, red is positive) - see Figure 4.
Note: Strain relief is not designed to accommodate conduit.
Use approved terminations through the knock-outs
provided on the M1000 cover plate when conduit is used.
Step 4
Set tap selector switch to desired power setting.
WARNING: To prevent injury, this apparatus must be securely attached to the Floor / Wall / Ceiling
in accordance with installation instructions.
Figure 1
M1000 shown with hangers
located as configured from
factory for upward sound
dispersion
Figure 3
M1000 shown with hangers
configured for downward
sound dispersion
Figure 2
M1000 shown with hangers
configured for horizontal
sound dispersion
Figure 4
M1000 tap selector
Model Loudspeaker Magnet
Weight Sensitivity Frequency
Response
Transformer Taps
@ 70.7V / 100V
Enclosure Weight
Dimensions Volume
M1000
M1000-W
M1000R-W
8" (203mm)
Dual Cone
10oz.
(250g)
92dB
1W/1M
150Hz–6kHz (±3dB)
120Hz–6.5kHz (±5dB)
.25, .5, 1, 2, & 4
Watts @ 70.7V
.5, 1, 2, & 4 Watts
@100V
119⁄ " 16 (294mm)
119⁄ " 16 (294mm)
51⁄ " 2(140mm)
734 in39 lbs.
(3.4kg)
2/2
AtlasSound.com
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
M1000 / M1000-W / M1000R-W
Install Sheet
DO NOT USE 100V
4W
70.7V
DO NOT USE 100V
8Ω ONLY
2W 70.7V
4W 100V
1W 70.7V
2W 100V
.5W
70.7V
1W
100V
.25W
70.7V
.5W
100V
OFF
4W
70.7V
DO NOT USE 100V
2W
70.7V
4W
100V
1W 70.7V
2W 100V
.5W
70.7V
1W
100V
.25W 70.7V
.5W 100V
OFF

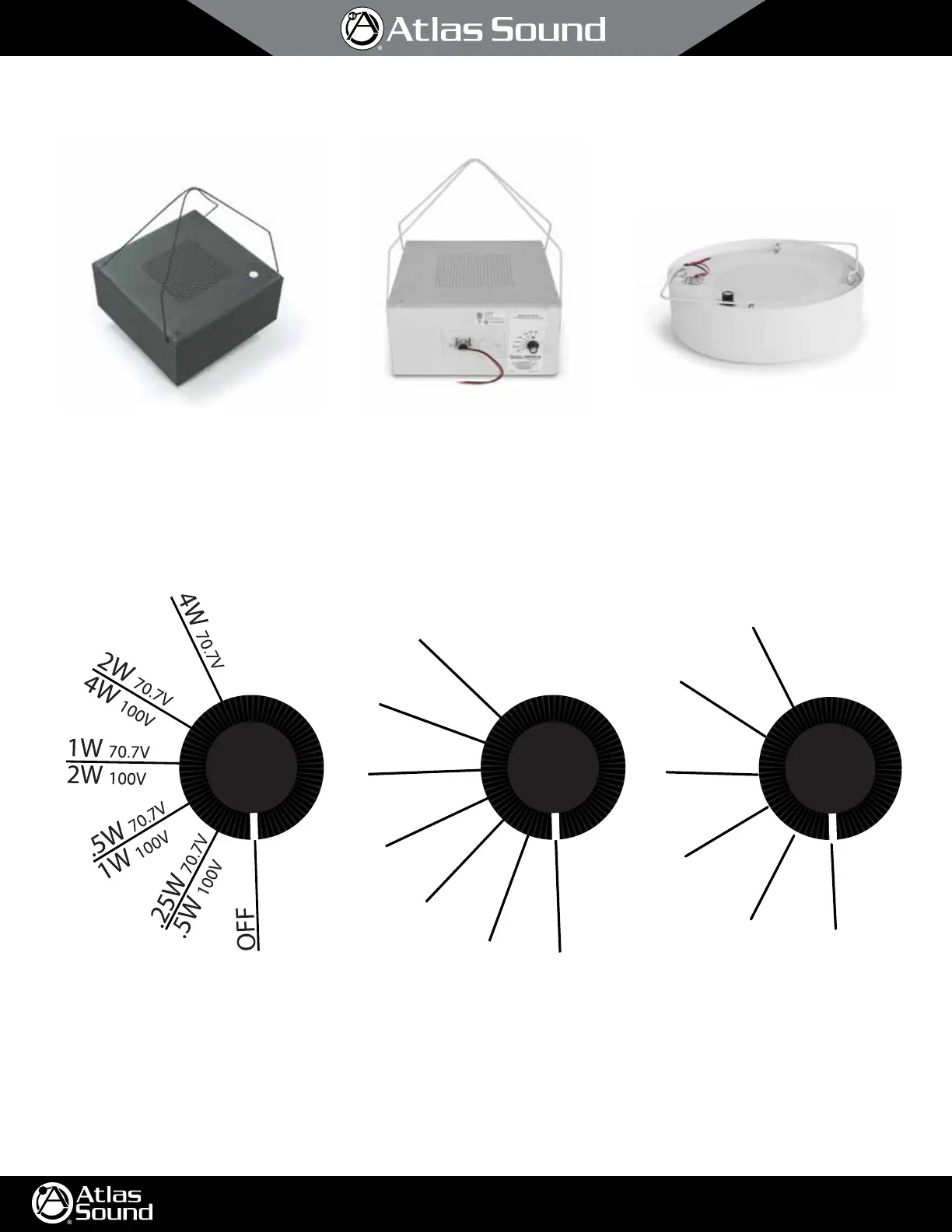

M1000 M1000-W M1000R-W
M1000 Tap Selection M1000-W Tap Selection M1000R-W Tap Selection
©2013 Atlas Sound L.P. All rights reserved. Atlas Sound is a trademark of Atlas Sound L.P. All other trademarks are the property of their respective owners. All specs are subject to change without notice. ATS001449 RevD 1/13
