DT22

2' x 2' Drop Tile Speaker Package

DT22

Features

• All In One, Pre-Assembled Unit Drops Into Ceiling Grids to Reduce

Installation Time and Costs

• Solid White Panel with Punched Speaker Grille Blends in with Most

Acoustic Ceiling Tiles

• Standard 8" Speaker with Built-In 25V / 70.7V Transformer

• UL1480 / UL2043

Application

Installer friendly Atlas Sound DT22 provides clear paging and background

music in a labor saving package. Ideal for use in shopping malls,

department stores, and anywhere large quantities of loudspeakers are to

be utilized.

General Description

The Atlas Sound DT22 2' x 2' drop in speaker system simplifies

loudspeaker installation by providing an all in one speaker package in

acoustic ceiling grids. The system includes the speaker / transformer,

enclosure, and grille. Enjoy clear, crisp paging and background music

from the installation friendly DT22 without compromising building

cosmetics.

Speciﬁcations

Frequency

Response 100Hz - 5kHz

Dispersion 105°– 2kHz Octave Band (-6dB)

Sensitivity (1W/1m) 96dB

Speaker 8" Dual Cone

Magnet Weight 10oz (283g)

Length 23.9" (607mm)

Width 23.9" (607mm)

Depth 4.53" (115mm)

Weight 11.3 lbs (5.125kg)

Color White

Architect and Engineer Speciﬁcations

The loudspeaker, transformer, baffle and enclosure shall be the Atlas

Sound 2' x 2' drop in speaker system Model DT22. The loudspeaker

shall be an 8" dual cone type with an integral 25V / 70.7V matching

transformer. Power taps to include .25, .5, 1, 2, & 4 Watt for 25V

and 70.7V systems. The assembly to include a speaker enclosure

mounted to a 2' x 2' white metal panel.

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333

FAX (800) 765-3435

AtlasSound.com

2/2

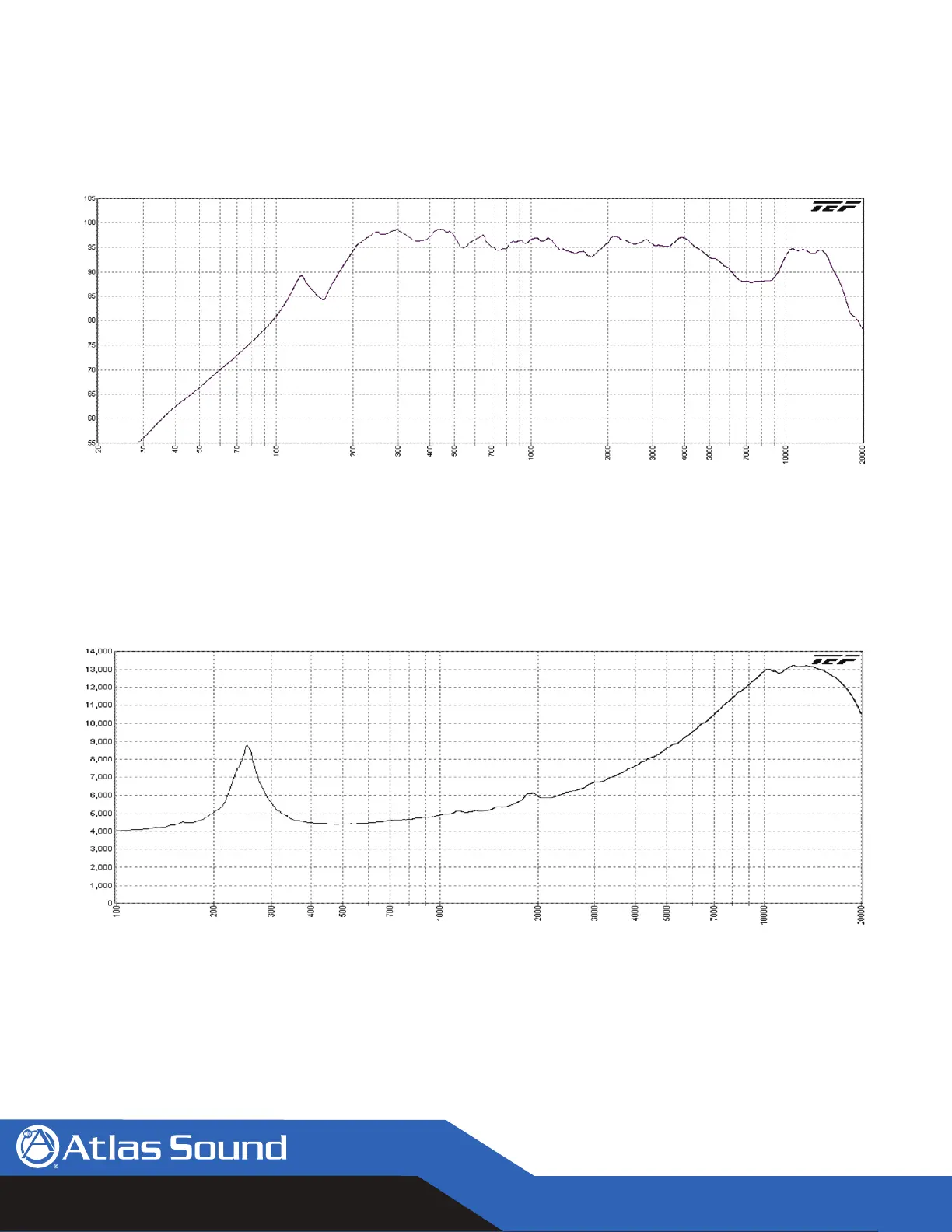

DT22 Frequency Response

Frequency (Hz)

Frequency (Hz) Octave Smoothing = 30.0%

Ohms

DT22 Impedance

Produkt Specifikationer

Mærke:	Atlas Sound
Kategori:	Højttaler
Model:	DT22
Antal pr. pakke:	1 stk
Produktfarve:	Hvid
Udgangseffekt (RMS):	- W
Højttaler, placering:	I væggen/i loftet
Antal drivere:	1
Sensitivitet:	96 dB
