AtlasSound.com 1/2

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333

FAX (800) 765-3435

8" Speaker Packages including EZ Mounting Assemblies

FD/EZFD & HD/EZHD Series

Speciﬁcations

FD Series

Speaker Size 8" (203mm)

Speaker Model / Series Atlas Sound Model C5A

Power Rating 15 Watts

Frequency Response 50Hz – 18kHz

Sensitivity (1W/1M) 96dB

Magnet 5oz (142g), Ceramic

Voice Coil Diameter 1" (25mm)

Voice Coil Impedance 8Ω

HD/EZHD72W

Speaker Size 8" (203mm)

Speaker Model / Series Atlas Sound Model C10A

Power Rating 25 Watts

Frequency Response 45Hz – 19kHz

Sensitivity (1W/1M) 97dB

Magnet 10oz (284g), Ceramic

Voice Coil Diameter 1" (25mm)

Voice Coil Impedance 8Ω

Transformer Specifications

(Applies to both FD & HD Series)

Primary Voltage 25V, 70.7V, 25V/70.7V, & 100V

Frequency Response 100Hz – 10kHz (±1.5dB)

Primary Taps 25V: .5, 1, 2, & 5 Watts

70.7V: .5, 1, 2, & 5 Watts

25V / 70.7V: .25, .5, 1, 2, & 4 Watts

Secondary Impedance 8Ω

Insertion Loss (max) 1.5dB

Terminations 6" Color Coded

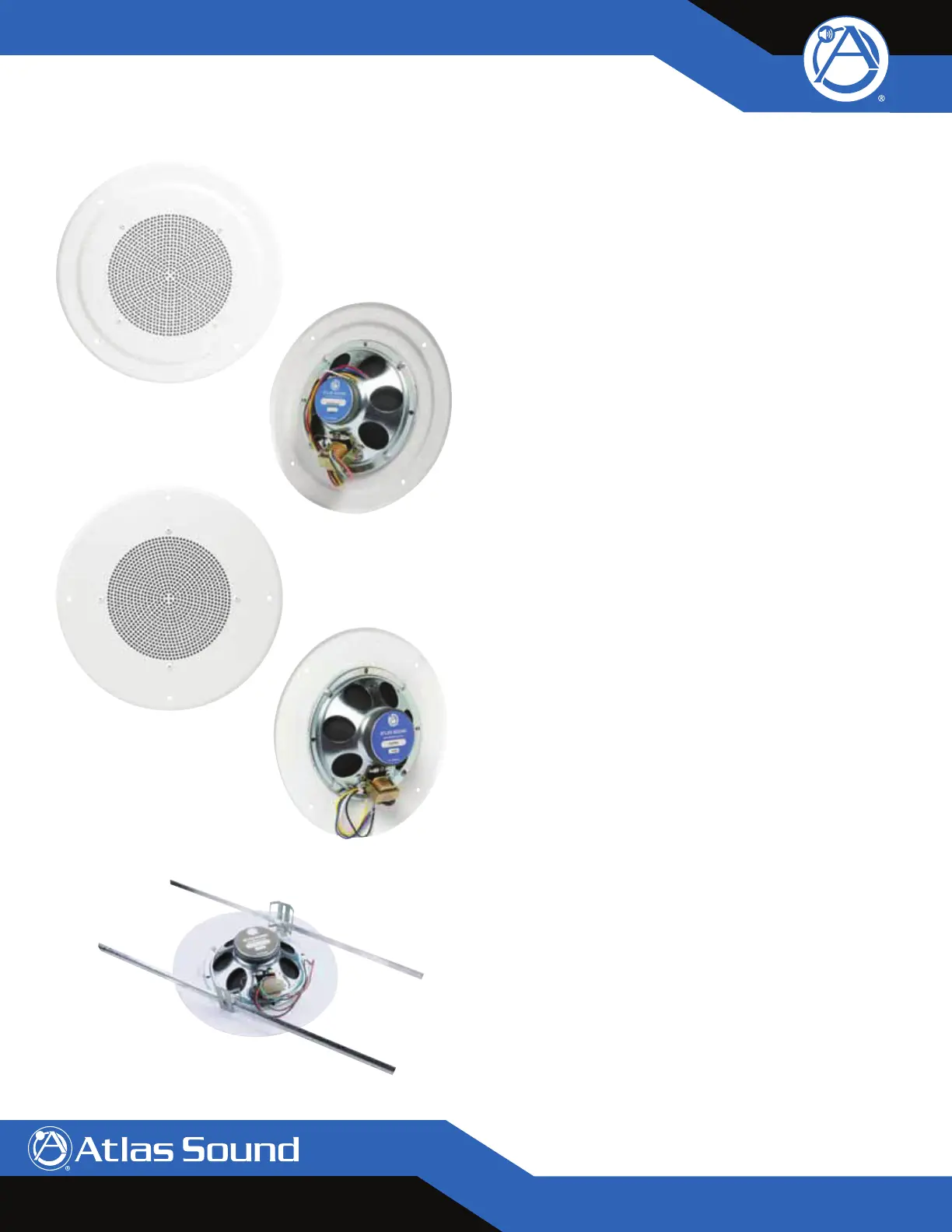

FD72M222W

(Back)

HD25W

(Back)

EZHD72W

AtlasSound.com 2/2

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333

FAX (800) 765-3435

Package Assemblies

Features

t 'BDUPSZ"TTFNCMFE-PVETQFBLFS1BDLBHFT3FEVDF*OTUBMMBUJPO

Time and Expenses

t $IPJDFPG5SBOTGPSNFST

t .PEFMT&RVJQQFEXJUIUIF$POWFOJFOU1BUFOUFE&;.PVOU

Installation System Available

General Description

FD and HD Series are cost-effective 8" dual-cone loudspeaker assemblies

which deliver wide frequency response for general purpose voice and

music reproduction. Units are shipped complete with grille and 25, 70.7,

or 25/70.7 volt transformer factory wired to reduce field installation time

and expense. FD Series models deliver 15 watts and are available with a

selection of six grilles. HD Series models have a power rating of 25 watts

and are standard with the industry favorite Model 51-8 grille. Both styles

will accept optional protective enclosures and mounting accessories to

meet installation and code requirements.

Model Includes Assembly

Net Weight

Optional

Enclosure

Mounting

Ring / Bridge

25V 70.7V 25V / 70.7V 100V Baffle Style

FD25W FD70W FD72W — 51-8 Round, White 2.4lbs (1.1kg) (EZ)95 Series,

(EZ)96 Series,

199-8, Q408,

CS95-8(NS)

75-8(E1)(E2),

76-8(E1)(E2),

P77-8, P78-8,

81-8R(S)

FD25M222W FD72M222W — M222W Round, White 1.7lbs (.77kg)

— — P900 Round, White Plastic 1.9lbs (.86kg)

HD25W HD70W HD72W — 51-8 Round, White 3lbs (1.4kg)

— — TFD72WC

THD72WC

— T62-8 Round, White 3.1lbs (1.4kg) T95-8 Series,

BMT95-8(-7),

EZ95-8

T75-8(E1)(E2),

81-8S

— EZHD72W — 51-8 Round, White 4.2lbs (1.9kg) Assemblies with

Brackets / Rails

Loudspeaker Specifications

Model Series 8" Speaker Power Rating Frequency

Response

Sensitivity

(1W/1M)

Magnet

(Ceramic)

V.C.

Diameter

V.C.

Impedance

Flux Density

FD Model C5A 15 Watts 50Hz – 18kHz 96dB 5oz (142oz) 1" (25mm) 8Ω 9,200 Gauss

HD Model C10A 25 Watts 45Hz – 19kHz 97dB 10oz (284oz) 1" (25mm) 8Ω 10,600 Gauss

Transformer Specifications

Primary Volts Frequency Response

(±1.5dB)

Primary Taps Secondary

Impedance

Insertion Loss

(Max)

Terminations Power Rating

25V 100Hz – 10kHz C, 1⁄2, 1, 2, 5 8Ω 1.5dB 10" Color Coded 5 Watts

70.7V 100Hz – 10kHz C, 1⁄2, 1, 2, 5 8Ω 1.5dB 10" Color Coded 5 Watts

25V/70.7V 100Hz – 10kHz C, 1⁄ , 41⁄2, 1, 2, 4 8Ω 1.5dB 10" Color Coded 4 Watts
