AtlasSound.com 1/4
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
©2011 Atlas Sound L.P. All rights reserved. Atlas Sound and Strategy Series are trademarks of Atlas Sound L.P. All other trademarks are property of their respective owners. ATS001871 RevD 8/11
Strategy Series®)),OW0ROÚLE)N#EILING#OAXIAL3PEAKER

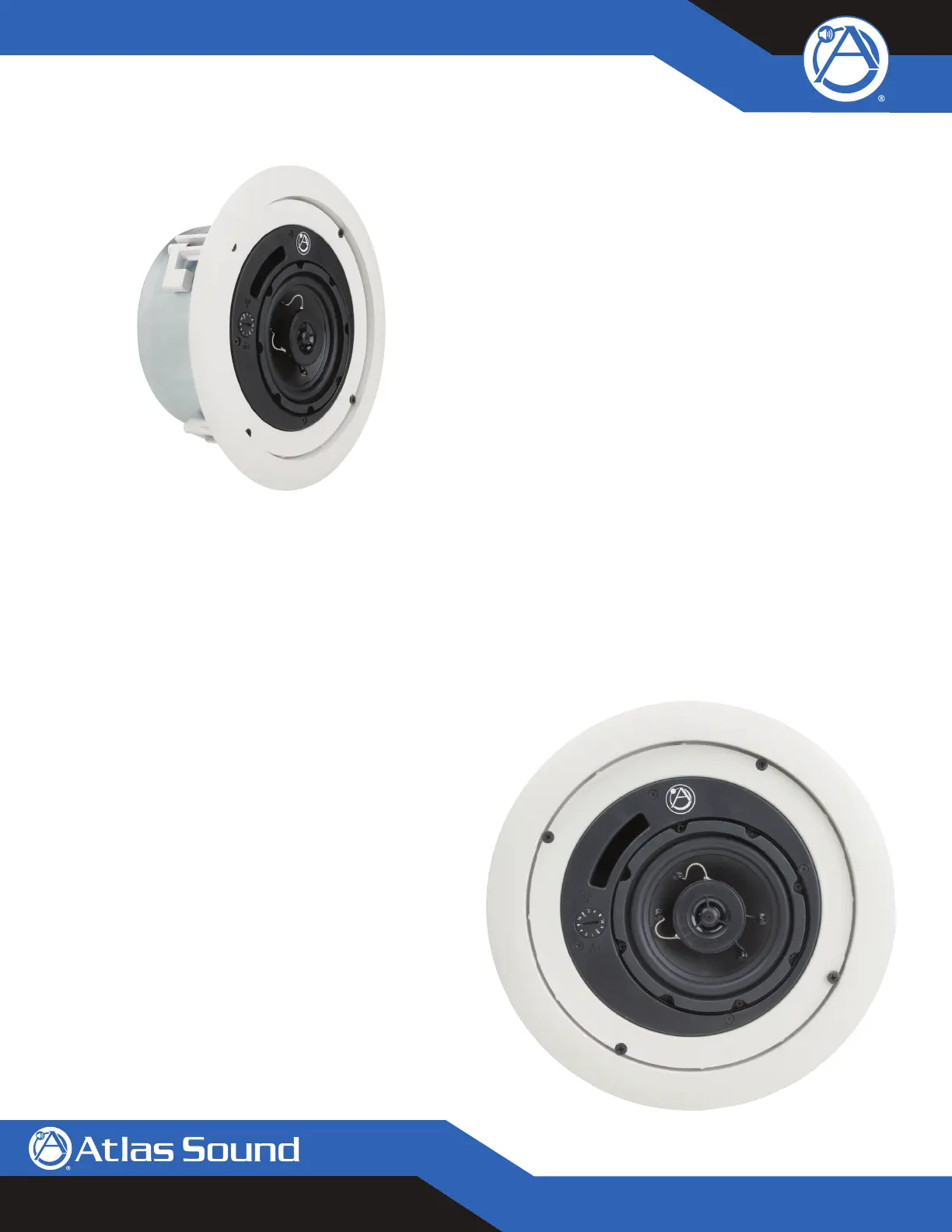

FAP42TC
Specifications
Power Rating 25 Watts
Transformer Taps 1, 2, 4, 8, & 16 Watts & 8 Bypass1
Frequency Response 83Hz – 20kHz (±7dB)
Sensitivity (1W / 1M) 88dB
Woofer 4" Poly Cone with Butyl Rubber Surround
Woofer Magnet Weight 10oz (364g)
HF Driver Coaxially Mounted PEI Dome Tweeter
Diameter 101⁄2" (267mm)
Overall Height 41⁄4" (108mm)
Enclosure Volume 134 in3
Cut-Out Diameter 9" (229mm)
Features
• Low Depth (4") Speaker System for Limited Space Applications
• Easy Installation in Drop Tile or Sheetrock Ceilings Via C-Ring / V-Rail
Tile Bridge and "Dog Leg" Mounting System (Included)
• Front Mounted Tap Selector Switch for Easy System Tuning
Adjustment Includes Transformer Bypass Setting for 8 Direct Ω
Coupled Operation
• "Press Fit" Grilles Blend Better into Contemporary Architecture
• Enhanced Quality 70.7V / 100V Internal Transformers Minimize
Insertion Loss and Maintan Low Frequency Response While
Providing Increased Output for Higher SPL Applications
• UL 1480 Listed
Applications
Atlas Sound’s FAP42TC combines superior coaxial loudspeaker perfor-
mance with wide dispersion and easy installation. A low profile enclosure
and wide coverage make the FAP42TC a perfect choice for low ceilings.
The FAP42TC will satisfy the needs of owners, architects, contractors,
and consultants by delivering true, high fidelity sound reproduction in an
attractive and easy-to-install system. The FAP42TC is ideal for high-intel-
ligibility voice, music, and signal reproduction in commercial, industrial,
and institutional applications.
General Description
The FAP42TC's 130° dispersion angle effectively reduces the number of
loudspeakers necessary to achieve coverage in distributed systems with
low ceilings.
The loudspeaker component matches the performance of the legendary
Atlas Sound Strategy FA Series. High quality construction 4" coaxial cone
type driver includes a 1" voice coil and polypropylene cone with a butyl
rubber surround. The 19mm coaxially mounted tweeter is constructed
of PEI. This loudspeaker is factory assembled in a deep drawn enclosure
and includes a specially designed 16 watt low saturation, 70.7V / 100V
transformer. A convenient front mounted selector switch allows tap
selection without the need to remove the speaker from the ceiling. This
switch also includes a transformer bypass setting for 8 operation.Ω
&!04#
&!04#
AtlasSound.com 2/4
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
©2011 Atlas Sound L.P. All rights reserved. Atlas Sound and Strategy Series are trademarks of Atlas Sound L.P. All other trademarks are property of their respective owners. ATS001871 RevD 8/11

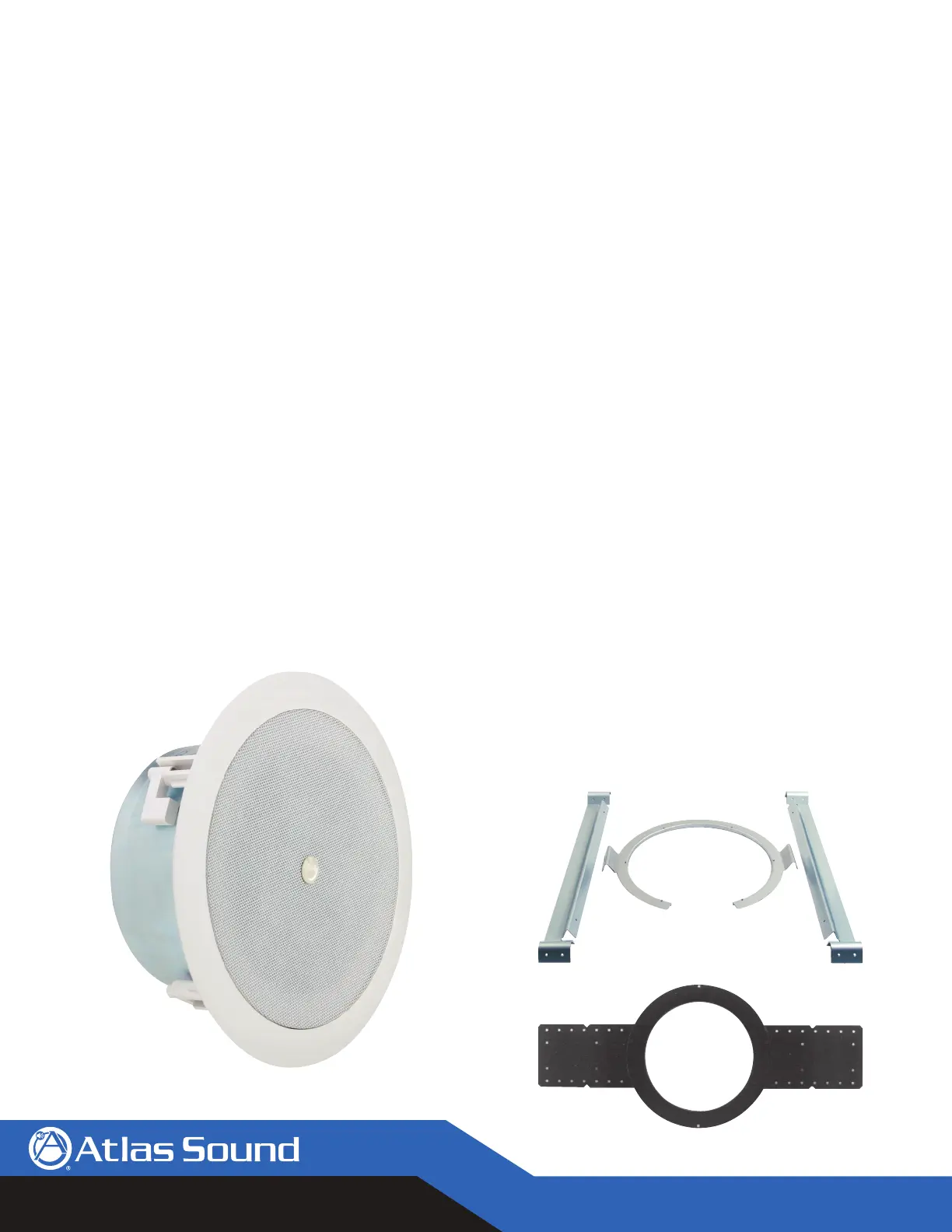

Mounting Accessories
Mounting is simplified with Strategy style “Dog Leg” tabs that allow
easy installation into drop tile or drywall ceilings with provided tile bridge
assembly. The tile bridge consists of two “V” shaped formed mounting
rails and a C-Ring assembly. The C-Ring can be attached to the rails with
the screws provided to extend support to the T-bar grid in suspended
ceiling applications. Multiple hole locations are provided to allow the
C-Ring to be positioned to the outer edge of the tile if necessary.
For existing dry-wall applications the tile bridge C-Ring and support rails
can be inserted into the hole cut for the FAP42TC. For easy positioning
the “V” shaped support rails match the shape of the C-Ring tabs for easy
maneuvering and location when working “blindly” above the deck.
A uniquely designed “easy access” input panel on the side of the
enclosure allows for conduit runs using flexible conduit. Wiring terminals
are concealed below this cover for easy daisy chain wiring to other full
range loudspeakers or Atlas Sound FAPSUB subwoofers. The package
includes an attractive press-fit grille which nicely matches contemporary
architecture.
For new construction drywall ceiling applications, the optional FAP42-TR
trim ring is available. This unit provides a marked location for drywall
installers to cut around essentially reserving the desired location in the
ceiling until final installation of FAP42TC. Mounting holes are provided to
accommodate 16" or 24" OC stud / joist mounting.
A support ring is also provided on the top of the FAP42TC enclosure to
facilitate an auxiliary support cable.
NOTE: IT IS MANDATORY THAT THIS SECONDARY SUPPORT
BE UTILIZED IN DROP CEILINGS FOR SAFETY AND SEISMIC
CONSIDERATIONS.
Architect & Engineer Specifications
The loudspeaker system shall be Atlas Sound FAP42TC. System shall
include a high performance 4" coaxial loudspeaker, low profile enclosure
and press-fit grille for conventional ceiling installation.
Frequency response for the system shall be 75Hz – 20kHz (±7dB).
Sensitivity shall be 88dB average. Loudspeaker shall be comprised of a 4"
coaxial cone type driver. Cone shall be constructed of polypropylene with
a butyl rubber surround. The 19mm tweeter shall be constructed
of PEI. Magnet shall be a minimum of 10oz (264g) and the voice coil
diameter shall be 1" (25mm).
Transformer shall be a 70.7V / 100V type with 1, 2, 4, 8, and 16 watt pri-
mary taps (@70.7V) with a front mounted tap selector switch to include
transformer bypass setting for 8 direct coupled operation. Ω
Enclosure shall be constructed of deep drawn steel. Internal volume shall
be 134 in3. To facilitate connection in conduit systems, enclosure shall
be equipped with an access panel covering a recessed terminal cup. This
cover shall provide a combination 3⁄4" (19mm inside diameter) / 1" (25mm
inside diameter) knock-out to conduit.
External wiring shall be accomplished via wiring connector with screw-
down terminals to provide secure wire termination. The connector shall
facilitate In / Out wiring and shall be located in the recessed area behind
the conduit access panel.
Seismic support eye shall be provided for an additional suspension point
when used in drop tile ceilings. Construction of enclosure shall be a
minimum of 18-gauge deep drawn galvanized metal.
The system shall include a support backing plate to reinforce the ceil-
ing material and tile support rails for use on either 2' x 4' (609mm x
1219mm) or 2' x 2' (609mm x 609mm) suspended ceiling tiles. This
assembly can all be installed from beneath the ceiling tile. Overall front
face diameter shall not exceed 10.5" (267mm); overall depth from the
bottom of bezel to top of enclosure shall not exceed 4.24" (108mm).
Grilles shall be press-fit, manufactured from 24-gauge perforated steel
mesh and finished in white epoxy. Round grill shall be 8.49" (216mm)
diameter.
The loudspeaker shall be the Atlas Sound FAP42TC.
&!04#
#2ING62AILS
&!042
