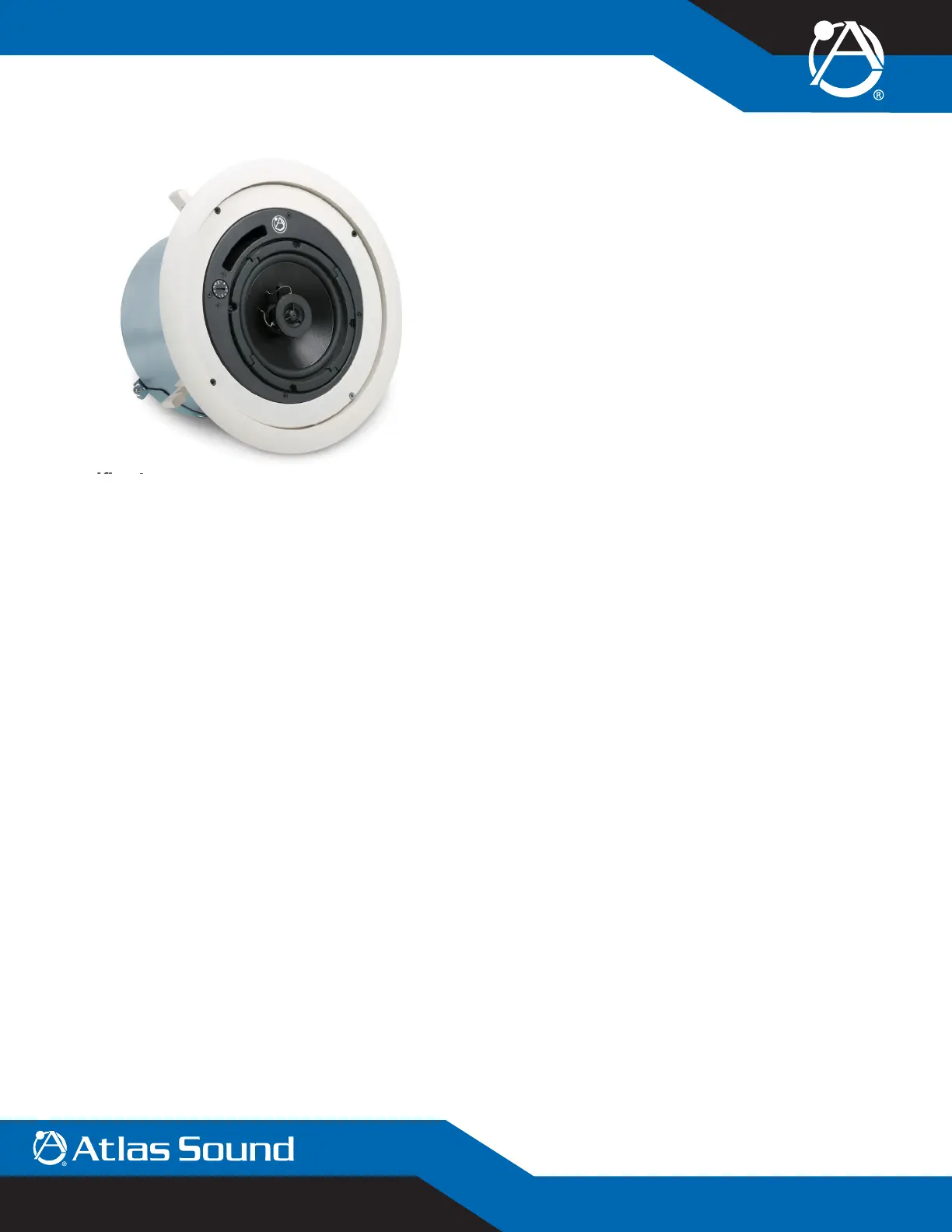

Strategy Series® II In-Ceiling 6" Coaxial Speaker System

3PECIÚCATIONS

Power Rating 50 Watts

Transformer Taps 2, 4, 8, 16, & 32 Watts

Frequency Response 63Hz – 20kHz (±7dB)

Sensitivity (1W / 1M) 88dB

Woofer 6" Poly Cone with Butyl Rubber Surround

Woofer Magnet Weight 14oz (398g)

Enclosure Volume 475 in3

HF Driver 19mm Coaxially Mounted PEI Dome Tweeter

Diameter 121/2" (318mm)

Overall Height 8.48" (215mm)

Cut-out Dimensions 11" (279mm)

&EATURES

• Extended Low Frequency Response from the 475 in

3 Optimally Tuned

and Ported Deep Drawn Galvanized Steel Enclosure

• Easy Installation in Drop Tile or Sheetrock Ceilings Via C-Ring / V-Rail

Tile Bridge and “Dog Leg” Mounting System (Included)

• Front Mounted Tap Selector Switch for Easy System Tuning

Adjustments Include Transformer Bypass Setting for 8 Direct 1

Coupled Operation

• Unique “Trap Door” Input Section Allows for Through Conduit Runs

with Rigid or Flex Conduit

• 4 Pole Detachable “Phoenix” Style Connector Allows Easy Pre-Wiring

and Is Convenient for Daisy Chaining Additional Strategy Series Full

Range Speakers or Subwoofers

• “Press Fit” Grilles Blend Better into Contemporary Architecture

• Enhanced Quality 70.7V / 100V Internal Transformers Minimize

Insertion Loss and Maintain Low Frequency Response While

Providing Increased Output for Higher SPL Applications

• UL Listed 1480 & 2043

!PPLICATIONS

The FAP62T-UL2043 combines superior coaxial loudspeaker performance

with even dispersion and easy installation. A low profile enclosure

and wide coverage make the FAP62T-UL2043 a perfect choice for low

ceilings. The FAP62T-UL2043 will satisfy the needs of owners, architects,

contractors, and consultants by delivering true, high fidelity sound

reproduction in an attractive and easy-to-install system. The

FAP62T-UL2043 is ideal for high-intelligibility voice, music, and signal

reproduction in commercial, industrial, and institutional applications. The

FAP62T-UL2043 is UL1480 and UL2043 Listed allowing for installation in

true plenum air spaces.

'ENERAL$ESCRIPTION

The FAP62T-UL2043's 110° dispersion angle can reduce the number of

FAP62T-UL2043’s necessary to achieve coverage in distributed systems

with low ceilings.

The loudspeaker component matches the performance of the legendary

Atlas Sound FA136 driver. High quality construction 6" coaxial cone

type driver includes a 1" voice coil and polypropylene cone with a butyl

rubber surround. The 19mm coaxially mounted tweeter is constructed of

PEI. A high sensitivity of 88dB average (92dB peak) means less power

may be required to achieve the desired SPL. This loudspeaker is factory

assembled in an optimally tuned and ported deep drawn enclosure

and includes a specially designed 32 watt low saturation 70.7V / 100V

transformer. A convenient front mounted selector switch allows tap

selection without the need to remove the speaker from the ceiling. This

switch also includes a transformer bypass setting for 8 direct coupled 1

operation.

IÚ

FAP62T-UL2043

AtlasSound.com 2/4

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333

FAX (800) 765-3435

-OUNTING!CCESSORIES

Mounting is simplified with Strategy Series® style “Dog Leg” tabs that

allow easy installation into drop tile or drywall ceilings with provided

tile bridge assembly. The tile bridge consists of two “V” shaped formed

mounting rails and a C-Ring assembly. The C-Ring can be attached to

the rails with the screws provided to extend support to the T-bar grid

in suspended ceiling applications. Multiple hole locations are provided

to allow the C-Ring to be positioned to the outer edge of the tile if

necessary.

For existing dry-wall applications the tile bridge C-Ring and support

rails can be inserted into the hole cut for the FAP62T-UL2043. For easy

positioning the “V” shaped support rails match the shape of the C-Ring

tabs for easy maneuvering and location when working “blindly" above

the deck. A uniquely designed “easy access" input panel on the side of

the enclosure allows for “through" conduit runs using flexible or rigid

conduit. Below this cover resides a detachable Phoenix / Euro style

locking four-pole connector, which provides for easy daisy chain wiring to

other full range 70.7V loudspeakers or Atlas Sound FAPSUB subwoofers.

The package includes an attractive press-fit grille, which nicely matches

contemporary architecture.

For new construction drywall ceiling applications, the optional FAP62-TR

trim ring is available. This unit provides a marked location for drywall

installers to cut around essentially reserving the desired location in the

ceiling until final installation of FAP62T-UL2043. Mounting holes are

provided to accommodate 16" or 24" OC stud / joist mounting.

A support ring is also provided on the top of the FAP62T-UL2043

enclosure to facilitate an auxiliary support cable. It Is recommended that

this secondary support be utilized in drop ceilings for safety and seismic

considerations.

!RCHITECT%NGINEER3PECIÚCATIONS

The loudspeaker system shall be Atlas Sound FAP62T-UL2043. System

shall include a high performance 6" coaxial loudspeaker, ported bass

reflex enclosure and press-fit grille for conventional ceiling installation.

Frequency response for the system shall be 63Hz – 20kHz (±7dB).

Sensitivity shall be 88dB average.

Loudspeaker shall be comprised of a 6" coaxial cone type driver. Cone

shall be constructed of polypropylene with a butyl rubber surround. The

19mm tweeter shall be constructed of PEI. Magnet shall be a minimum

of 10oz (283g) and the voice coil diameter shall be 1" (25mm).

Transformer shall be a 70.7V / 100V type with 2, 4, 8, 16, and 32 watt

primary taps (@70.7V) with a front mounted tap selector switch to include

transformer bypass setting for 8 direct coupled operation.1

Enclosure shall be a deep drawn steel enclosure design. Internal volume

shall be 475 in3. To facilitate connection in conduit systems, enclosure

shall be equipped with an access panel covering a recessed terminal cup.

This cover shall provide a combination 3/4" (19mm inside diameter) /

1" (25mm inside diameter) knock-out on the side access and a top

access compression fitting / strain relief to facilitate flexible conduit up to

22mm outside diameter or 1" (25mm inside diameter) conduit when the

compression fitting is removed.

External wiring shall be accomplished via a removable lockable wiring

connector with screw-down terminals to provide both secure wire

termination and pre-wiring capability before loudspeaker installation. The

4 pole locking connector shall facilitate in / out connections and shall be

located in the recessed area behind the conduit access panel.

Seismic support eye shall be provided on top of enclosure for additional

suspension point when used in drop tile ceilings. Construction of

enclosure shall be a minimum of 18-gauge deep drawn galvanized metal.

The system shall include a support backing plate to reinforce the ceiling

material and tile support rails for use on either 2' x 4' (609mm x 1219mm)

or 2' x 2' (609mm x 609mm) suspended ceiling tiles. This assembly can

all be installed from beneath the ceiling tile.

Overall front face diameter shall not exceed 121/2" (318mm); overall depth

from the bottom of the ceiling shall not exceed 8.48" (215mm).

Grilles shall be press-fit, manufactured from 24-gauge perforated steel

mesh and finished in white epoxy. Round grill shall be 10.48" (266mm)

diameter.

The loudspeaker shall be the Atlas Sound FAP62T-UL2043.

C-Ring / V-Rails

FAP62-TR
