Strategy Series® II 8" In-Ceiling Speaker System

FAP82T

Speciﬁcations

Woofer Size 8" (203mm)

Woofer Impedance 8 (Nominal)Ω Direct Coupled

Transformer Taps 1.9, 3.8, 7.5, 15, 30, & 60 Watts & 8 Bypass1

Power Handling 70 Watts RMS (at 8Ω)

Sensitivity (1W / 1M) 90dB Average

Frequency Response 65Hz – 20kHz (±5dB)

Magnet Weight 21oz (580g)

Cut-Out Diameter 14" (356mm)

Height 123⁄4" (324mm)

Diameter 153⁄4" (400mm)

Features

• High efficiency 8" driver

• Extended Low Frequency Response from the Optimally Tuned and

Ported Deep Drawn Galvanized Steel Enclosure (937 in

• 60 Watts Enhanced Quality 70.7V / 100V Internal Transformer

Minimizes Insertion Loss and Maintains Low Frequency

• Front Mounted Tap Selector Switch for Easy System Tuning

Adjustments (1.9 – 60 watts @ 70.7V Plus 8 Bypass)Ω

• Unique “Trap Door" Input Section Allows for Through Conduit Runs

with Rigid or Flex Conduit

• 4 Pole Detachable Phoenix / Euro Style Connector Allows Easy

Pre-wiring

• “Press-Fit" Grille to Better Blend into Contemporary Architecture

• Ships Complete with Speaker / Transformer Factory Assembled into

Back Can, Grille, and Unique C-Ring / V-Rail Mounting Hardware

• May be Pendulum Mounted via Top Mounted Eyebolt (Included)

• Enclosure is Finished in White for Optimum Aesthetics when Hung in

Open Ceiling Applications

• UL 1480 Listed

Applications

The Atlas Sound FAP82T is a premium performance 70.7V / 100V tuned

& ported 8" coaxial ceiling speaker system perfectly suited for many

business music and public address applications – especially applications

where high ceilings require loudspeakers with increased efficiency and

tighter pattern control. The 8" coaxial speaker system features extended

low frequency response rivaling that of many subwoofers.

The FAP82T will satisfy the needs of owners, architects, contractors,

and consultants by delivering true, high fidelity sound reproduction in an

attractive and easy-to-install system. The FAP82T is ideal for high intelligi-

bility voice, music, and signal reproduction in commercial, industrial, and

institutional applications.

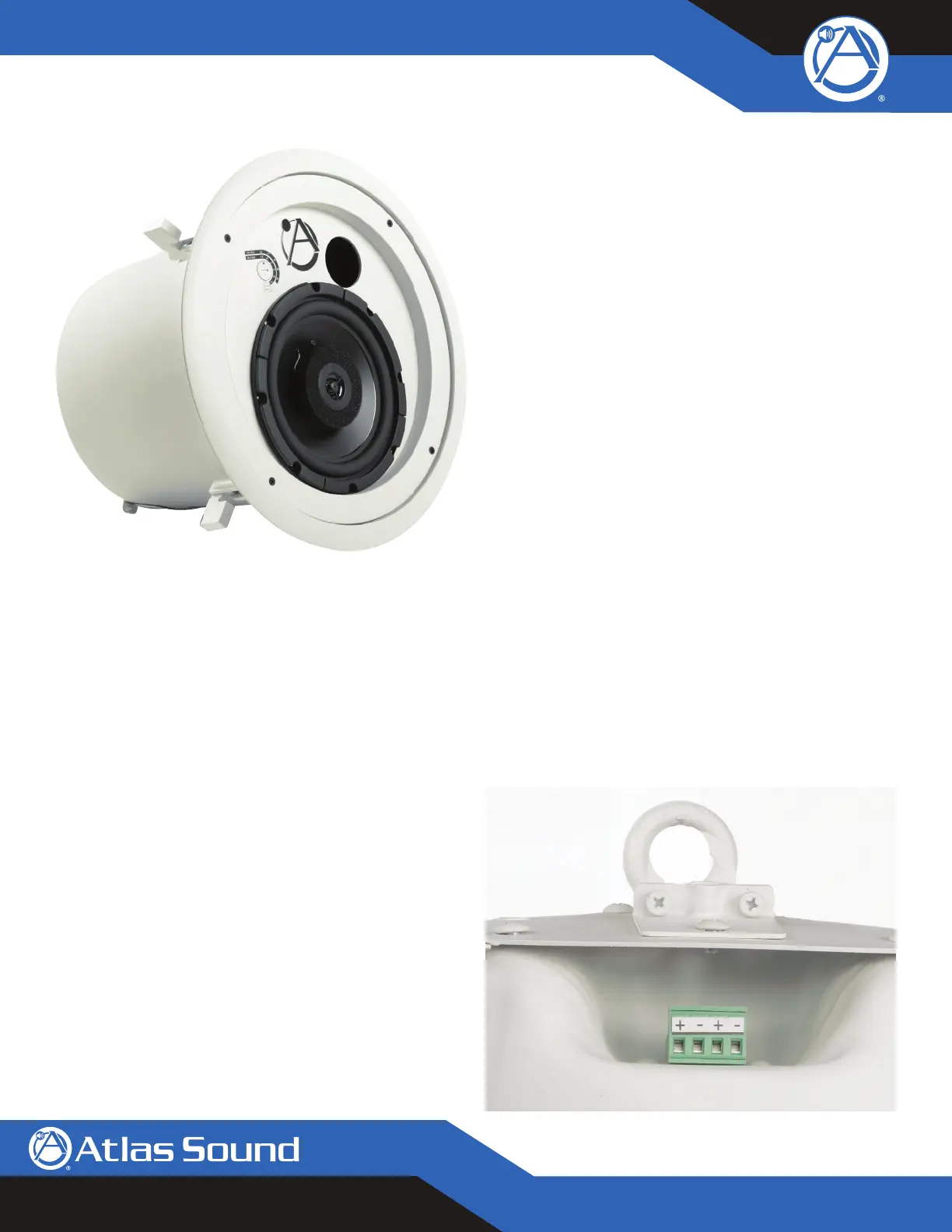

FAP82T

(Pendulum Eyebolt &

Phoenix / Euro

Style Connector)

AtlasSound.com 2/5

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333

FAX (800) 765-3435

General Description

Loudspeakers exhibiting wider dispersion than 100° will exceed 6dB of

drop off at the edge of the coverage pattern causing excessive SPL vari-

ances. Using more of the same wide coverage speaker in a high ceiling

application to compensate only worsens the situation, as comb filtering

from multi-path arrivals will result. For more information please review

our white paper “The Limitations of Wide Dispersion" on our website,

www.AtlasSound.com.

The loudspeaker component is based on the legendary Atlas Sound

FA Series drivers. High quality construction 8" coaxial cone type driver

includes a 35mm voice coil and polypropylene cone with a butyl rubber

surround. The 19mm coaxially mounted tweeter is constructed of PEI.

A high sensitivity of 90dB average means less power may be required

to achieve the desired SPL. This loudspeaker is factory assembled in

an optimally tuned and ported deep drawn enclosure and includes a

specially designed 60 watt low saturation 70.7V / 100V transformer. A

convenient front mounted selector switch allows tap selection without

the need to remove the speaker from the ceiling. This tap selector switch

also includes a transformer bypass setting for instances where the 8Ω

FAP82T driver is to be direct coupled with a low impedance amplifier.

Mounting Accessories

Mounting is simplified with Strategy Series® style “dog leg” tabs that

allow easy installation into drop tile or drywall ceilings with provided tile

bridge assembly. The tile bridge consists of two “V” shaped mounting

rails and a C-Ring assembly. The C-Ring can be attached to the rails with

the screws provided to extend support to the T-Bar grid in suspended

ceiling applications. Multiple hole locations are provided to allow the

C-Ring to be positioned to the outer edge of the tile if necessary.

For existing drywall applications, the tile bridge, C-Ring, and support rails

can be inserted into the hole cut for the FAP82T. For easy positioning the

“V” shaped support rails match the shape of the C-Ring tabs for easy

maneuvering and location when working “blindly” above the deck.

A uniquely designed “easy access” input panel on the side of the enclo-

sure allows conduit runs using flexible or rigid conduit. Below this cover

resides a detachable Phoenix style locking four-pole Euro connector.

The package includes an attractive press-fit grille, which nicely matches

contemporary architecture.

For new construction drywall ceiling applications, the optional FAP82-TR

trim ring is available. This unit provides a marked location for drywall

installers to cut around essentially reserving the desired location in the

ceiling until final installation of FAP82T. Mounting holes are provided to

accommodate 16" or 24" OC stud / joist mounting.

With the FAP82T, Atlas Sound has addressed pendulum mounting for

open ceiling applications. An eyebolt assembly is included with the

package allowing suspension of the FAP82T with load rated cable or

“all thread”. The enclosure is finished white to match the bezel ring for

better blend in open ceiling applications. Please note that the enclosure

/ bezel ring may also be painted to accommodate custom finishes when

required.

SPEAKER SYSTEMS SUSPENDED OVERHEAD POSE A RISK

OF SERIOUS INJURY OR DEATH IF THEY FALL.

Overhead suspension of any object (rigging) is inherently dangerous.

It poses a substantial risk of injury or death to both those persons per-

forming the installation and those persons who may later occupy the

space under the suspended objects. You may be held liable for any injury

or damages which may be alleged to result from improper installation.

IF YOU ARE NOT EXPERIENCED IN RIGGING OR SUSPENSION

OF SPEAKER SYSTEMS, OR IF YOU HAVE ANY DOUBT

THAT YOU ARE QUALIFIED TO INSTALL SUSPENDED

SPEAKER SYSTEMS, DO NOT PROCEED.

Instead, you should obtain the services of properly qualified personnel to

complete the installation.

NEVER SUSPEND THE SPEAKER SYSTEM BY ANY ATTACHMENT

EXCEPT THE PROVIDED SUSPENSION POINT.

The eyebolt can also be used with an auxiliary support cable in drop tile

installations.

NOTE: It is MANDATORY that the secondary support be utilized in

drop ceilings for safety and seismic considerations.

FAP82-TR

FAP82T
