Side 1/4

AtlasSound.com

1/4

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333

FAX (800) 765-3435

Strategy Series

II In-Ceiling 70.7V / 100V / 8 Ω Subwoofer System

FAPSUB-1

Speciﬁcations

Woofer Size: 8" (203mm)

Woofer Impedance: 8Ω Direct Coupled (Nominal)

Transformer Taps at 70.7V: 1.9, 3.8, 7.5, 15, 30, & 60 Watts & 81

Bypass

Power Handling: 100 Watts RMS

Sensitivity (1 W / 1 M): 89dB Average

Frequency Response: 45Hz – 120Hz (±10dB),

55Hz – 100Hz (±6dB)

Dispersion: Omni

Low Pass Filter: Three Pole Design 18dB / octave @ 120Hz

Magnet Weight: Nominal, 20oz (580g)

VC Diameter: 35.5mm

VC Material: Copper

VC Former Material: Kapton

Cut-out Diameter: 14" (355mm)

Height: 12

⁄4" (324mm)

Diameter: 15

⁄4" (400mm)

Features

• Tuned and Ported, Long Excursion 8" Subwoofer System Produces

Amazing Extended Low Frequency Response in Any Ceiling Speaker

System

• High Efficiency, Passive Crossover Network Eliminates the Need for

Dedicated Amplifier and/or Active Crossover

• Low Crossover Point Greatly Reduces Localization (Ability of Listener

to Identify the Subwoofer Location)

• Front Mounted Tap Selector Switch for Easy System Tuning

Adjustment Includes Transformer Bypass Setting for 8Ω / Direct

Coupled Operation

• Easy Installation in Drop Tile or Sheetrock Ceilings Via C-Ring / V-Rail

Tile Bridge and "Dog Leg" Mounting System (Included)

• Uniquely Designed, Easy Access Input Panel Design Allows for Thru

Conduit Runs Using Flexible or Rigid Conduit

• Detachable, Phoenix Style, Locking, Four-pole Euro Connectors for

Easy Daisy Chain Wiring

• Attractive Stud Mount Grille Matches Aesthetics of Other Atlas

Sound FAP Series

• UL Listed – 1480

Applications

In recent years, there has been a shift in market demand for commercial

sound systems to deliver higher fidelity sound. Retail, restaurant, and

hospitality owners and managers are finding that their customers are

expecting the quality of their shopping or dining experience to be enhanced

by music reproduced at nearly the same sound quality they expect in

their home theaters and car stereos. Business owners now realize that

the excitement caused by a quality audio system can turn into increased

customer satisfaction. The FAPSUB-1, when used in conjunction with

other Atlas Sound full-range speakers, provides great sounding background /

foreground music reproduction suitable to these applications.

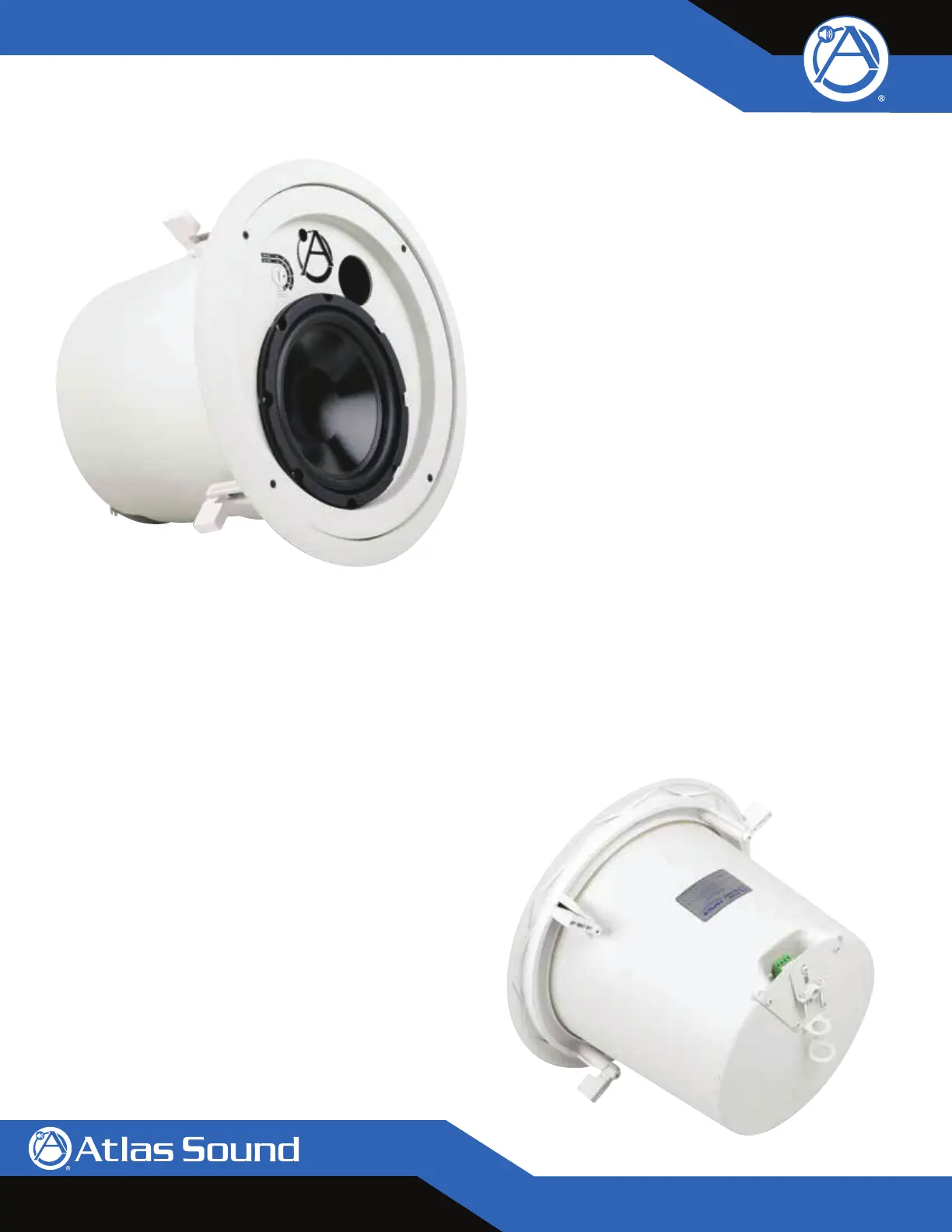

FAPSUB-1

(back)

AtlasSound.com

2/4

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333

FAX (800) 765-3435

General Description

The FAPSUB-1 consists of a highly efficient 8” subwoofer designed

for optimal performance in its included enclosure system. The woofer

features an extended, vented pole piece for higher excursion and better

heat dissipation and a Kapton

voice coil former for increased power

handling.

A highly efficient, 3-pole filtering network eliminates unwanted high

frequencies from the woofer, while the 937 in

, tuned and ported, deep

drawn steel enclosure provides frequency response down to 45Hz

(±10dB). A specially designed rippled speaker dust cap helps eliminate

nearly all frequency artifacts emanating from the center of the woofer

cone.

A special low saturation 70.7V / 100V transformer is included with

primary taps at 1.9, 3.8, 7.5, 15, 30, and 60 watts (@70.7V) to match

and balance the subwoofer with full range speakers without the need

for separate amplification. A convenient front mounted selector switch

allows tap selection without the need to remove the speaker from the

ceiling. This tap selector switch also includes a transformer bypass

setting for 8Ω / direct coupled applications.

Mounting is simplified with Strategy Series

style "Dog Leg" tabs that

allow easy installation into drop tile or drywall ceilings with the provided

tile bridge assembly. The tile bridge consists of two “V” shaped formed

mounting rails and a C-Ring assembly. The C-Ring can be attached to

the rails with the screws provided to extend support to the T-Bar grid in

suspended ceiling applications. Multiple hole locations are provided to

allow the C-Ring to be positioned to the outer edge the tile if necessary.

For existing dry-wall applications, the tile bridge C-Ring and support rails

can be inserted into the hole cut for the FAPSUB-1. For easy positioning,

the “V” shaped support rails match the shape of the C-Ring tabs for easy

maneuvering and location when working "blindly" above the deck.

For new construction drywall ceiling applications, the optional FAP82-TR

trim ring is available. This unit provides a marked location for drywall

installers to cut around, essentially reserving the desired location in the

ceiling until final installation of FAPSUB-1. Mounting holes are provided to

accommodate 16" or 24" OC stud / joist mounting.

A support ring is also provided on the top of the FAPSUB-1 enclosure to

facilitate an auxiliary support cable.

NOTE: IT IS MANDATORY THAT THIS SECONDARY SUPPORT

BE UTILIZED IN DROP CEILINGS FOR SAFETY AND SEISMIC

CONSIDERATIONS.

System Design Considerations

How many subwoofers to use, where to place them, and at what

wattage to tap them will be different in almost every situation.

Variables include:

Size of the Room

Speaker Mounting (Ceiling) Height

Ambient Noise Level

Type of Music

Available Speaker Locations

Generally speaking, separate electronic crossovers and amplification

are not necessary for the FAPSUB-1. However, in certain high SPL

situations the increased efficiency gained by using an active crossover

and dedicated amplifier is beneficial. The Atlas ASP-MG24 or models

from the Blue Bridge product line have DSP based crossovers for such

applications.

For contemporary music reproduction, the minimum subwoofer level

should be set to match the volume of the full range speakers; however,

for some high energy music applications the maximum level could be as

much as 10dB louder than the full range speakers.

Like any speaker, use of the boundary effect will increase the output of

the FAPSUB-1. Placing the loudspeaker within 3' of a wall will increase

the output by 3dB. Placement within 3' of a corner will increase the level

another 3dB (6dB total).

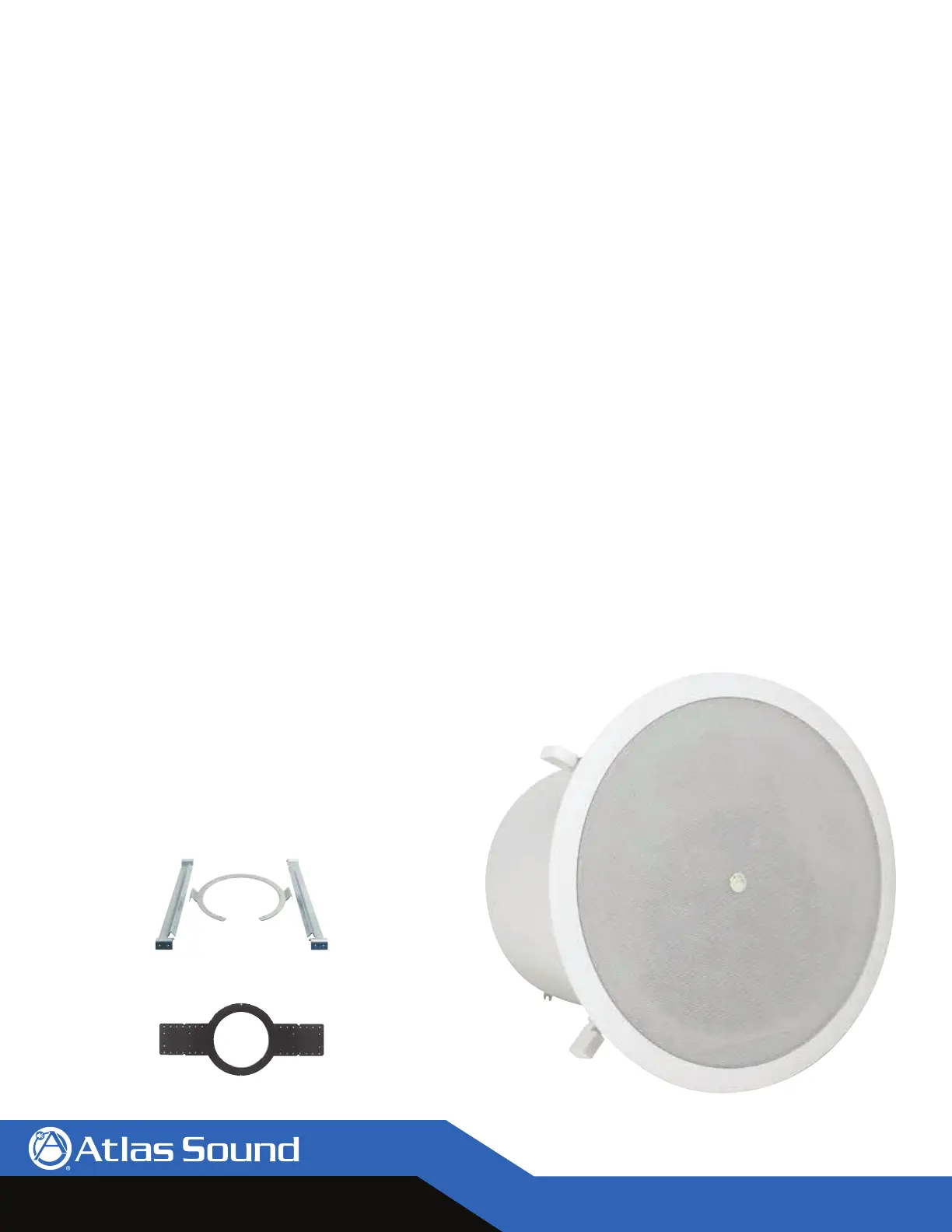

FAPSUB-1

C-Ring / V-Rails

FAP82-TR
