AtlasSound.com

TELEPHONE: (800) 876-3333

FAX (800) 765-3435

1601 JACK MCKAY BLVD.

ENNIS, TEXAS 75119 U.S.A.

©2013 Atlas Sound L.P. All rights reserved. Atlas Sound is a trademark of Atlas Sound L.P. All other trademarks are the property of their respective owners. All specs are subject to change without notice. ATS001449 RevD 1/13

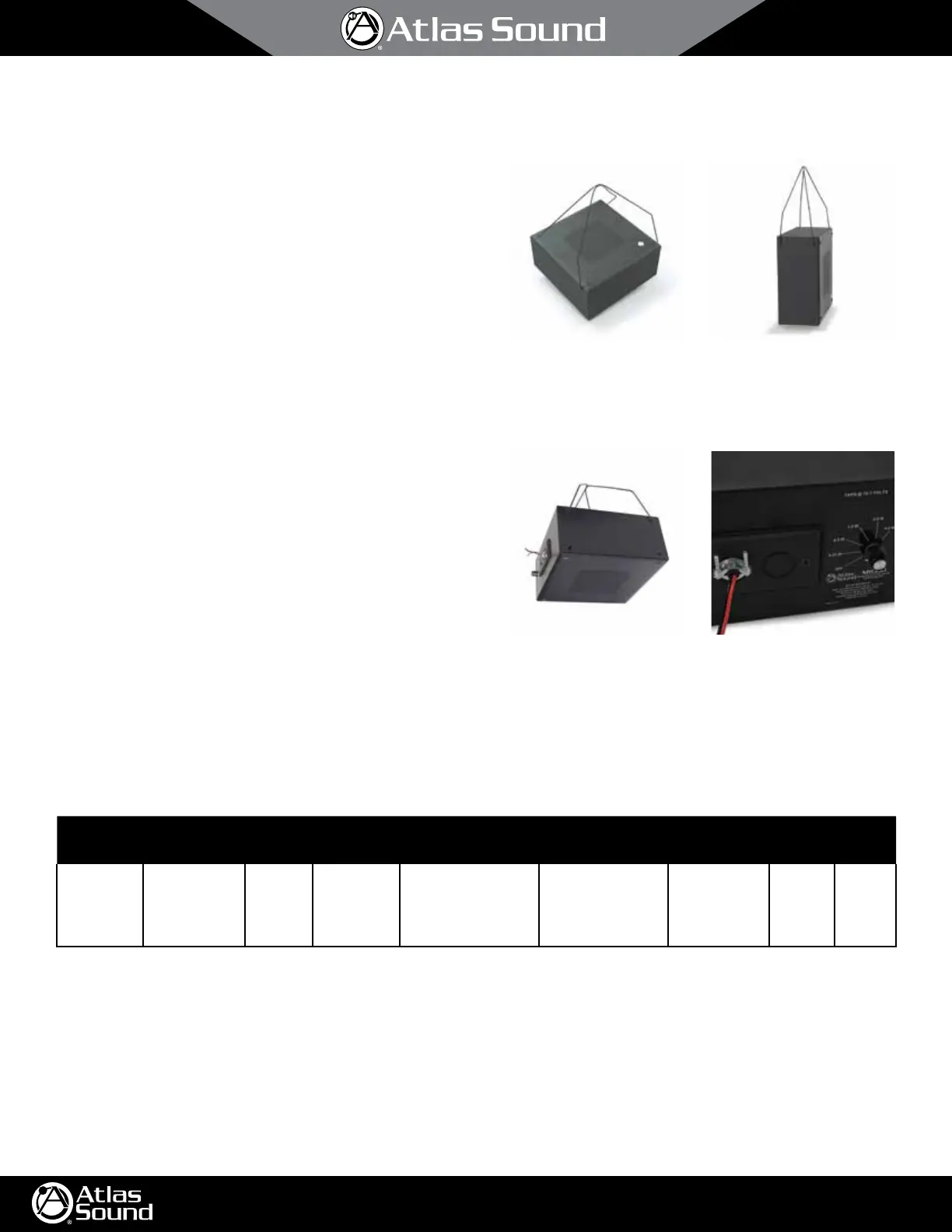

M1000 / M1000-W / M1000R-W

Install Sheet

Step 1

Remove the M1000 from the package via hangers provided.

Hangers are factory installed to facilitate mounting of the

M1000 for upward sound dispersion, Figure 1. This dispersion

configuration is the most popular and most effective.

Note: The M1000R-W can only be mounted in the upward

firing configuration.

If horizontal (side firing) dispersion is required, the hangers

may be relocated as shown in Figure 2.

If down firing dispersion is required, the hangers may be

relocated as shown in Figure 3.

Step 2

Install the M1000 per Figure 1, 2 or 3, using hanger wire or

MCHAIN72 (not included).

Note: Code requirements in many areas require the use of #12

suspension cable for commercial applications. Check

your local codes before installing the M1000.

Step 3

Terminate service loop to the amplifier output line (black is

negative, red is positive) - see Figure 4.

Note: Strain relief is not designed to accommodate conduit.

Use approved terminations through the knock-outs

provided on the M1000 cover plate when conduit is used.

Step 4

Set tap selector switch to desired power setting.

WARNING: To prevent injury, this apparatus must be securely attached to the Floor / Wall / Ceiling

in accordance with installation instructions.

Figure 1

M1000 shown with hangers

located as conﬁgured from

factory for upward sound

dispersion

Figure 3

M1000 shown with hangers

conﬁgured for downward

sound dispersion

Figure 2

M1000 shown with hangers

conﬁgured for horizontal

sound dispersion

Figure 4

M1000 tap selector

Model Loudspeaker

Magnet

Weight

Sensitivity

Frequency

Response

Transformer Taps

@ 70.7V / 100V

Enclosure

Weight

Dimensions Volume

M1000

M1000-W

M1000R-W

8" (203mm)

Dual Cone

10oz.

(250g)

92dB

1W/1M

150Hz–6kHz

(±3dB)

120Hz–6.5kHz (±5dB)

.25, .5, 1, 2, & 4

Watts @ 70.7V

.5, 1, 2, & 4 Watts

@100V

⁄16" (294mm)

⁄2" (140mm)

734 in

9 lbs.

(3.4kg)

2/2

AtlasSound.com

TELEPHONE: (800) 876-3333

FAX (800) 765-3435

1601 JACK MCKAY BLVD.

ENNIS, TEXAS 75119 U.S.A.

M1000 / M1000-W / M1000R-W

Install Sheet

DO NOT USE 100V

70.7V

DO NOT USE 100V

8Ω ONLY

70.7V

100V

70.7V

100V

.5W

70.7V

100V

.25W

70.7V

.5W

100V

OFF

70.7V

DO NOT USE 100V

70.7V

100V

70.7V

100V

.5W

70.7V

100V

.25W

70.7V

.5W 100V

OFF

DO NOT USE 100V

70.7V

DO NOT USE 100V

8Ω ONLY

70.7V

100V

70.7V

100V

.5W

70.7V

100V

.25W

70.7V

.5W

100V

OFF

70.7V

DO NOT USE 100V

70.7V

100V

70.7V

100V

.5W

70.7V

100V

.25W

70.7V

.5W

100V

OFF

DO NOT USE 100V

70.7V

DO NOT USE 100V

8Ω ONLY

70.7V

100V

1W 70.7V

100V

.5W

70.7V

100V

.25W

70.7V

.5W

100V

OFF

70.7V

DO NOT USE 100V

70.7V

100V

70.7V

100V

.5W

70.7V

100V

.25W

70.7V

.5W

100V

OFF

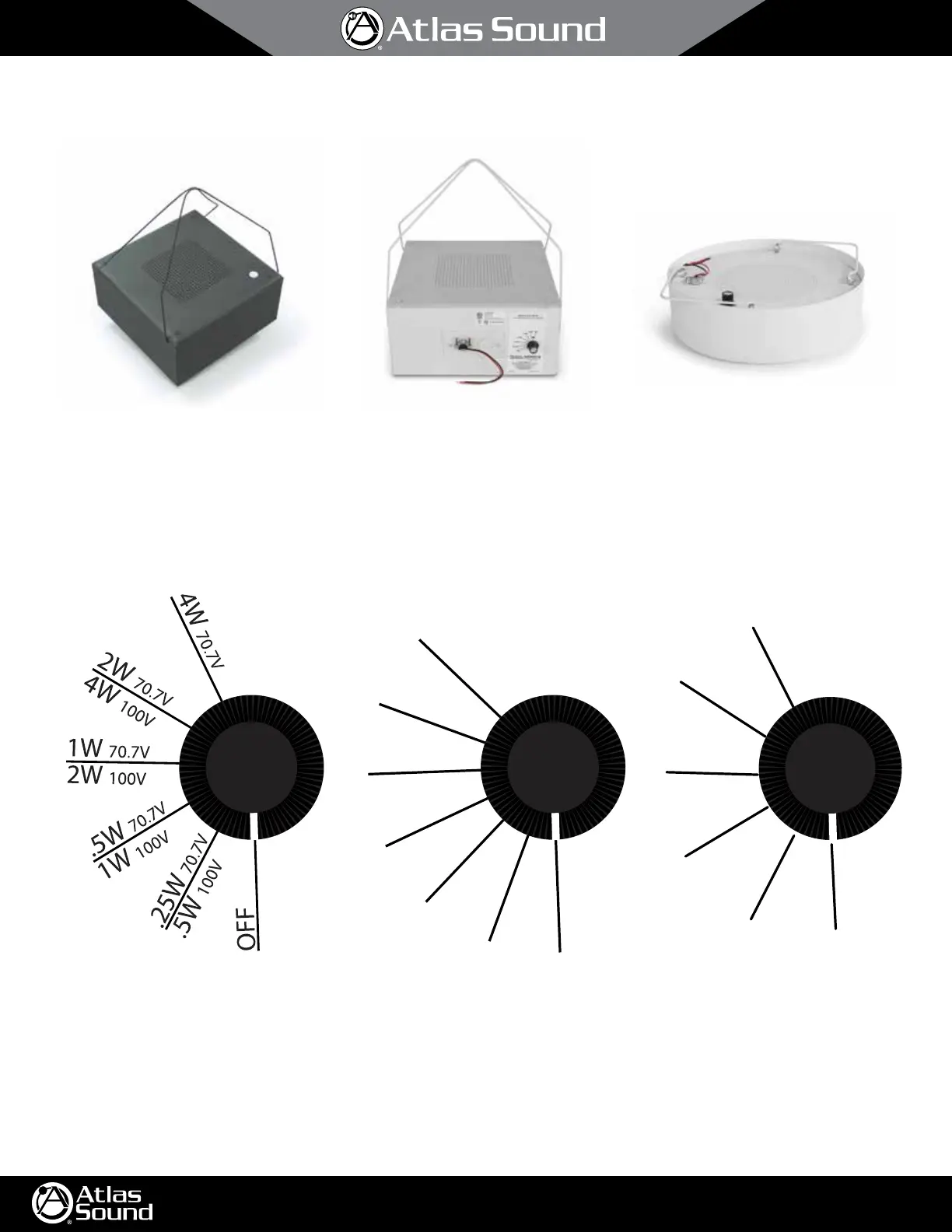

M1000 M1000-W M1000R-W

M1000 Tap Selection M1000-W Tap Selection M1000R-W Tap Selection
