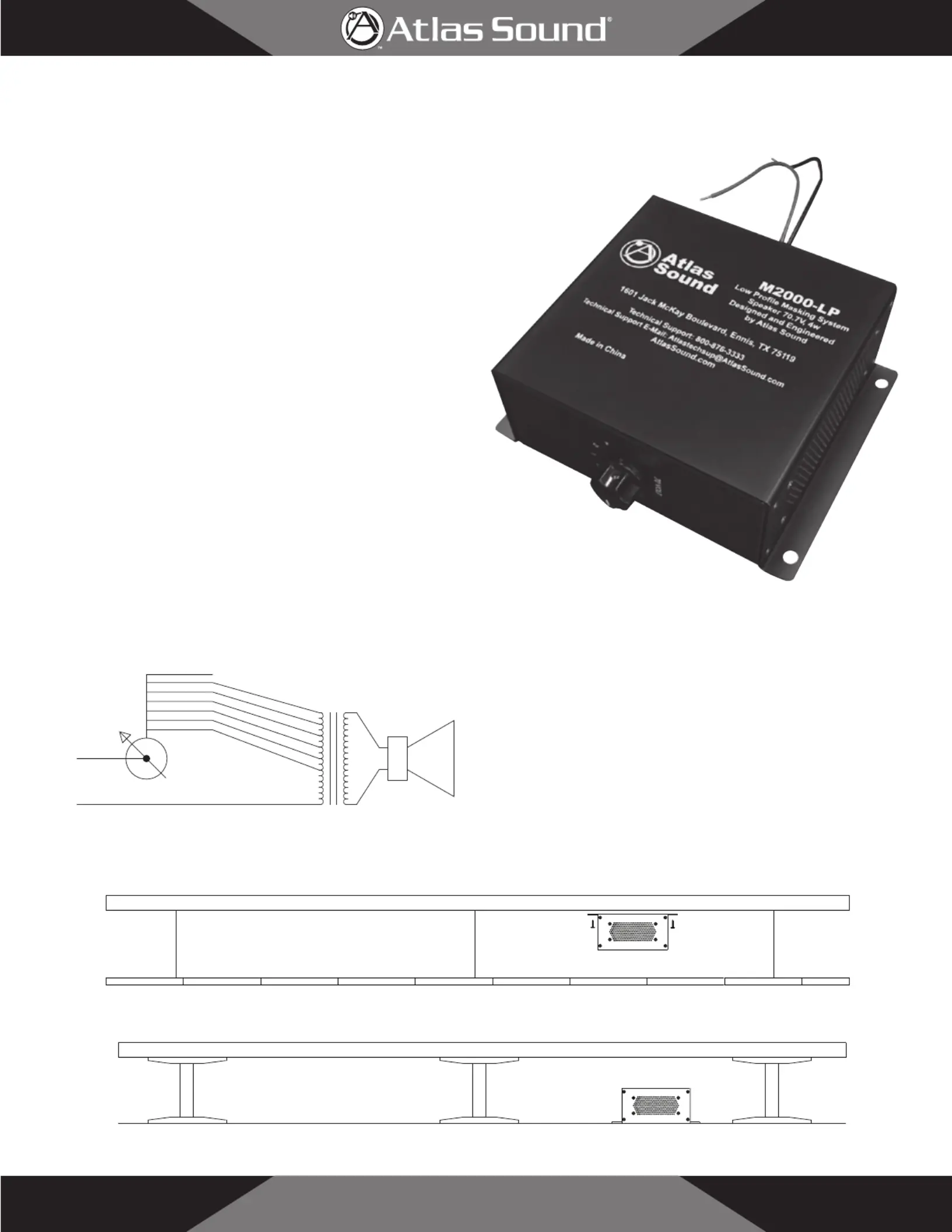

Installation and Set-Up for M2000-LP
Step 1
Remove the M2000-LP from it’s package.
Step 2
Install the M2000-LP where desired.
The M2000-LP is designed to mount in either ceiling or floor plenums.
See Figure 1 for recommended installation in above ceiling plenum
spaces.
See Figure 2 for recommended installation in raised floor plenum
spaces.
Step 3
Terminate service loop to the amplifier output line.
(Black is negative, Red is positive)
Note: Strain relief is not designed to accommodate conduit.
Step 4
Set tap selector switch to desired power setting.
M2000-LP Wiring Block Diagram
Technical Specifications
Loudspeaker Two 2" x 4" Paper Cone Speakers
Transformer Taps .25, .5, 1, 2, & 4 Watts, plus an Off Setting
Height 2
5
" (67mm)8
Depth 7" (178mm)
Width 7
1
" (191mm)2
8Ω
Common
+
Red "+" Lead
Black "–" Lead
Transformer
6 Position Switch
Red .25 Watt 70.7V
White .5 Watt 70.7V
Yellow 1 Watt 70.7V
Blue 2 Watts 70.7V
Brown 4 Watts 70.7V
Black “–” Lead
Position 1 = “Off”
Position 2 = .25 Watt
Position 3 = .5 Watt
Position 4 = 1 Watt
Position 5 = 2 Watts
Position 6 = 4 Watts
Figure 1
Figure 2
