Features
• 8" GD87 driver provides 105˚ (52.5˚ off-axis) coverage in the
2 kHz octave band - 6dB Points.
• 70.7V taps @ 1, 2, 4, 8 and 16 Watts plus 8 direct input via Ω
concealed terminal block
• Extreme high efficiency (96dB 1 W/1 M) allows for lower tap settings
and more loudspeakers per amp channel in many installations
Technical Specifications
Power Rating: 16 Watts @ 8 Ω
70.7 Taps: 1, 2, 4, 8, and 16 Watts
Frequency Response: 70Hz — 15kHz (±7dB)
Sensitivity(1W/1M): 96 dB Average
Dispersion Angle: 105˚ (2kHz Octave
Band, -6 dB Points)
Woofer Mag. Wt.: 10 oz. (311g)
Woofer: 8" Treated Paper
HF Driver: Coaxially Mounted 3" Treated Paper
Enclosure Dimensions: Diameter - 12.25" (311mm)
Overall Height - 16.62" (422mm)
Enclosure Volume: 1075 In3 (17 616.09cm3)
Weight: 17lbs (7.71kg)
Applications
The Atlas Sound PM8GD features the popular GD series coaxial driver
to provide familiar response and high efficiency while retaining economy
when high density speaker counts are required in page only applications.
Attaching the PM8GD to most overhead surfaces is a breeze. For open
beam ceilings a 3 meter cable kit is included with a self gripping ferrule
system. If down pipe installation from hard ceiling material is required,
any 3⁄4” ceiling fan installation kit may be utilized. These kits are readily
available under the FANTEC™ brand from home improvement stores with
various down pipe length options to provide installation ease regardless
of ceiling material angle (Up to 45°).
Either installation solution is discreetly implemented via the PM series
innovative top cover design. This “cap” includes a cable access plug that
is easily removed for down pipe mounting. The cover also completely
conceals the speaker cable terminations and the suspension anchor
points.
Several packages are offered to suit various coverage pattern and
installation scenarios. For low ceilings, Atlas Sound offers a discrete
enclosure system containing a ultra wide coverage 8" GD series driver.
For higher ceiling applications, Atlas Sound PM series answers the
need for a variety of budget and performance requirements with three
different 8" driver options, factory assembled into in a larger yet still
attractive pedant style enclosure.
Available in black or white enclosure finish.

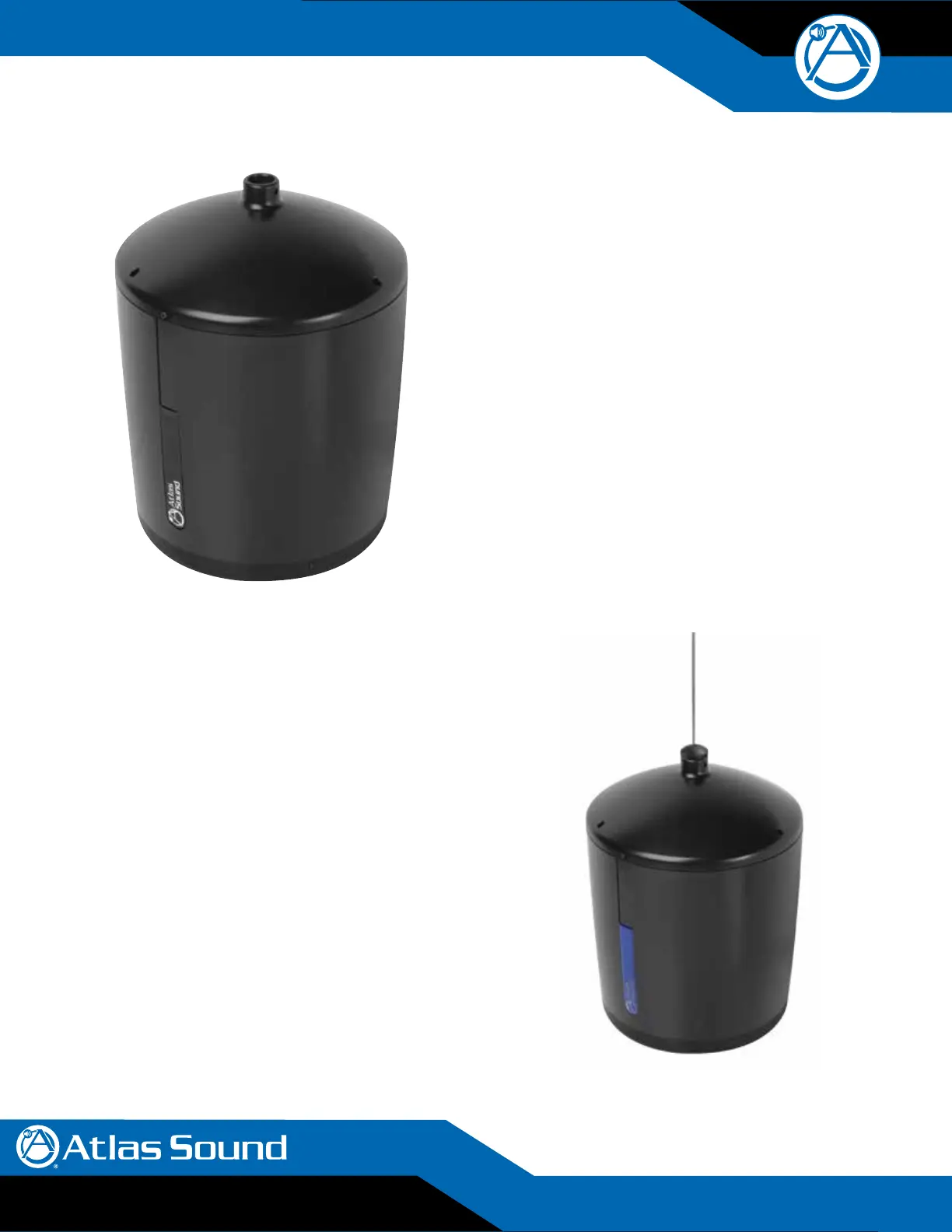

PM8GD-B
PM8GD
Pendant Mount Speaker Series
PM8GD-B
Hanging
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
FAX (800) 765-3435 AtlasSound.com 2/3
©2013 Atlas Sound L.P. All rights reserved. Atlas Sound is a trademark of Atlas Sound L.P. All other trademarks are the property of their respective owners. All specs are subject to change without notice. ATS002842 RevA 3/10
Architect & Engineer Specifications
The loudspeaker system shall include a high performance 8" coaxial
loudspeaker in a tuned and ported bass reflex enclosure and form
fit grille for conventional ceiling installation via cable or down tube
mounting system. The low-frequency reproducer cone shall be 8"
(203mm) in diameter and the high frequency reproducer cone shall be
3" (76mm) in diameter. The woofer shall have a 10oz. (260g) ceramic
magnet; the tweeter shall have a 2.35oz. (67 g) ceramic magnet. The
two reproducer sections shall be coupled through a built-in crossover
network. The crossover frequency shall be at 2800Hz.
Frequency response range shall be 70Hz – 15kHz (±7dB). Average
sensitivity shall be 96dB (1 W/1 M). Low frequency voice coil diameter
shall be 1" (25mm) and operate in a magnetic field of at least 10,600
gauss .
Transformer primary voltage shall be 70.7V with a frequency response of
±1dB 70Hz – 15kHz and power taps at 1, 2, 4, 8, and 16 Watts. Insertion
loss shall not exceed 2dB
Tap Terminal
Selection
1
⁄4 -20 Thread Hole for Securing
Conduit Installation
12.28"
(31.2 cm) 13.55"
(34.4 cm)
16.61"
(42.2 cm)
