AtlasSound.com
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
©2009 Atlas Sound L.P. All rights reserved. Atlas Sound is a trademark of Atlas Sound L.P. All other trademarks are the property of their respective owners. All specs are subject to change without notice. ATS001610 RevD 3/09
SM8CXT & SM12CXT
Surface Mount 8" & 12" Speaker Systems
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
General Description
The Atlas Sound SM8CXT and SM12CXT are designed for 8Ω and 70.7V distributed
applications where high output and accurate sound reproduction are required. Both
models feature a unique compact cabinet design with multiple
1
⁄4"-20 inserts to
allow easy suspension or wall mounting. The dual angle design also allows the sys-
tems to be used as a short or long throw stage monitor system
The SM8CXT includes the Atlas Sound 8CXT60 compression driver coaxial loud-
speaker. The SM12CXT includes the Atlas Sound 12CXT60 compression driver
coaxial loudspeaker. Originally conceived for high ceiling distributed systems, these
systems exhibit incredible efficiency and fidelity. Both models utilize a uniquely
designed conical wave-guide high frequency director providing accurate 90° cover-
age in the 2kHz octave band.
Features
• Multiple
1
⁄4"-20 Inserts, Providing Fly Points for a Variety of Mounting
Configurations
• IncludesInternal,HighEfficiency,60Watt70.7V/100VTransformer(MayBe
Bypassed for 8Ω Operation)
• BarrierStripInputfor70.7V/100V/8Ω or Parallel 4-pole Speak-On
™
Input(for
8Ω Operation Only).
• UniqueInputPanelAllowsUseofStandard4"SquareBoxCover
(Raco753oreq.)forApplicationsWhereFlexConduitisRequiredfor
Termination
• FuseProtectionforLowandHighFrequencyDrivers
• Attractive,YetHeavy-DutyGrilleAssembly
• DurableBlackorWhite,Rough-CoatFinish
• OptionalBracketforWallMounting
• Omnimount
™
Compatible
Applications
• SchoolAuditoriums,Gymnasiums&Cafetoriums
• ChurchSanctuarySystems(F.O.H.and/orMonitors)
• High-LevelForegroundMusicSystems
• GeneralLiveSoundReinforcement(InstalledorPortable)
Unpacking
As part of our commitment to providing you the highest quality product possible we
make sure every Atlas Sound product is carefully tested and inspected before being
shipped from our factory. Please inspect your loudspeaker for any damage that may
have occurred during shipping.
In the event of shipping damage notify your freight carrier immediately.
Amplifier Considerations for 8Ω Operation
Note: The input barrier strip includes a jumper which when removed activates the
8Ω input on the barrier strip and the Speak-On jacks.
Consult your amplifier owner’s manual to confirm power output at the rated imped-
ance.AtlasSoundspeakersystemspecificationslistRMSpowerhandling.As
areference,peakpower=RMSx1.414.Theseratingsshouldbeconsideredin
selecting the best amplifier to power the speaker system.
Forgeneraluse,amplifieroutputshouldmatchorexceedtheRMSratedpowerof
the speaker system.
For increased headroom and dynamic reproduction, the amplifier’s output should
match or exceed the peak power rating of the speaker system.
In situations where experienced professionals are operating the speaker system
with proper limiting and frequency control devices inserted into the signal path and
adjustedproperly,amplifieroutputmaymeet,butshouldnotexceed2xtheRMS
power rating of the speaker system.
SM8CXT
SM12CXT
Specifications
Model SM8CXT SM12CXT
Frequency Response (±3dB)
60Hz–15kHz 55Hz–15kHz
Power Handling
150WattsRMS 250WattsRMS
Transformer Taps
7.5,15,30,&60Watts 7.5,15,30,&60Watts
Sensitivity (1W / 1M)
92dB 99dB
Maximum SPL @ 1 Meter (Rated
Power @ 8Ω)
114dB 123dB
Nominal Driver Impedance
8Ω 8Ω
Dispersion (2kHz Octave Range)
90° 90°
Height
15
1
⁄2"(394mm) 19"(483mm)
Width
10
5
⁄8"(270mm) 14
1
⁄2"(368mm)
Depth
10
3
⁄8"(264mm) 14
1
⁄16"(357mm)
Weight
19lbs(8.62kg) 39lbs(17.7kg)
LF Transducer
Basket Material
Cast Aluminum Cast Aluminum
Cone Material
Polypropylene Treated Paper
Surround Material & Dampening
ThermalPlasticElastomer ClothEdge
Voice Coil Diameter
2"(51mm) 2
1
⁄2"(63.5mm)
Magnet Weight
34oz 70oz
HF Comp. Driver
Diaphragm Material
Titanium Titanium
Voice Coil Diameter
1"(25mm) 2"(51mm)
Voice Coil Former Material
Kapton® Kapton®
Voice Coil Material
Copper Copper
Throat Diameter
.925"(23.5mm) 1"(25mm)
Magnet Weight
20oz 40oz

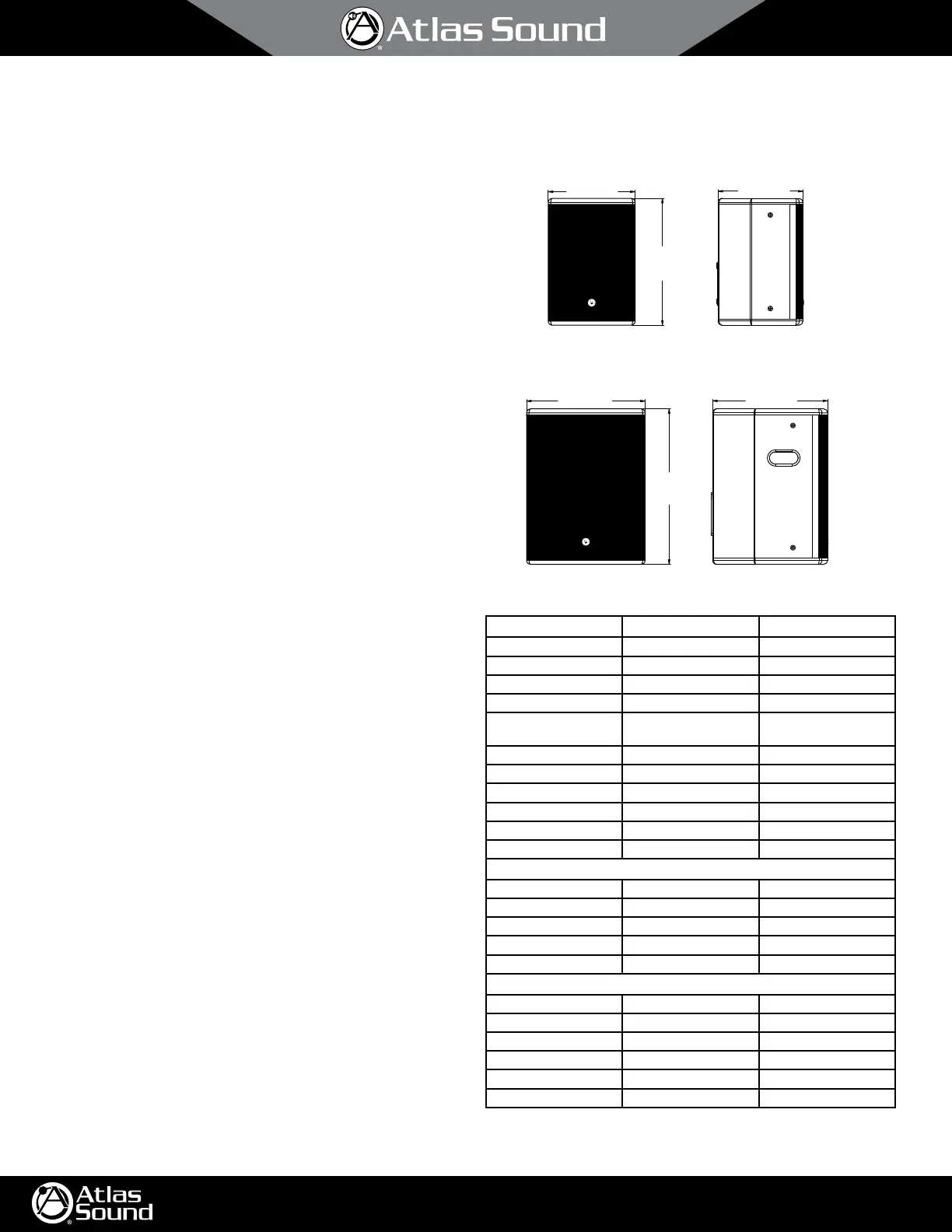

WIDTH
1 0 " ( 27 0mm)
5
/
8
1 5 " ( 39 4mm)
1
/
2
HEIGHT
DEPTH
1 0 " ( 26 4mm)
3
/
8
Side View
<-Front
Front View
Side View
Front View
SM8CXT-B
SM12CXT-B
<-Front
WIDTH
1 4 " ( 36 8mm)
1
/
2
1 9" (483 m m)
HEIGHT
DEPTH
1 4 " ( 35 7mm)
1
/
16
WIDTH
1 0 " ( 27 0mm)
5
/
8
1 5 " ( 39 4mm)
1
/
2
HEIGHT
DEPTH
1 0 " ( 26 4mm)
3
/
8
Side View
<-Front
Front View
Side View
Front View
SM8CXT-B
SM12CXT-B
<-Front
WIDTH
1 4 " ( 36 8mm)
1
/
2
1 9" (483 m m)
HEIGHT
DEPTH
1 4 " ( 35 7mm)
1
/
16
