Hünegräben 26 · 57392 Schmallenberg · Germany · Tel.: +49 2972 97880 · E-mail: contact@audiotec-scher.com

High Denition Bluetooth® 5.0 Audio Streaming Module

Congratulations!

Dear Customer,

congratulations on your purchase of this high-qual ity HELIX / MATCH

EXTENSION CARD. We developed the BT HD based on state-of-

the-art engineering and this is reected in its exceptional quality and

the impressive use of sophisticated technologies.

We hope you enjoy using this product.

Yours,

AUDIOTEC FISCHER

General installation instructions for HELIX / MATCH components

To prevent damage to the unit / module and possible injury, read this

manual carefully and follow all installation instructions. This product

has been checked for proper function prior to shipping and is guaran-

teed against manufacturing defects.

Before starting your installation, disconnect the battery’s nega-

tive terminal and all cables from the device to prevent damage

to the unit / module, re and / or risk of injury. For a proper perfor-

mance and to ensure full warranty coverage, we strongly recommend

to get this product installed by an authorized HELIX / MATCH dealer.

Install the Extension Card only in the designated device and its

specic slot. Using the module in other devices or slots can re-

sult in damage of the Extension Card, the device, the head unit /

radio or other connected devices!

Technical data

Bluetooth® standard: 5.0 + EDR

Bluetooth® prole: A2DP, AVRCP, SPP

Bluetooth® codec: SBC, AAC, Qualcomm® aptX

™

and Qualcomm® aptX

™

Number of paired devices: 8

Wireless frequency range: 2402 ~ 2480 MHz

Range: Up to 10 m

Digital optical output: SPDIF with either 96 kHz / 24 Bit

or 48 kHz / 24 Bit depending on

sampling rate of the device

Status LED of BT HD

Blue LED on: 1 sec,

o󰀨: 2 secs, repeat

All profiles are in standby

but not connected with any

Bluetooth® device yet

Blue & Enter pairing modeRed LED ash alternate

Blue LED ash every 2 sec. Device is connected

Blue LED ash twice every 2 sec. Device is streaming

Mounting information

1. First disconnect all cables from the device.

2. Depending on the device there are two possibilities to get access

to the Extension Card slot.

1. Bottom plate is bolted: untighten the screws of the bottom plate

and remove it. Afterwards dismantle the appropriate side panel by

removing its screws.

2. Bottom plate is not bolted: dismantle the appropriate side panel

by removing its screws and pull out the bottom plate sideways.

3. Remove the nut and the washer from the antenna socket of the

Extension Card.

4. Insert the Extension Card into the specic slot of the device which

is marked in the following picture (the picture representatively dis-

plays the Extension Card slot of the HELIX DSP.3). The exact

position of the slot can be found in the manual of each device.

5. Make sure that the module is installed properly and all pins are

fully inserted into the socket:

6. If the bottom plate was bolted, x the new side panel which is

delivered with the Extension Card. Afterwards reinsert the bottom

plate and x it, too. Otherwise reinsert the bottom plate and x the

new side panel with the screws.

7. Put the washer and the nut on the antenna socket and bolt it to

the side panel.

Caution: Do not overtighten the nut as this may damage the

socket!

8. Reconnect all cables to the device.

EXTENSION CARD

HEC / MEC BT HD

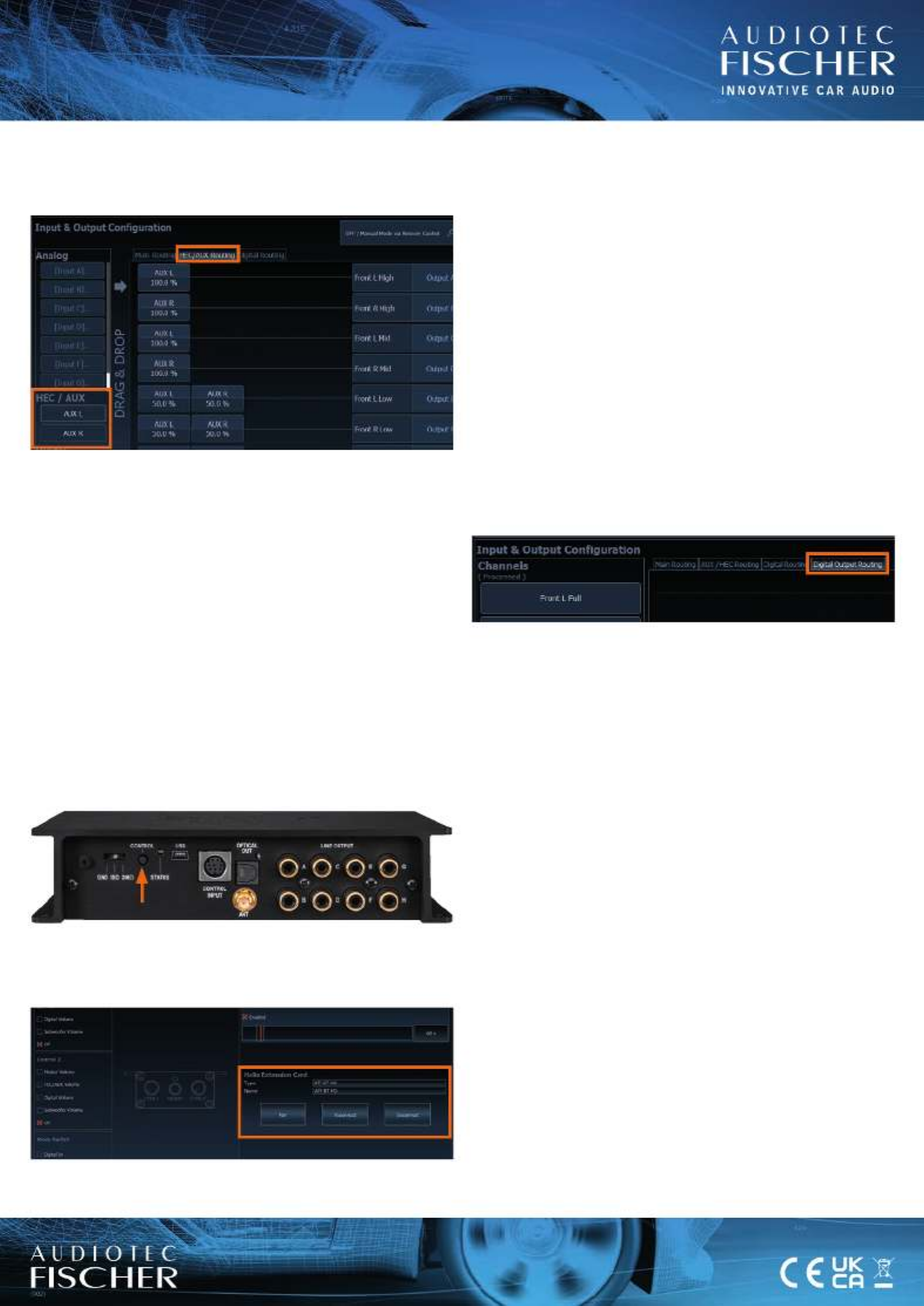

Signal routing of the Extension Card

As soon as the Extension Card is installed, it is automatically detect-

ed by the device. Now you can allocate the Extension Card to the

desired outputs in the “HEC (MEC) / AUX Routing” matrix.

Several new features are visible in the DSP PC-Tool after installing

an Extension Card.

Pairing of the Extension Card with other Bluetooth® devices

The HEC / MEC BT HD module supports the A2DP prole featur-

ing Qualcomm® aptX

™

Qualcomm® aptX

™

HD and AAC codec for

maximum sound performance. The digital Bluetooth

® data stream in

I²S format is directly fed into the DSP without any additional signal

conversion. A one-time pairing procedure is mandatory to establish

a connection between the HELIX / MATCH device and your device

with Bluetooth® wireless technology. Make sure that the Bluetooth

function on your device has been activated before you start the pair-

ing process.

Important: The Status LED of the HEC / MEC BT HD module ash-

es alternately blue and red. After three minutes the pairing mode is

left automatically if the connection has not been established.

Option a)

Turn on the HELIX / MATCH device and push the “control” button for

less than 1 sec. in order to start the pairing mode.

Option b)

Start the pairing mode in the DSP PC-Tool software:

After the pairing mode is activated the Bluetooth

® network can be

found under the name “ATF BT HD”.

The picture representatively displays the “control” button of the HELIX DSP.3

Option c)

Start the pairing process through the CONDUCTOR or DIRECTOR

remote control.

DIRECTOR: Go to the Bluetooth

® Connect menu and push the

“Pair” button.

CONDUCTOR: Switch to a Volume Control or Bluetooth Playback

control menu and press the rotary knob for more

than 5 seconds.

WIFI CONTROL: Go to the HEC / MEC menu and push the “Pair”

button under the Bluetooth

® Connect section.

Further information will be found in the corresponding user manual.

The HEC / MEC BT HD module can be paired with up to eight

Bluetooth® devices. As soon as you try to pair a ninth device, the rst

one will be erased automatically from the pairing list.

The optical SPDIF output of the HEC / MEC BT HD module

The installation of the Extension Card adds as well an additional

digital optical SPDIF output to your device. This output allows to

transmit any unprocessed input or DSP-processed output signals to

other devices.

A new matrix “Digital Output Routing” appears in the “Input and Out-

put Conguration” page in which you can make your desired settings.

The digital output delivers an uncoded stereo PCM signal with either

96 kHz / 24 Bit or 48 kHz / 24 Bit, depending on the sampling rate of

the designated device.

Wireless DSP tuning – only DSP devices with ACO

The HEC / MEC BT HD also o󰀨ers a wireless conguration of the

DSP via the DSP PC-Tool V5 software and a PC with Bluetooth

wireless technology for all DSP devices equipped with ACO platform.

Therefore follow the subsequent steps:

1. Pair your HEC / MEC BT HD with your PC as explained on the left

side.

2. Start the DSP PC-Tool software (version 5.0 or higher required).

3. Toggle the connect type button, located at the right side navigation,

to “BT”. The software now automatically detects the device.

4. Select the device which should be congured and click the “Con-

nect” button. You can now start your conguration.

Warranty disclaimer

The warranty service is based on the statutory regulations. Defects

and damage caused by overload or improper handling are excluded

from the warranty service. Any return can only take place following

prior consultation, in the original packaging together with a detailed

description of the error and a valid proof of purchase.

Technical modications and errors excepted! We accept no liability

for damage to the vehicle or device defects caused by the incorrect

operation of the device. This product has been issued a CE marking.

This means that the device is certied for use in vehicles within the

European Union (EU).

Legal notes:

Qualcomm aptX is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.

Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other

countries. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the

United States and other countries. The Bluetooth

word mark and logos are registered trademarks

owned by Bluetooth SIG, Inc. and any use of such marks by Audiotec Fischer GmbH is under license.

Other trademarks and trade names are those of their respective owners.

EXTENSION CARD

HEC / MEC BT HD

Hünegräben 26 · 57392 Schmallenberg · Germany

Tel.: +49 2972 97880 · E-mail: contact@audiotec-scher.com
