Side 1/8
ANT3038XR
Outdoor Antenna
User’s Guide
Para obtener instrucciones en español,
consulte la página 9.
Mast
(Not Included)
Reflector
Booms
Front Boom
Boom Brace
Large Boom
Rear Boom
Step 1: Unpack
Remove all three sections of the antenna and the hardware bag from package.
Make sure the following parts are in the package:
• (3) Antenna sections (rear, large/middle, and front booms)
• (1) Boom brace • (2) Refl ector booms
• (1) Hardware bag
The hardware bag contains the following pieces:
(2) U-Bolts (4) 1/4” Flange nuts
(2) Mast clamp inserts (5) End caps
(10) #10 Flange nuts (4) #10 Screws
(8) #10 Washers (1) Matching transformer
BEFORE YOU START!!!
Please read the IMPORTANT SAFETY INFORMATION sheet included in this
package.
Assembling the ANT3038XR

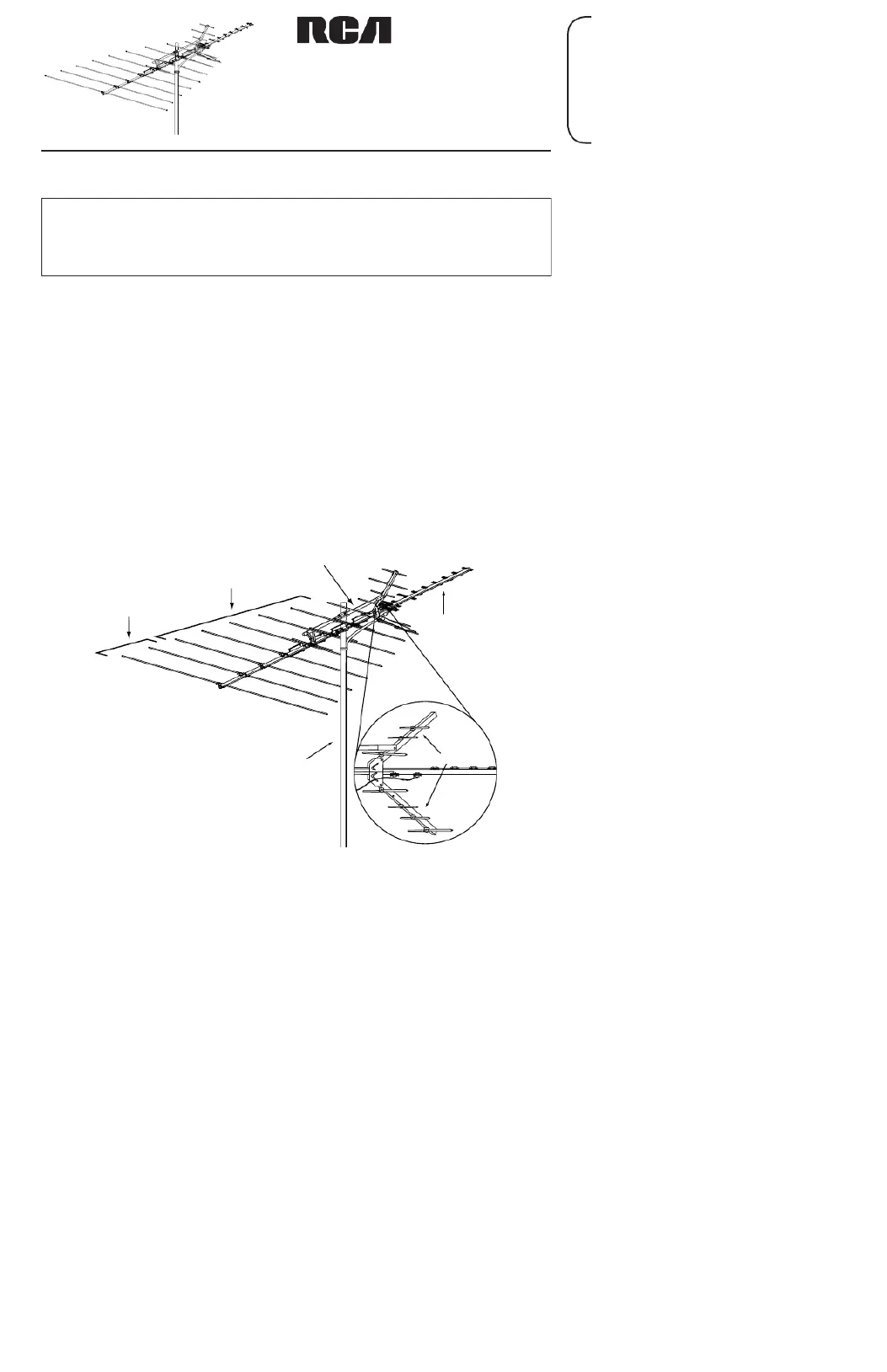

Fig.1: ANT3038XR fully assembled
(mast not inclued)
English
2

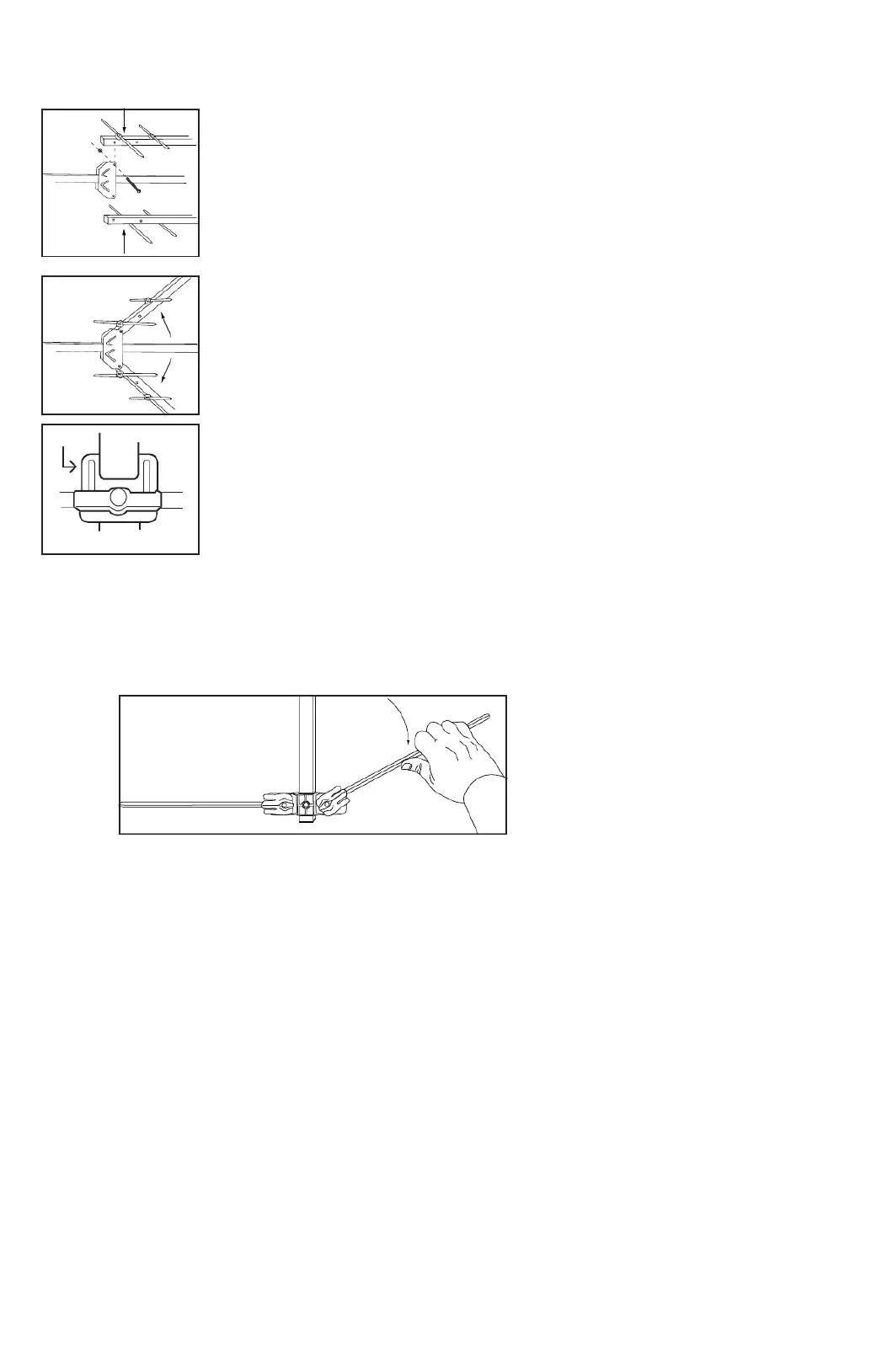

IMPORTANT: Unfold the elements on each end of
the refl ector boom so that the front of their locking
tabs face towards each other. The remaining
locking tabs can be unfolded in either direction.
Make sure that all of the elements are perpendicular
to the refl ector boom.
Connect the two refl ector booms to the front boom
using two of the provided #10 nuts and screws.
The refl ector booms should be parallel to the
smaller boom at this point. (See Fig. 1.)
Fig. 2
Step 2: Connect the refl ector booms to the front
(small) boom
Find the two refl ector booms and the front (or small)
boom. The two smaller elements on the refl ector
booms face away from the small main boom.
Fig. 1
Step 3: Unfold the rest of the antenna
Unfold all the other elements on the antenna until they lock into place ensuring
that they are fl at and parallel to each other. (See Fig. 3.)
Fig. 3
Fig. 2A
FRONT Locking Tab
Main Boom
Paso 12: Acople el cone
