Connection guide

HA543 Headphone Amplier

SPECIFICATIONS

Input Impedance: 10K Ohms unbalanced - 20K Balanced

Max Input Level: +14 dBV

Input Connectors: RCA, XLR balanced

Outputs: 1: 1/4" TRS Stereo jacks

1: 1/8" (3.5 mm) TRS Stereo jacks

Max Gain: 20 dB

Output Power: 326 mW/side, 652 mW/Channel (62 Ohms)

Frequency Response: 3 Hz - 59 kHz +/- 3 db

S/N Ratio: 92 dB

THD: <.008%

IMD: <.008%

Phase Shift (In to Out): less than 10 deg.

Slew Rate: 2 V per microsecond

Crosstalk: - 75 dB

Power VDC (Power Supply Included)

Weight: 1 lb

Size: 4.5” x 1.5” x 3”

Headphone impedance: 8 Ohms to 600 Ohms

Salt Lake City, UT

11/18

What's in the box?

1 - Made in USA HA543

1 - 15V power supply PN PS27s

1 - This owners manual

1 - Love for great audio

WARNING

USING THIS PRODUCT AT EXCESSIVE VOLUMES CAN CAUSE

PERMANENT HEARING DAMAGE.

USE AS LOW A VOLUME AS POSSIBLE

In order to use this system safely, avoid prolonged listening at excessive sound pressure

levels. Please use the following guidelines established by the Occupational Safety Health

Administration (OSHA) on maximum time exposure to sound pressure levels before hearing

damage occurs. 90 dB SPL at 8 hours

95 dB SPL at 4 hours

100 dB SPL at 2 hours

105 dB SPL at 1 hour

110 dB SPL at 1/2 hour

115 dB SPL at 15 minutes

120 dB SPL - avoid or damage may occur

CAUTION: Plugging a mono 1/4” or 1/8” TS plug into the Headphone Out-

puts on the HA543 will cause permanent damage to the unit because one side

would be shorted to ground. Never plug a mono plug into any of the Head-

phone Outputs THE HA543 WILL BE PERMANENTLY DAMAGED

Tip

Sleeve

(ground)

Tip

Ring

Sleeve

(ground)

This is a MONO

jack and should

never be plugged

into the Head-

phone Output of

a HA543.

This is a TRS or

stereo jack that

is compatible

with the HA543

Headphone

Outputs.

WARNING: THE MINIMUM HEADPHONE IMPEDANCE FOR THE HA543 IS 8

OHMS. THE MAXIMUM HEADPHONE IMPEDANCE IS 600 OHMS.

The warning section of the manual. Boring, but hey

we care about your hearing.

Thank you for purchasing the HA543. We spent a consider-

able amount of time designing and developing the HA543.

Hundreds of hours listening and improving the design. We

hope you enjoy using the HA543, and that it makes listen-

ing to your vinyl collection rewarding. We sincerely appreci-

ate the opportunity to build a product for you and participate

in your love of quality music and sound. We love what we

do and we’re happy to help. All Bellari products are hand

built in Salt Lake City, Utah by people who care about high

quality music.

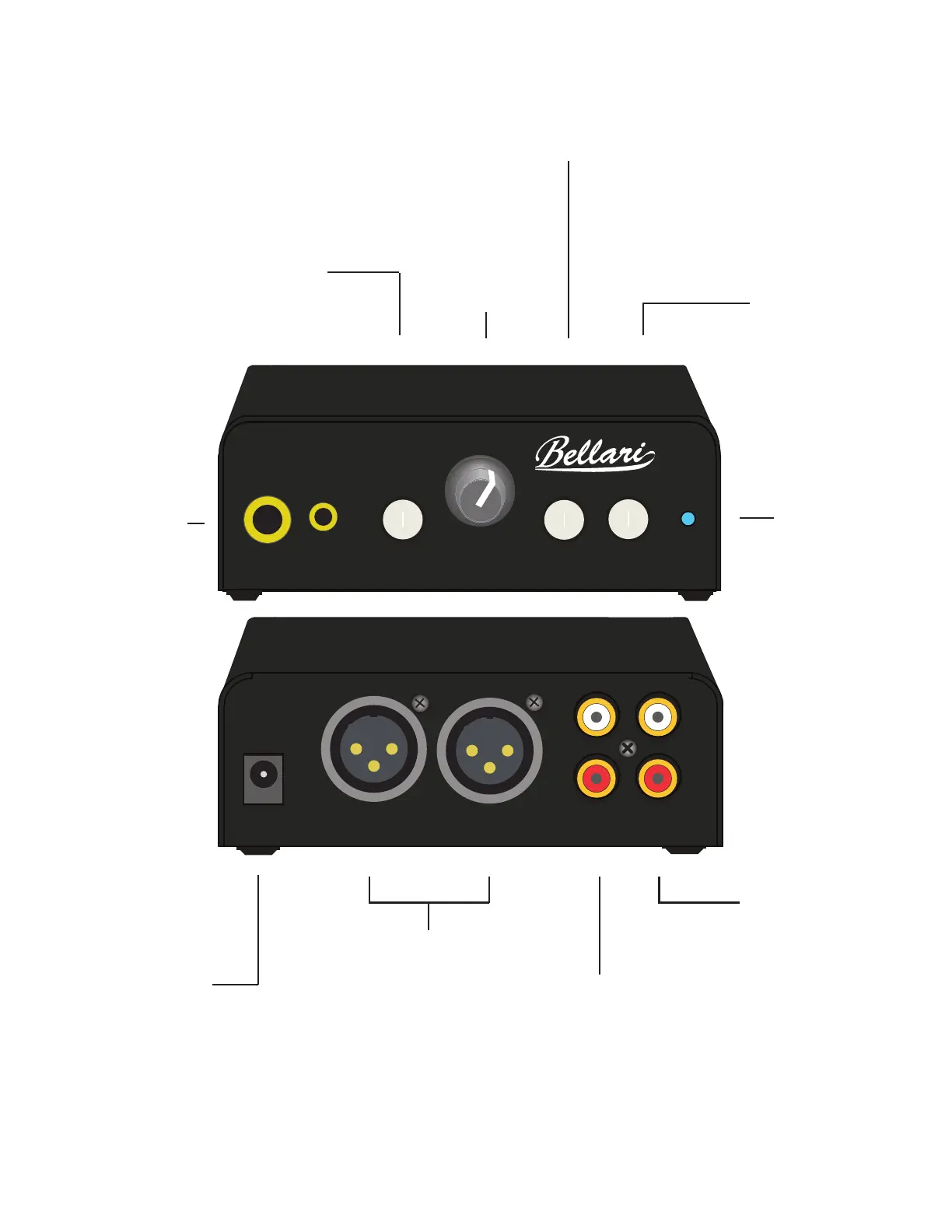

1 - Connect your source to the HA543’s “in” RCA

jack or XLR jacks.

2 - Connect the supplied PS27s adapter to the

jack labeled “POWER.” Do not use any other

adapter, or the unit might not be happy and you would need

some repair work done. Reversed polarity adapters will

cause damage.

3 - Optional: Connect the RCA out to

your other equipment (this is also called a pass thru or

preamp out).

4 - Connect your headphones to the jack, marked “head-

phone”. You can use eigther the 1/8” or 1/4” jack or both at

the same time. When using the headphone the RCA “out”

is still active. The “mute” switch will only mute the head-

phones the RCA out is always active.

5 - Use the “enhance” switch to get the desired listening

experince.

6 - Enjoy your music.
