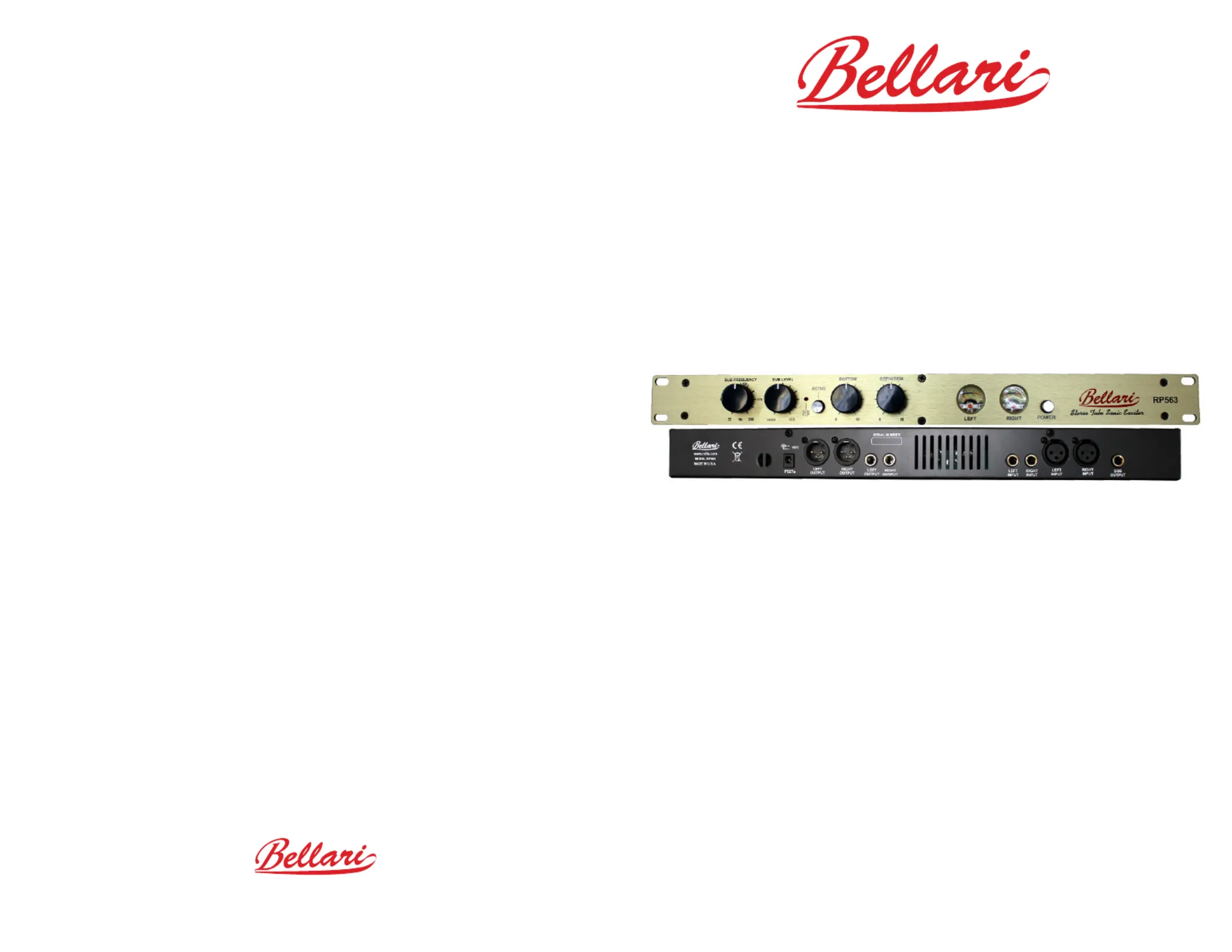

RP563

Stereo Tube

Sonic Exciter

Quick Start Guide

ROLLS CORPORATION

SALT LAKE CITY, UTAH

8/13

SPECIFICATIONS

Frequency Response: 20 Hz - 40 kHz

Input Impedance: 10K balanced - 10K unbalanced

THD + Noise: <0.7% typical

Noise Floor: -78 dB

Subwoofer Slope: -18 dB/Octave

Max. Subwoofer Gain: +20 dB

2: Analog VU Meters: (Ref. +4 dBm)

Input/Output jacks: XLR balanced

1/4”: unbalanced

Dimensions: 1.75” X 6” X 19”

(89mm X 162mm X 482mm)

Weight: 6 lbs. (2.72 Kg)

Power: 100-240VAC 25VA

FRONT PANEL DESCRIPTION

SUB FREQUENCY: Sets the highest frequency allowed out of the Sub

Woofer Outputs. This frequency is adjustable between 35Hz and 200

Hz.

SUB LEVEL: Adjusts the output level of the Sub Woofer Outputs. The

level is adjustable between - innity (o) and a gain of + 20 dB.

SUB CLIP LED: When lit, this LED indicates the signal level is 3 dB

below clipping and there may be distortion in the Sub Woofer circuits.

ACTIVE SWITCH: Engages and disengages the RP563. When

out, the unit is bypassed.

BOTTOM: Controls the low frequency cut/boost (at or no cut/boost is at

about 12 o’clock). There is a 0 to 1/2 turn spectrum spread from midrange

to bass with this control as well as amplitude control.

DEFINITION: Controls the amount of sonic clarity and sound spread.

Setting it on 0 is at response and minimal spread, on 10 is maximum

spread and denition.

LEFT/RIGHT LEVEL METERS: Indicates the output level of each channel.

PWR LED: Indicates that the RP563 is connected to an AC outlet, and

the power is turned on.

POWER SWITCH: Controls the primary power to the RP563.

REAR PANEL DESCRIPTION

DC INPUT JACK: For connection to the supplied power adapter.

RIGHT/LEFT XLR OUTPUTS: Balanced outputs for connection a power

amplier or other equipment with XLR line level capabilities.

RIGHT/LEFT 1/4” OUTPUTS: Unbalanced line level outputs.

LEFT/RIGHT 1/4” INPUTS: Unbalanced inputs for connection (normally)

to the last device in the signal chain before the power amplier.

LEFT/RIGHT XLR INPUTS: Balanced line level inputs.

SUB OUTPUT: 1/4” unbalanced output for connection to the Sub Woofer

power amplier.

OPERATION

STEREO CONNECTION

We recommend you put the RP563 last in the signal chain. If you have

an EQ or other processor after your mixer’s main outputs, use the RP563

between it and your power amplier.

If you are connecting the RP563 into a home stereo system, insert the

Sonic Exciter between your signal sources such as tuners, DVD

players, CD players etc. and the power amplier.

CAUTION: TO AVOID POSSIBLE SPEAKER OR AMPLIFIER DAMAGE,

ALWAYS TURN ON THE RP563 AND OTHER PERIPHERAL EQUIPMENT

BEFORE TURNING ON THE POWER AMPLIFIERS. ALSO

TURN OFF THE POWER AMPLIFIERS FIRST, BEFORE TURNING

OFF THE RP563 AND OTHER EQUIPMENT.

The RP563 Stereo Tube Sonic Exciter is a two channel frequency compen-

sation device designed to add life and animation to your sound.

WHAT IS A SONIC EXCITER, AND WHY USE TUBES?

The frequency range that a human ear can detect is roughly 20Hz to

20kHz. However, the frequency response a normal speaker can eectively

reproduce is much, less. Additionally, speakers add distortion

and phase changes that make the sound dierent from that of the

original material.

A sonic exciter restores clarity and presence to the processed signal by

correcting phase changes and harmonic structure dierences. In other

words, it puts the components of the sound back where they belong.

Using a vacuum tube circuit in this conguration not only restores the

clarity lost in previous processes, it adds warmth and a slightly com-

pressed attribute to the program material. This addition to the sonic

exciter process makes the nal sound even larger, cleaner, and clearer.

All of this is done by the use of all-pass ltering, frequency compensated

gain adjustment, and frequency compensated domain delay. What this

means is the elements of sound are fanned out like a deck of cards, mak-

ing each sound more audible and distinct, reducing the need for higher

volumes and radical equalizer adjustment. Because of the unique tube

design, the RP563 also has the benet of natural tube compression. This

makes a more realistic and pleasing sound. With the all class “A” design,

there is enhanced second harmonic content, making the RP563 smooth

and musical.
